Left plots: red are targets, blue are telluric. Observed mags are calculated from median value of green chip. Zeropoint gives overall throughput: bigger number is more throughput.
First spatial plots: circles are objects, squares are tellurics, crosses are sky fibers. Colors give deviation of observed mag from expected 2MASS mag using the median zeropoint; red is brighter

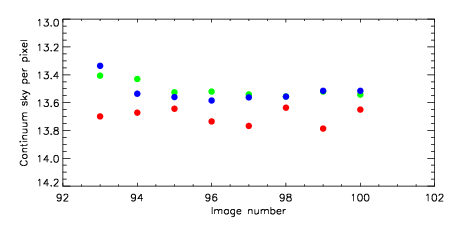

Second spatial plots: circles are sky fibers. Colors give sky line brightness relative to plate median sky line brightness

Frame	Nreads	Zeropoints	Mag plots	Spatial mag deviation	Spatial sky 16325A emission deviations (filled: sky, open: star)	Spatial sky continuum emission	Spatial sky telluric CO2 absorption deviations (filled: H < 10)
8470093	47	Red Green Blue z 17.94 znorm 13.76 sky 13.7 13.4 13.3 S/N 9.3 13.8 14.5 S/N(c) 8.1 12.6 13.3 SN(E/C) 1.00
8470094	47	Red Green Blue z 17.83 znorm 13.65 sky 13.7 13.4 13.5 S/N 8.6 12.9 14.0 S/N(c) 7.6 12.0 12.7 SN(E/C) 1.01
8470095	47	Red Green Blue z 17.77 znorm 13.59 sky 13.6 13.5 13.6 S/N 8.3 12.6 13.2 S/N(c) 7.2 11.4 12.0 SN(E/C) 1.03
8470096	47	Red Green Blue z 18.01 znorm 13.83 sky 13.7 13.5 13.6 S/N 9.6 14.5 15.1 S/N(c) 8.5 13.3 13.9 SN(E/C) 0.99
8470097	47	Red Green Blue z 18.20 znorm 14.02 sky 13.8 13.5 13.6 S/N 10.8 16.2 17.0 S/N(c) 9.8 14.8 15.6 SN(E/C) 0.99
8470098	47	Red Green Blue z 18.45 znorm 14.27 sky 13.6 13.6 13.6 S/N 12.6 18.5 19.5 S/N(c) 11.5 17.1 18.0 SN(E/C) 0.97
8470099	47	Red Green Blue z 18.24 znorm 14.06 sky 13.8 13.5 13.5 S/N 11.2 16.5 17.3 S/N(c) 9.9 15.0 16.0 SN(E/C) 1.00
8470100	47	Red Green Blue z 18.49 znorm 14.31 sky 13.7 13.5 13.5 S/N 13.0 19.0 19.9 S/N(c) 11.8 17.4 18.3 SN(E/C) 0.98
