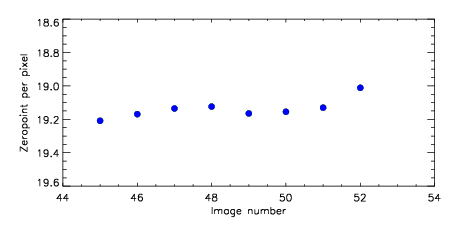

Left plots: red are targets, blue are telluric. Observed mags are calculated from median value of green chip. Zeropoint gives overall throughput: bigger number is more throughput.
First spatial plots: circles are objects, squares are tellurics, crosses are sky fibers. Colors give deviation of observed mag from expected 2MASS mag using the median zeropoint; red is brighter
Second spatial plots: circles are sky fibers. Colors give sky line brightness relative to plate median sky line brightness

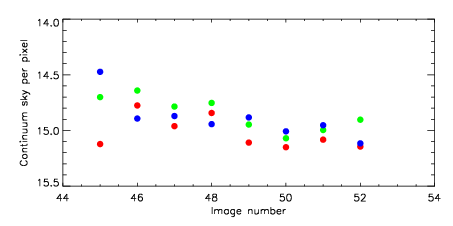

Frame	Nreads	Zeropoints	Mag plots	Spatial mag deviation	Spatial sky 16325A emission deviations (filled: sky, open: star)	Spatial sky continuum emission	Spatial sky telluric CO2 absorption deviations (filled: H < 10)
3430045	47	Red Green Blue z 19.21 znorm 15.03 sky 15.1 14.7 14.5 S/N 17.7 28.1 30.0 S/N(c) 15.5 26.2 28.4 SN(E/C) 0.91
3430046	47	Red Green Blue z 19.17 znorm 14.99 sky 14.8 14.6 14.9 S/N 16.9 27.6 29.7 S/N(c) 15.1 25.7 28.1 SN(E/C) 0.91
3430047	47	Red Green Blue z 19.14 znorm 14.95 sky 15.0 14.8 14.9 S/N 16.6 27.3 29.1 S/N(c) 14.8 25.8 27.8 SN(E/C) 0.92
3430048	47	Red Green Blue z 19.12 znorm 14.94 sky 14.8 14.8 14.9 S/N 16.2 27.2 28.6 S/N(c) 14.5 25.4 27.4 SN(E/C) 0.95
3430049	47	Red Green Blue z 19.16 znorm 14.98 sky 15.1 14.9 14.9 S/N 16.3 27.5 29.3 S/N(c) 14.5 25.5 27.6 SN(E/C) 0.93
3430050	47	Red Green Blue z 19.15 znorm 14.97 sky 15.2 15.1 15.0 S/N 16.5 27.2 29.5 S/N(c) 14.6 25.6 27.7 SN(E/C) 0.95
3430051	47	Red Green Blue z 19.13 znorm 14.95 sky 15.1 15.0 15.0 S/N 16.2 26.9 29.0 S/N(c) 14.4 25.4 27.3 SN(E/C) 0.94
3430052	47	Red Green Blue z 19.01 znorm 14.83 sky 15.1 14.9 15.1 S/N 15.1 25.0 27.1 S/N(c) 13.1 23.2 25.6 SN(E/C) 0.94
