Left plots: red are targets, blue are telluric. Observed mags are calculated from median value of green chip. Zeropoint gives overall throughput: bigger number is more throughput.
First spatial plots: circles are objects, squares are tellurics, crosses are sky fibers. Colors give deviation of observed mag from expected 2MASS mag using the median zeropoint; red is brighter
Second spatial plots: circles are sky fibers. Colors give sky line brightness relative to plate median sky line brightness

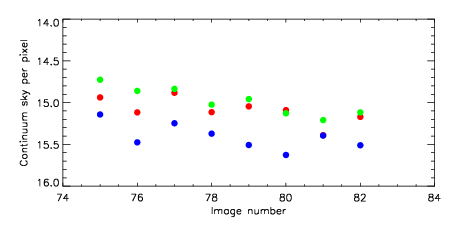

Frame	Nreads	Zeropoints	Mag plots	Spatial mag deviation	Spatial sky 16325A emission deviations (filled: sky, open: star)	Spatial sky continuum emission	Spatial sky telluric CO2 absorption deviations (filled: H < 10)
2870075	47	Red Green Blue z 19.01 znorm 14.83 sky 14.9 14.7 15.1 S/N 14.6 24.0 27.1 S/N(c) 13.3 22.7 26.3 SN(E/C) 0.90
2870076	47	Red Green Blue z 18.96 znorm 14.78 sky 15.1 14.9 15.5 S/N 14.1 23.4 26.0 S/N(c) 12.8 22.1 24.9 SN(E/C) 0.92
2870077	47	Red Green Blue z 18.97 znorm 14.79 sky 14.9 14.8 15.2 S/N 13.8 23.3 25.8 S/N(c) 12.6 22.1 25.0 SN(E/C) 0.92
2870078	47	Red Green Blue z 18.78 znorm 14.60 sky 15.1 15.0 15.4 S/N 12.0 21.2 23.4 S/N(c) 10.7 20.0 22.7 SN(E/C) 0.96
2870079	47	Red Green Blue z 18.78 znorm 14.60 sky 15.0 15.0 15.5 S/N 12.4 21.2 23.6 S/N(c) 11.2 20.1 22.9 SN(E/C) 0.90
2870080	47	Red Green Blue z 18.71 znorm 14.53 sky 15.1 15.1 15.6 S/N 11.3 20.0 22.3 S/N(c) 10.2 18.8 21.6 SN(E/C) 0.92
2870081	47	Red Green Blue z 18.91 znorm 14.73 sky 15.4 15.2 15.4 S/N 13.3 22.7 24.1 S/N(c) 12.1 21.5 23.1 SN(E/C) 0.91
2870082	47	Red Green Blue z 18.94 znorm 14.76 sky 15.2 15.1 15.5 S/N 13.5 23.0 24.3 S/N(c) 12.2 21.9 23.5 SN(E/C) 0.92
