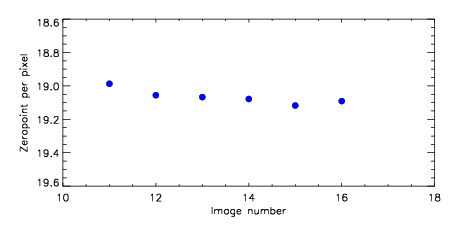

Left plots: red are targets, blue are telluric. Observed mags are calculated from median value of green chip. Zeropoint gives overall throughput: bigger number is more throughput.
First spatial plots: circles are objects, squares are tellurics, crosses are sky fibers. Colors give deviation of observed mag from expected 2MASS mag using the median zeropoint; red is brighter
Second spatial plots: circles are sky fibers. Colors give sky line brightness relative to plate median sky line brightness

Frame	Nreads	Zeropoints	Mag plots	Spatial mag deviation	Spatial sky 16325A emission deviations (filled: sky, open: star)	Spatial sky continuum emission	Spatial sky telluric CO2 absorption deviations (filled: H < 10)
10030011	47	Red Green Blue z 18.99 znorm 14.81 sky 14.7 14.2 13.9 S/N 14.7 23.6 23.6 S/N(c) 12.5 21.4 22.0 SN(E/C) 0.94
10030012	47	Red Green Blue z 19.06 znorm 14.88 sky 14.5 14.2 14.1 S/N 14.9 24.3 25.2 S/N(c) 12.9 22.2 23.3 SN(E/C) 0.93
10030013	47	Red Green Blue z 19.07 znorm 14.89 sky 14.5 14.2 14.1 S/N 14.9 24.8 25.6 S/N(c) 13.2 22.5 23.5 SN(E/C) 0.94
10030014	47	Red Green Blue z 19.08 znorm 14.90 sky 14.5 14.2 14.1 S/N 15.1 24.6 25.1 S/N(c) 13.2 22.4 23.1 SN(E/C) 0.94
10030015	47	Red Green Blue z 19.12 znorm 14.94 sky 14.4 14.2 14.1 S/N 15.1 25.1 25.9 S/N(c) 13.6 23.0 23.9 SN(E/C) 0.89
10030016	47	Red Green Blue z 19.09 znorm 14.91 sky 14.6 14.2 14.1 S/N 15.3 25.0 25.5 S/N(c) 13.3 22.8 23.9 SN(E/C) 0.90
