Left plots: red are targets, blue are telluric. Observed mags are calculated from median value of green chip. Zeropoint gives overall throughput: bigger number is more throughput.
First spatial plots: circles are objects, squares are tellurics, crosses are sky fibers. Colors give deviation of observed mag from expected 2MASS mag using the median zeropoint; red is brighter
Second spatial plots: circles are sky fibers. Colors give sky line brightness relative to plate median sky line brightness

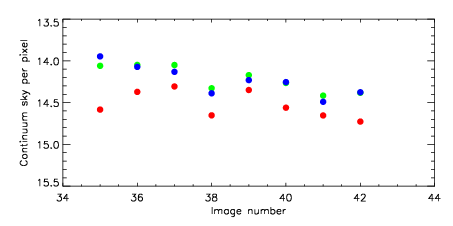

Frame	Nreads	Zeropoints	Mag plots	Spatial mag deviation	Spatial sky 16325A emission deviations (filled: sky, open: star)	Spatial sky continuum emission	Spatial sky telluric CO2 absorption deviations (filled: H < 10)
10820035	47	Red Green Blue z 18.88 znorm 14.69 sky 14.6 14.1 13.9 S/N 14.2 22.7 25.3 S/N(c) 11.9 21.3 23.0 SN(E/C) 0.88
10820036	47	Red Green Blue z 18.72 znorm 14.53 sky 14.4 14.0 14.1 S/N 12.6 20.8 22.1 S/N(c) 10.6 18.3 20.5 SN(E/C) 0.85
10820037	47	Red Green Blue z 18.74 znorm 14.56 sky 14.3 14.0 14.1 S/N 13.2 21.2 23.0 S/N(c) 11.0 18.9 21.4 SN(E/C) 0.92
10820038	47	Red Green Blue z 18.91 znorm 14.73 sky 14.7 14.3 14.4 S/N 14.7 23.7 25.5 S/N(c) 12.5 21.2 23.8 SN(E/C) 0.89
10820039	47	Red Green Blue z 18.93 znorm 14.75 sky 14.3 14.2 14.2 S/N 14.4 23.8 25.2 S/N(c) 12.1 21.5 23.5 SN(E/C) 0.86
10820040	47	Red Green Blue z 18.90 znorm 14.72 sky 14.6 14.3 14.3 S/N 14.4 23.5 25.1 S/N(c) 12.2 20.9 23.5 SN(E/C) 0.88
10820041	47	Red Green Blue z 19.13 znorm 14.95 sky 14.7 14.4 14.5 S/N 16.7 27.0 29.0 S/N(c) 14.2 24.9 26.9 SN(E/C) 0.84
10820042	47	Red Green Blue z 19.04 znorm 14.86 sky 14.7 14.4 14.4 S/N 15.5 25.7 27.3 S/N(c) 13.1 23.4 25.3 SN(E/C) 0.86
