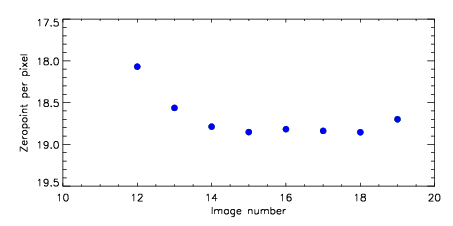

Left plots: red are targets, blue are telluric. Observed mags are calculated from median value of green chip. Zeropoint gives overall throughput: bigger number is more throughput.
First spatial plots: circles are objects, squares are tellurics, crosses are sky fibers. Colors give deviation of observed mag from expected 2MASS mag using the median zeropoint; red is brighter

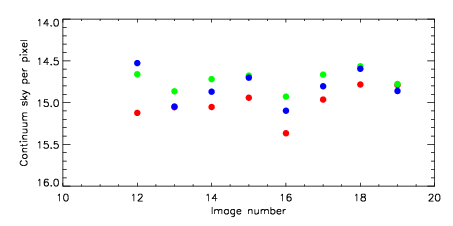

Second spatial plots: circles are sky fibers. Colors give sky line brightness relative to plate median sky line brightness

Frame	Nreads	Zeropoints	Mag plots	Spatial mag deviation	Spatial sky 16325A emission deviations (filled: sky, open: star)	Spatial sky continuum emission	Spatial sky telluric CO2 absorption deviations (filled: H < 10)
11340012	47	Red Green Blue z 18.07 znorm 13.89 sky 15.1 14.7 14.5 S/N 8.1 15.3 15.0 S/N(c) 7.0 14.1 13.7 SN(E/C) 0.95
11340013	47	Red Green Blue z 18.56 znorm 14.38 sky 15.1 14.9 15.0 S/N 11.3 20.2 20.5 S/N(c) 9.7 18.2 19.0 SN(E/C) 0.98
11340014	47	Red Green Blue z 18.79 znorm 14.61 sky 15.1 14.7 14.9 S/N 12.8 22.6 23.2 S/N(c) 11.4 20.6 21.4 SN(E/C) 0.99
11340015	47	Red Green Blue z 18.85 znorm 14.67 sky 14.9 14.7 14.7 S/N 13.3 22.6 23.6 S/N(c) 11.8 21.2 21.6 SN(E/C) 0.99
11340016	47	Red Green Blue z 18.82 znorm 14.64 sky 15.4 14.9 15.1 S/N 13.3 22.7 23.5 S/N(c) 11.8 20.9 21.4 SN(E/C) 1.00
11340017	47	Red Green Blue z 18.84 znorm 14.66 sky 15.0 14.7 14.8 S/N 13.1 22.2 23.6 S/N(c) 11.6 20.7 21.5 SN(E/C) 0.94
11340018	47	Red Green Blue z 18.85 znorm 14.67 sky 14.8 14.6 14.6 S/N 13.0 22.4 23.6 S/N(c) 11.5 20.9 21.4 SN(E/C) 0.98
11340019	47	Red Green Blue z 18.70 znorm 14.52 sky 14.8 14.8 14.9 S/N 11.9 20.7 21.5 S/N(c) 10.5 19.4 19.5 SN(E/C) 1.01
