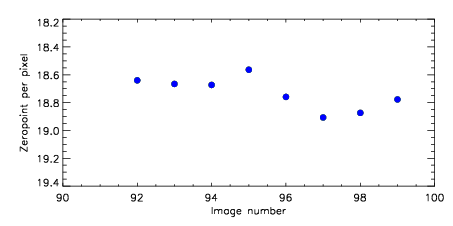

Left plots: red are targets, blue are telluric. Observed mags are calculated from median value of green chip. Zeropoint gives overall throughput: bigger number is more throughput.
First spatial plots: circles are objects, squares are tellurics, crosses are sky fibers. Colors give deviation of observed mag from expected 2MASS mag using the median zeropoint; red is brighter
Second spatial plots: circles are sky fibers. Colors give sky line brightness relative to plate median sky line brightness

Frame	Nreads	Zeropoints	Mag plots	Spatial mag deviation	Spatial sky 16325A emission deviations (filled: sky, open: star)	Spatial sky continuum emission	Spatial sky telluric CO2 absorption deviations (filled: H < 10)
11870092	47	Red Green Blue z 18.64 znorm 14.46 sky 15.1 14.9 14.7 S/N 12.2 19.8 20.8 S/N(c) 10.5 18.2 19.6 SN(E/C) 0.95
11870093	47	Red Green Blue z 18.67 znorm 14.49 sky 15.0 14.9 15.3 S/N 12.4 20.2 21.7 S/N(c) 10.7 19.1 20.1 SN(E/C) 0.94
11870094	47	Red Green Blue z 18.67 znorm 14.49 sky 14.8 14.9 15.2 S/N 12.4 20.2 21.6 S/N(c) 10.8 18.8 20.2 SN(E/C) 0.96
11870095	47	Red Green Blue z 18.56 znorm 14.38 sky 15.0 14.9 15.2 S/N 11.7 19.2 20.6 S/N(c) 9.9 17.9 19.2 SN(E/C) 0.97
11870096	47	Red Green Blue z 18.76 znorm 14.58 sky 14.9 14.9 15.3 S/N 13.1 21.2 22.6 S/N(c) 11.3 19.8 20.9 SN(E/C) 0.93
11870097	47	Red Green Blue z 18.91 znorm 14.73 sky 15.3 15.0 15.2 S/N 14.6 22.8 24.4 S/N(c) 12.7 21.4 22.8 SN(E/C) 0.94
11870098	47	Red Green Blue z 18.87 znorm 14.69 sky 15.1 15.0 15.1 S/N 14.1 22.7 23.8 S/N(c) 12.3 20.9 22.3 SN(E/C) 0.94
11870099	47	Red Green Blue z 18.78 znorm 14.60 sky 15.2 15.1 15.3 S/N 13.3 21.4 22.9 S/N(c) 11.4 19.9 21.3 SN(E/C) 0.96
