Prescribed natural aerosol test¶
Test simulations¶
- Experimental CAM-MPAS model within the CESM2.1 code
- Compset: 2000_CAM50_CLM40%SP_CICE%PRES_DOCN%DOM_RTM_SGLC_SWAV
- CAM5.4 physics
- prescribed aerosol (probably those described in Bacmeister et al, 2014), no chemistry
- Year 1850 aerosol input data (12 monthly values)
- Applies random scaling on each day (a single number for all grid points)
- prescribed aerosol (probably those described in Bacmeister et al, 2014), no chemistry
- CLM4 land model
- MPASv4 dycore
- ~120-km quasi-uniform global grid
- Start from 1950-01-01 and run for one month
- CAM5.4 physics
More details of the model configuration are provided below (atm_in)

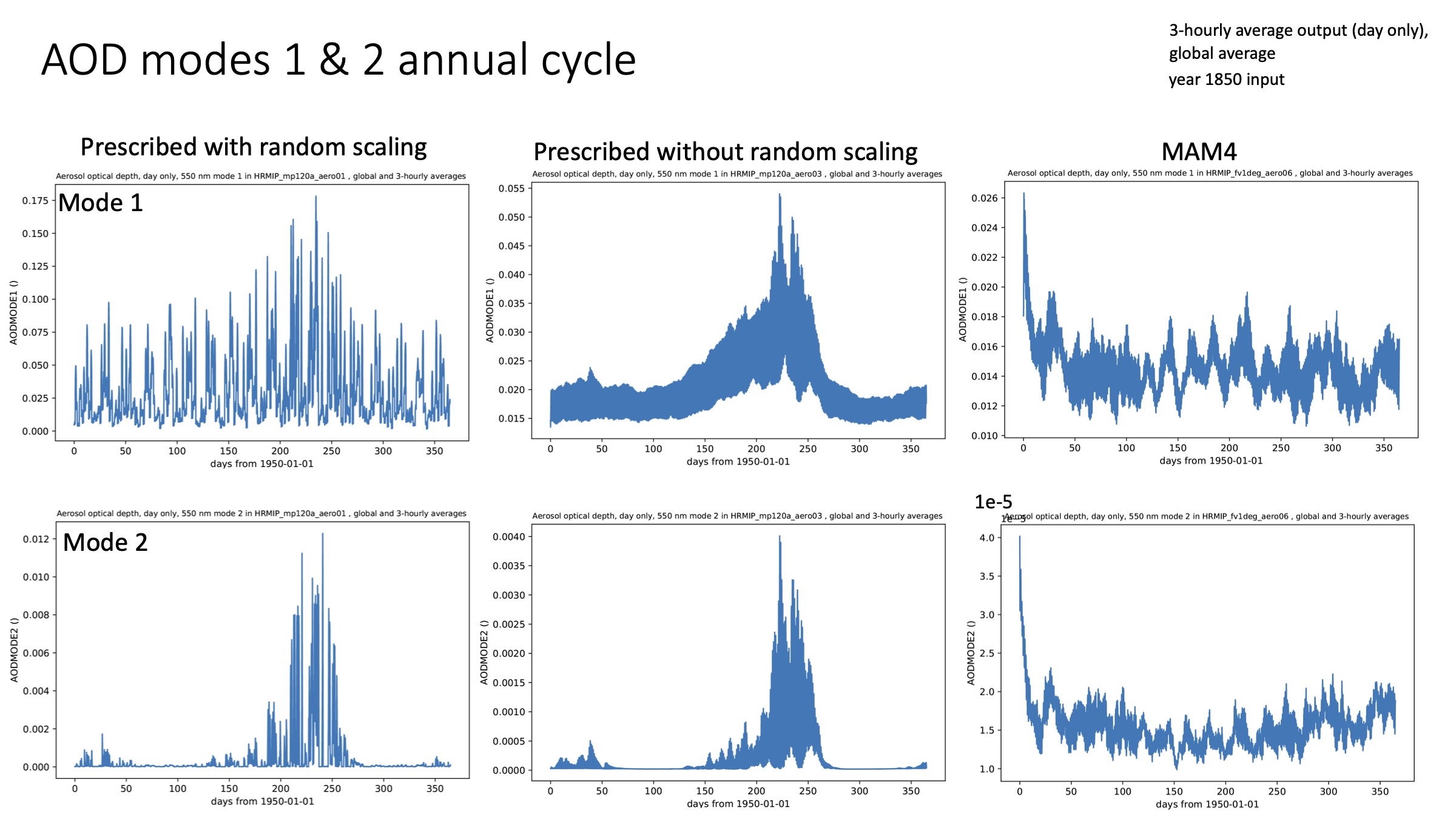

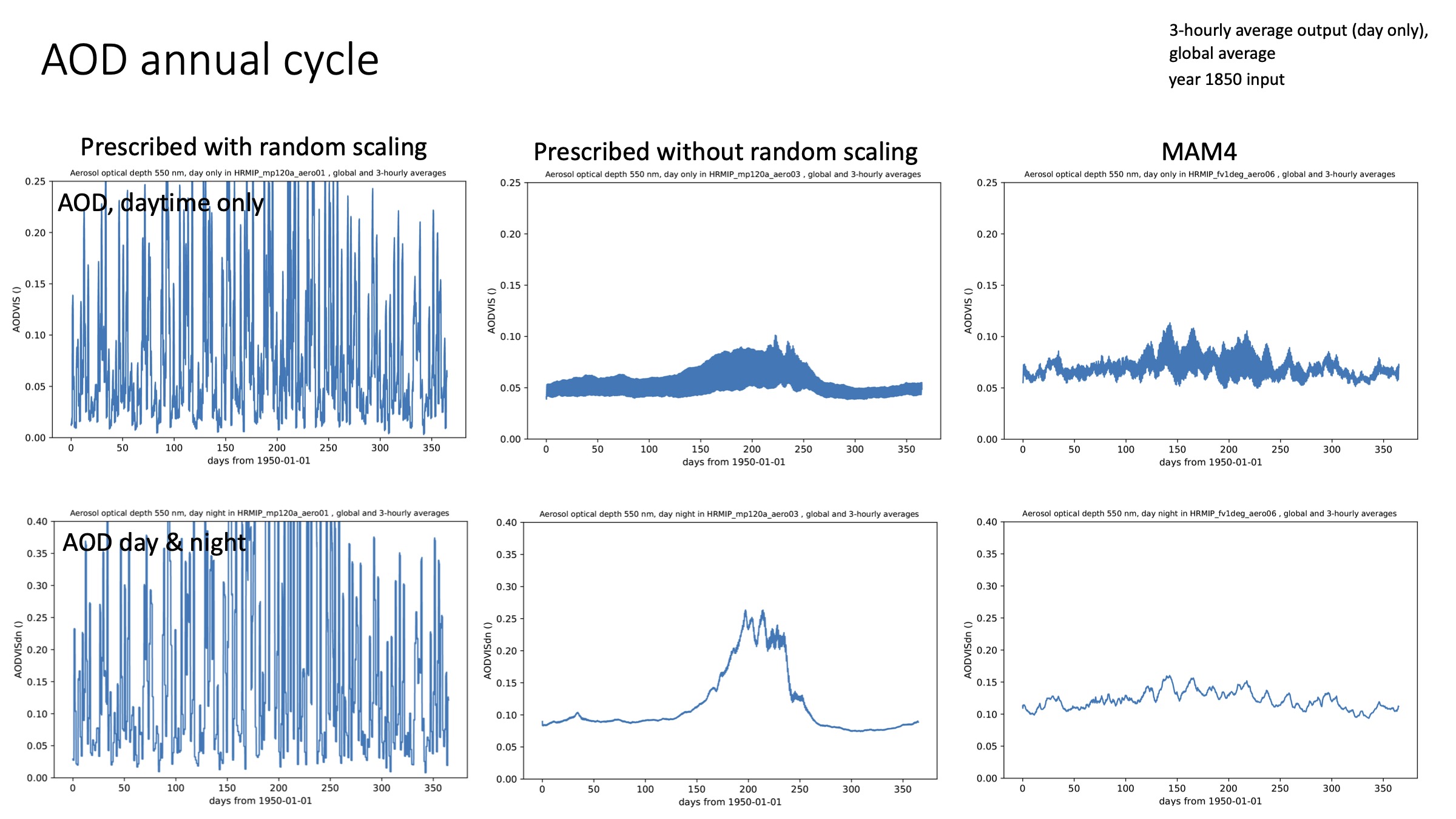

Global, 3-hourly mean aerosol optical depths in year 1950¶

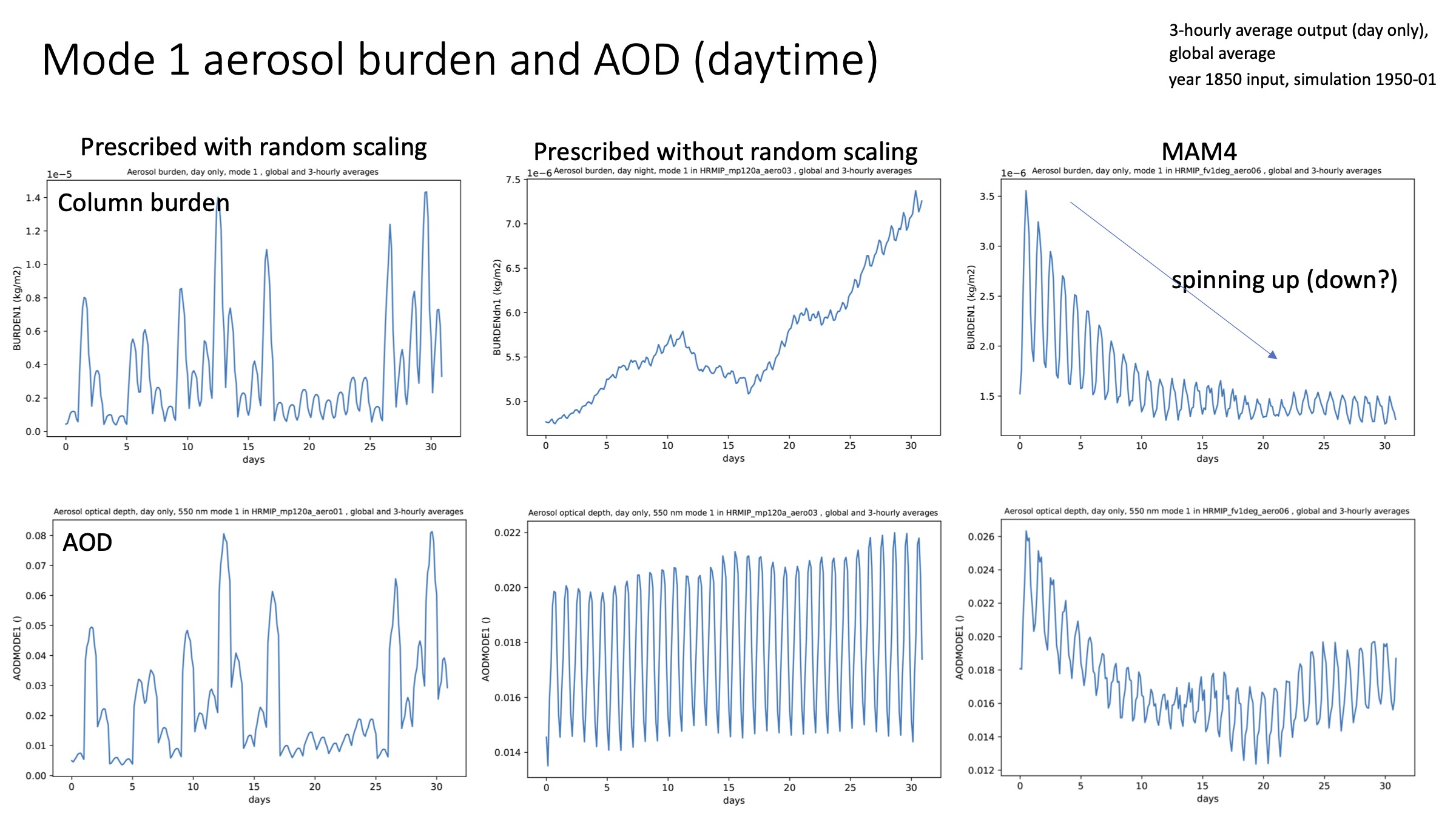

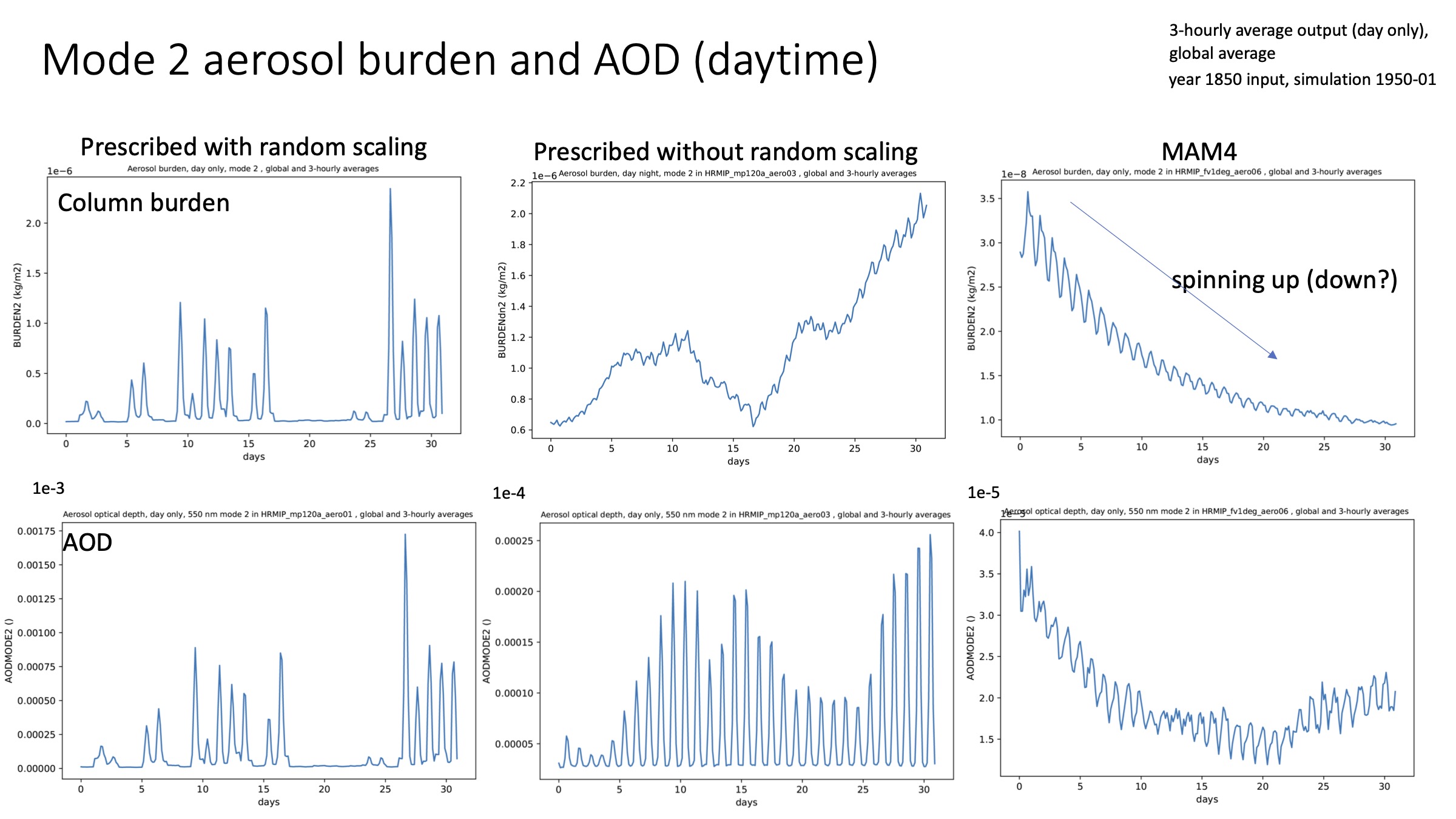

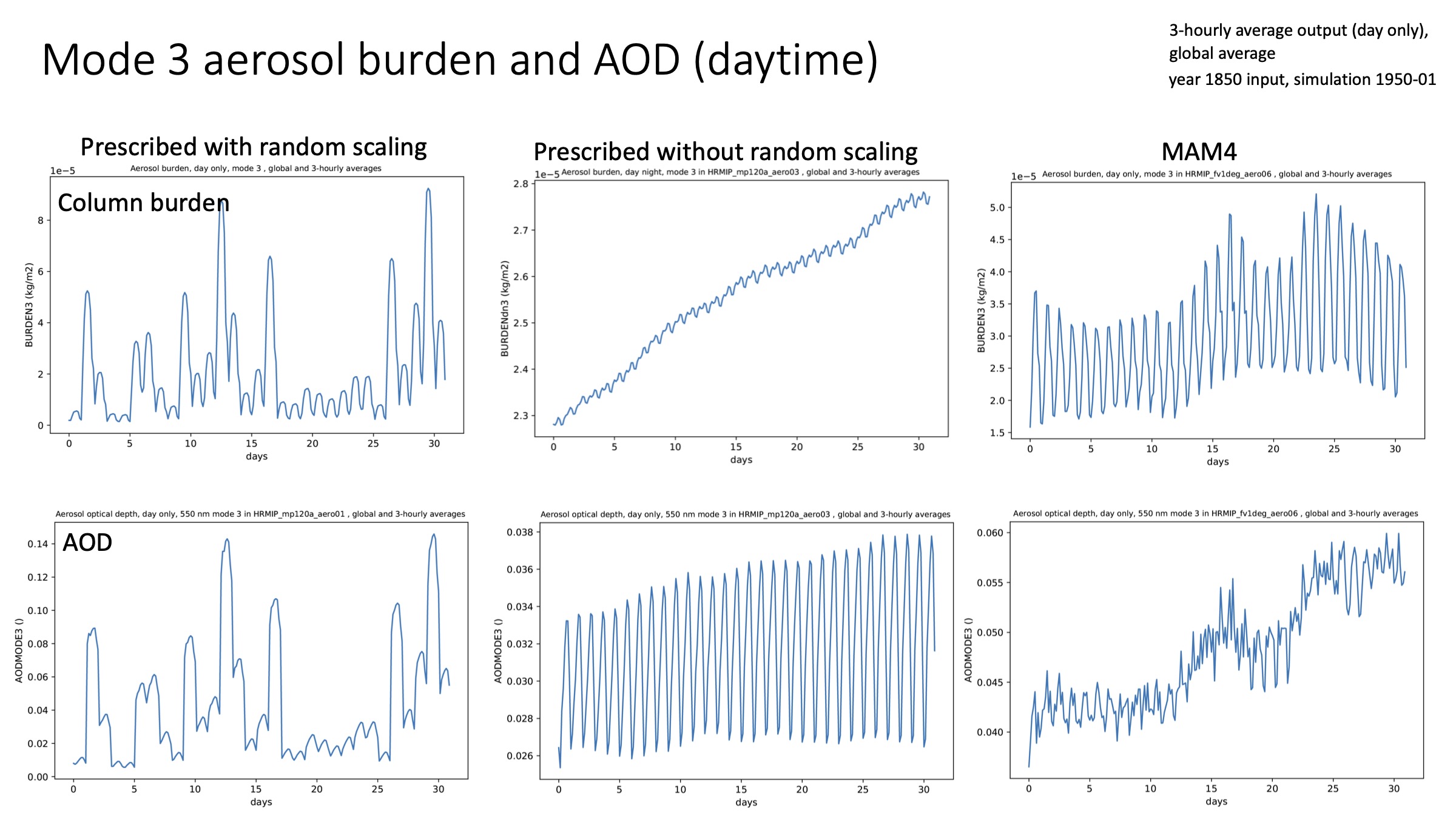

Global, 3-hourly mean aerosol burden and optical depths in January 1950¶

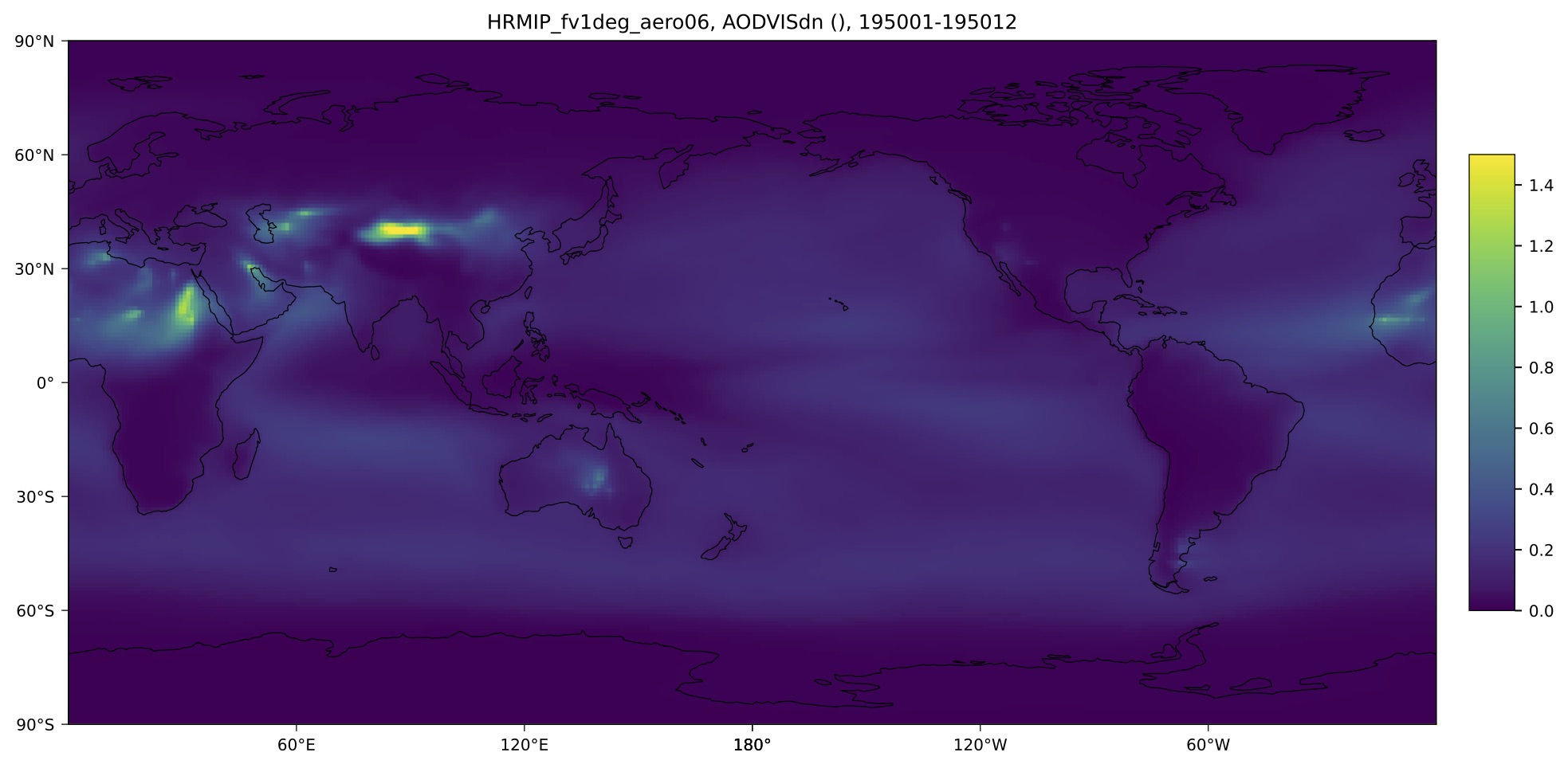

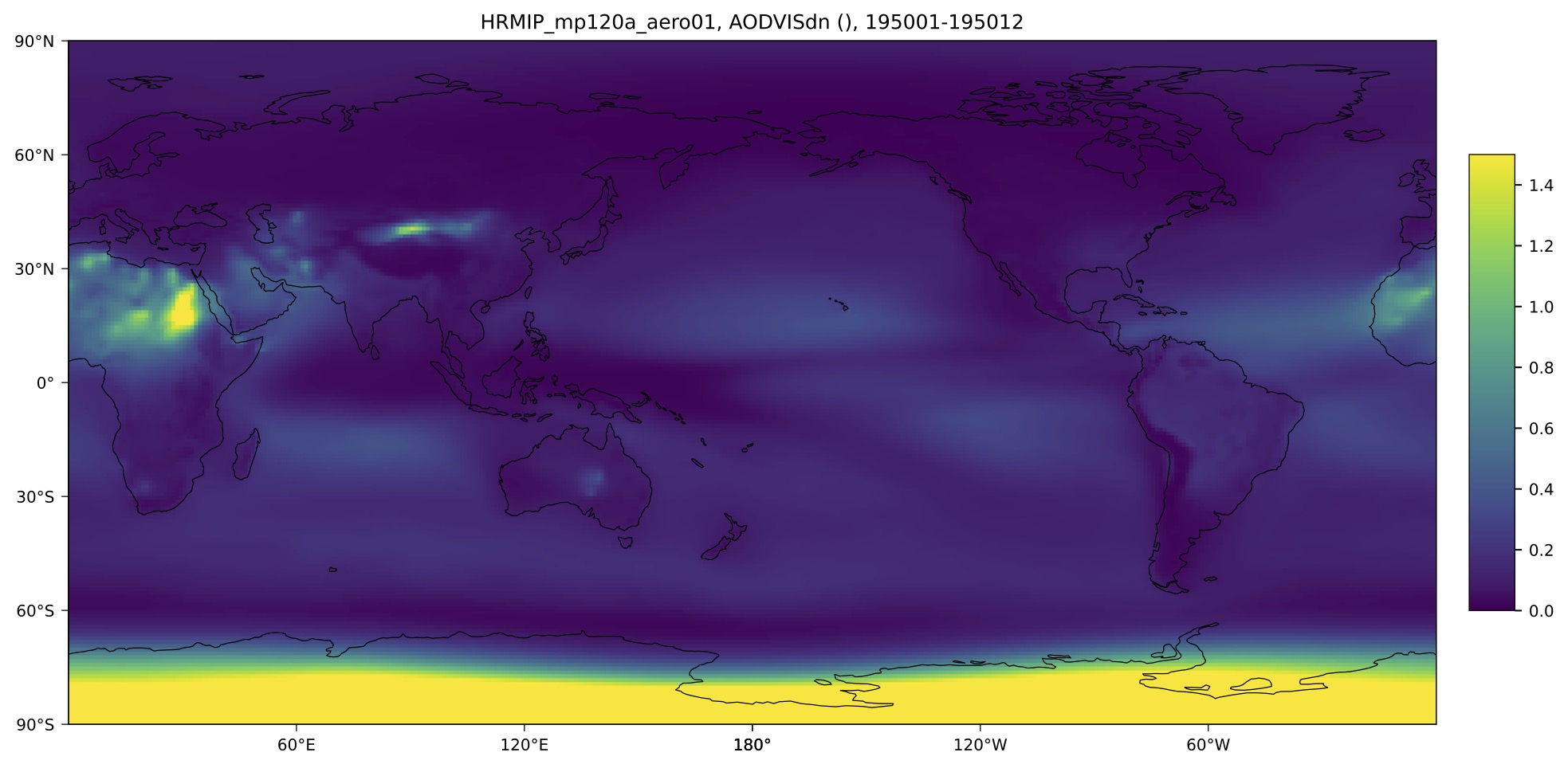

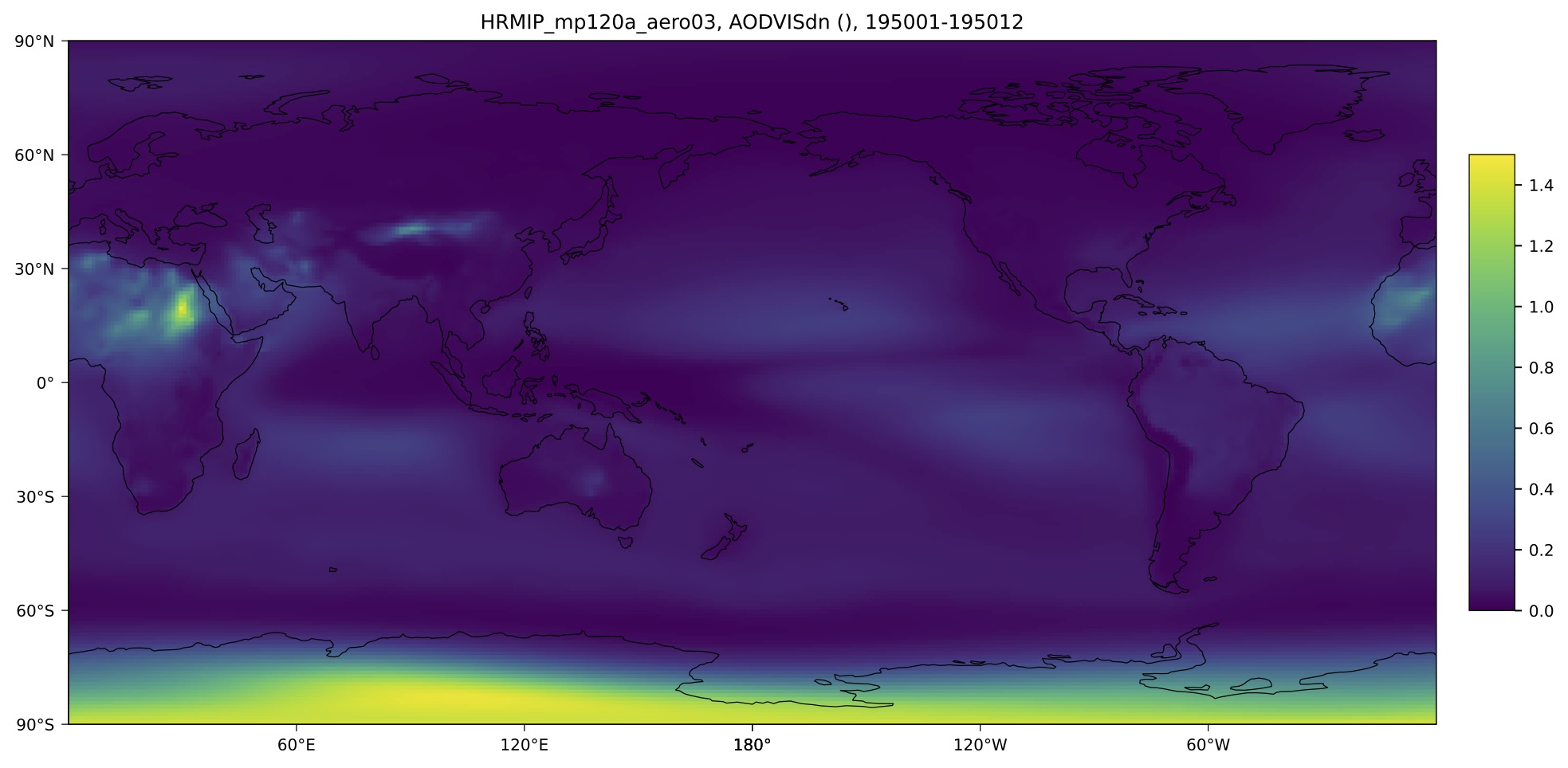

1950-mean AOD spatial distributions¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation
- Not sure why optical depth is so much higher over Antarctica with prescribed aerosol
Spatial patterns of the high-frequency changes in aerosol optical depths¶
- One-month long movies from 3-hourly output (1950-01)
- Average through both day- and night-time hours for each 3-hour window

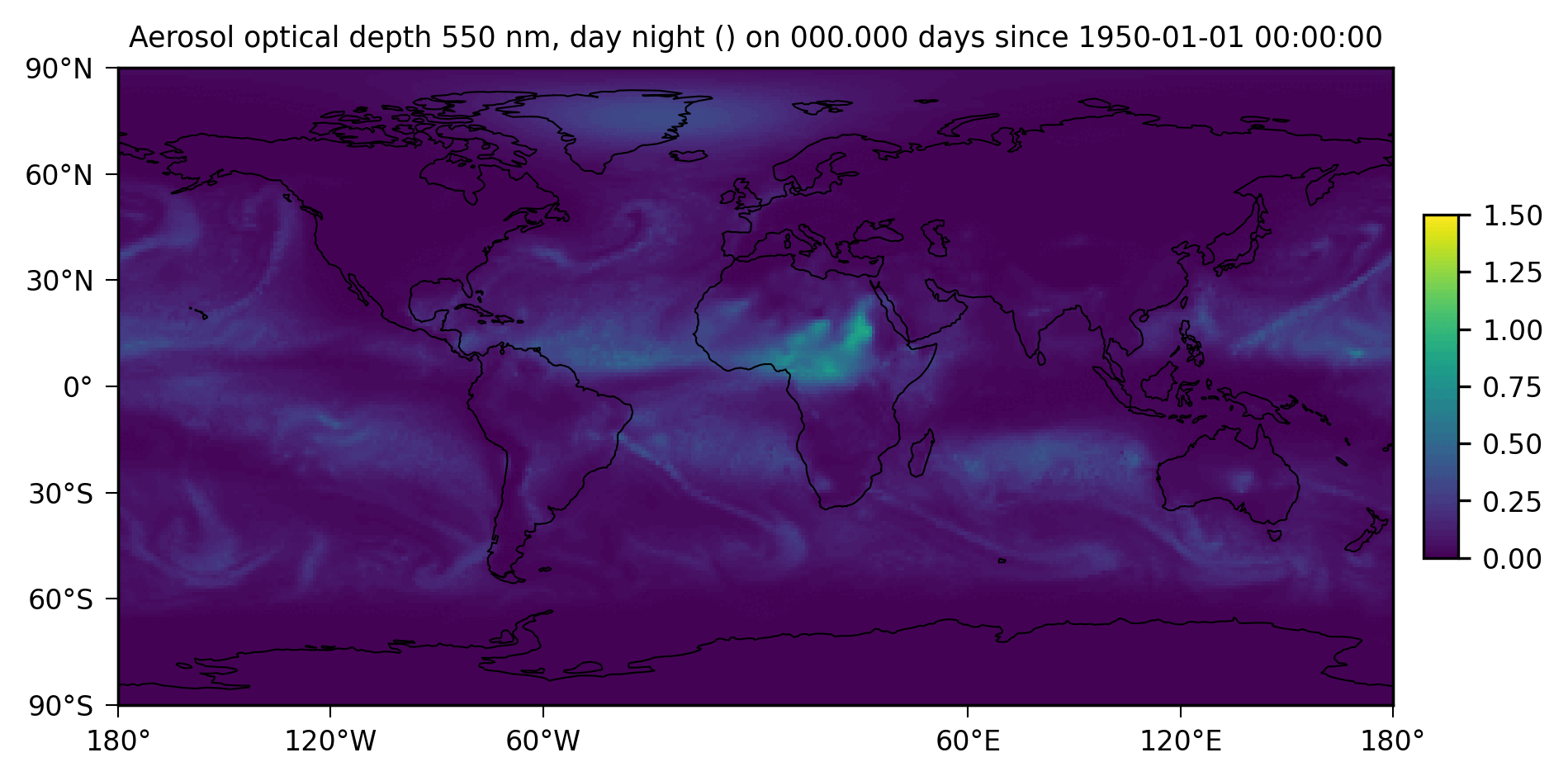

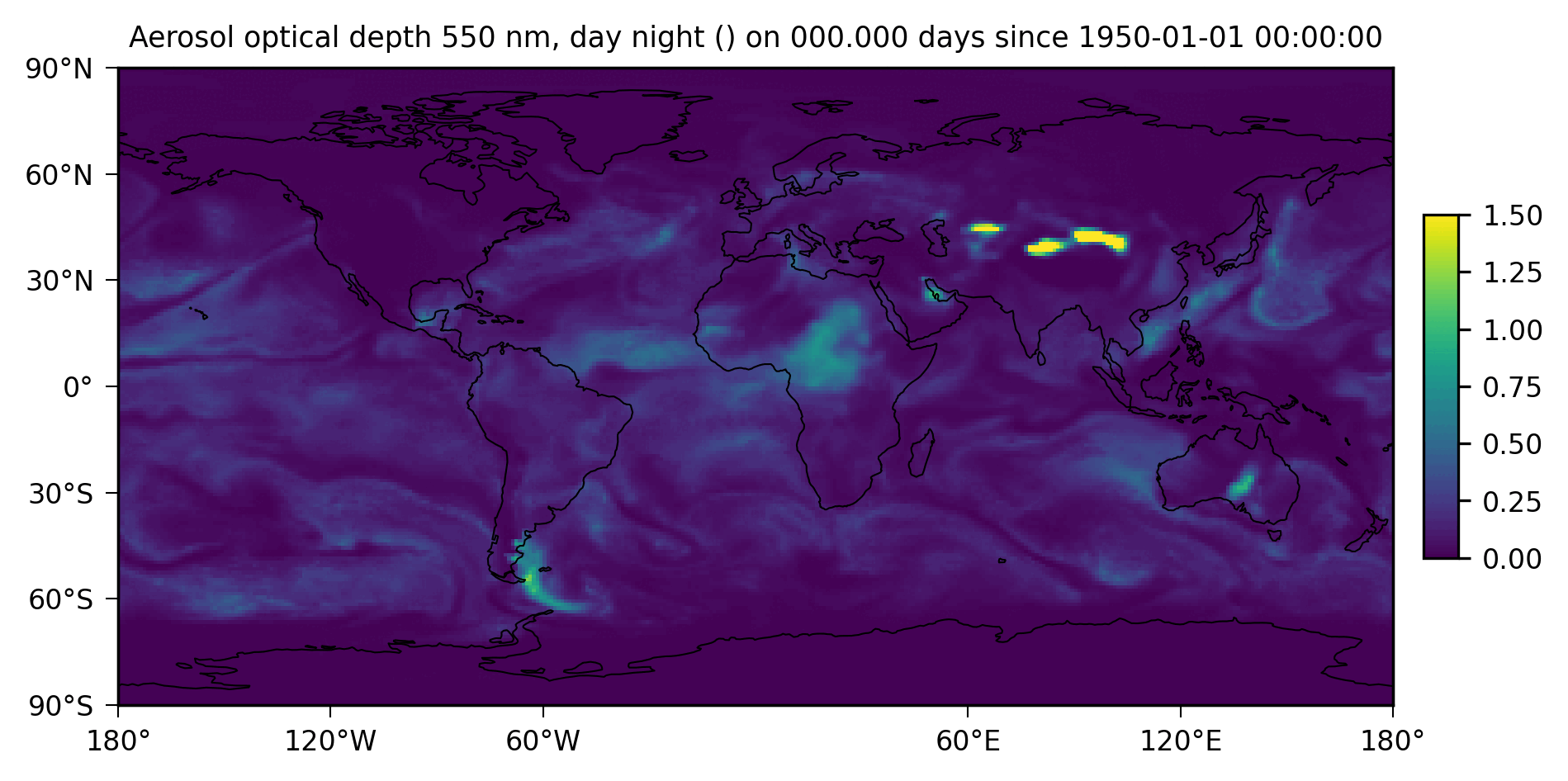

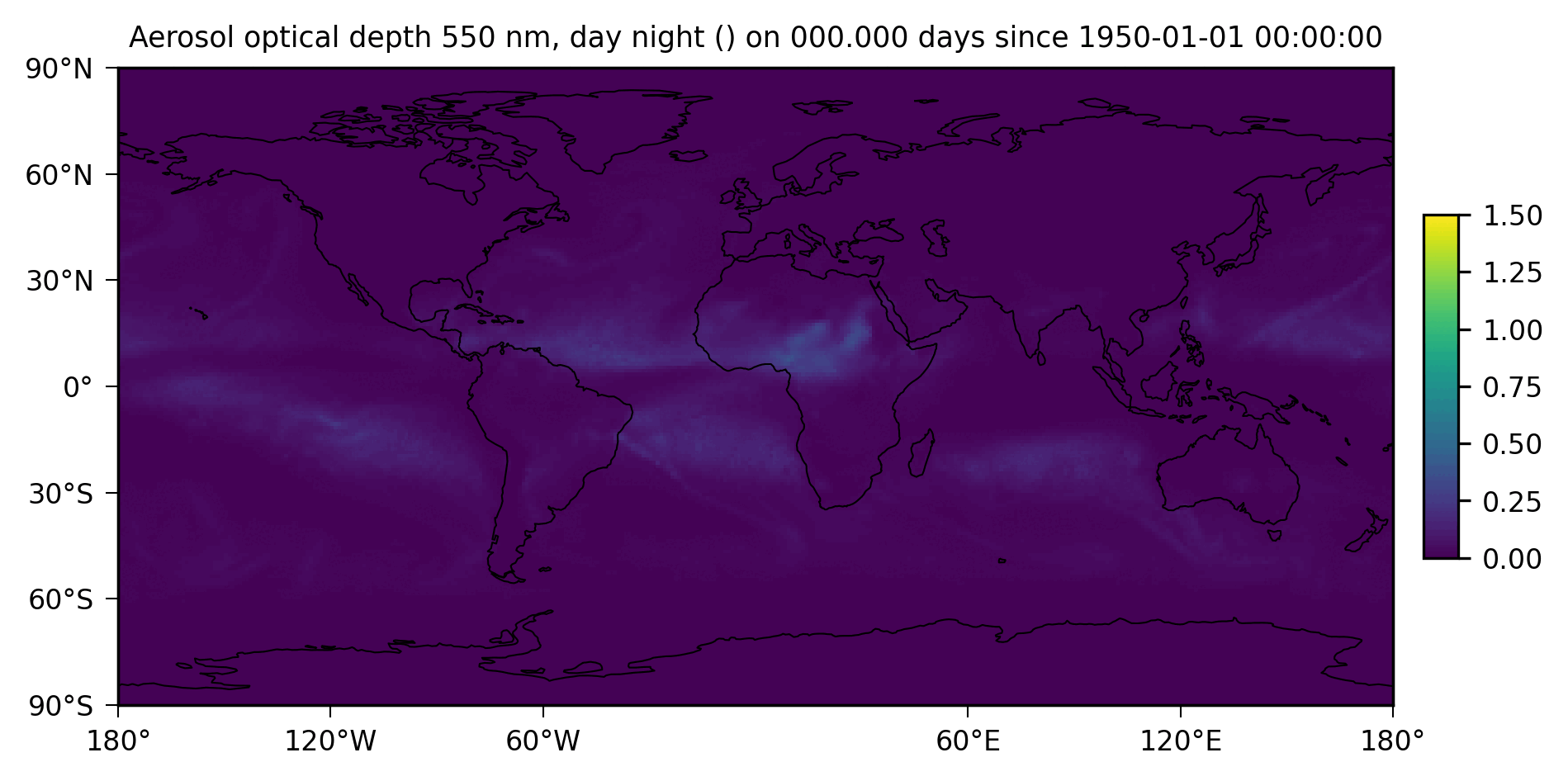

Total aerosol optical depth¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

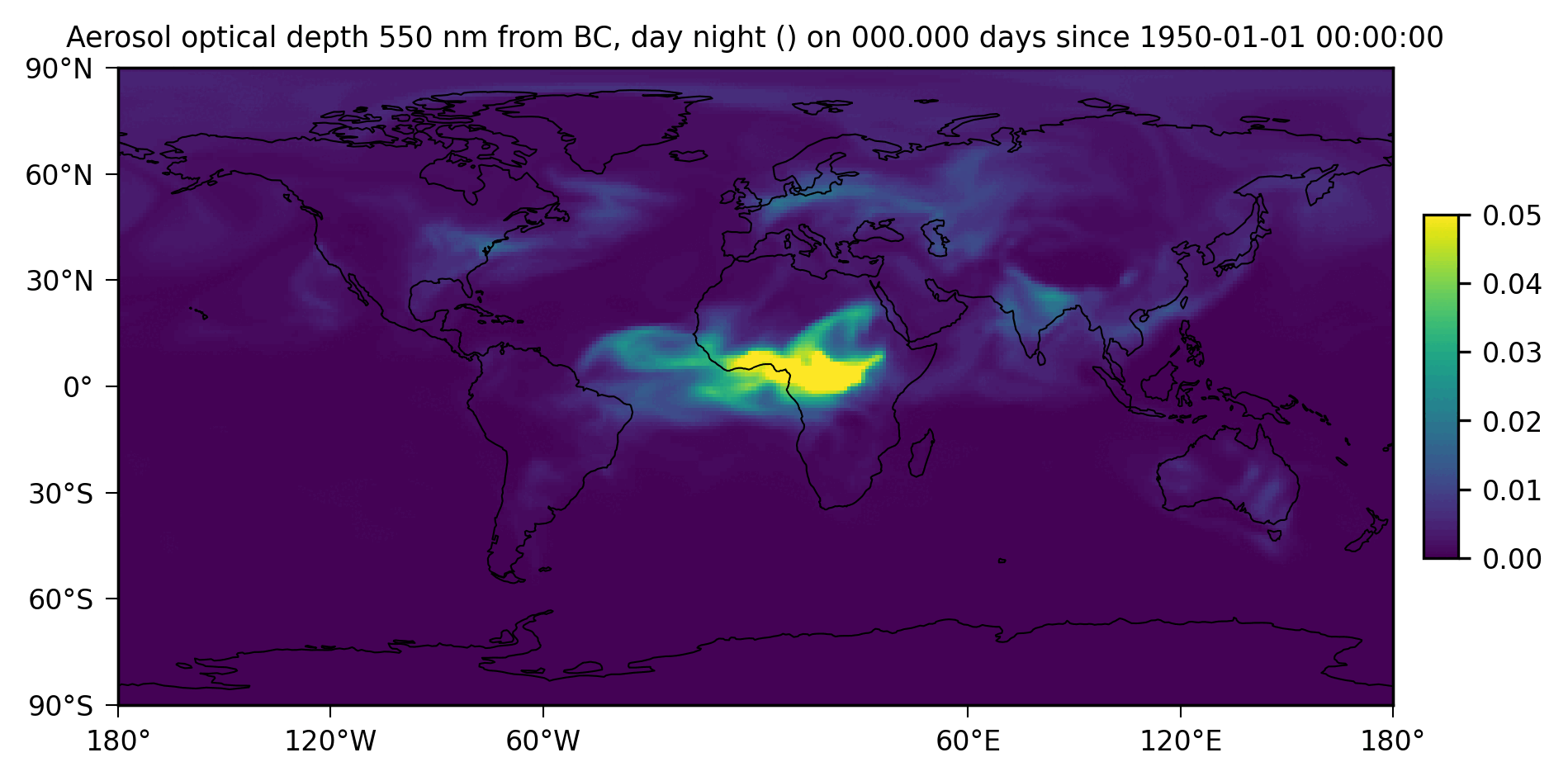

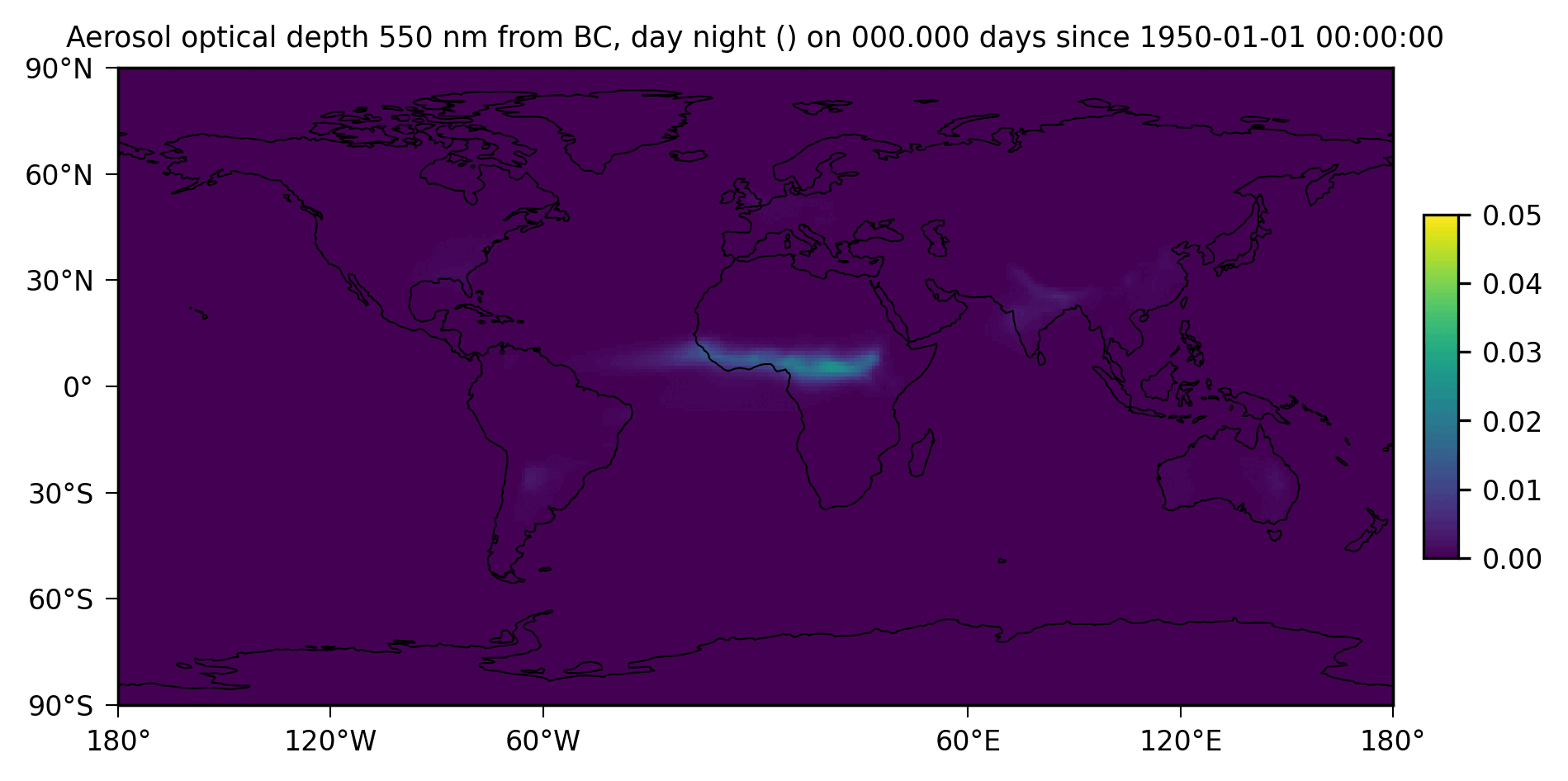

Black Carbon¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

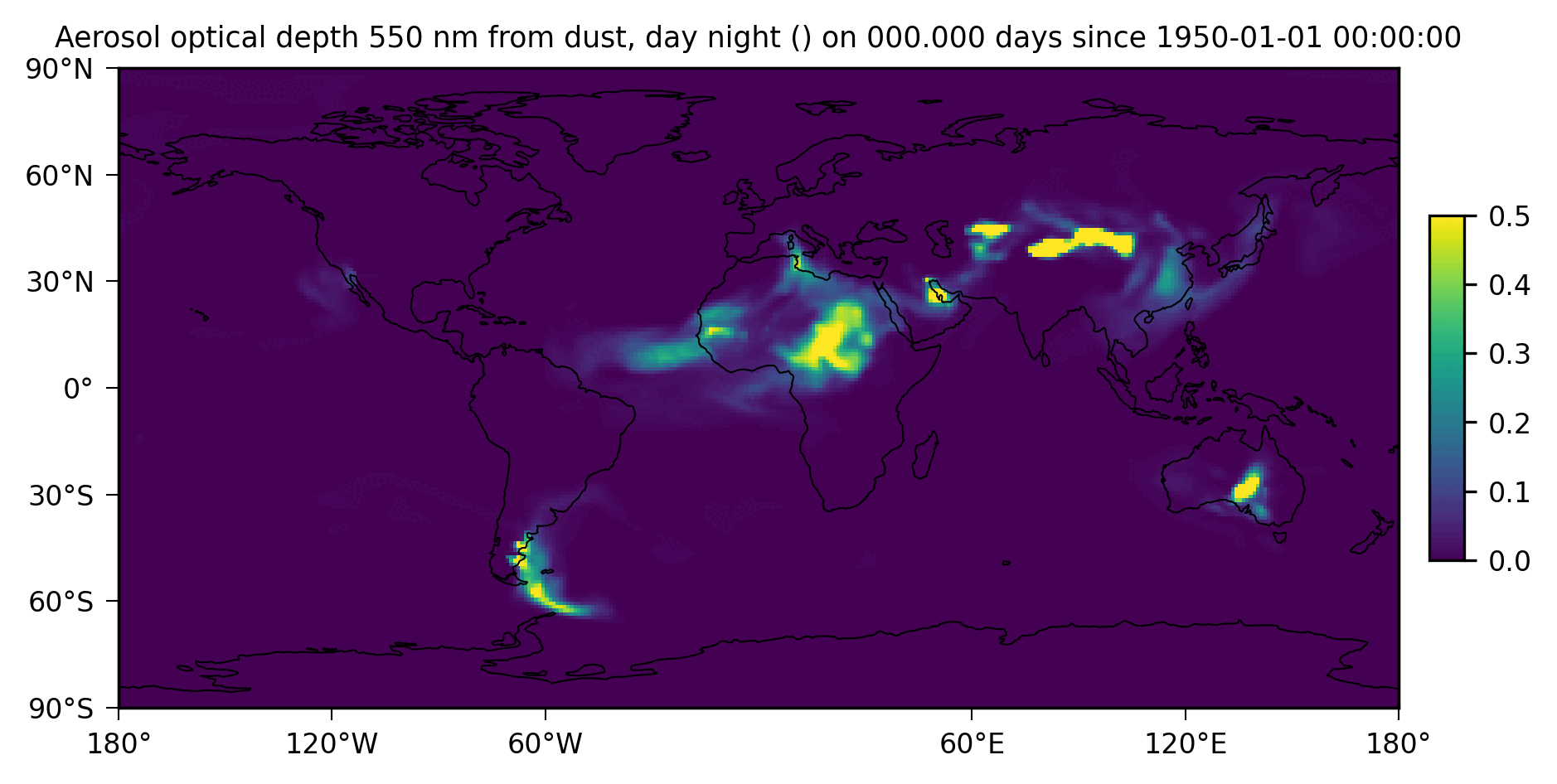

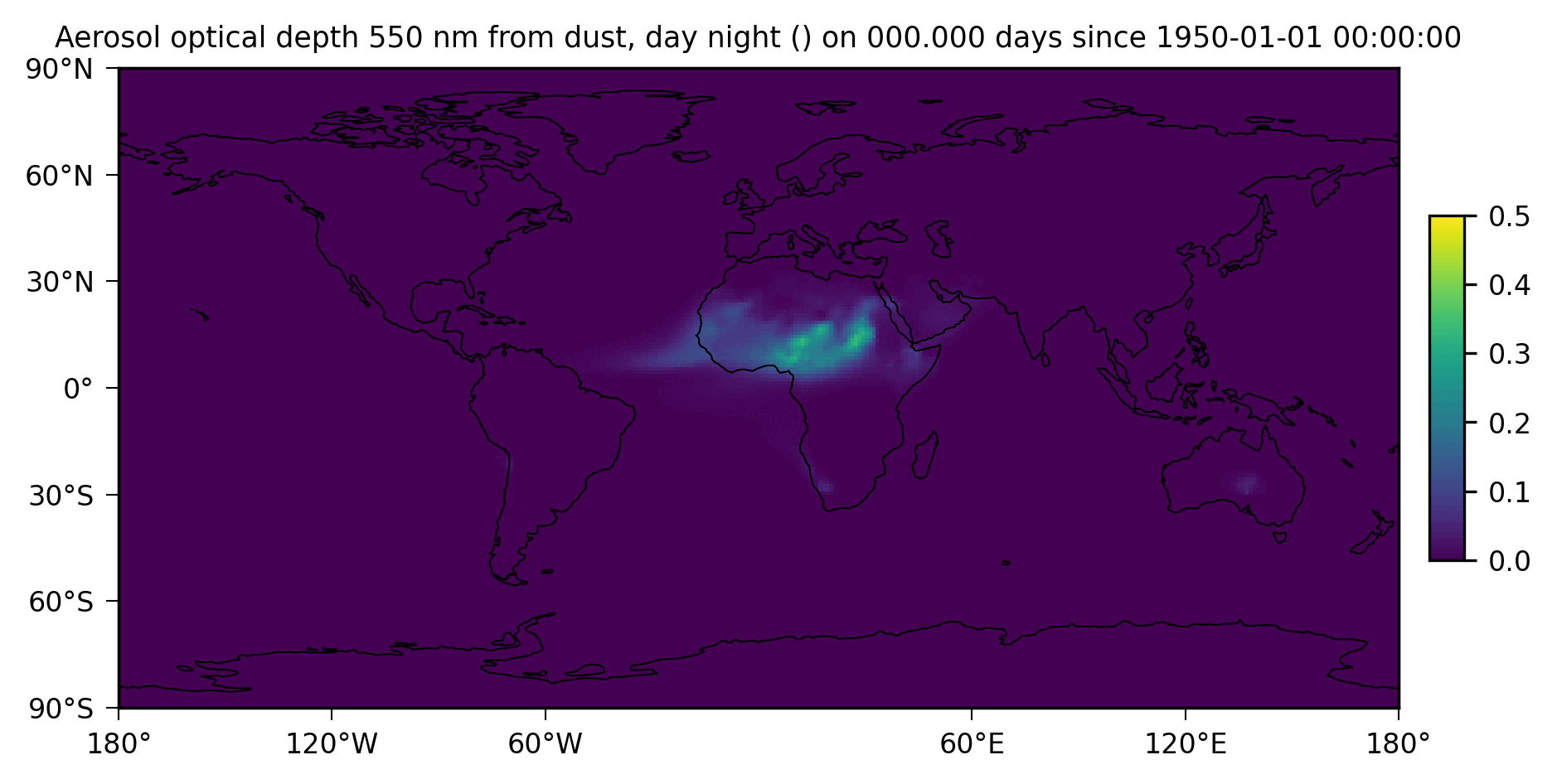

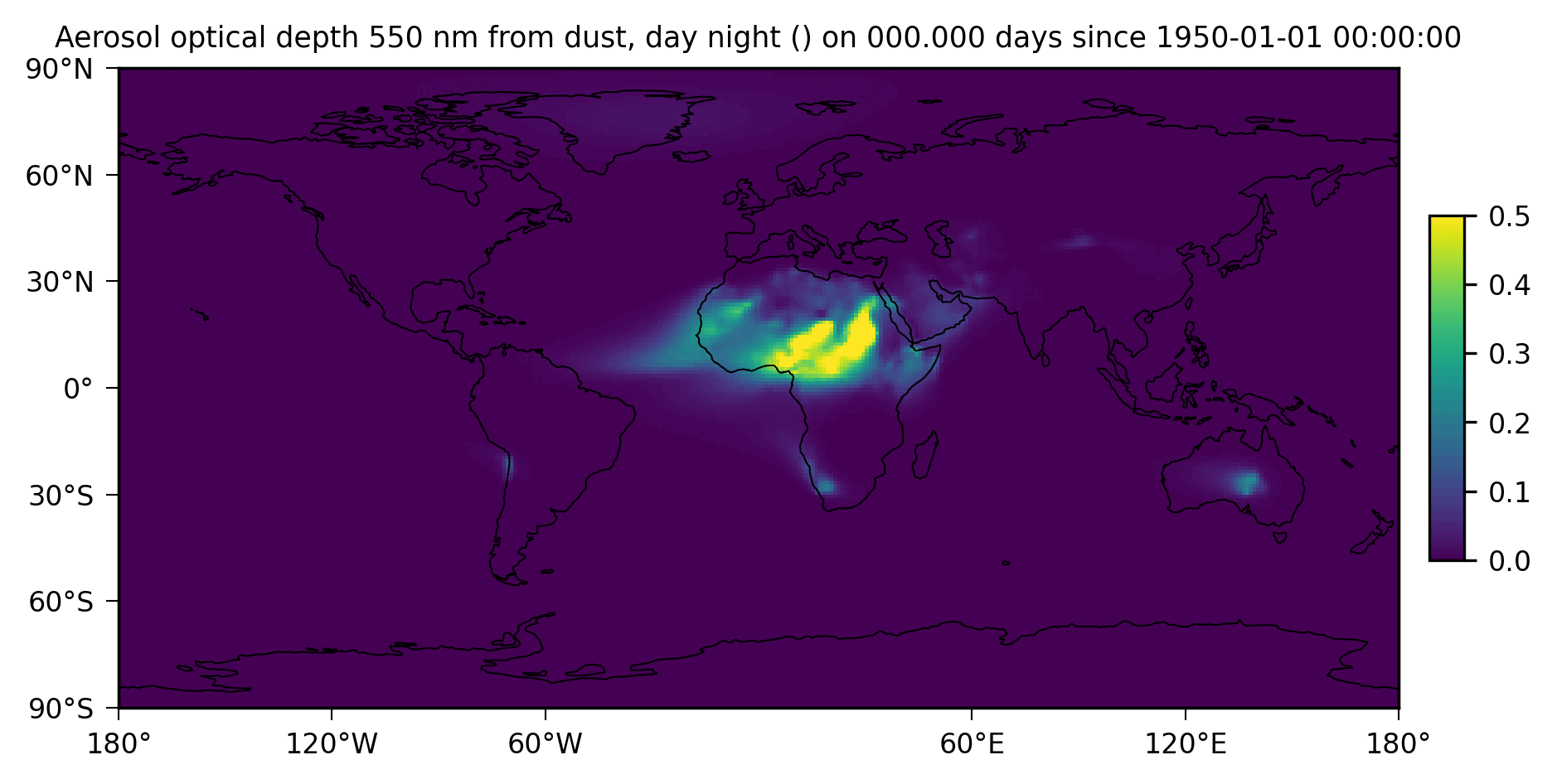

Dust¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

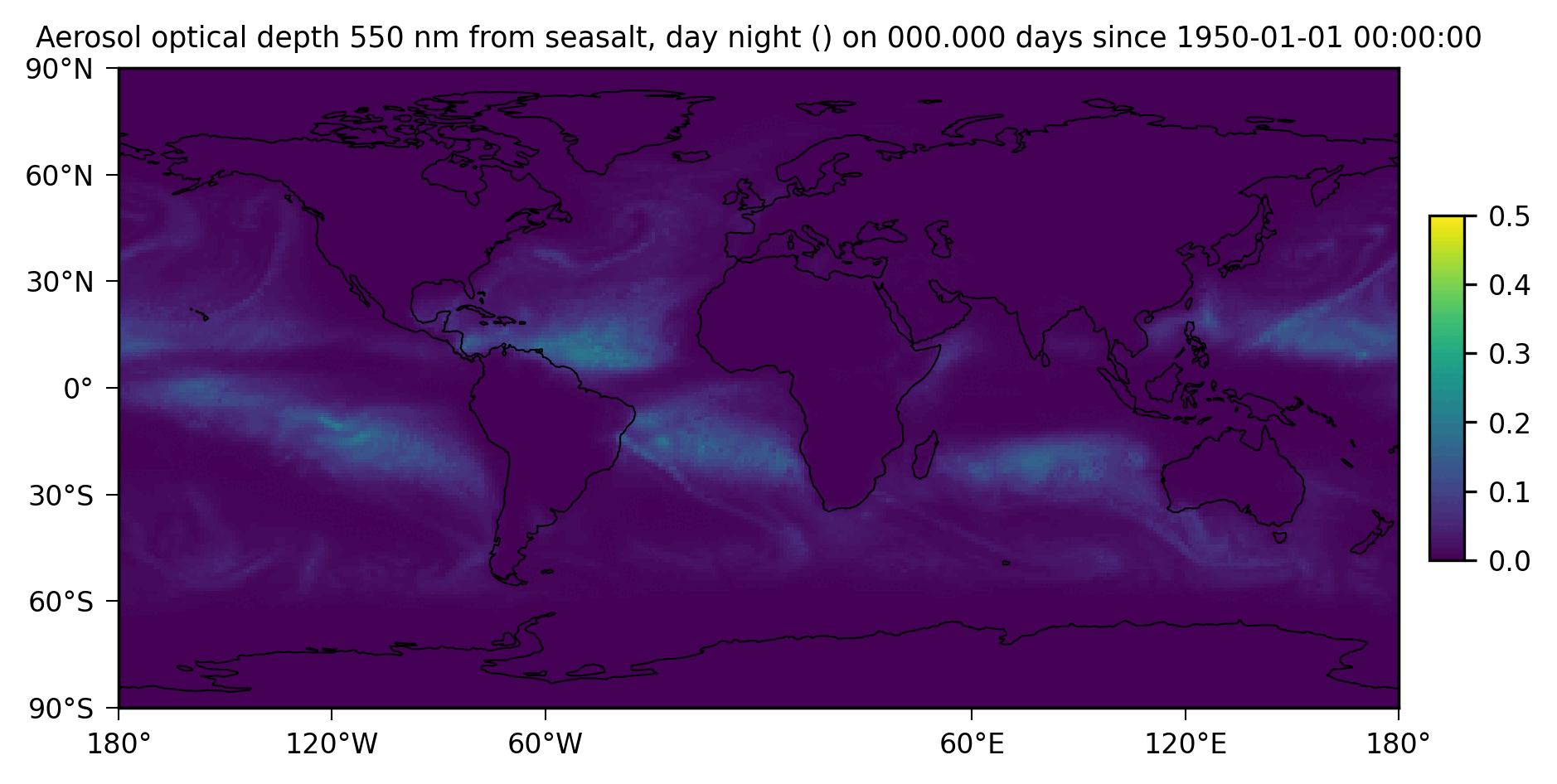

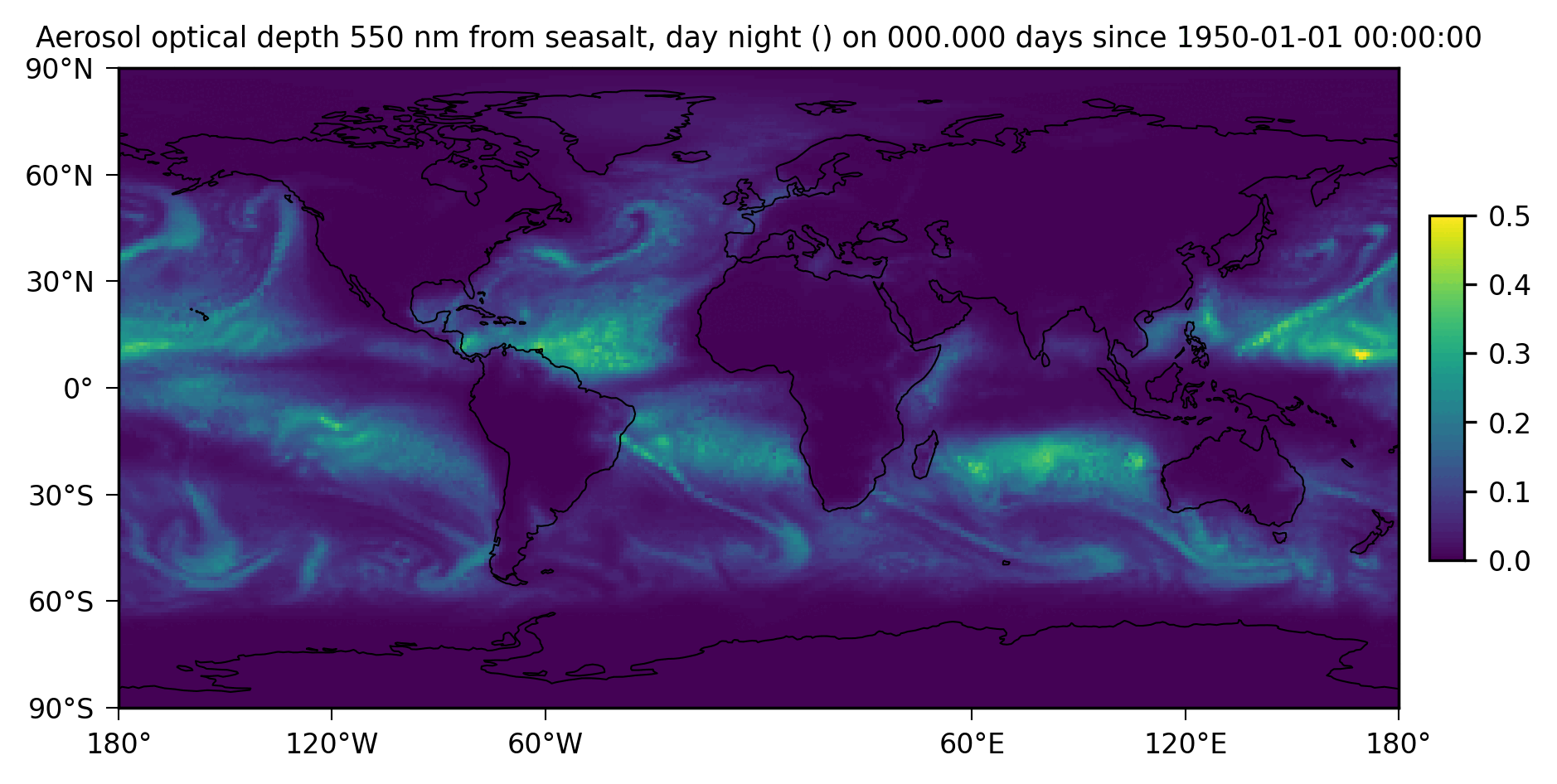

Sea Salt¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

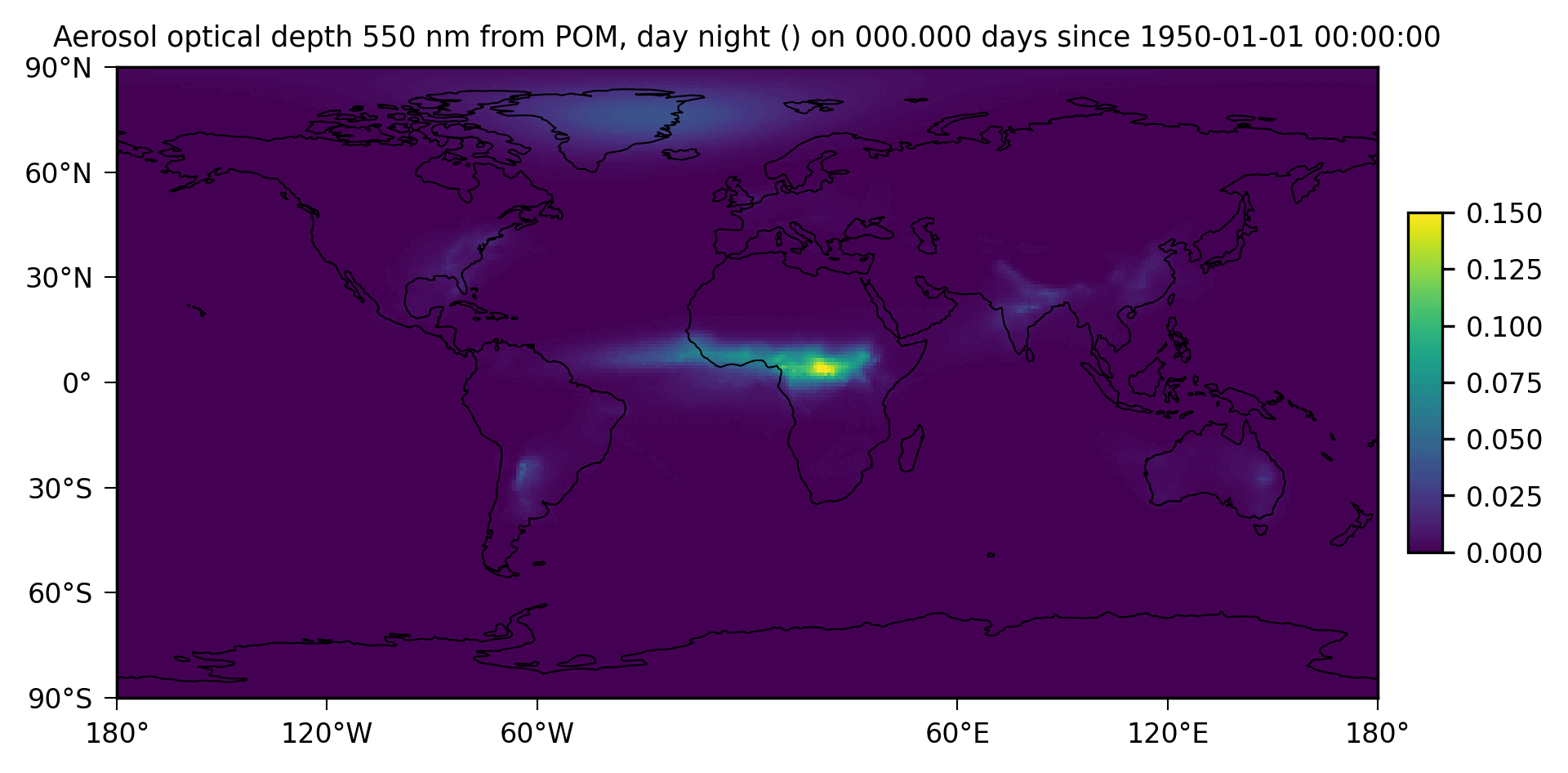

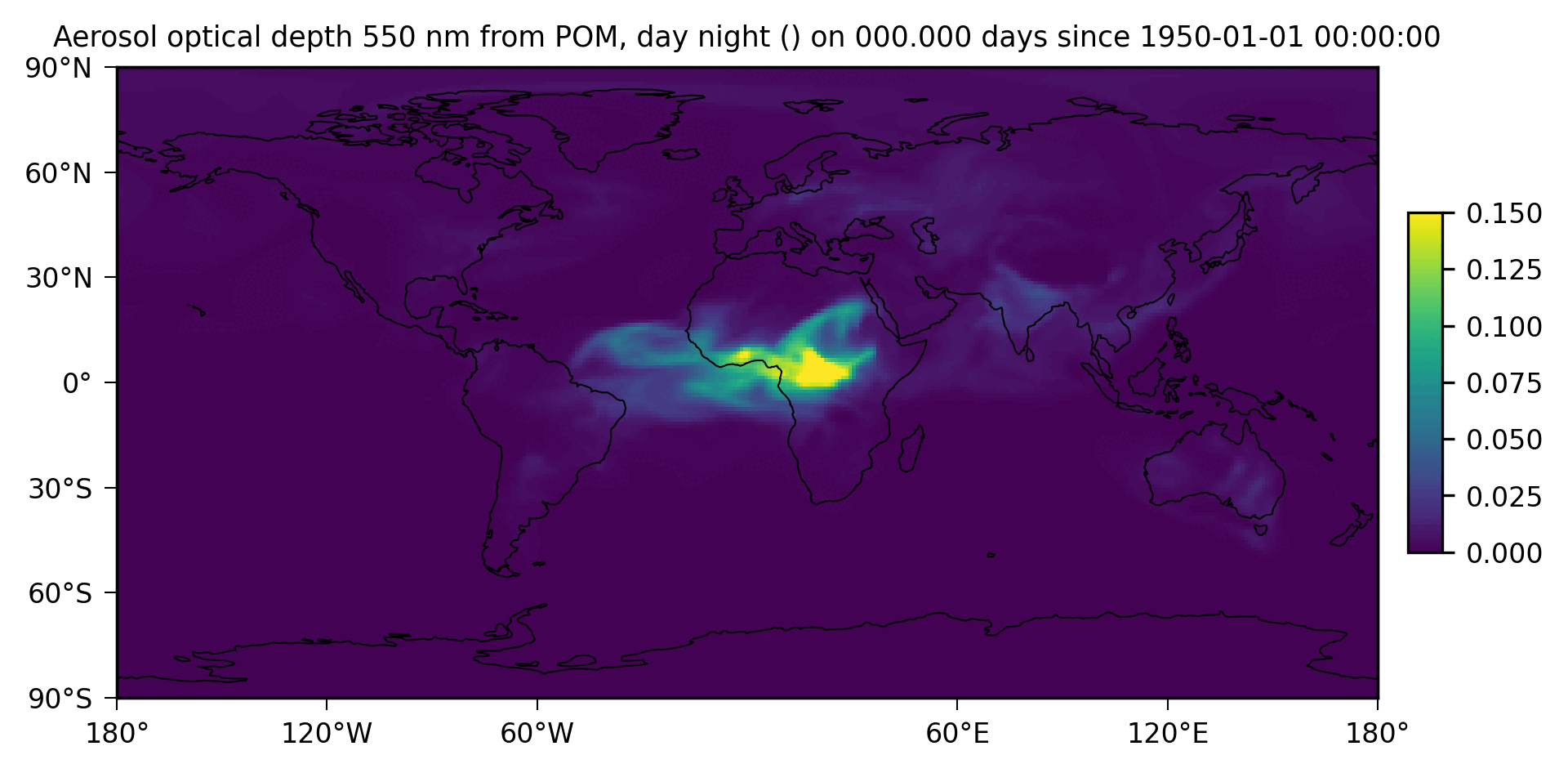

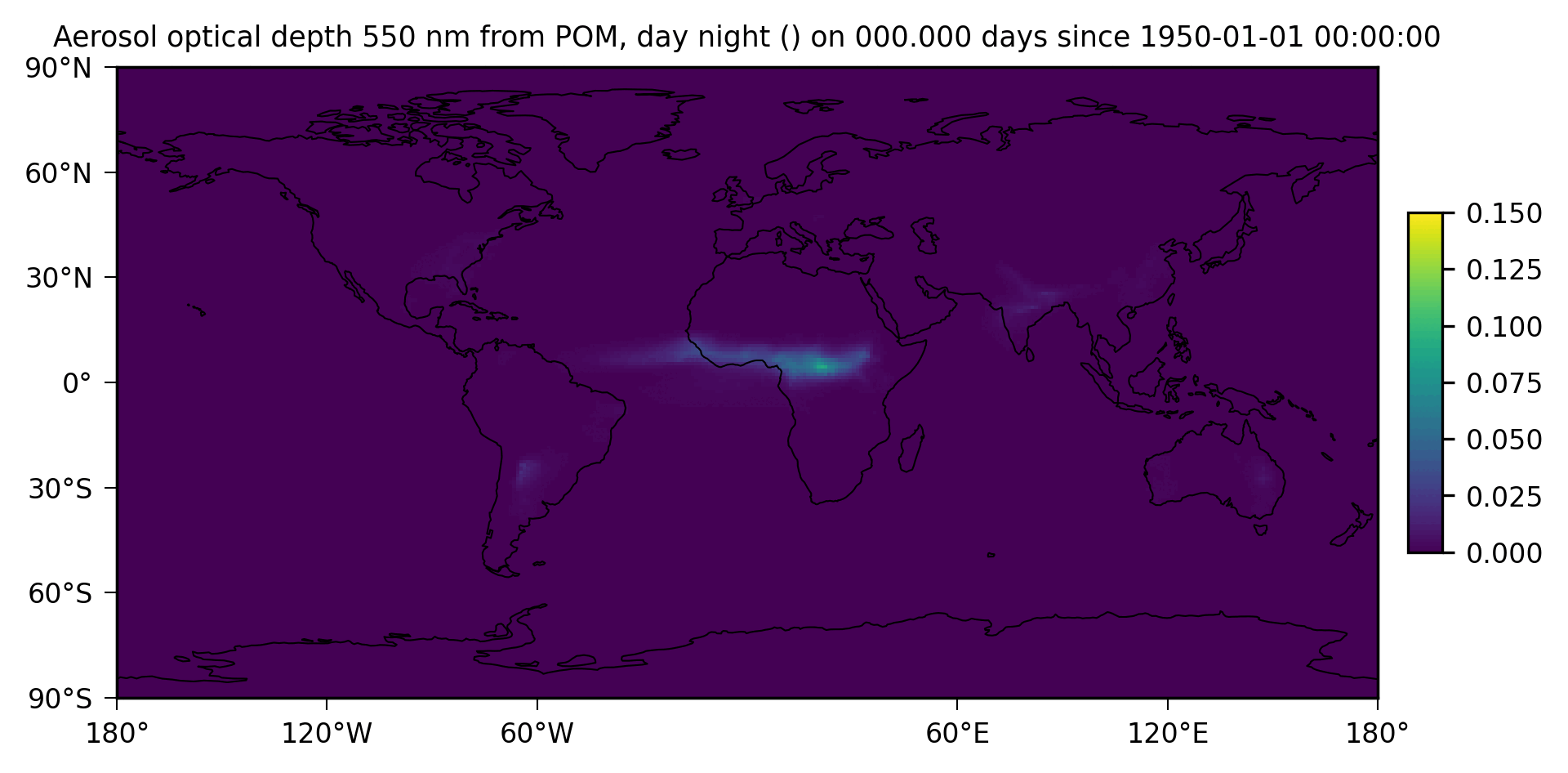

Primary Organic Matter¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

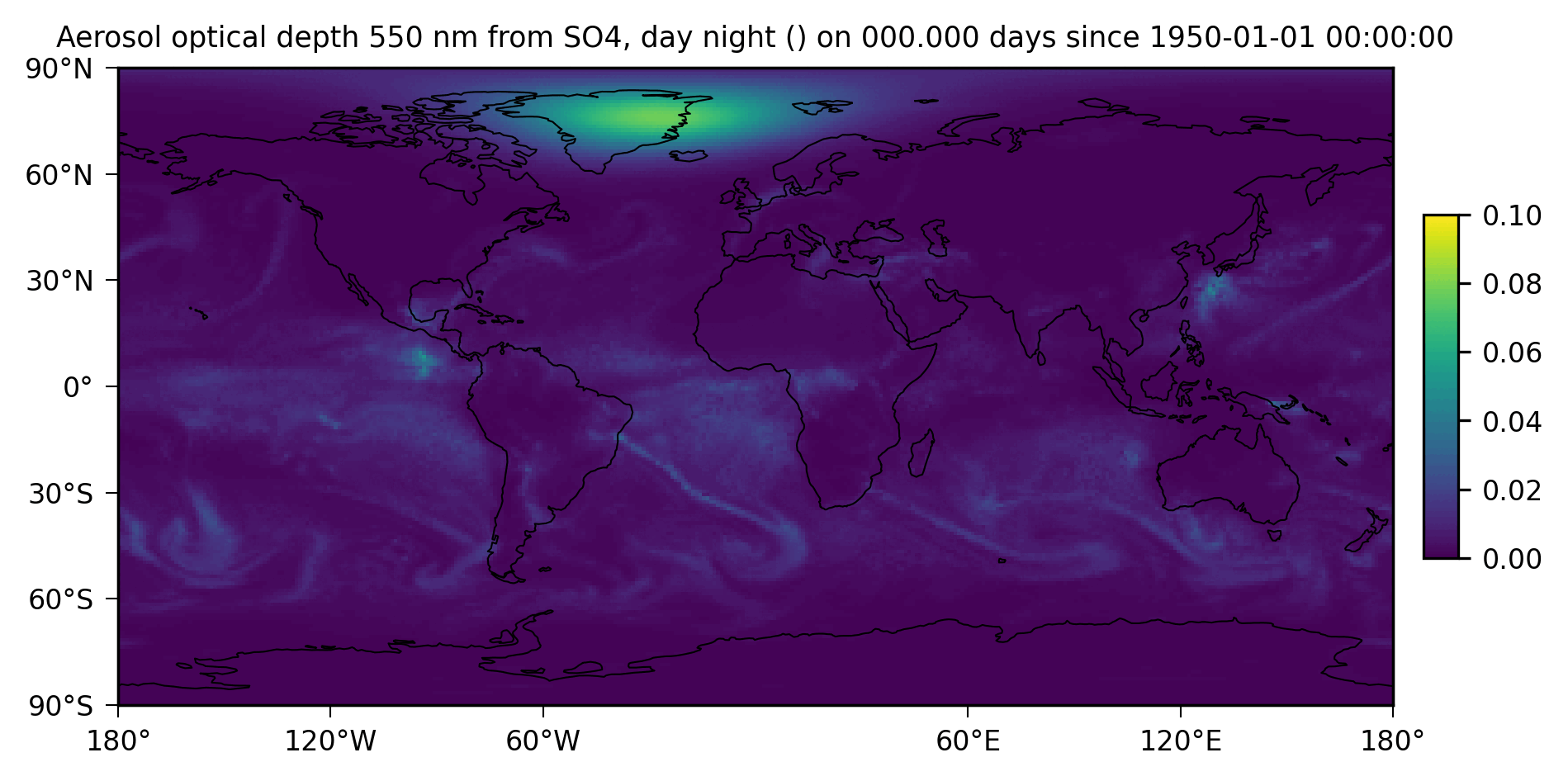

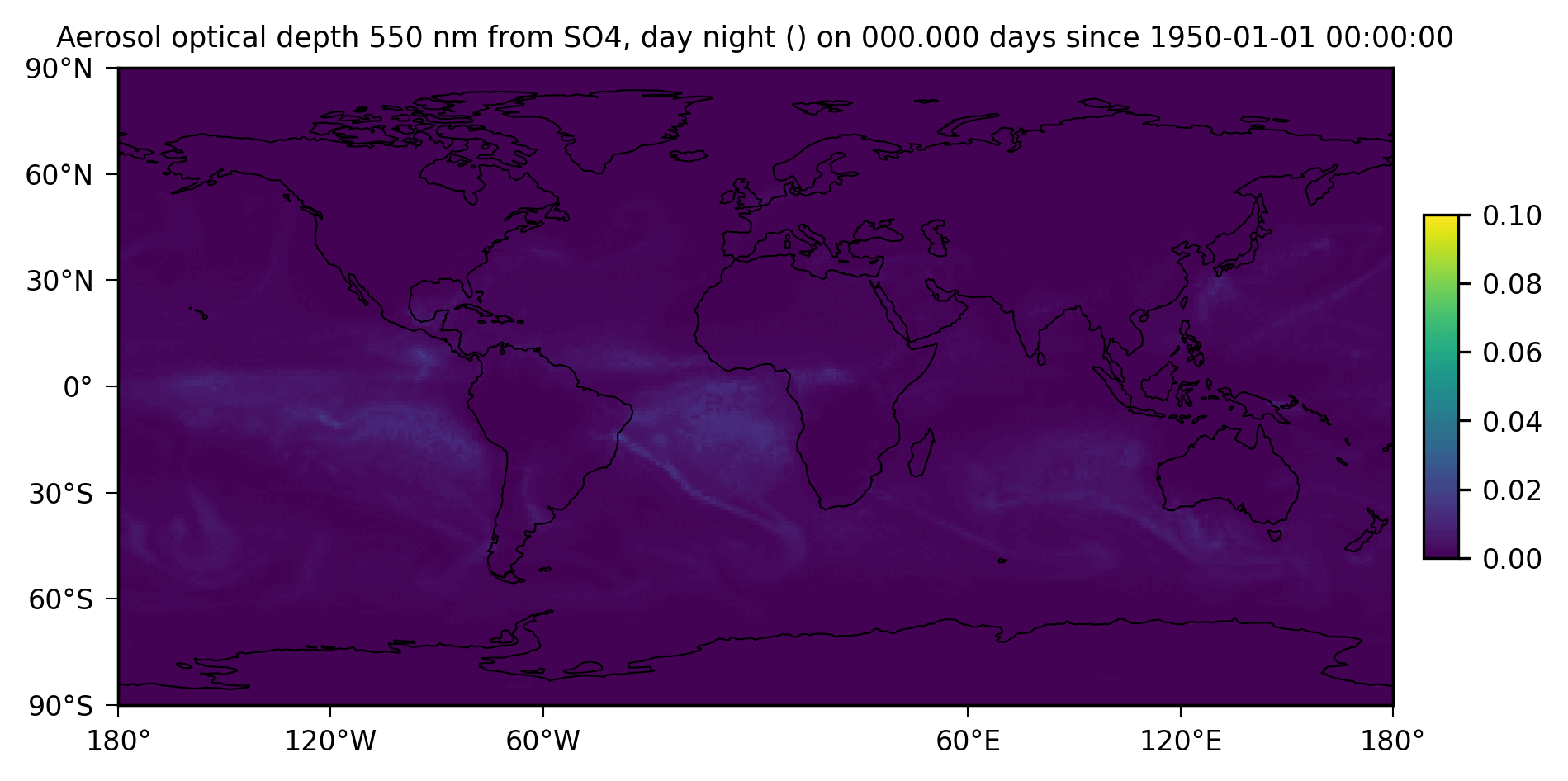

Sulfate (SO4)¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

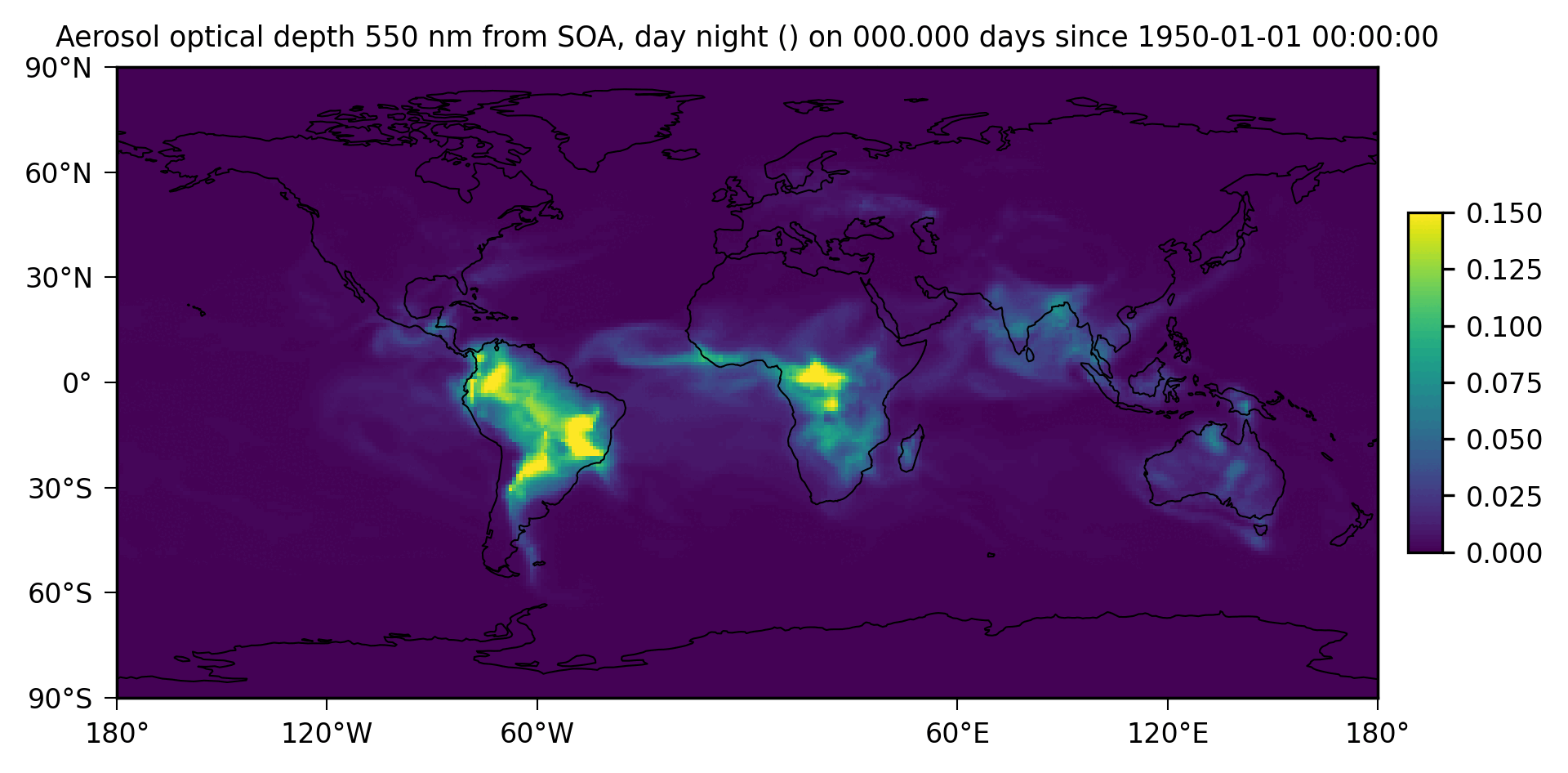

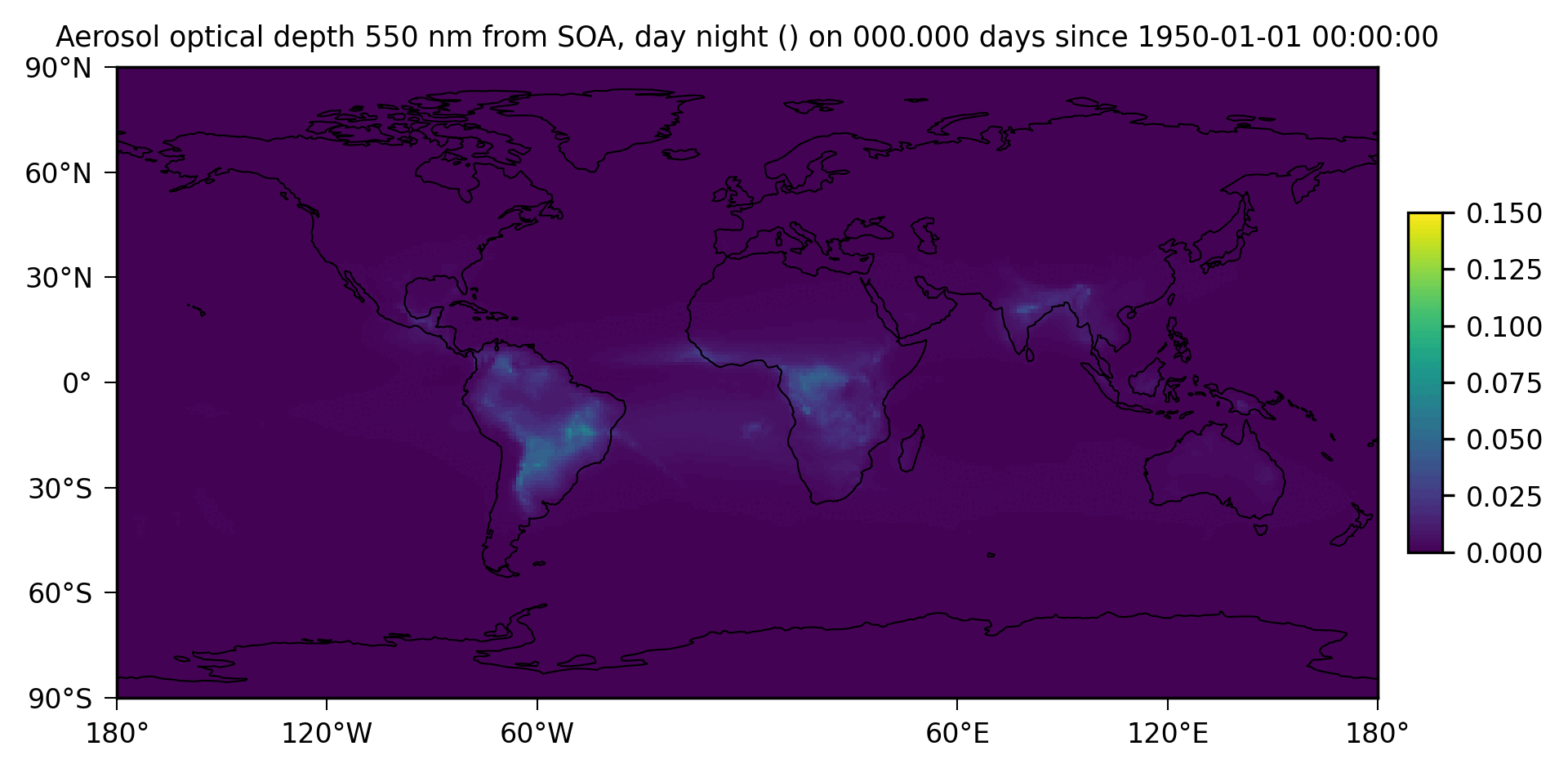

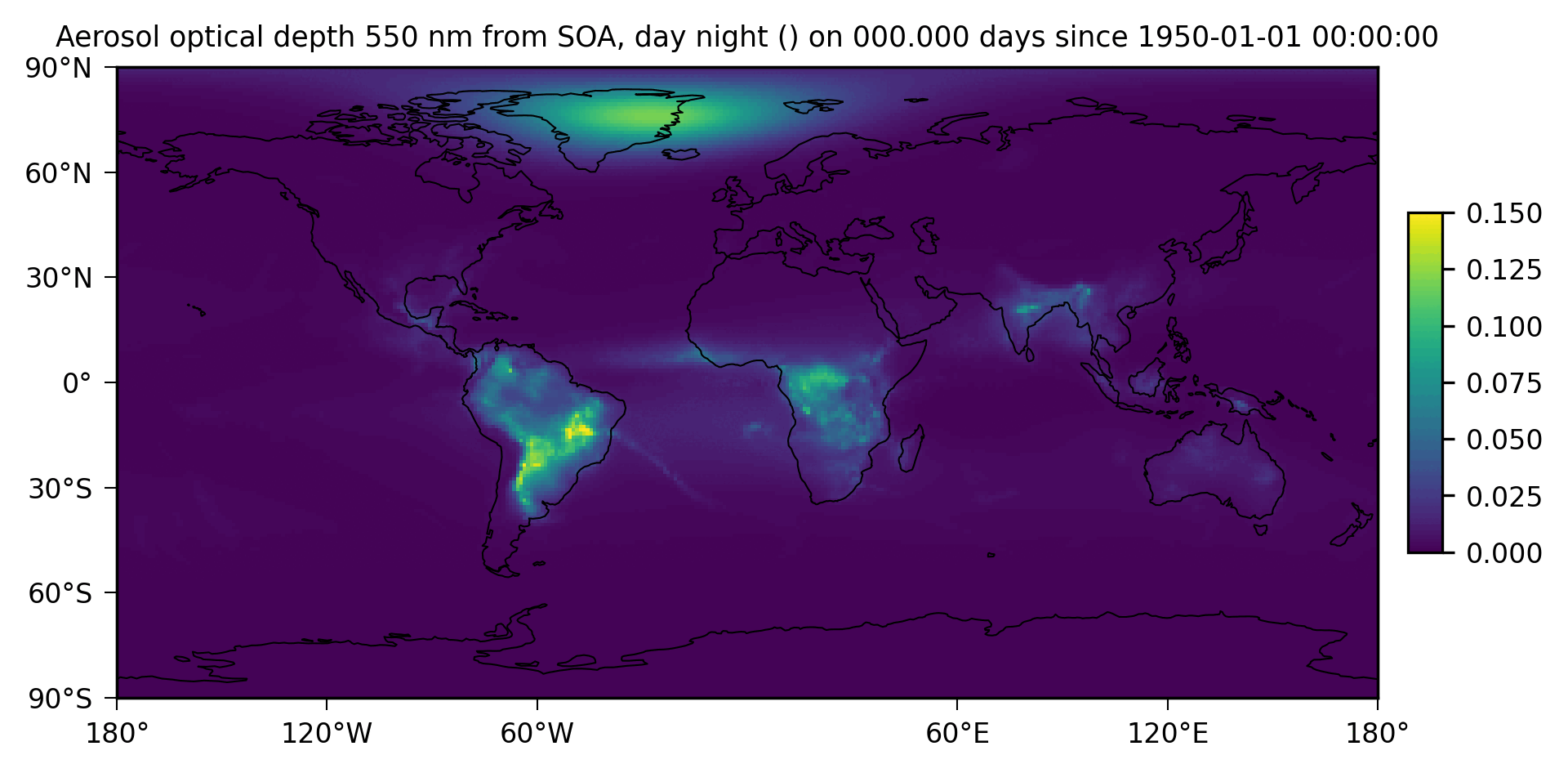

Secondary Organic Aerosol (SOA)¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

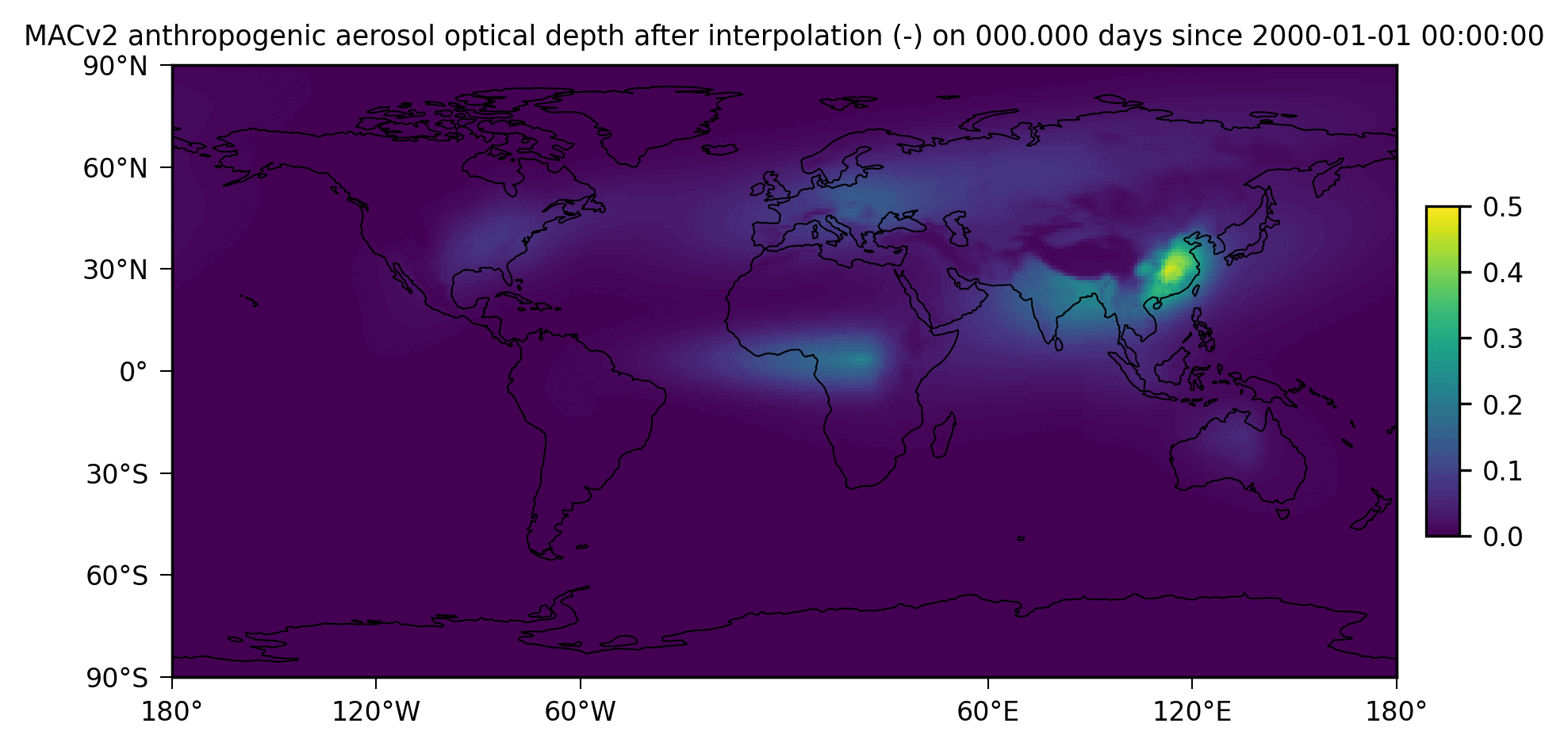

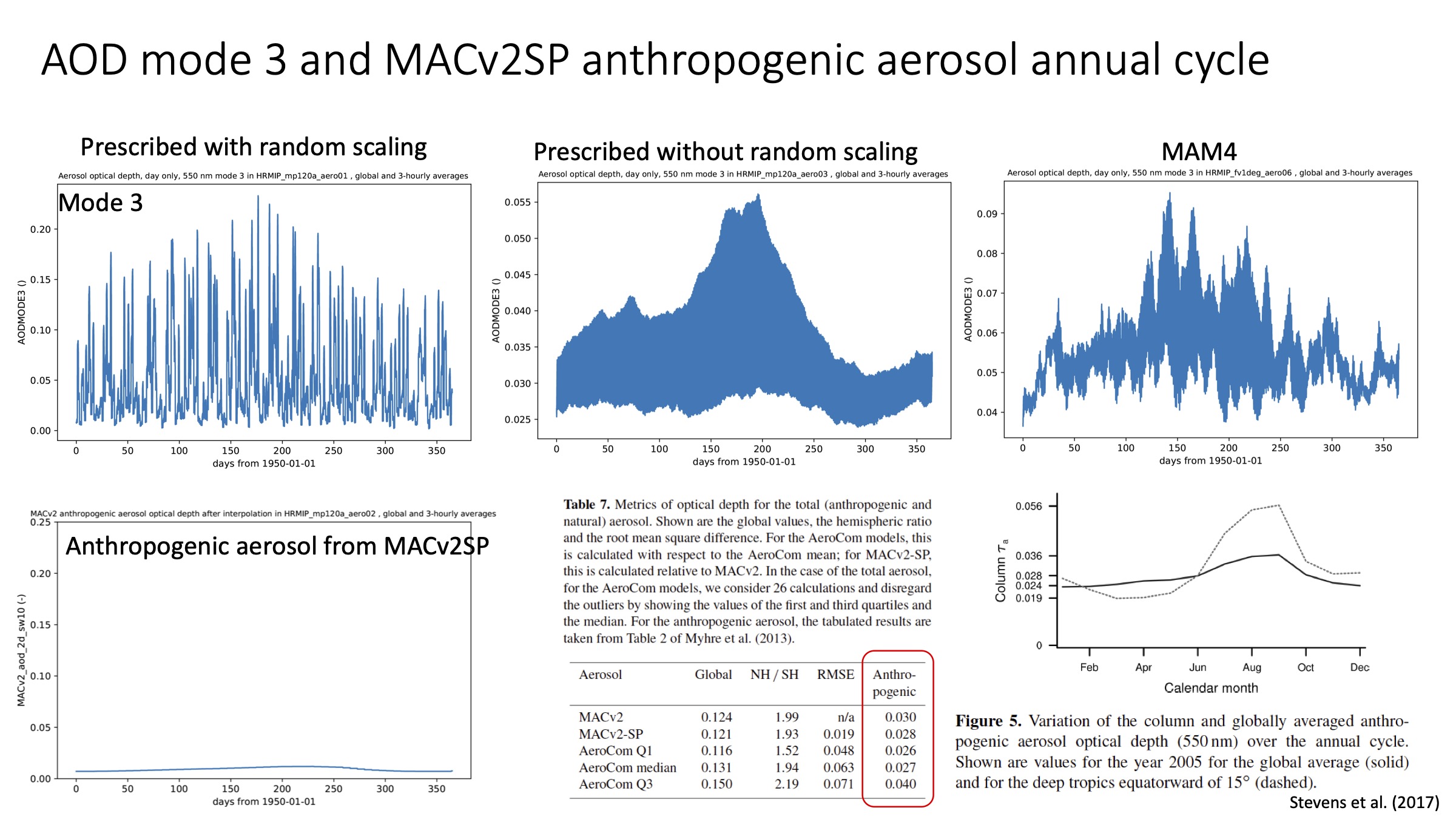

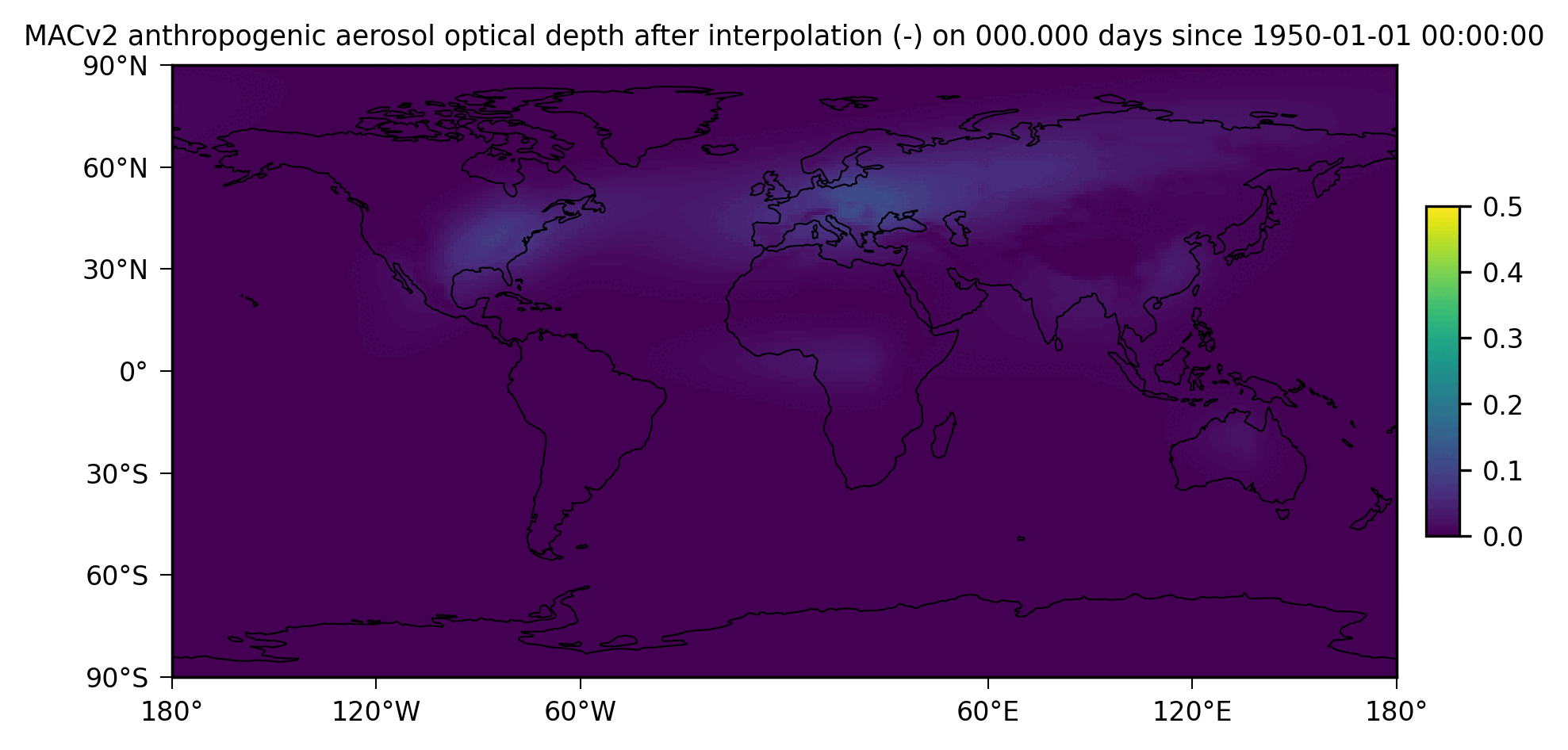

Anthropogenic aerosol optical depth from MACv2SP¶
1850-01
2000-01
Spatial patterns of the high-frequency changes in aerosol burdens¶
One-month long movies from 3-hourly output (1950-01)

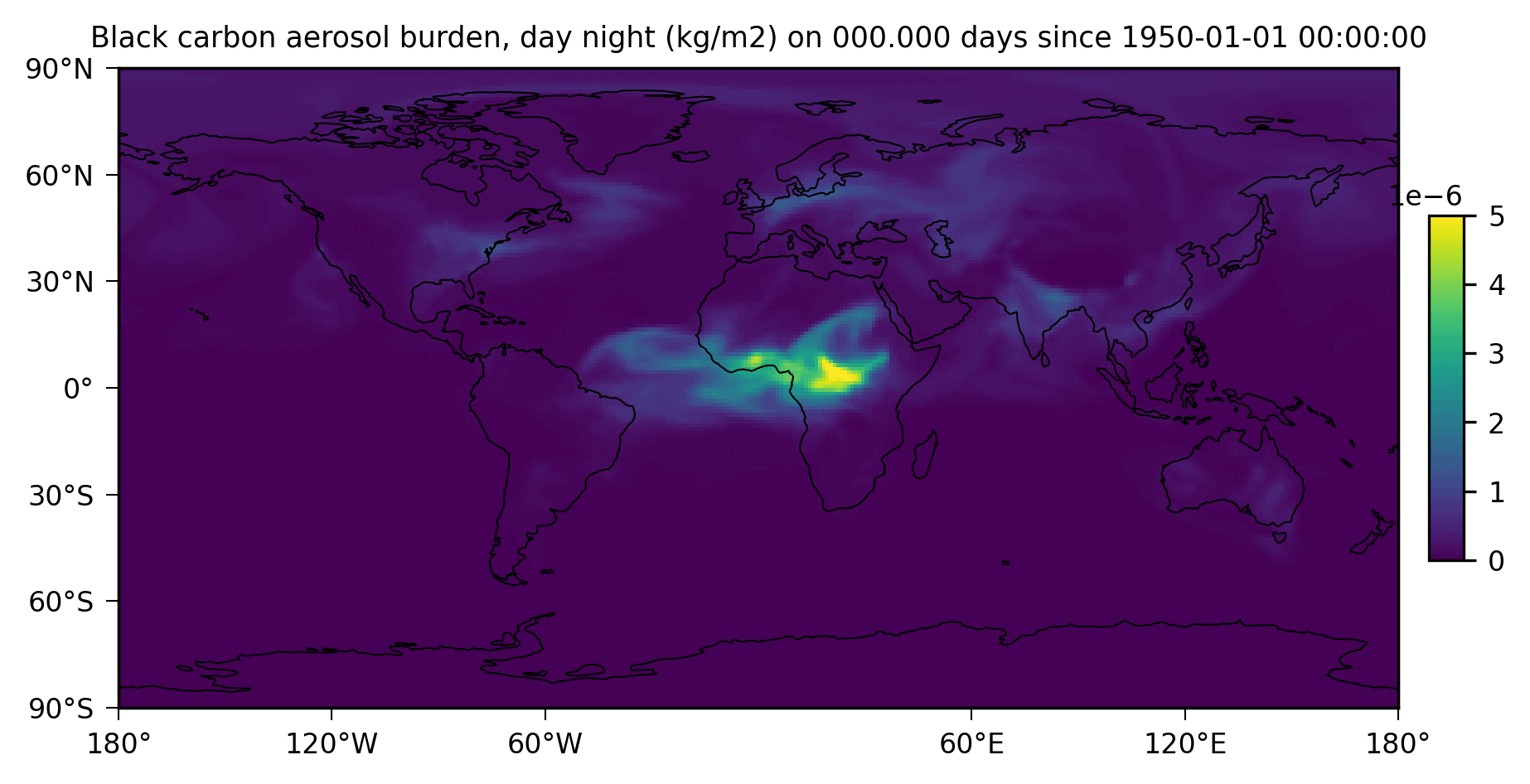

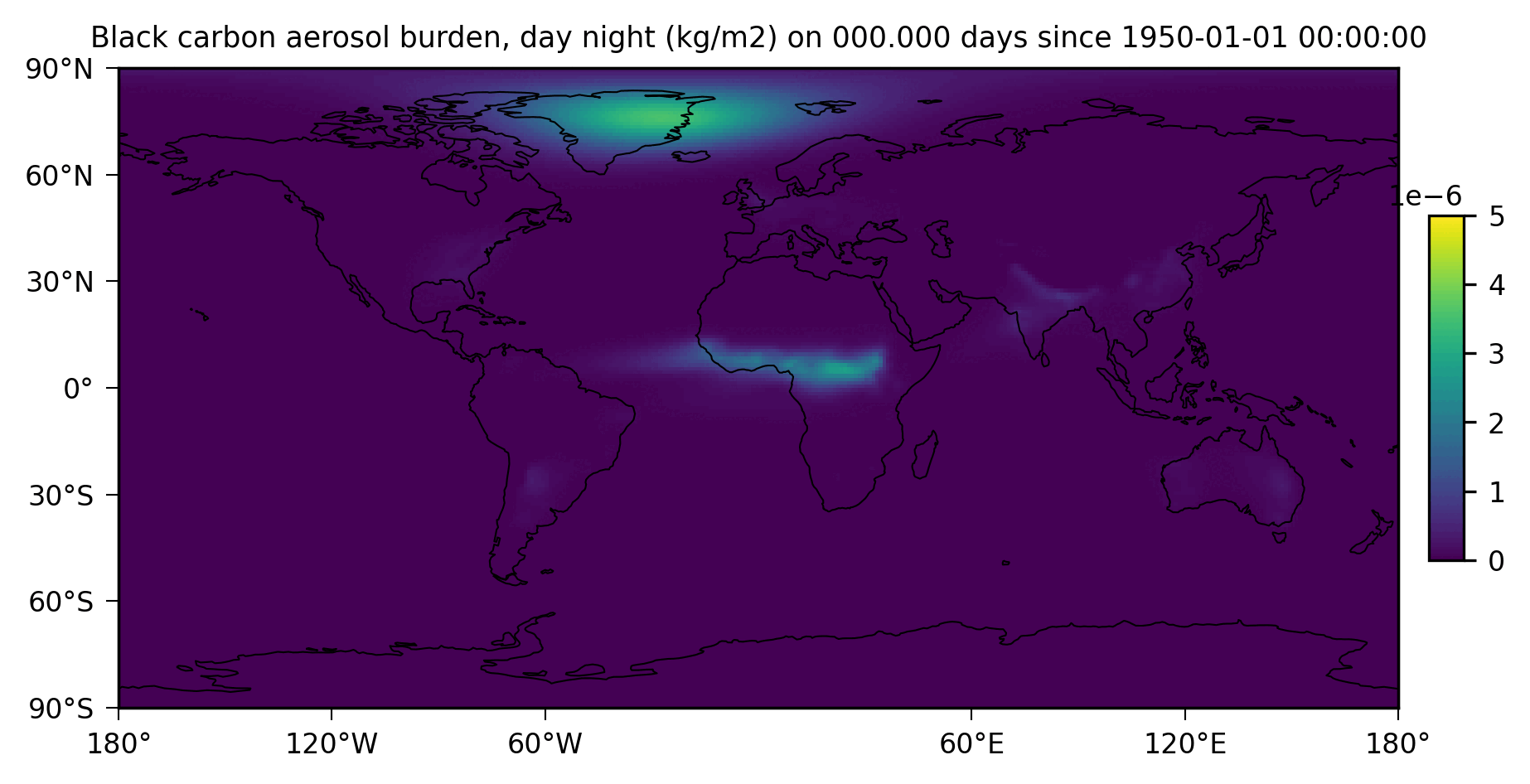

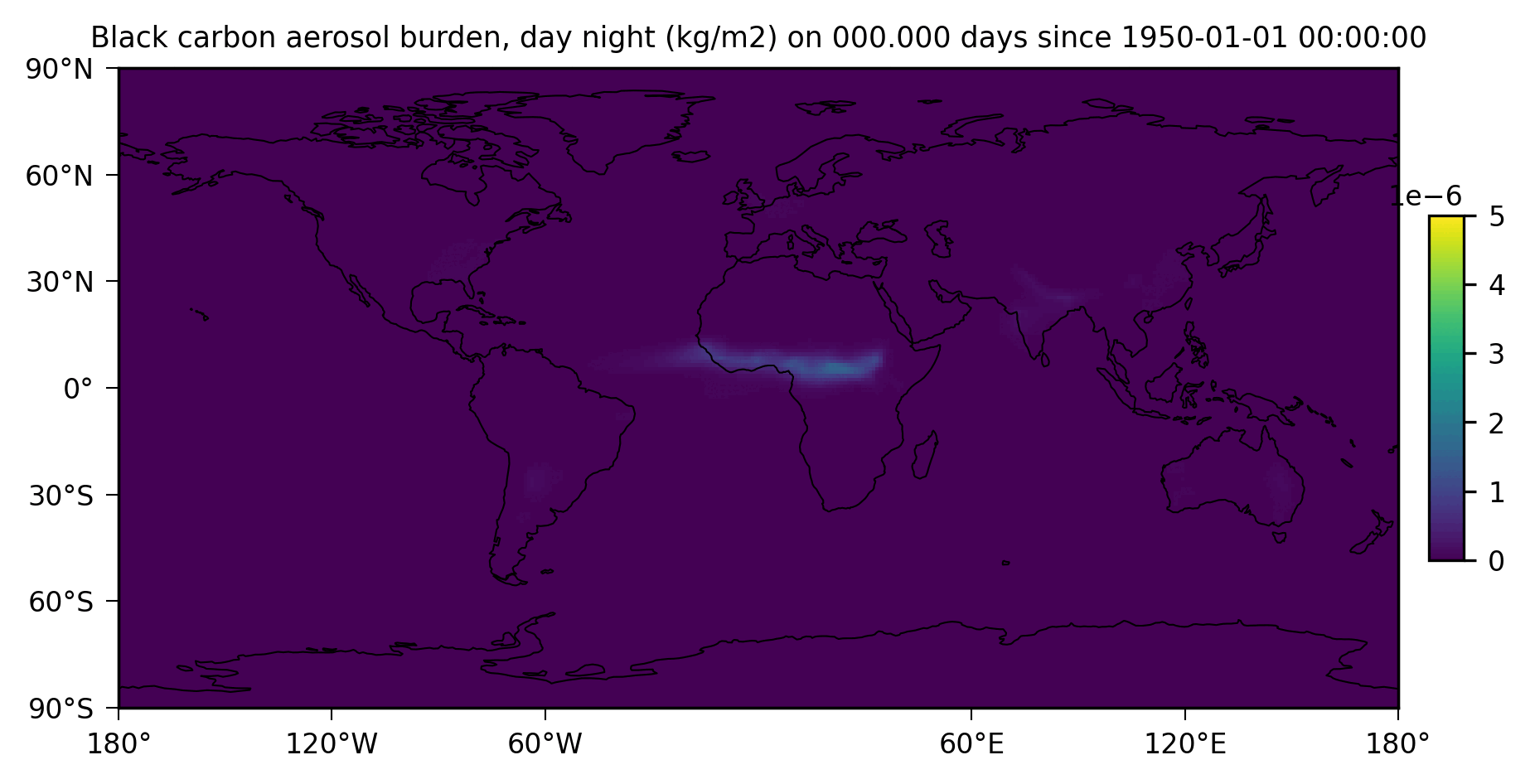

Black Carbon¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

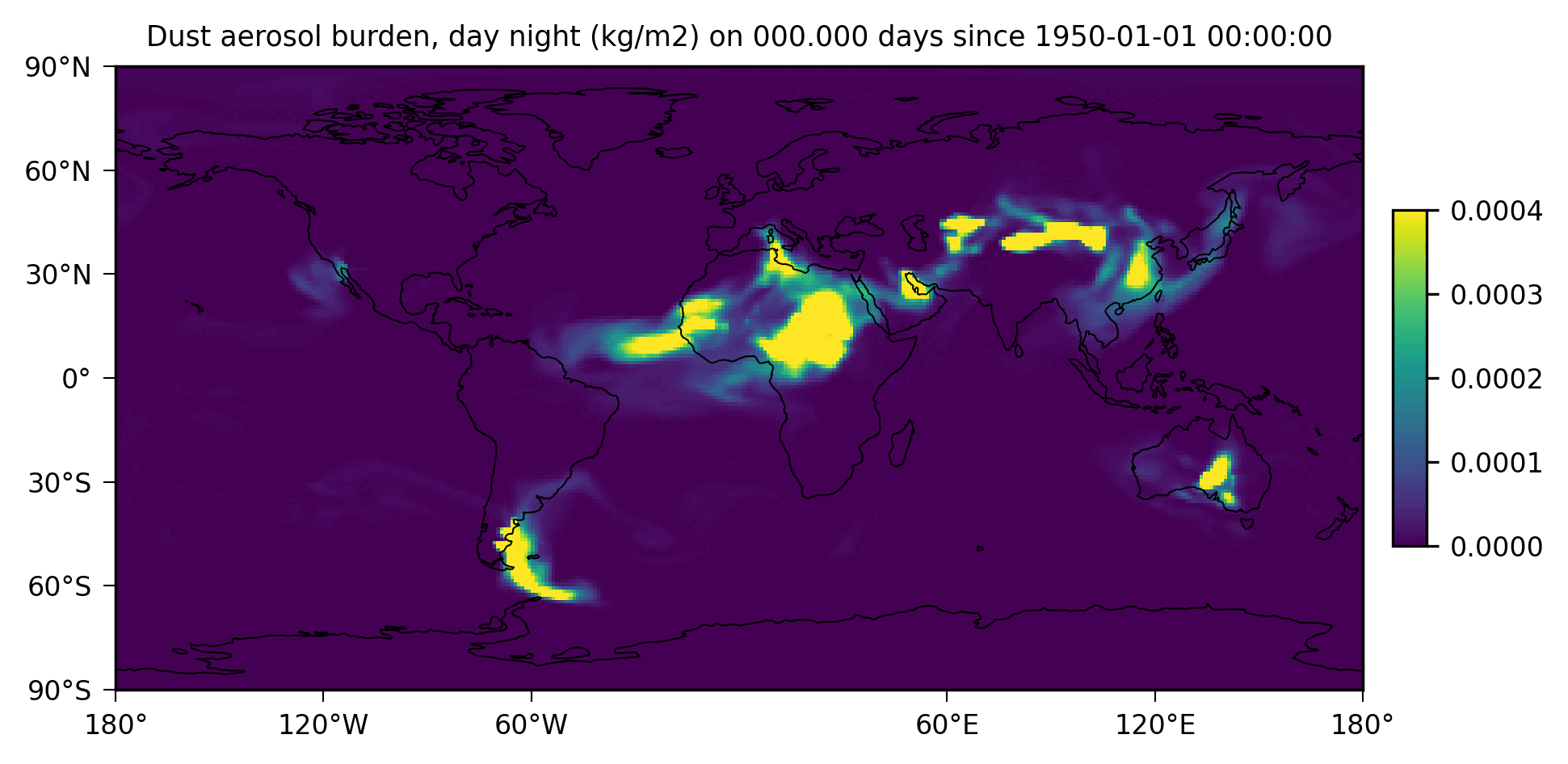

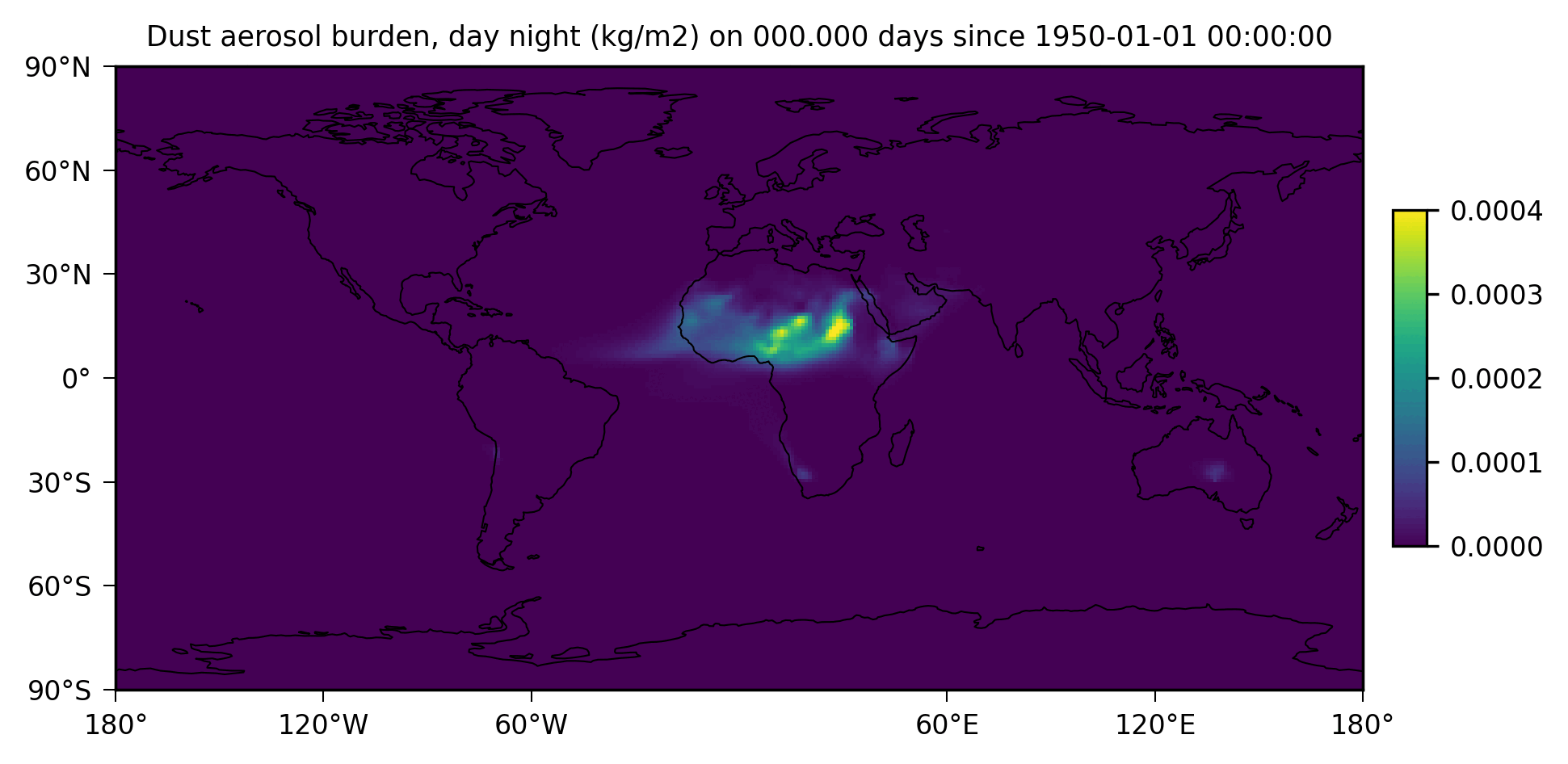

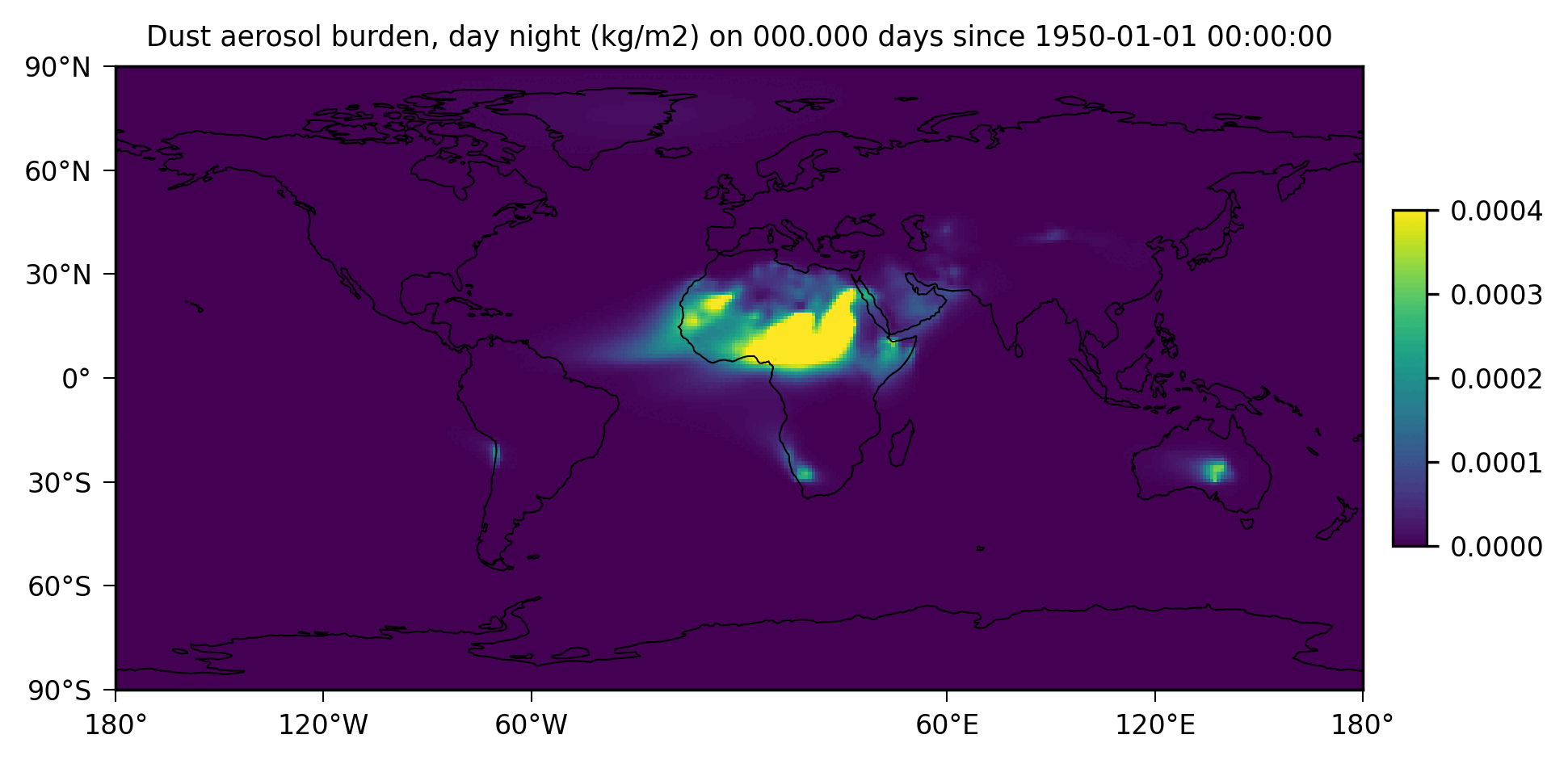

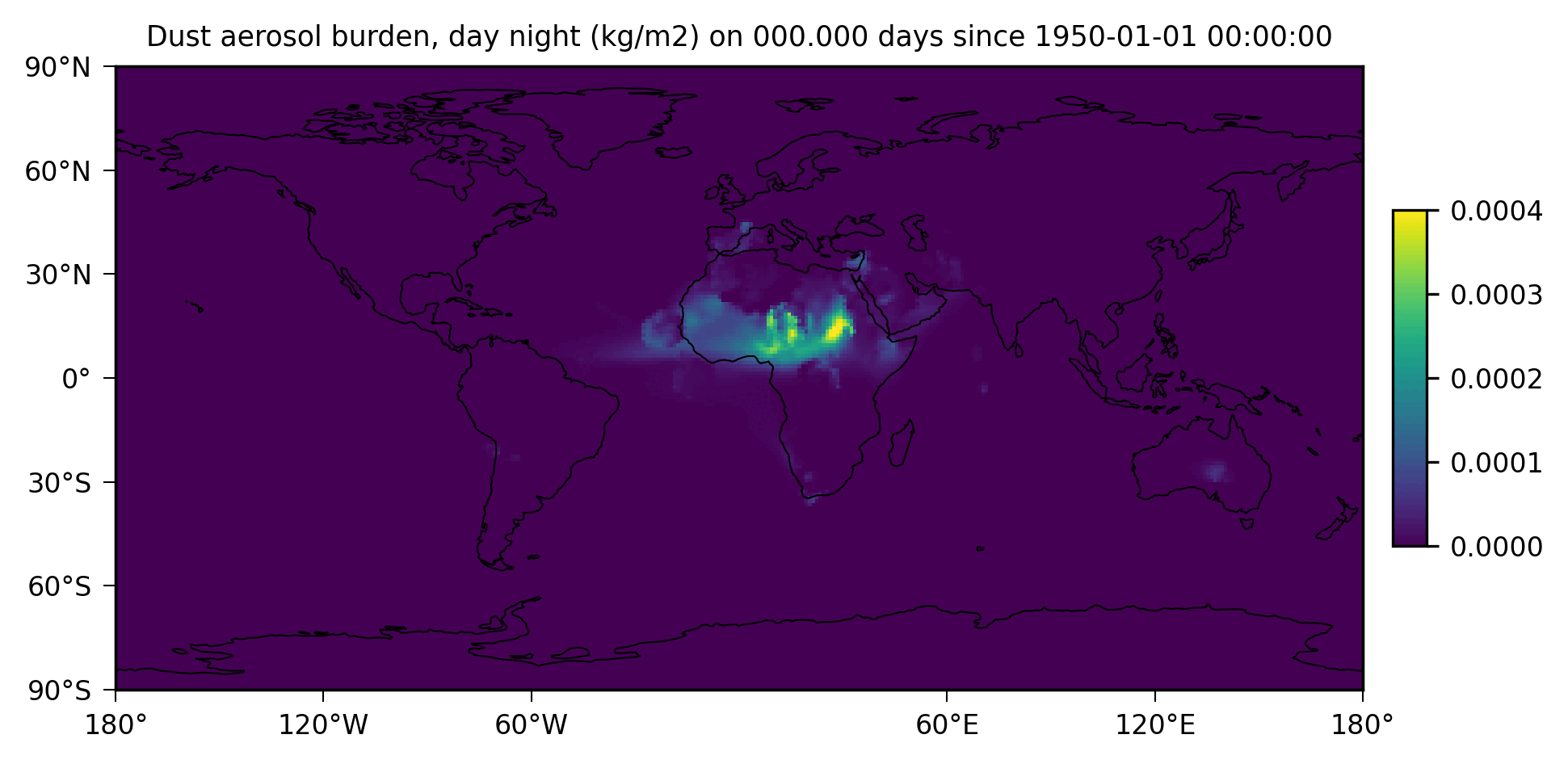

Dust¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

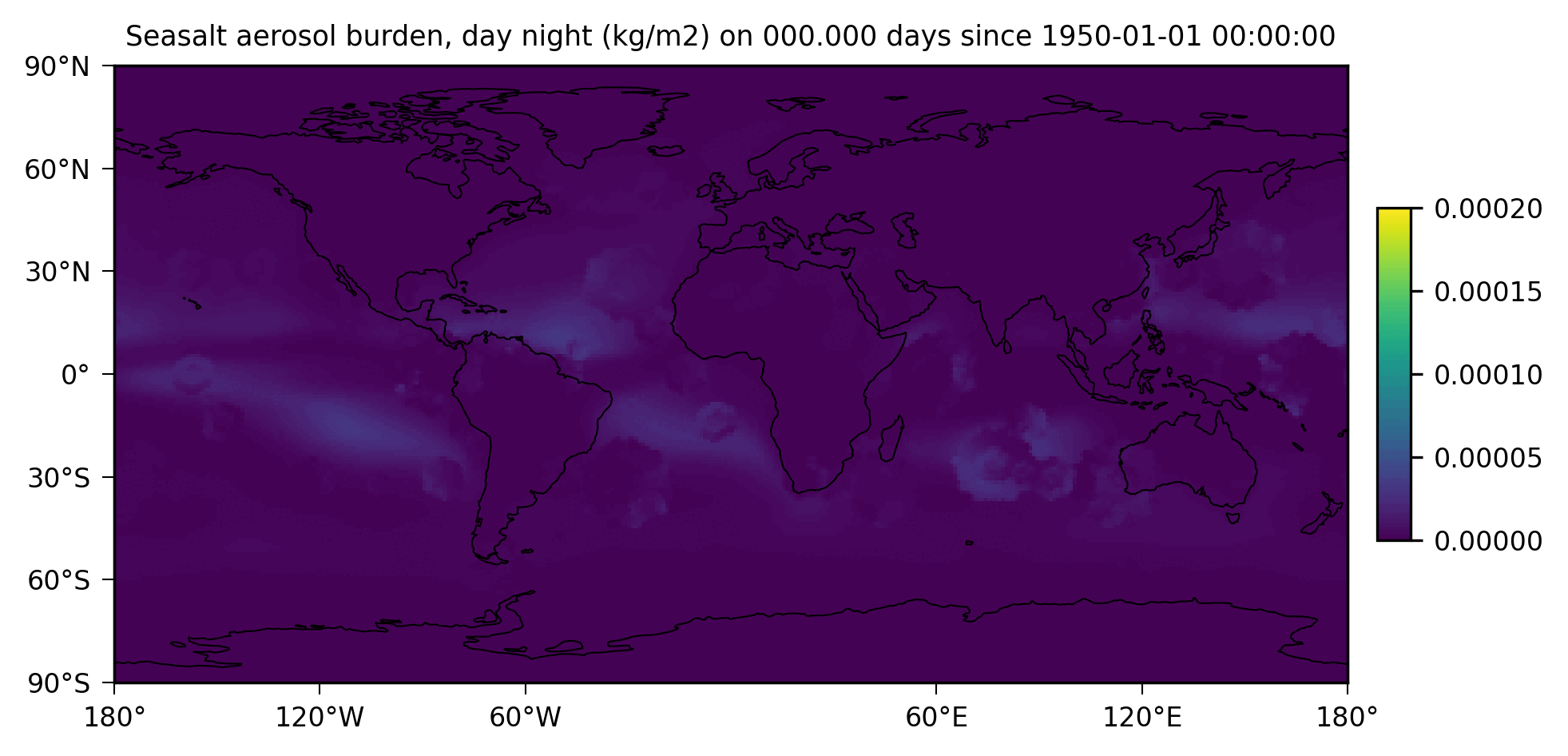

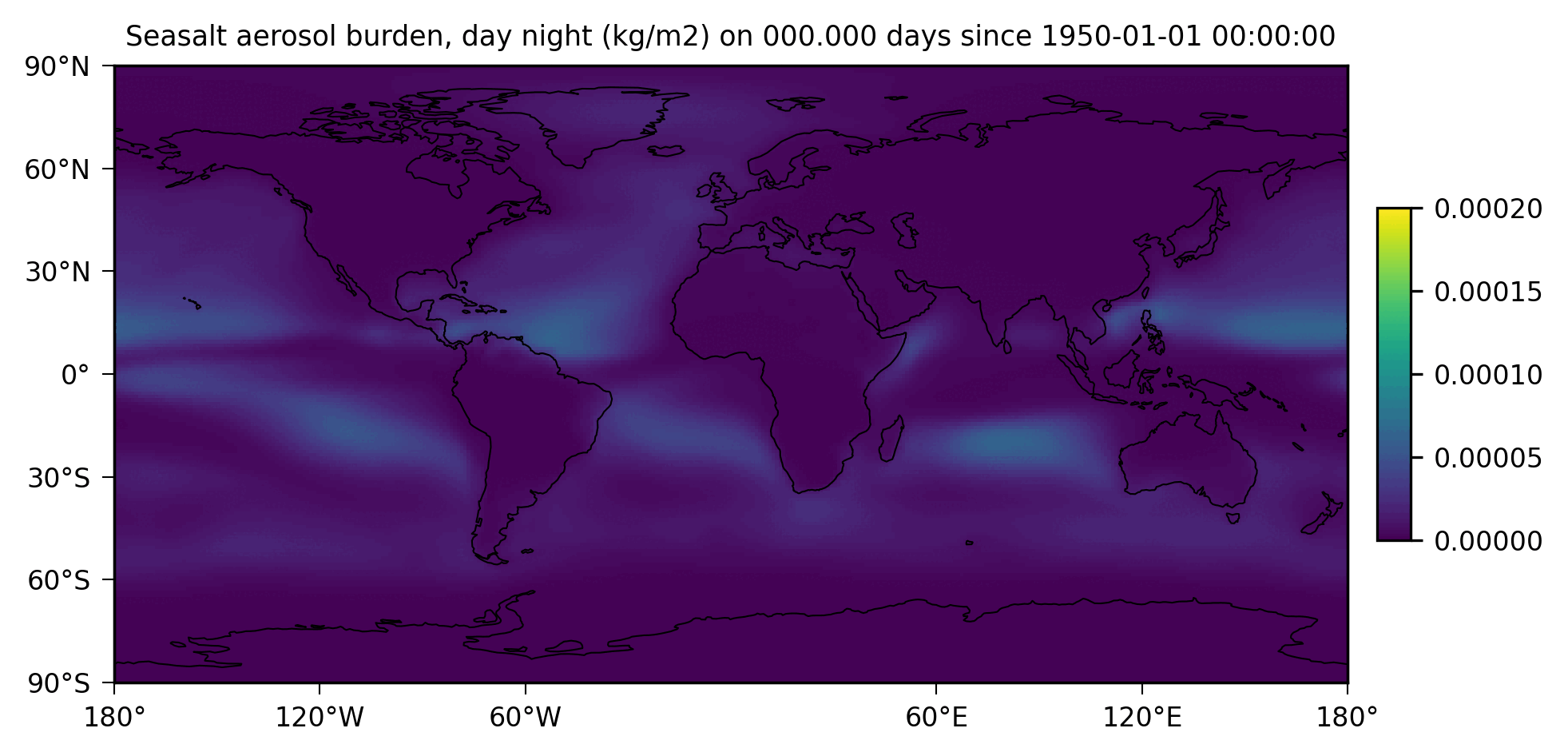

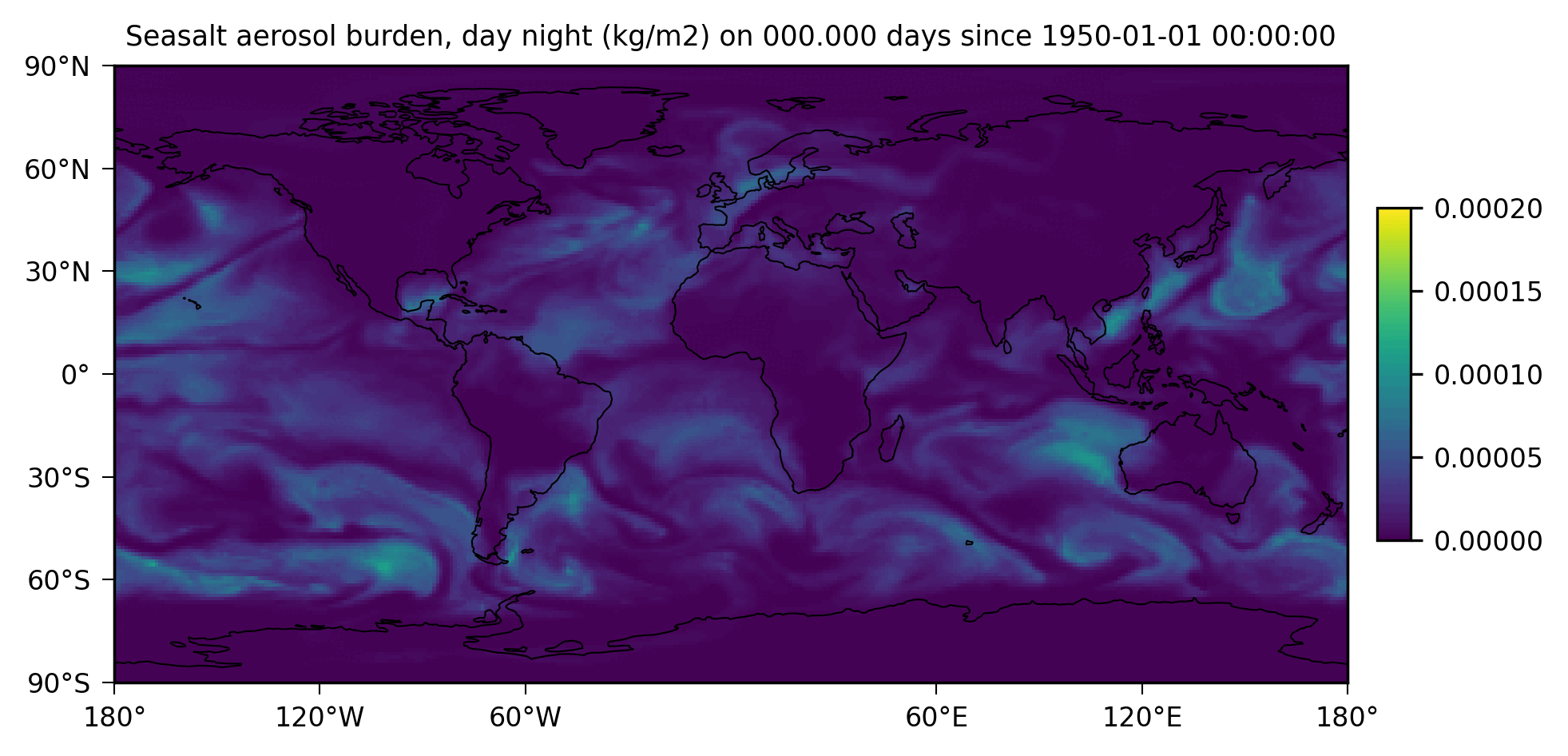

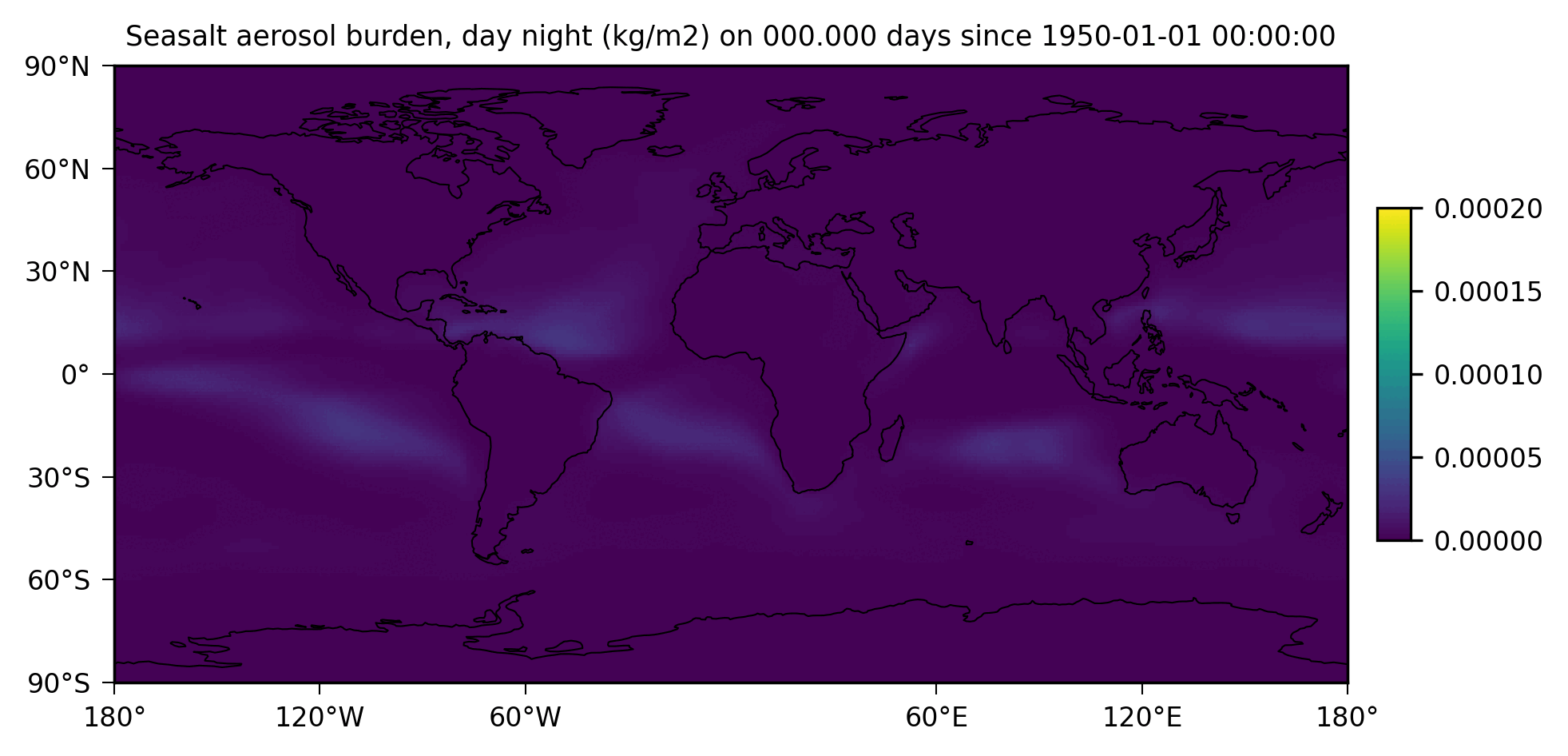

Sea Salt¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

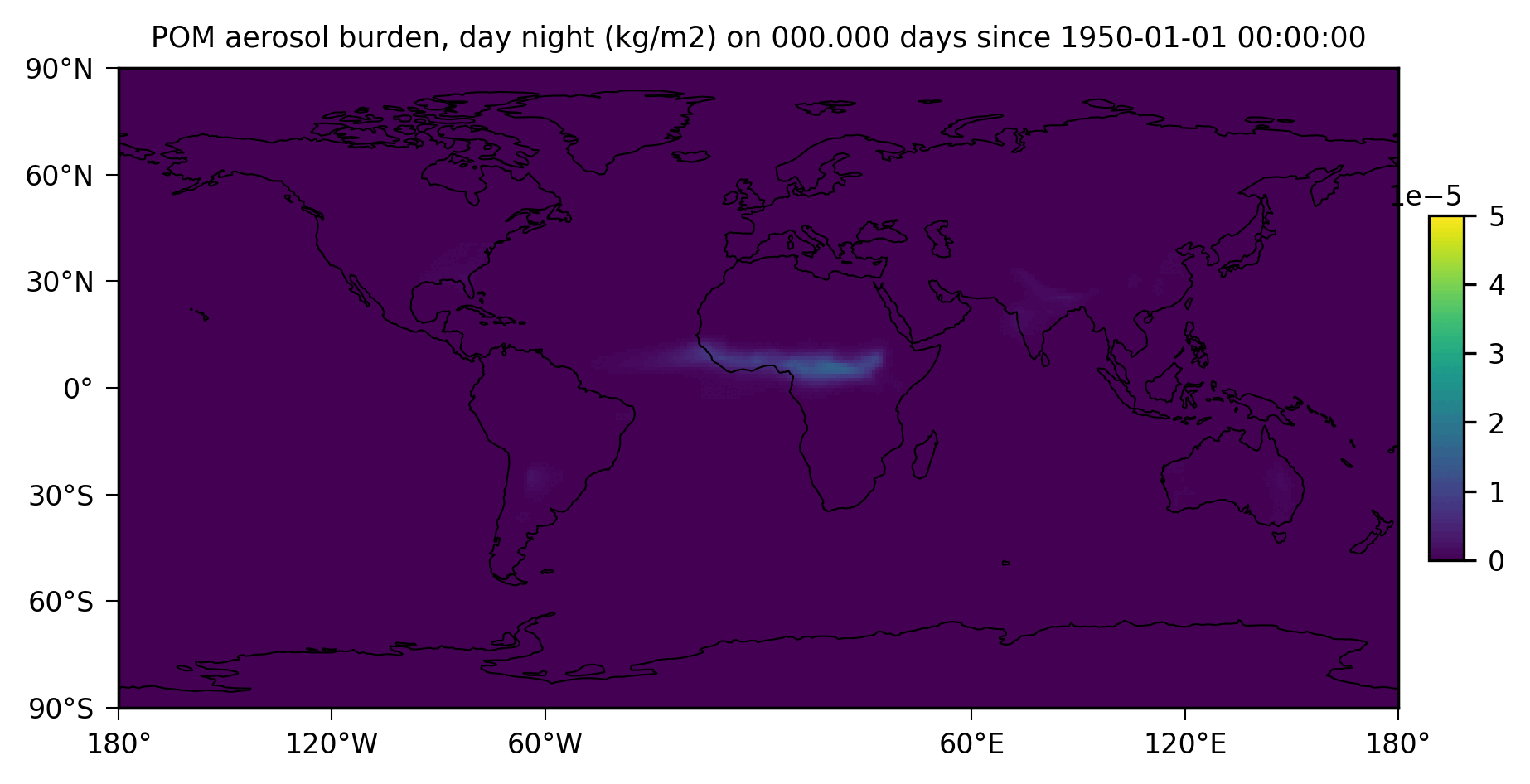

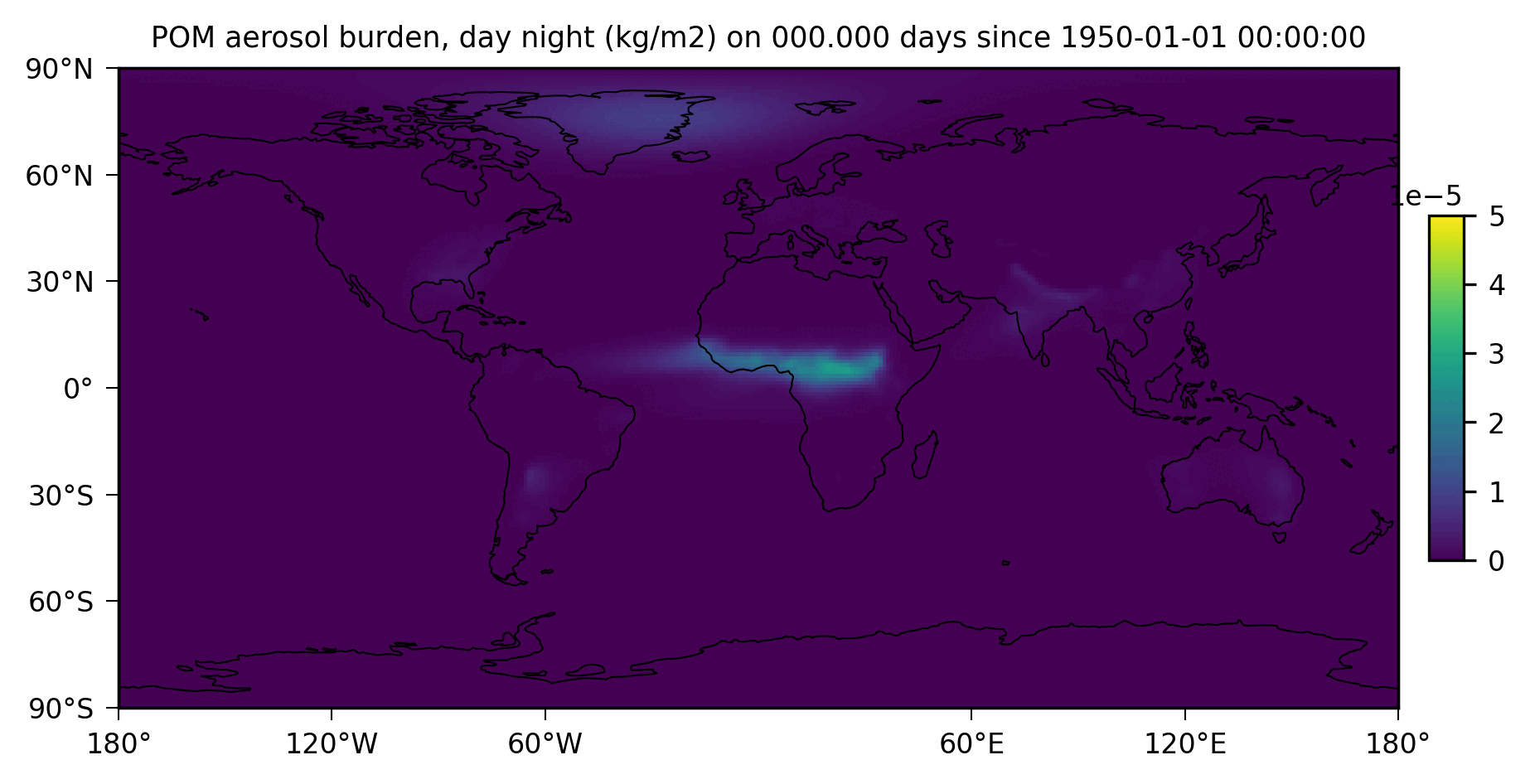

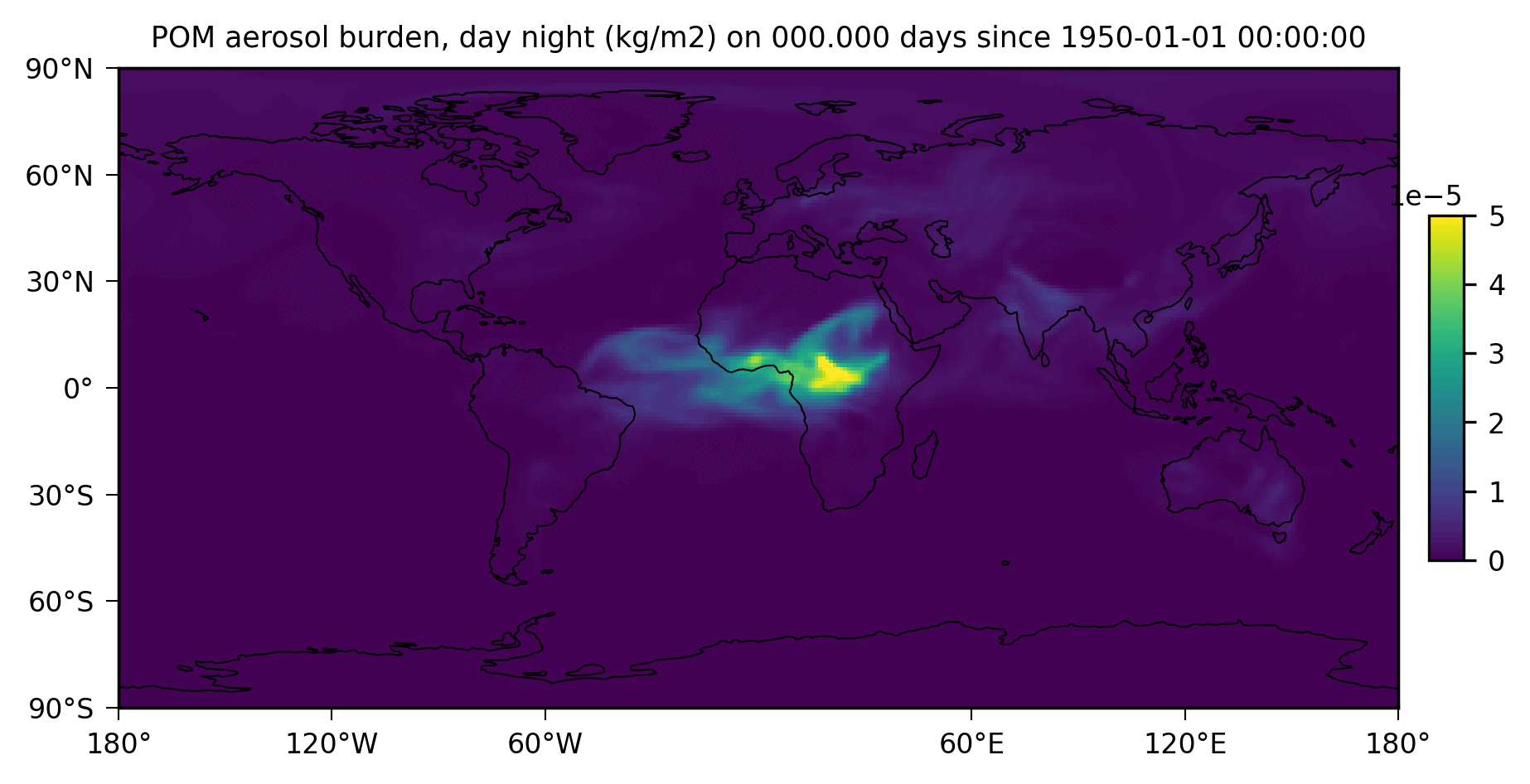

Primary Organic Matter¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

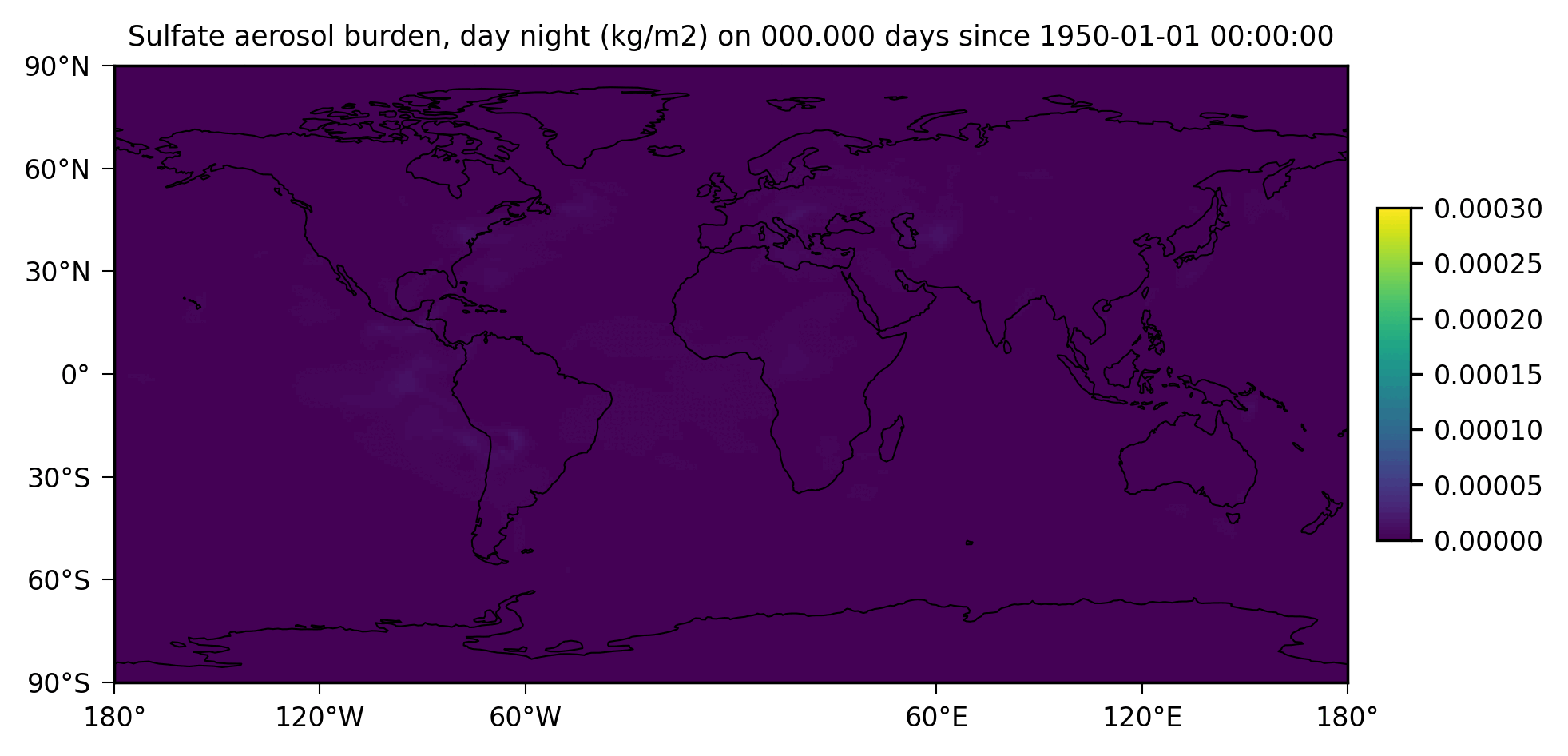

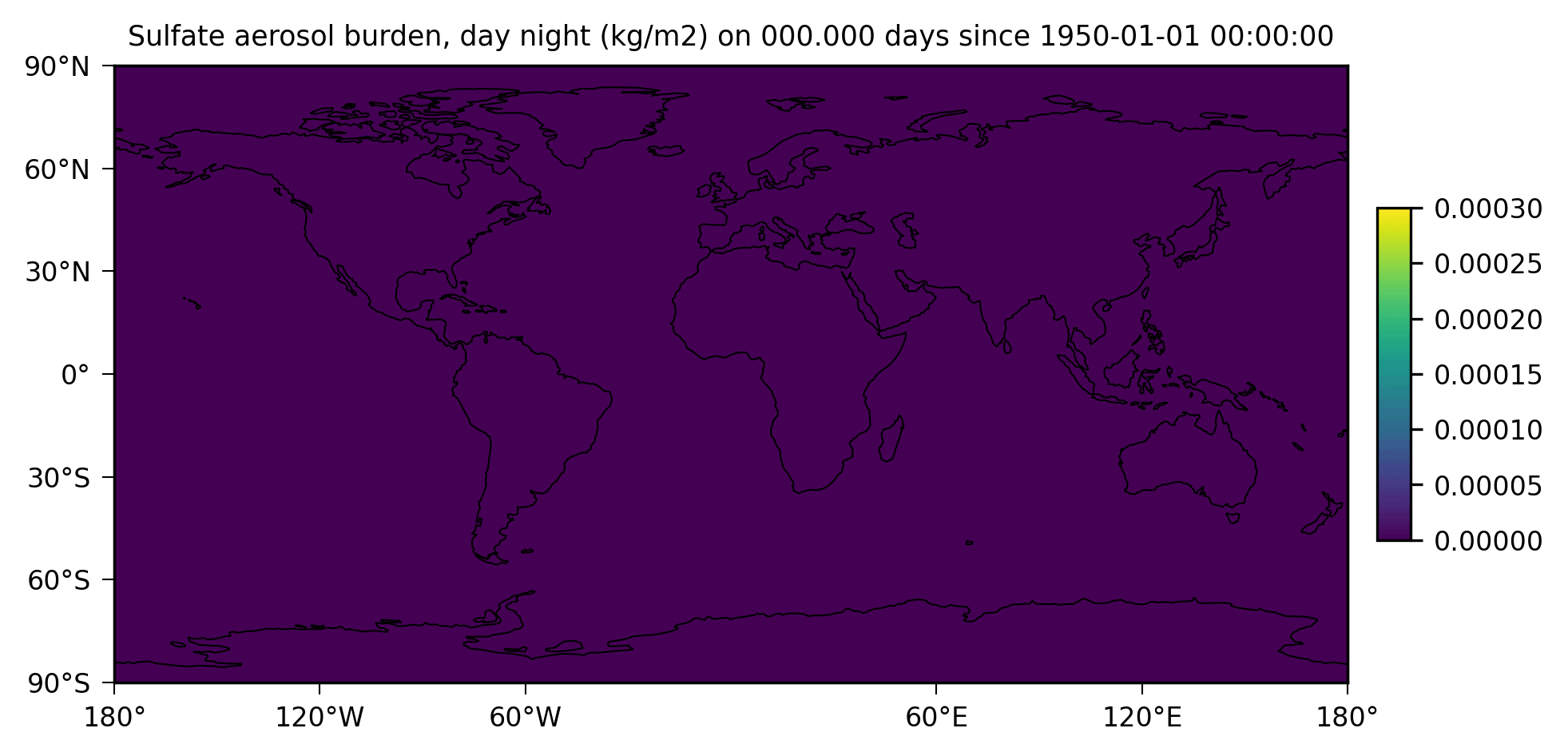

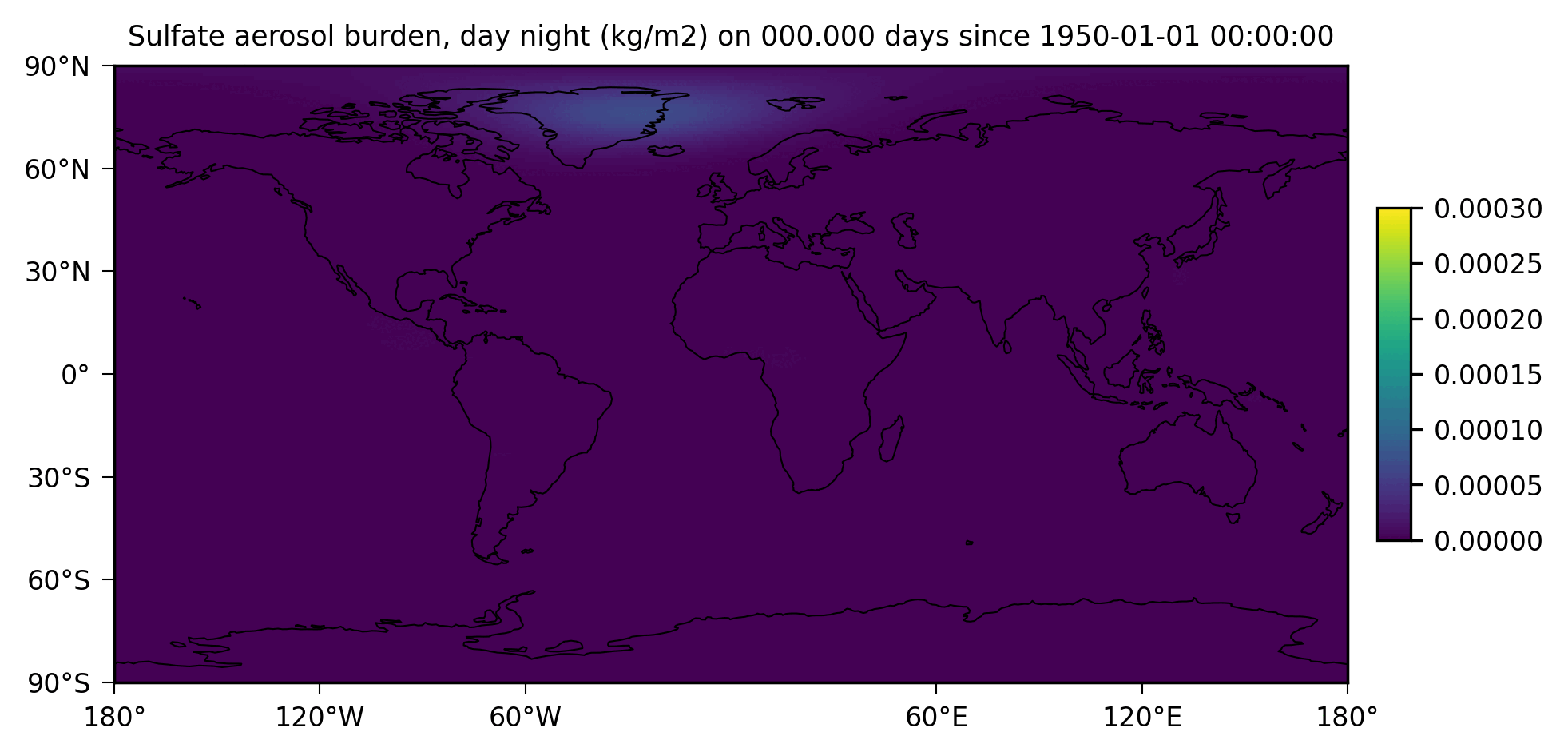

Sulfate (SO4)¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation

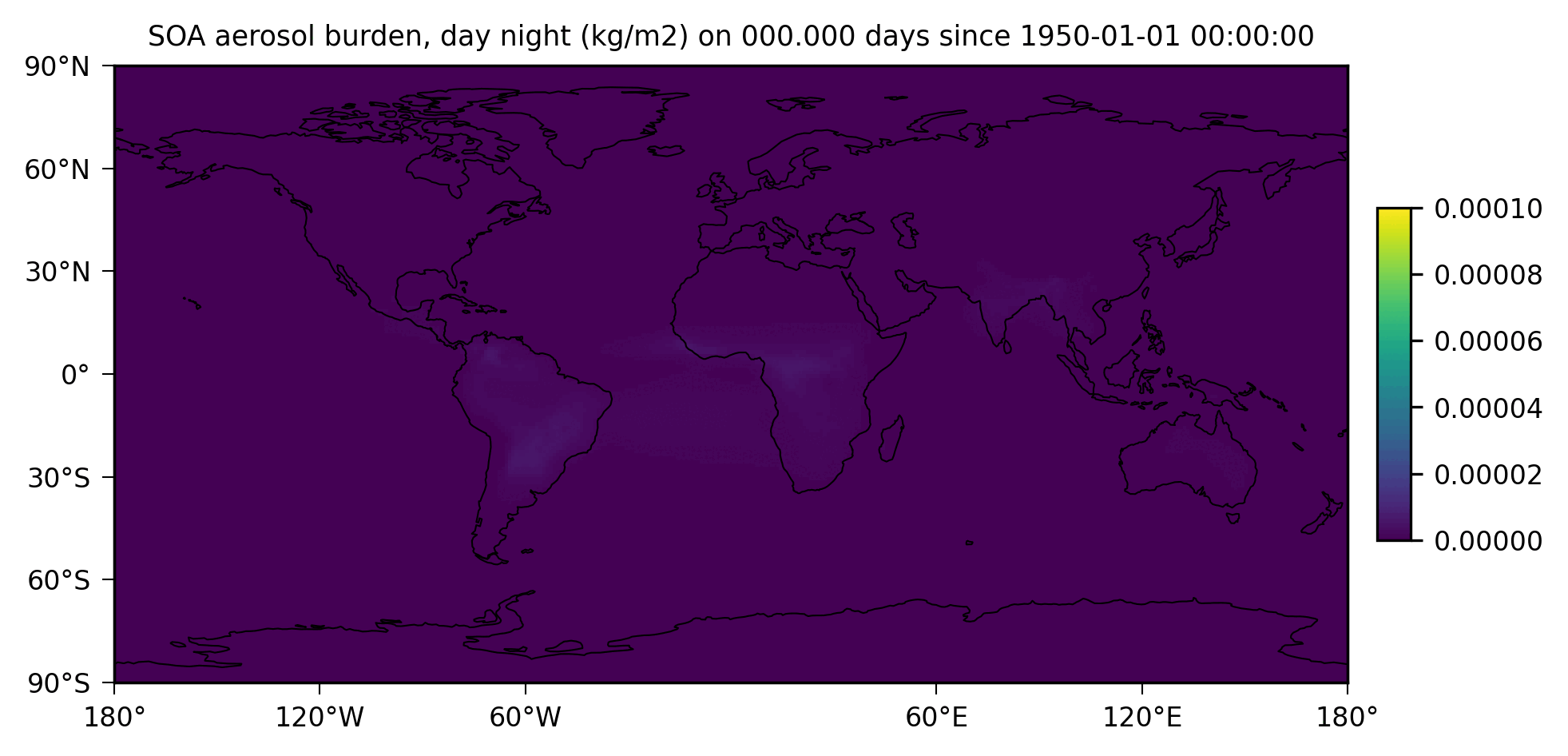

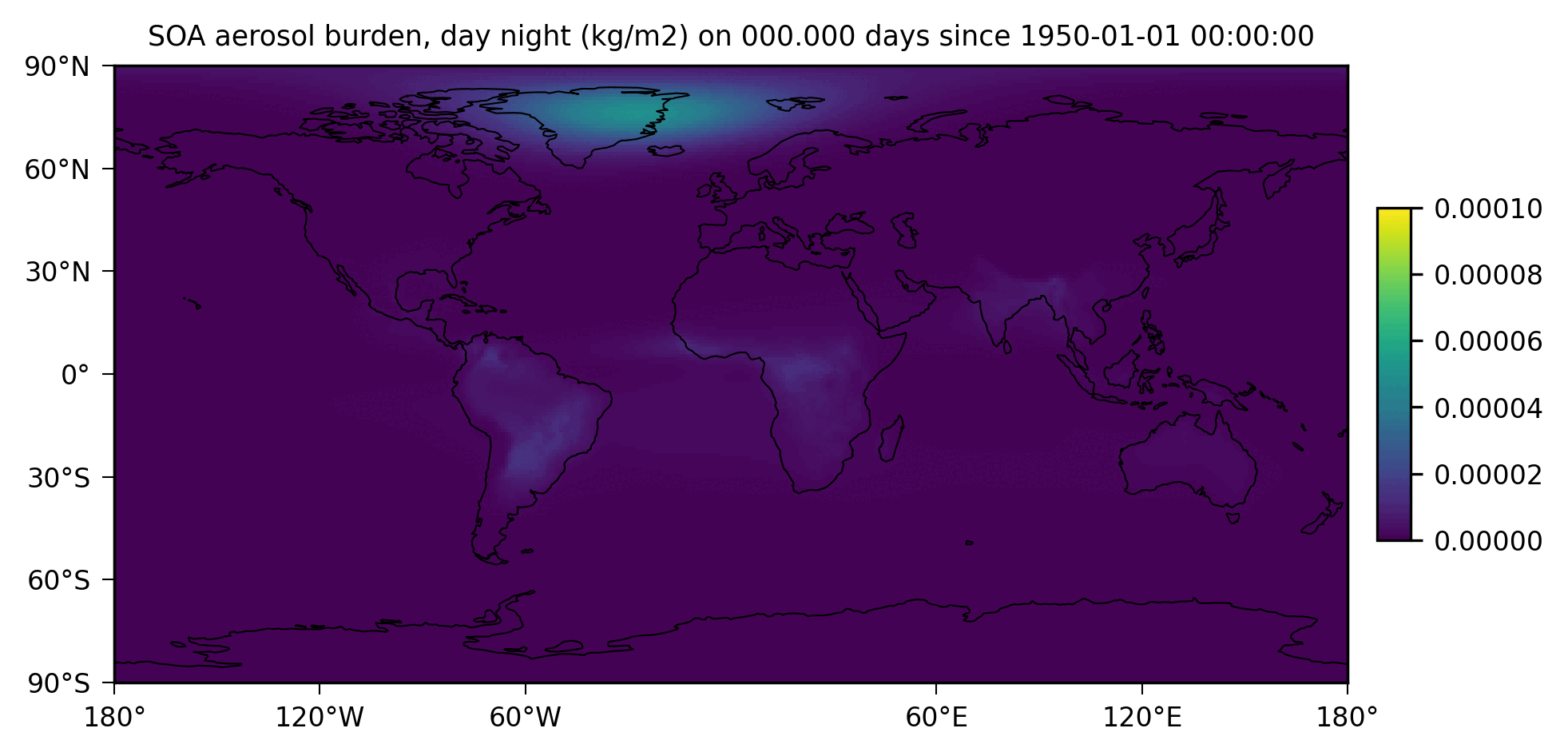

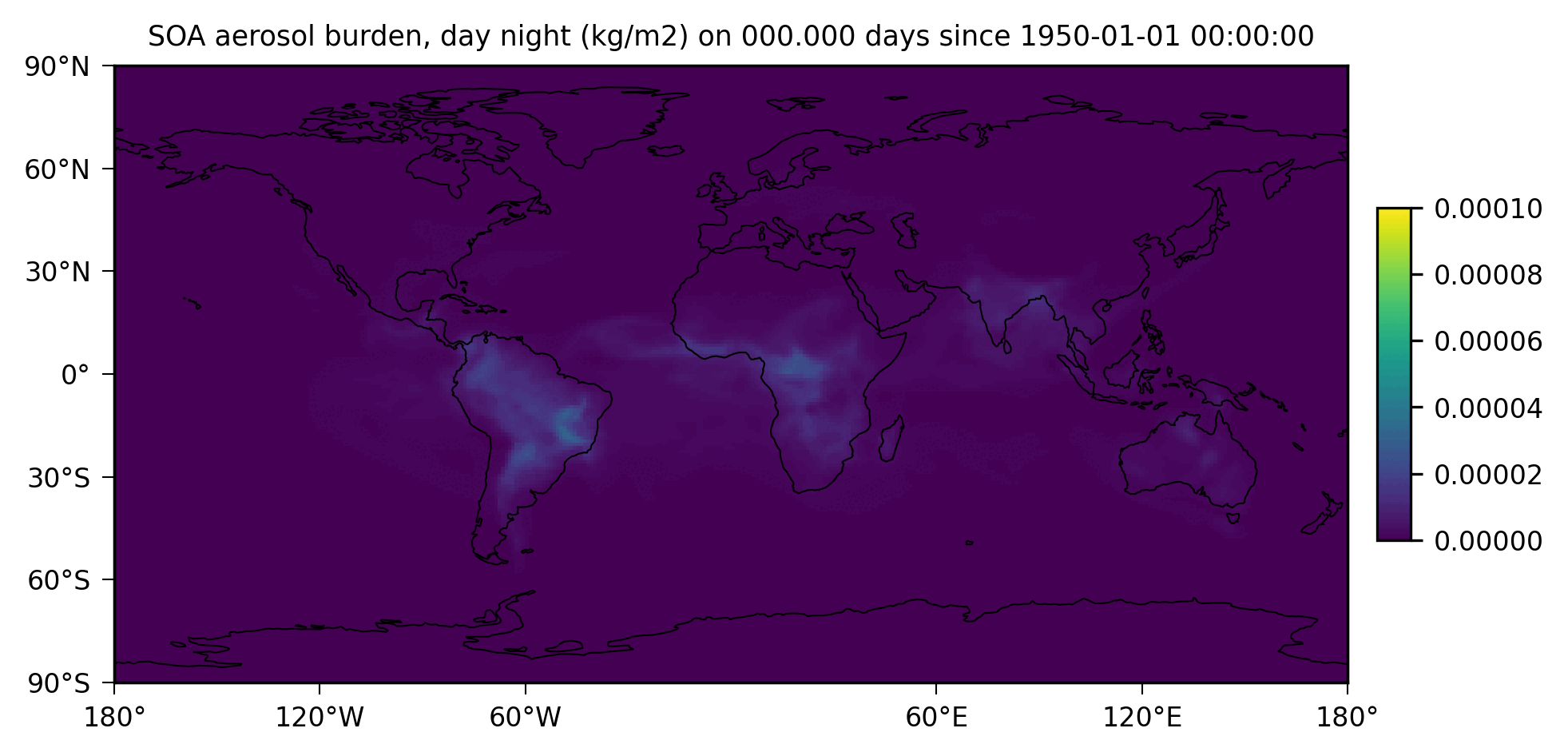

Secondary Organic Aerosol (SOA)¶
Prescribed aerosol with random scaling
Prescribed aerosol without random scaling
MAM4 simulation
Build and run-time settings¶
- env_bld.xml¶
CAM_CONFIG_OPTS="-phys cam5.4 -chem none"
- atm_in¶
&prescribed_aero_nl
prescribed_aero_cycle_yr = 1850
prescribed_aero_datapath = '/global/cfs/cdirs/m1867/MPASinput/HighResMIP/atm/cam/chem/trop_mam'
prescribed_aero_file = 'mam3_1.9x2.5_L30_1850clim_c130319.nc'
prescribed_aero_specifier = 'num_c1', 'bc_c1', 'dst_c1', 'ncl_c1', 'pom_c1', 'so4_c1', 'soa_c1', 'num_c2',
'ncl_c2', 'so4_c2', 'soa_c2', 'num_c3', 'dst_c3', 'ncl_c3', 'so4_c3', 'num_a1_logm',
'bc_a1_logm', 'dst_a1_logm', 'ncl_a1_logm', 'pom_a1_logm', 'so4_a1_logm', 'soa_a1_logm', 'num_a2_logm', 'ncl_a2_logm',
'so4_a2_logm', 'soa_a2_logm', 'num_a3_logm', 'dst_a3_logm', 'ncl_a3_logm', 'so4_a3_logm', 'num_a1_logv', 'bc_a1_logv',
'dst_a1_logv', 'ncl_a1_logv', 'pom_a1_logv', 'so4_a1_logv', 'soa_a1_logv', 'num_a2_logv', 'ncl_a2_logv', 'so4_a2_logv',
'soa_a2_logv', 'num_a3_logv', 'dst_a3_logv', 'ncl_a3_logv', 'so4_a3_logv'
prescribed_aero_type = 'CYCLICAL’
&aerodep_flx_nl
aerodep_flx_cycle_yr = 1850
aerodep_flx_datapath = '/global/cfs/cdirs/m1867/MPASinput/HighResMIP/atm/cam/chem/trop_mam'
aerodep_flx_file = 'mam3_1.9x2.5_L30_1850clim_c130319.nc'
aerodep_flx_specifier = 'bc_a1DDF', 'bc_c1DDF', 'pom_a1DDF', 'pom_c1DDF', 'soa_a1DDF', 'soa_c1DDF', 'soa_a2DDF', 'soa_c2DDF',
'dst_a1DDF', 'dst_c1DDF', 'dst_a3DDF', 'dst_c3DDF', 'bc_a1SFWET', 'bc_c1SFWET', 'pom_a1SFWET', 'pom_c1SFWET',
'soa_a1SFWET', 'soa_c1SFWET', 'dst_a1SFWET', 'dst_c1SFWET', 'dst_a3SFWET', 'dst_c3SFWET'
aerodep_flx_type = 'CYCLICAL'
&aerosol_nl
modal_accum_coarse_exch = .true.
&prescribed_volcaero_nl
prescribed_volcaero_cycle_yr = 2013
prescribed_volcaero_datapath = '/global/cfs/cdirs/m1867/MPASinput/HighResMIP/atm/cam/volc'
prescribed_volcaero_file = 'CCSM4_volcanic_1949115-21010115_with_10year_ramp_from_2015_to_2025_c20211012.nc'
prescribed_volcaero_type = 'CYCLICAL'
Input files¶
- mam3_1.9x2.5_L30_1850clim_c130319.nc¶
netcdf mam3_1.9x2.5_L30_1850clim_c130319 {
dimensions:
time = UNLIMITED ; // (12 currently)
lat = 96 ;
lon = 144 ;
lev = 30 ;
ilev = 31 ;
slat = 95 ;
slon = 144 ;
nbnd = 2 ;
double time(time) ;
time:long_name = "time" ;
time:units = "days since 0000-01-01 00:00:00" ;
time:calendar = "noleap" ;
time:bounds = "time_bnds" ;
time = 675265.5, 675295, 675324.5, 675355, 675385.5, 675416, 675446.5,
675477.5, 675508, 675538.5, 675569, 675599.5 ;
variables:
float bc_a1(time, lev, lat, lon) ;
bc_a1:mdims = 1 ;
bc_a1:units = "kg/kg" ;
bc_a1:long_name = "bc_a1 concentration" ;
bc_a1:cell_methods = "time: mean" ;
float bc_a1DDF(time, lat, lon) ;
bc_a1DDF:units = "kg/m2/s" ;
bc_a1DDF:long_name = "bc_a1 dry deposition flux at bottom (grav + turb)" ;
bc_a1DDF:cell_methods = "time: mean" ;
float bc_a1SFWET(time, lat, lon) ;
bc_a1SFWET:units = "kg/m2/s" ;
bc_a1SFWET:long_name = "Wet deposition flux at surface" ;
bc_a1SFWET:cell_methods = "time: mean" ;
float bc_a1_logm(time, lev, lat, lon) ;
bc_a1_logm:mdims = 1 ;
bc_a1_logm:units = "kg/kg" ;
bc_a1_logm:long_name = "bc_a1 log concentration" ;
bc_a1_logm:cell_methods = "time: mean" ;
float bc_a1_logv(time, lev, lat, lon) ;
bc_a1_logv:mdims = 1 ;
bc_a1_logv:units = "kg/kg" ;
bc_a1_logv:long_name = " bc_a1 log^2 concentration" ;
bc_a1_logv:cell_methods = "time: mean" ;
.....
- CCSM4_volcanic_1949115-21010115_with_10year_ramp_from_2015_to_2025_c20211012.nc¶
netcdf CCSM4_volcanic_1949115-21010115_with_10year_ramp_from_2015_to_2025_c20211012 {
dimensions:
time = 1826 ;
lev = 8 ;
lat = 64 ;
float time(time) ;
time:_FillValue = 1.e+36f ;
time:axis = "T" ;
time:long_name = "time" ;
time:units = "days since 1949-01-01" ;
time:calendar = "365_day" ;
time:cell_methods = "time: mean" ;
time = 14, 45, 73, 104, 134, 165, 195, 226, 257, 287, 318, 348, 379, 410,
438, 469, 499, ...
variables:
float lev(lev) ;
lev:_FillValue = 1.e+36f ;
lev:formula_terms = "none" ;
lev:standard_name = "pure pressure levels" ;
lev:units = "hPa" ;
lev:long_name = "Pressure downwards" ;
lev:bounds = "ilev" ;
double lat(lat) ;
lat:_FillValue = 1.e+36 ;
double date(time) ;
date:_FillValue = 1.e+36 ;
date:units = "yyyymmdd" ;
date:long_name = "Date" ;
double datesec(time) ;
datesec:_FillValue = 1.e+36 ;
double MMRVOLC(time, lev, lat) ;
MMRVOLC:_FillValue = 1.e+36 ;
MMRVOLC:long_name = "layer volcanic aerosol mass mixing ratio" ;
MMRVOLC:units = "kg kg-1" ;
float colmass(time, lat) ;
colmass:_FillValue = 1.e+36f ;
