1001115.edique02::Benchmark_Time |
|
| back |
| command: ./mini_dft+ipm -in MDFT_11.in -ntg 10 -ndiag 900 | |||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||||||||||||||||||||||||||||||||||
|
|
|||||||||
| HPM Counter Statistics | ||||
|---|---|---|---|---|
| Event | Ntasks | Avg | Min(rank) | Max(rank) |
| Communication Event Statistics (0.00% detail, 5.7603e+05 error) | |||||||
|---|---|---|---|---|---|---|---|
| Buffer Size | Ncalls | Total Time | Min Time | Max Time | %MPI | %Wall | |
| MPI_Alltoallv | 28672 | 1917000 | 118010.740 | 5.905e-03 | 8.361e-01 | 20.49 | 5.00 |
| MPI_Barrier | 0 | 10674900 | 44554.593 | 1.788e-05 | 9.091e-01 | 7.73 | 1.89 |
| MPI_Alltoallv | 262144 | 1917000 | 19862.121 | 1.594e-03 | 7.824e-01 | 3.45 | 0.84 |
| MPI_Bcast | 5120 | 4797510 | 14820.644 | 0.000e+00 | 7.921e-02 | 2.57 | 0.63 |
| MPI_Reduce | 786432 | 1674000 | 5363.725 | 2.770e-04 | 1.223e-01 | 0.93 | 0.23 |
| MPI_Bcast | 786432 | 810000 | 4609.333 | 5.579e-04 | 1.153e-01 | 0.80 | 0.20 |
| MPI_Bcast | 2560 | 194070 | 7085.349 | 0.000e+00 | 1.998e+00 | 1.23 | 0.30 |
| MPI_Allreduce | 786432 | 509400 | 6357.436 | 2.019e-03 | 2.055e-01 | 1.10 | 0.27 |
| MPI_Recv | 5120 | 14047635 | 5041.868 | 0.000e+00 | 7.429e-02 | 0.88 | 0.21 |
| MPI_Reduce | 393216 | 837000 | 6407.862 | 5.801e-04 | 1.223e-01 | 1.11 | 0.27 |
| MPI_Bcast | 393216 | 405000 | 2205.120 | 4.110e-04 | 1.031e-01 | 0.38 | 0.09 |
| MPI_Recv | 4 | 26100 | 491.818 | 0.000e+00 | 9.515e-02 | 0.09 | 0.02 |
| MPI_Bcast | 1835008 | 26100 | 1329.116 | 1.389e-03 | 1.214e-01 | 0.23 | 0.06 |
| MPI_Allreduce | 8 | 34200 | 332.641 | 2.003e-05 | 8.537e-02 | 0.06 | 0.01 |
| MPI_Recv | 1835008 | 89814 | 937.459 | 1.900e-04 | 1.159e-01 | 0.16 | 0.04 |
| MPI_Bcast | 163840 | 145800 | 755.847 | 2.194e-05 | 1.242e+00 | 0.13 | 0.03 |
| MPI_Recv | 81920 | 1374155 | 665.076 | 6.914e-06 | 2.589e-01 | 0.12 | 0.03 |
| MPI_Reduce | 163840 | 145800 | 671.110 | 2.980e-05 | 2.155e+00 | 0.12 | 0.03 |
| MPI_Alltoallv | 0 | 3240 | 827.919 | 5.391e-02 | 4.396e-01 | 0.14 | 0.04 |
| MPI_Sendrecv_replace | 1835008 | 162000 | 499.641 | 4.060e-04 | 2.018e-02 | 0.09 | 0.02 |
| MPI_Send | 81920 | 1373295 | 332.825 | 7.868e-06 | 1.626e+00 | 0.06 | 0.01 |
| MPI_Reduce | 1835008 | 26100 | 342.001 | 4.320e-04 | 7.804e-02 | 0.06 | 0.01 |
| MPI_Bcast | 1024 | 2480700 | 364.215 | 0.000e+00 | 1.562e-02 | 0.06 | 0.02 |
| MPI_Bcast | 10240 | 17100 | 319.157 | 1.907e-06 | 1.412e-01 | 0.06 | 0.01 |
| MPI_Bcast | 4 | 4924800 | 307.215 | 0.000e+00 | 7.906e-02 | 0.05 | 0.01 |
| Load balance by task: HPM counters |
|---|
|
| by MPI rank, by MPI time |

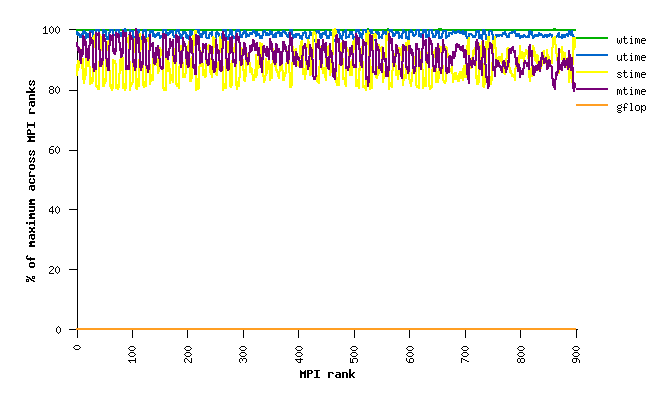

| Load balance by task: memory, flops, timings |
|
| by MPI rank, by MPI time |
| Communication balance by task (sorted by MPI time) |
|
| by MPI rank , time detail by MPI time , time detail by rank , call list |
| Message Buffer Size Distributions: time |
|
|
|
| Message Buffer Size Distributions: Ncalls |
|
|
|
| Communication Topology : point to point data flow |
|
|
|
