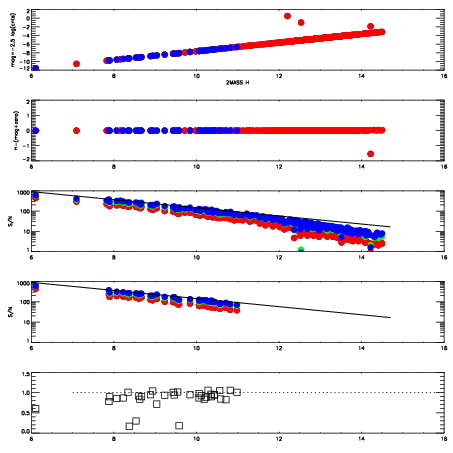

Left plots: red are targets, blue are telluric. Observed mags are calculated from median value of green chip. Zeropoint gives overall throughput: bigger number is more throughput.
First spatial plots: circles are objects, squares are tellurics, crosses are sky fibers. Colors give deviation of observed mag from expected 2MASS mag using the median zeropoint; red is brighter
Second spatial plots: circles are sky fibers. Colors give sky line brightness relative to plate median sky line brightness

Frame	Nreads	Zeropoints	Mag plots	Spatial mag deviation	Spatial sky 16325A emission deviations (filled: sky, open: star)	Spatial sky continuum emission	Spatial sky telluric CO2 absorption deviations (filled: H < 10)
0	0	Red Green Blue z 17.64 znorm Inf sky -Inf -Inf -Inf S/N 16.3 33.0 33.7 S/N(c) 0.0 0.0 0.0 SN(E/C) 0.91

IPAIR	NAME	SHIFT	NEWSHIFT	S/N	NAME	SHIFT	NEWSHIFT	S/N
0	03110016	0.493476	0.00000	18.3252	03110018	0.00250142	0.490975	18.3502
1	03110019	0.490302	0.00317401	18.4193	03110021	0.00265738	0.490819	18.4316
2	03110020	0.491851	0.00162500	18.3186	03110017	0.00358088	0.489895	18.1971
3	03110015	0.493389	8.69930e-05	18.1282	03110013	0.00368431	0.489792	18.0533
4	03110011	0.492814	0.000661999	17.9352	03110014	0.00116776	0.492308	17.9954
5	03110012	0.493417	5.90086e-05	17.5506	03110010	0.00000	0.493476	17.6501
