| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 870 | UGC03574 | 103.2934854 | 57.1776582 | 3.3936 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 870 | UGC03574 | 103.2934854 | 57.1776582 | 3.3936 |

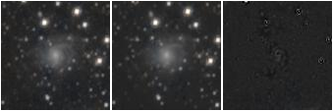

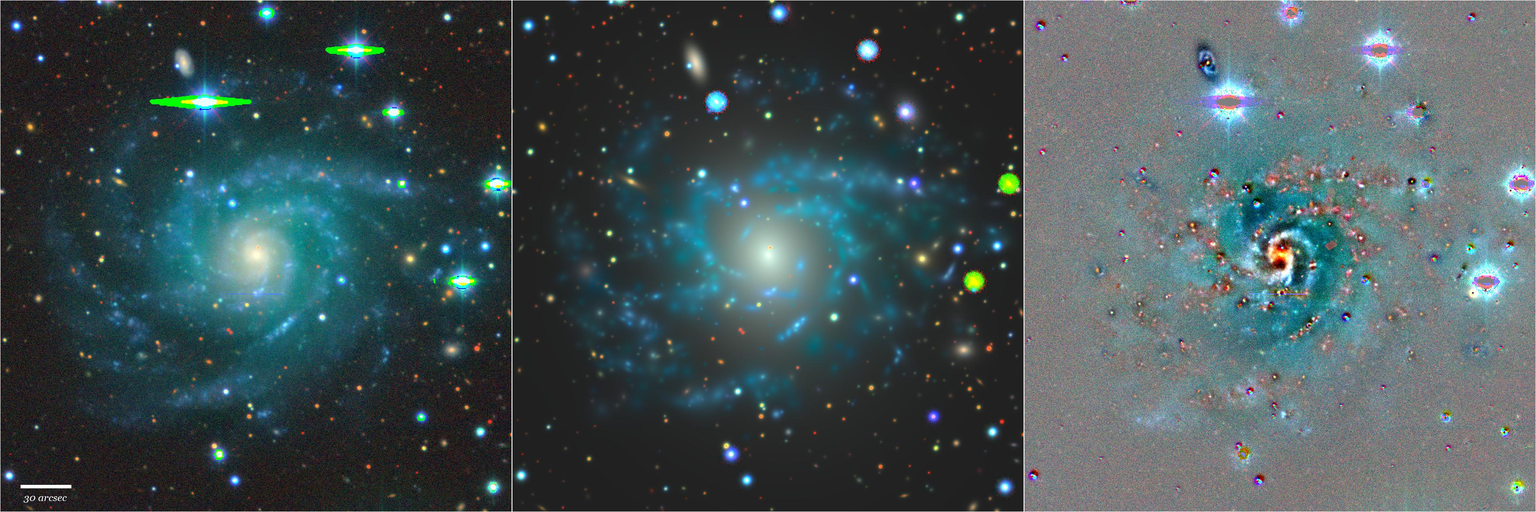

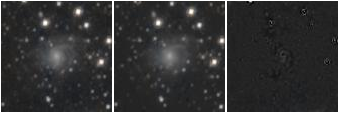

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC03574 | SER | 1.76 | 37.851 | 17.21 | 0.167 | 101.809 | 65.24 | 0.064 | 68.941 | 102.611 | 127.065 | 780.437 | 689.333 | 1645.834 |

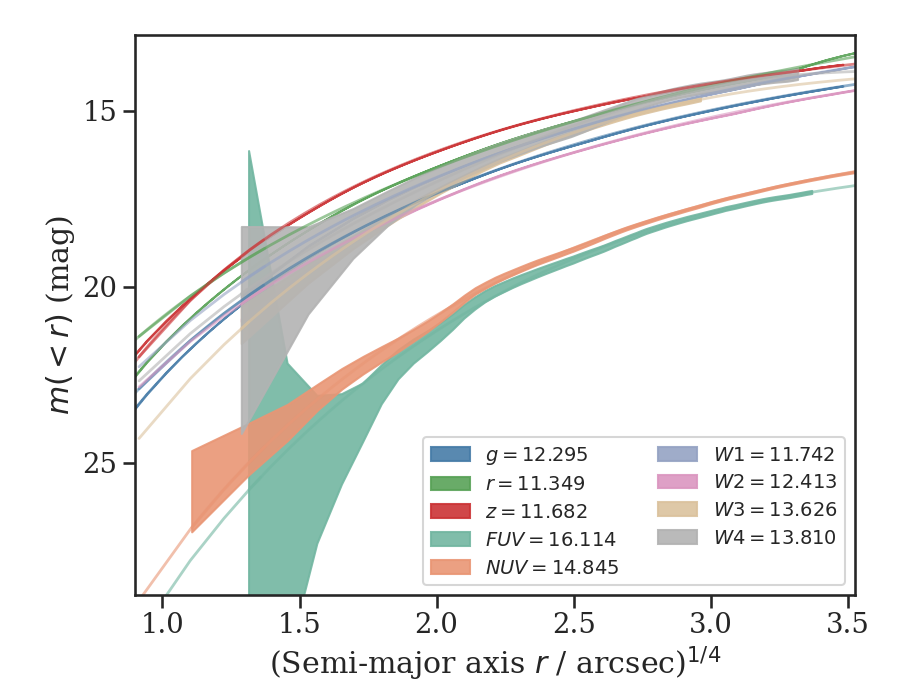

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC03574 | >21.041 | 17.135 | 13.239 | 12.547 | 12.231 | 12.675 | 13.279 | 12.552 | 11.757 | 16.114 | 14.845 | 12.295 | 11.349 | 11.682 | 11.742 | 12.413 | 13.626 | 13.810 |
 |
 |
 |
 |
 |
 |
