UGC03626

RA Slice 105

Home
Next (UGC05612)
Previous (UGC11193)

Group Properties

ID (Primary)	Group Name	Group RA	Group Dec	Group Diameter (arcmin)	Viewer
112	UGC03626	105.6713308	70.9687976	2.0208	Link

Group Members

ID	Galaxy	RA	Dec	D(25) (arcmin)
112	UGC03626	105.6713308	70.9687976	2.0208

Image Mosaics

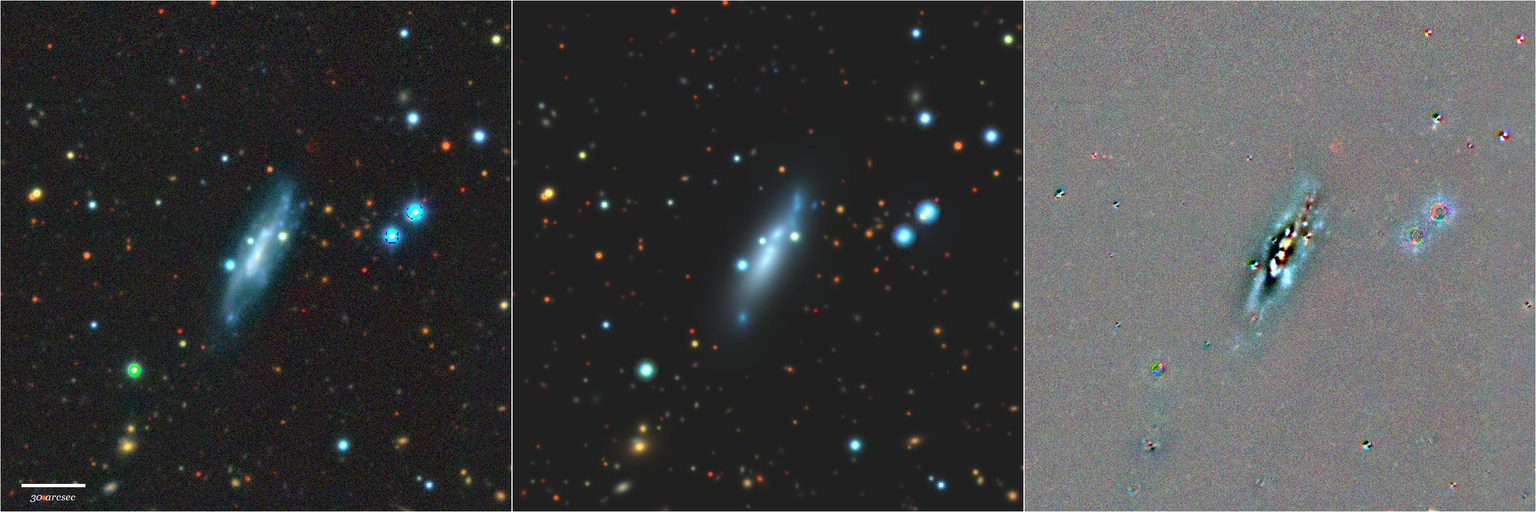

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).

Missing file UGC03626-custom-montage-grz.png

Missing file UGC03626-custom-montage-FUVNUV.png

Missing file UGC03626-custom-montage-W1W2.png

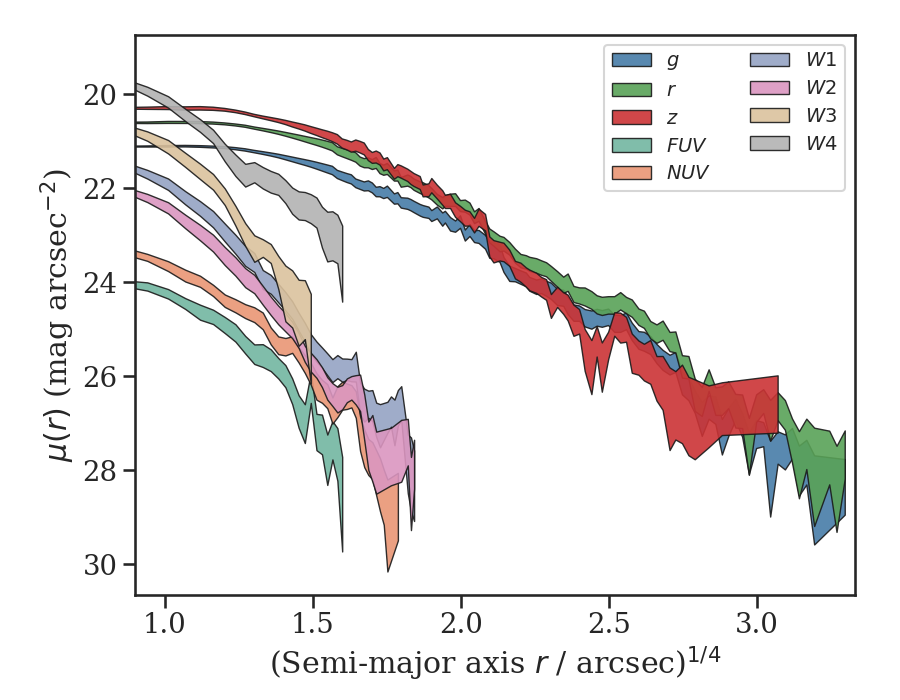

Elliptical Isophote Analysis

Geometry

	Tractor					Ellipse Moments			Surface Brightness Threshold Radii (arcsec)			Half-light Radii (arcsec)
Galaxy	Type	n	r(50) (arcsec)	PA (deg)	e	Size (arcsec)	PA (deg)	e	R(24)	R(25)	R(26)	g(50)	r(50)	z(50)
UGC03626	SER	1.34	12.337	150.78	0.592	60.623	154.46	0.679	30.989	46.692	64.175	14.361	14.146	11.288

Photometry

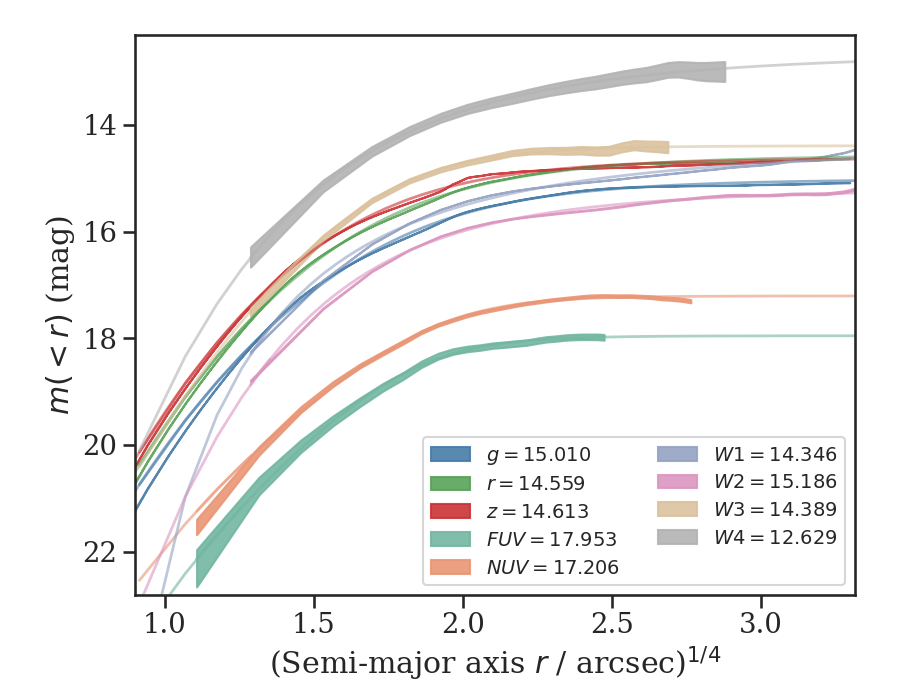

	Tractor									Curve of Growth
Galaxy	FUV	NUV	g	r	z	W1	W2	W3	W4	FUV	NUV	g	r	z	W1	W2	W3	W4
UGC03626	>22.019	18.482	15.579	15.101	14.926	15.313	15.765	14.301	12.958	17.953	17.206	15.010	14.559	14.613	14.346	15.186	14.389	12.629

UGC03626

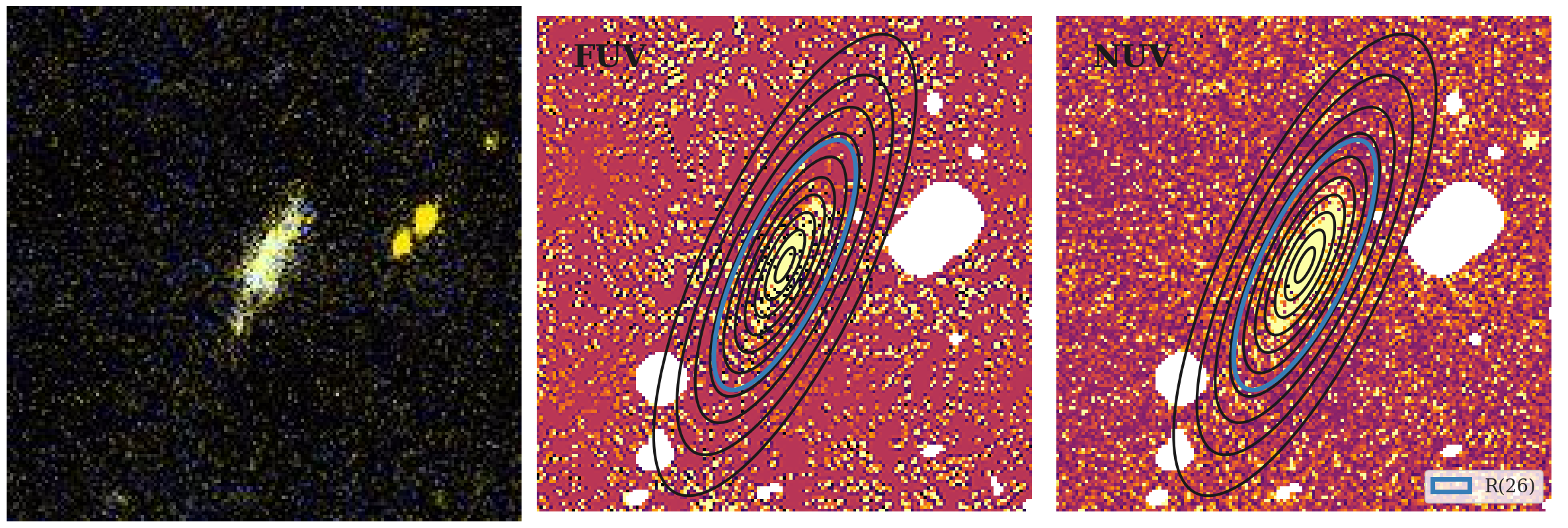

Missing file thumb-UGC03626-custom-ellipse-112-multiband-FUVNUV.png

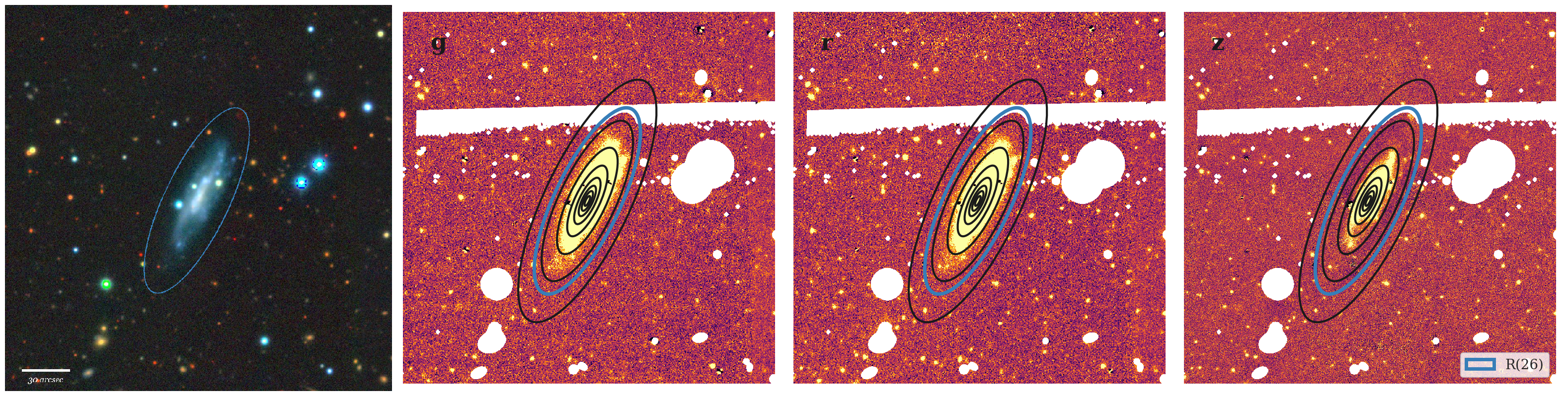

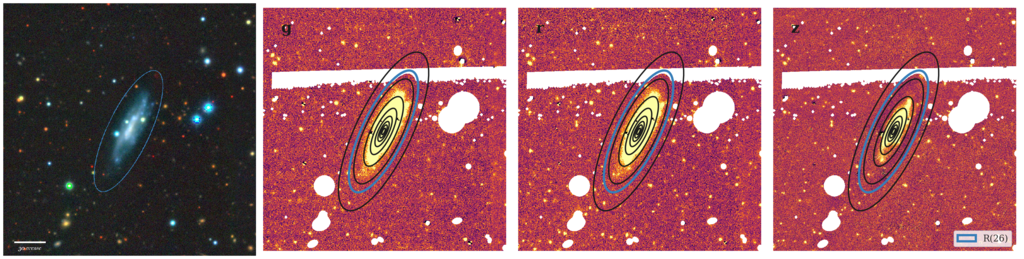

Missing file thumb-UGC03626-custom-ellipse-112-multiband.png

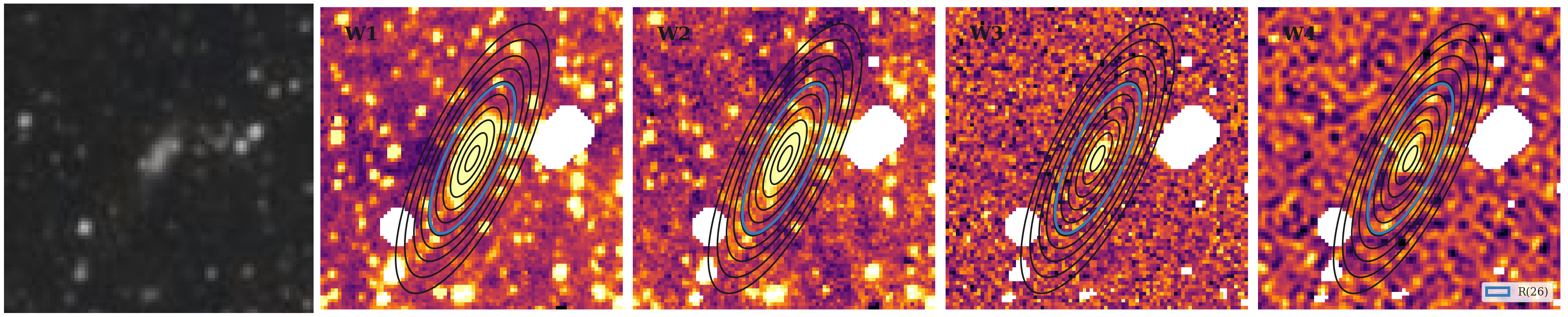

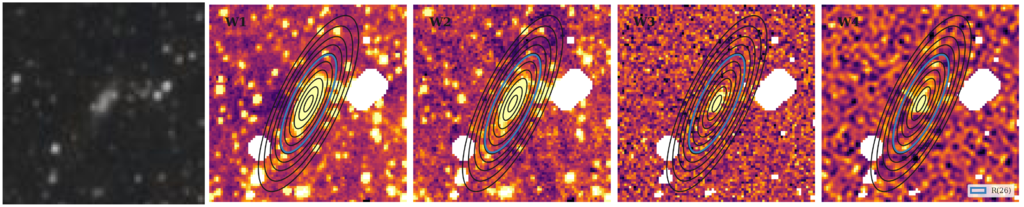

Missing file thumb-UGC03626-custom-ellipse-112-multiband-W1W2.png
