| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 3999 | UGC03974 | 115.4816906 | 16.8023498 | 5.4314 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 3999 | UGC03974 | 115.4816906 | 16.8023498 | 5.4314 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC03974 | SER | 1.61 | 33.879 | 77.13 | 0.082 | 162.941 | 0.00 | 0.025 | 23.796 | 53.524 | 89.395 | 1536.048 | 1596.155 | 1699.004 |

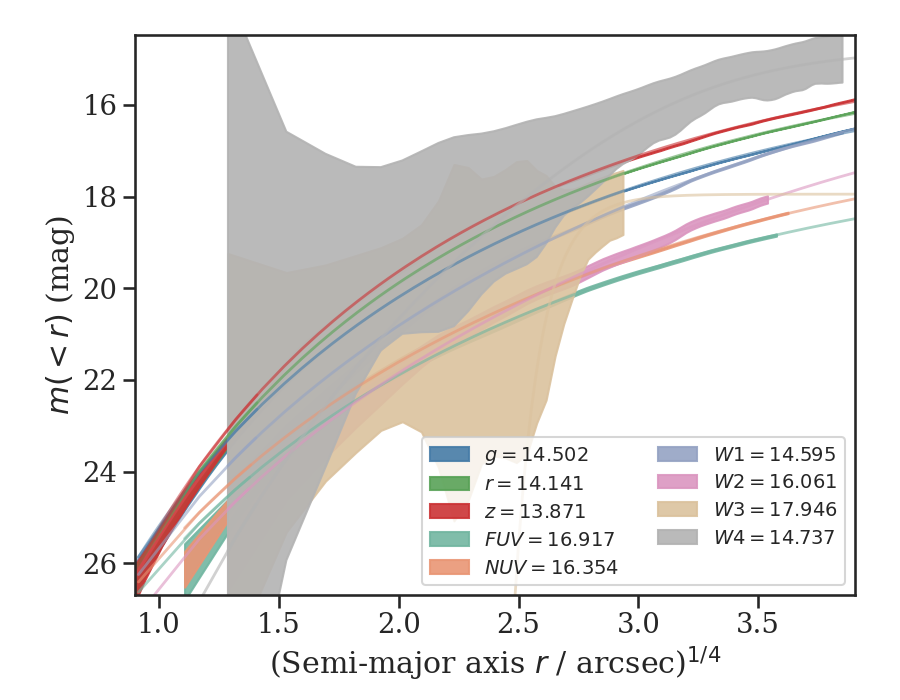

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC03974 | >21.967 | >21.933 | 15.893 | 15.762 | 15.615 | >20.807 | >20.062 | >16.756 | >14.209 | 16.917 | 16.354 | 14.502 | 14.141 | 13.871 | 14.595 | 16.061 | 17.946 | 14.737 |
 |
 |
 |
 |
 |
 |
