| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4018 | UGC04247 | 122.2646555 | 16.6770707 | 2.1983 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4018 | UGC04247 | 122.2646555 | 16.6770707 | 2.1983 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC04247 | SER | 0.77 | 17.205 | 19.16 | 0.904 | 43.575 | 18.05 | 0.870 | 29.504 | 39.104 | 56.061 | 13.516 | 13.669 | 13.748 |

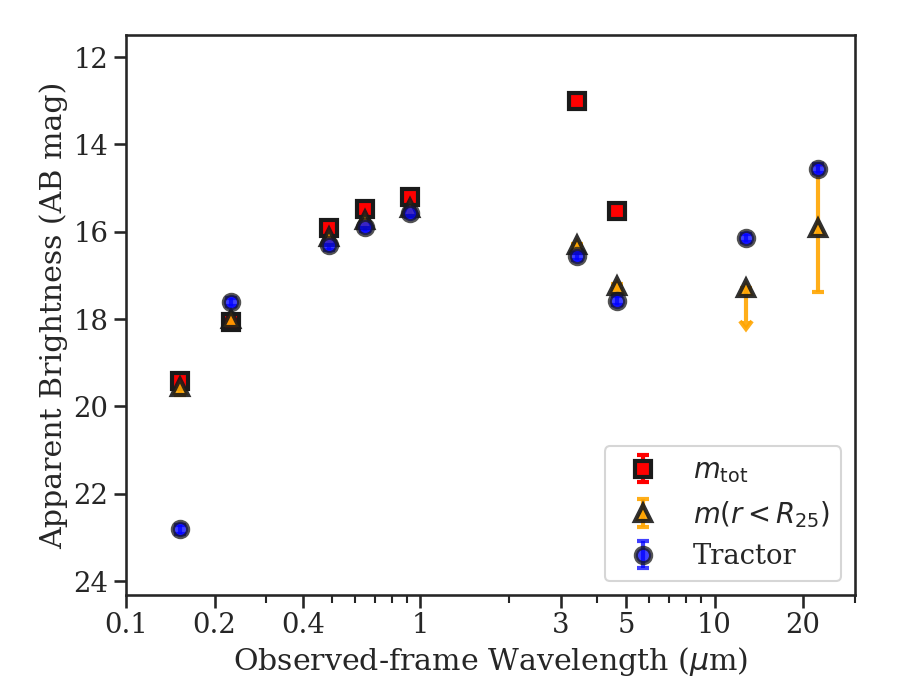

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC04247 | 22.817 | 17.608 | 16.314 | 15.893 | 15.565 | 16.550 | 17.575 | 16.145 | 14.559 | 19.423 | 18.073 | 15.923 | 15.483 | 15.196 | 12.994 | 15.519 | ... | ... |
 |
 |
 |
 |
 |
 |
