| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2550 | UGC05020 | 141.5061659 | 34.6533843 | 3.6891 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2550 | UGC05020 | 141.5061659 | 34.6533843 | 3.6891 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC05020 | SER | 1.25 | 26.749 | 75.46 | 0.742 | 70.507 | 77.18 | 0.770 | 55.459 | 78.052 | 114.028 | 21.750 | 21.348 | 17.884 |

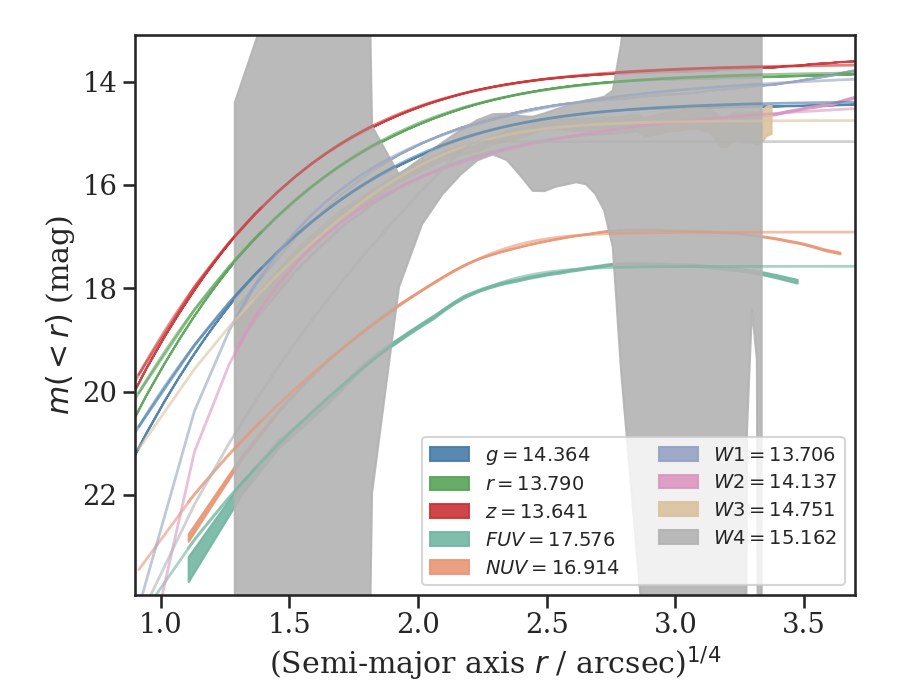

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC05020 | 18.932 | 17.219 | 14.583 | 13.982 | 13.648 | 14.240 | 14.829 | 14.312 | 15.001 | 17.576 | 16.914 | 14.364 | 13.790 | 13.641 | 13.706 | 14.137 | 14.751 | 15.162 |
 |
 |
 |
 |
 |
 |
