UGC05249

RA Slice 146

Home
Next (PGC032687)
Previous (PGC041631)

Group Properties

ID (Primary)	Group Name	Group RA	Group Dec	Group Diameter (arcmin)	Viewer
6222	UGC05249	146.9387237	2.6266642	5.7560	Link

Group Members

ID	Galaxy	RA	Dec	D(25) (arcmin)
6222	UGC05249	146.9387237	2.6266642	5.7560

Image Mosaics

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).

Missing file UGC05249-custom-montage-grz.png

Missing file UGC05249-custom-montage-FUVNUV.png

Missing file UGC05249-custom-montage-W1W2.png

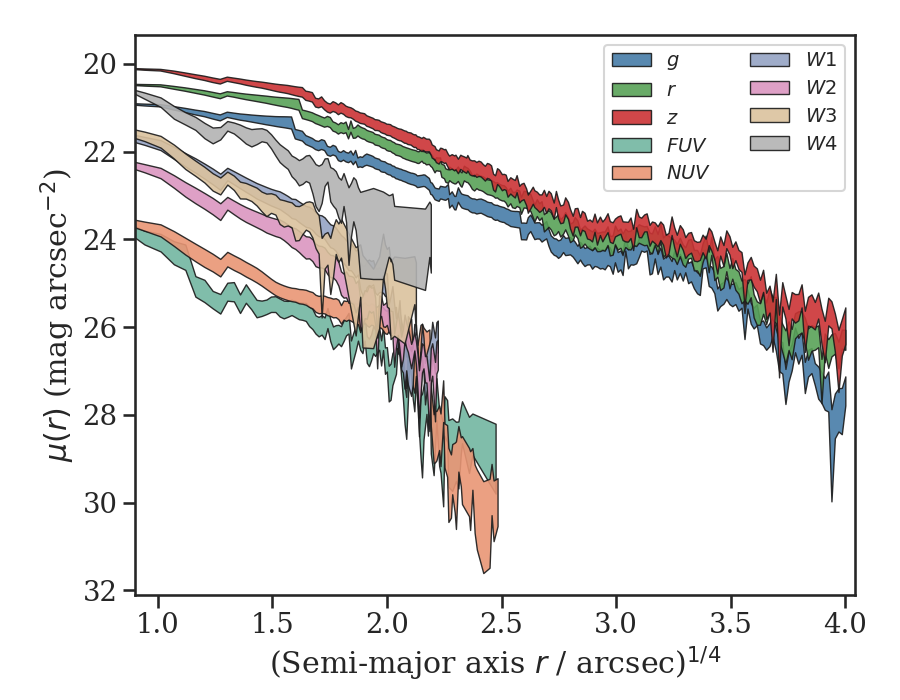

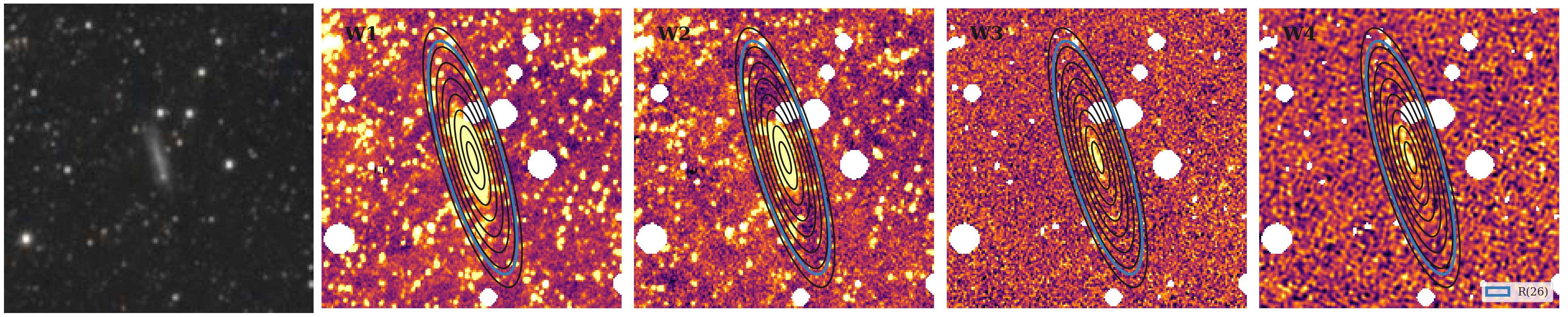

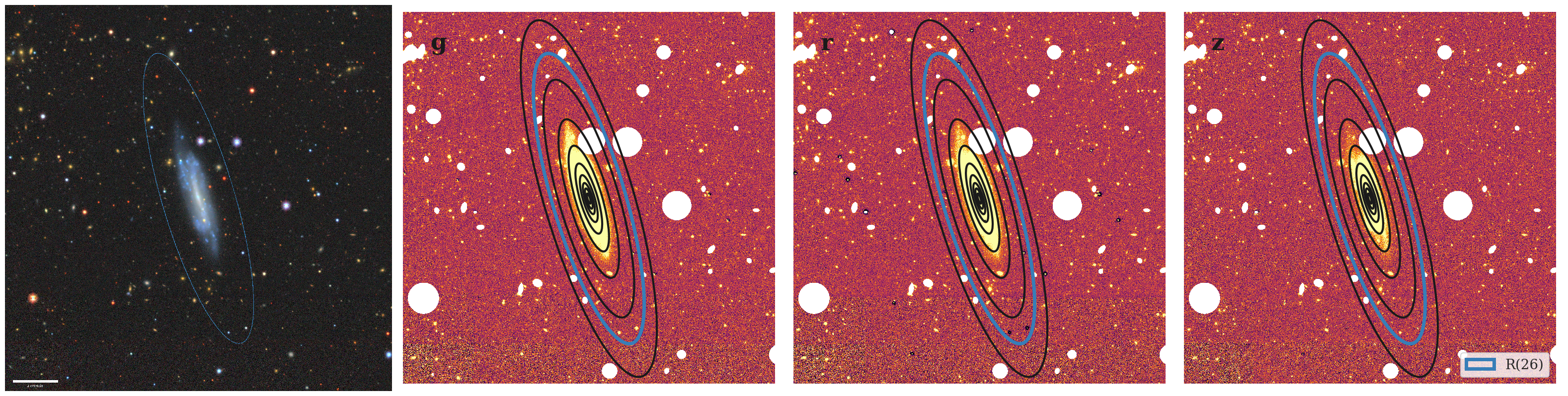

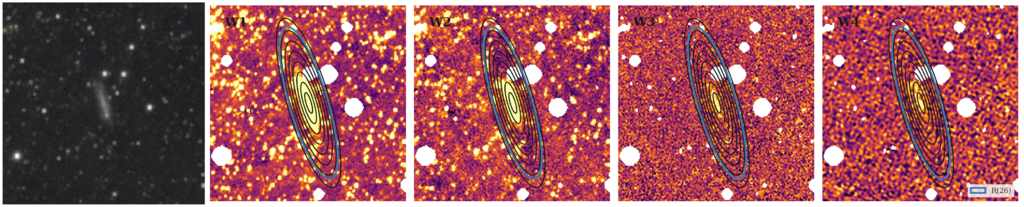

Elliptical Isophote Analysis

Geometry

	Tractor					Ellipse Moments			Surface Brightness Threshold Radii (arcsec)			Half-light Radii (arcsec)
Galaxy	Type	n	r(50) (arcsec)	PA (deg)	e	Size (arcsec)	PA (deg)	e	R(24)	R(25)	R(26)	g(50)	r(50)	z(50)
UGC05249	SER	1.34	29.040	17.32	0.708	172.681	16.53	0.759	84.465	143.920	202.775	31.536	31.040	33.724

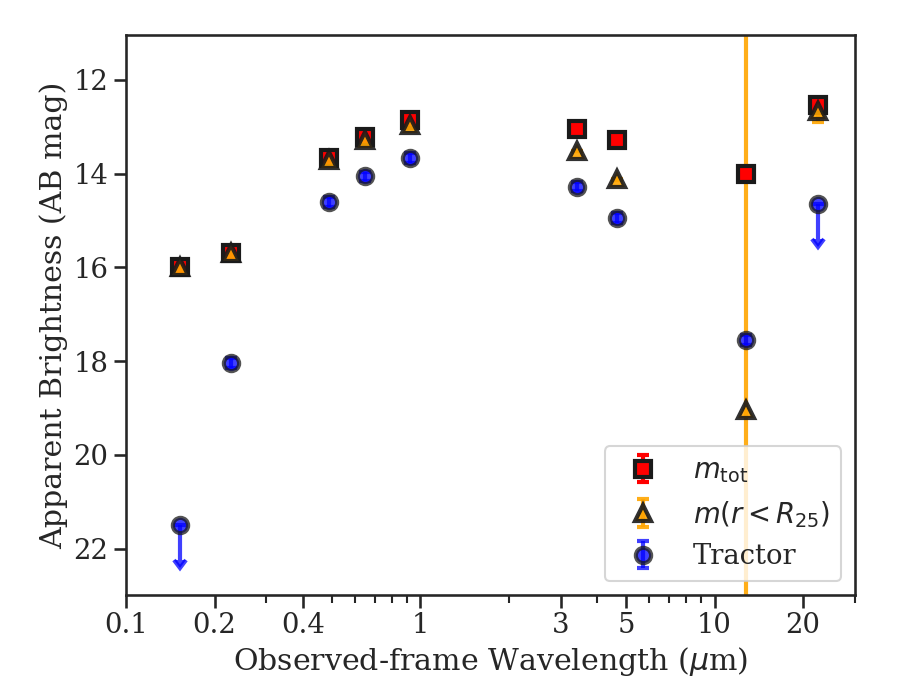

Photometry

	Tractor									Curve of Growth
Galaxy	FUV	NUV	g	r	z	W1	W2	W3	W4	FUV	NUV	g	r	z	W1	W2	W3	W4
UGC05249	>21.491	18.042	14.605	14.055	13.669	14.278	14.948	17.548	>14.654	15.995	15.694	13.672	13.224	12.848	13.044	13.277	14.014	12.542

UGC05249

Missing file thumb-UGC05249-custom-ellipse-6222-multiband-FUVNUV.png

Missing file thumb-UGC05249-custom-ellipse-6222-multiband.png

Missing file thumb-UGC05249-custom-ellipse-6222-multiband-W1W2.png
