UGC05393

RA Slice 150

Home
Next (UGC05282)
Previous (AGC239114)

Group Properties

ID (Primary)	Group Name	Group RA	Group Dec	Group Diameter (arcmin)	Viewer
2654	UGC05393	150.4252357	33.1363750	2.3568	Link

Group Members

ID	Galaxy	RA	Dec	D(25) (arcmin)
2654	UGC05393	150.4252357	33.1363750	2.3568

Image Mosaics

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).

Missing file UGC05393-custom-montage-grz.png

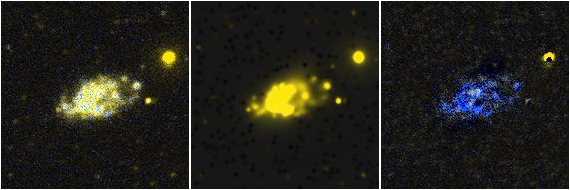

Missing file UGC05393-custom-montage-FUVNUV.png

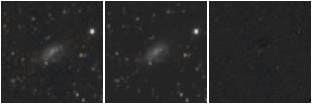

Missing file UGC05393-custom-montage-W1W2.png

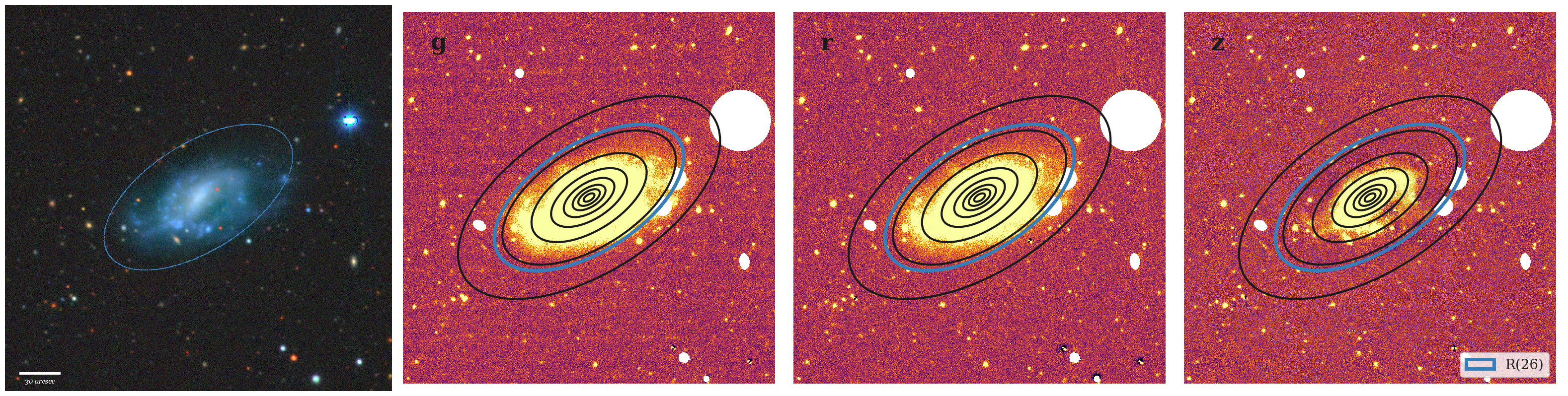

Elliptical Isophote Analysis

Geometry

	Tractor					Ellipse Moments			Surface Brightness Threshold Radii (arcsec)			Half-light Radii (arcsec)
Galaxy	Type	n	r(50) (arcsec)	PA (deg)	e	Size (arcsec)	PA (deg)	e	R(24)	R(25)	R(26)	g(50)	r(50)	z(50)
UGC05393	SER	1.26	22.707	139.02	0.548	70.704	122.62	0.497	48.730	65.007	78.329	32.527	33.541	25.450

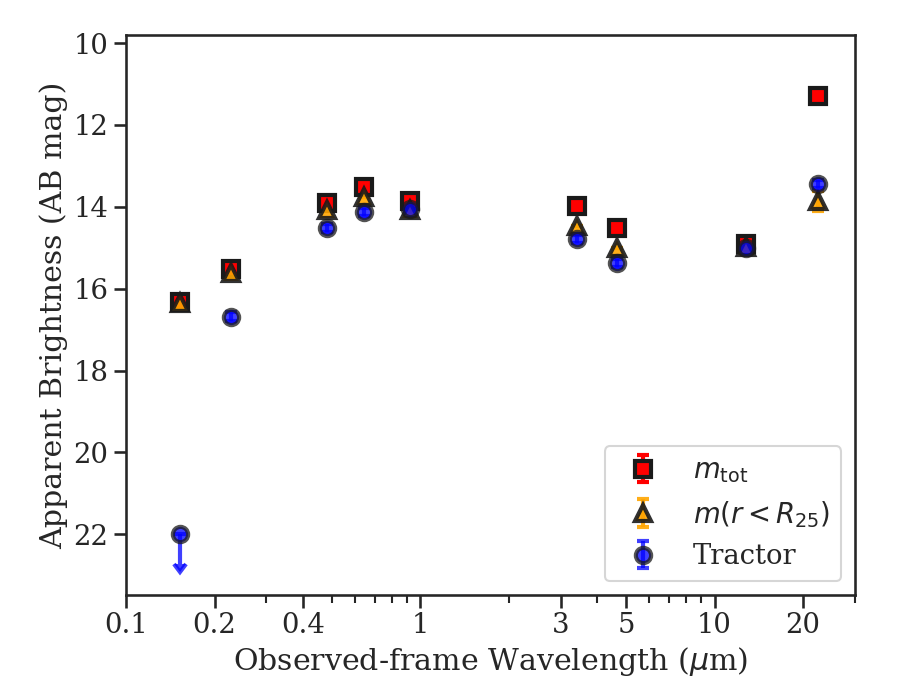

Photometry

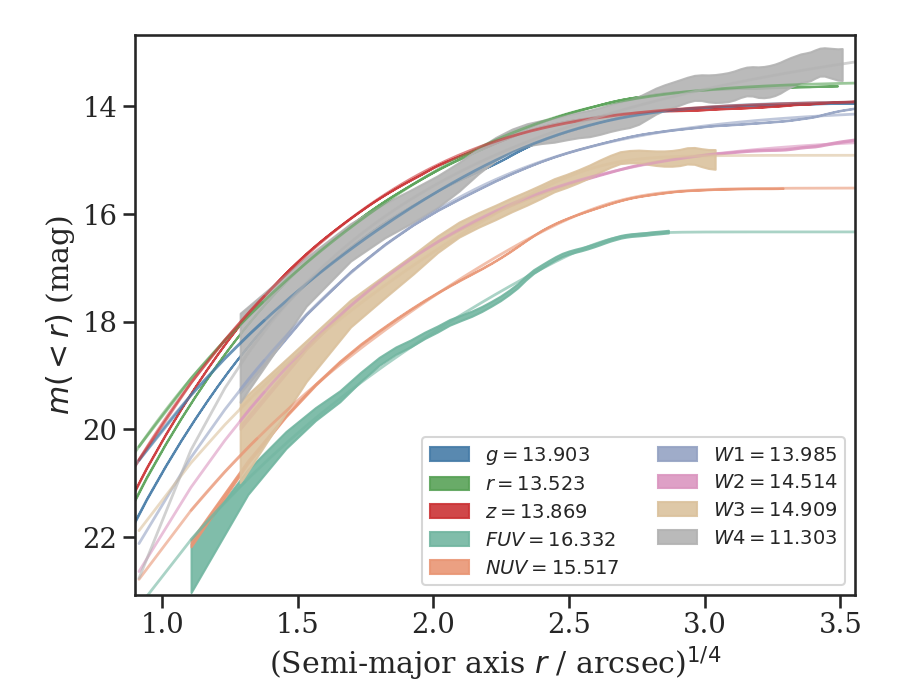

	Tractor									Curve of Growth
Galaxy	FUV	NUV	g	r	z	W1	W2	W3	W4	FUV	NUV	g	r	z	W1	W2	W3	W4
UGC05393	>21.984	16.680	14.520	14.127	14.062	14.785	15.364	15.017	13.451	16.332	15.517	13.903	13.523	13.869	13.985	14.514	14.909	11.303

UGC05393

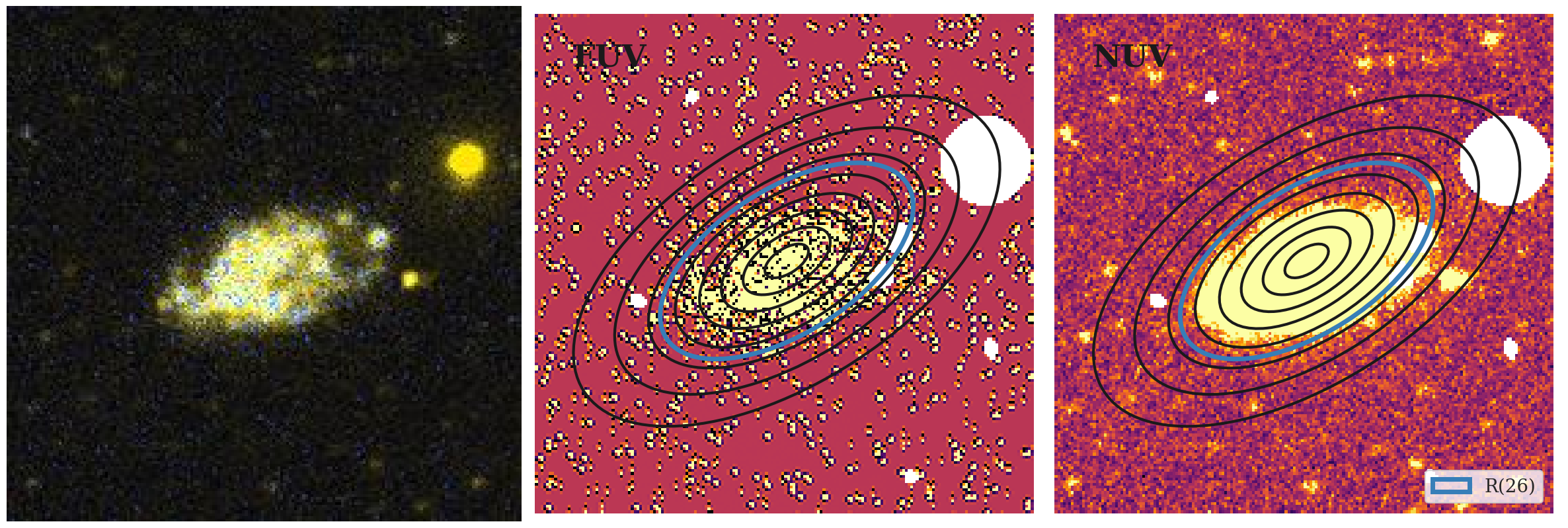

Missing file thumb-UGC05393-custom-ellipse-2654-multiband-FUVNUV.png

Missing file thumb-UGC05393-custom-ellipse-2654-multiband.png

Missing file thumb-UGC05393-custom-ellipse-2654-multiband-W1W2.png
