| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4676 | NGC3230 | 155.9331685 | 12.5677548 | 2.5230 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4676 | NGC3230 | 155.9331685 | 12.5677548 | 2.5230 |

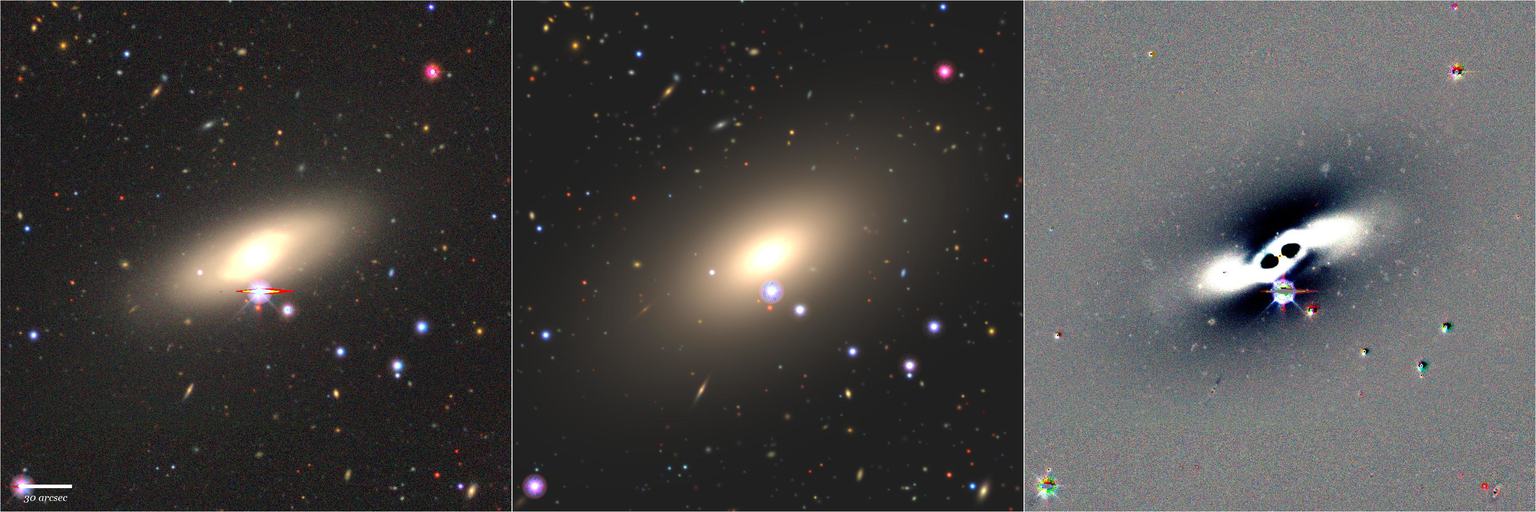

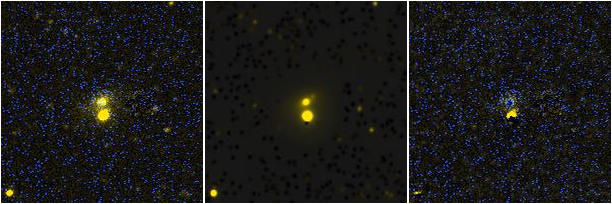

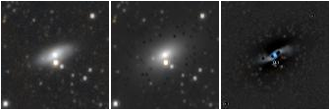

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3230 | SER | 3.81 | 21.761 | 119.70 | 0.447 | 75.689 | 119.43 | 0.476 | 66.926 | 88.962 | 123.004 | 10.001 | 9.712 | 8.593 |

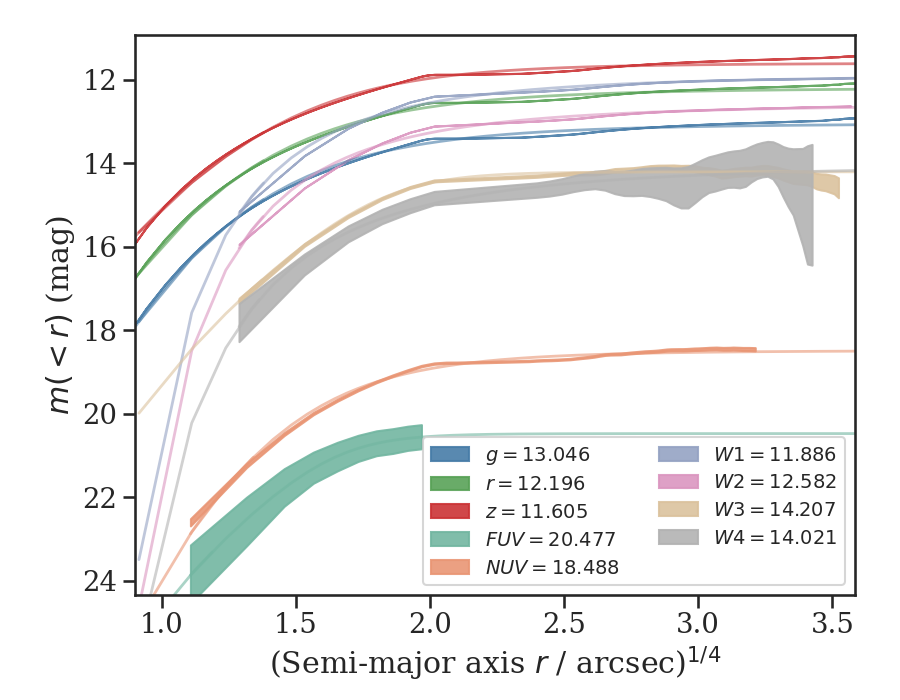

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3230 | >22.017 | 18.401 | 12.425 | 11.578 | 10.916 | 11.375 | 11.968 | 12.914 | 12.943 | 20.477 | 18.488 | 13.046 | 12.196 | 11.605 | 11.886 | 12.582 | 14.207 | 14.021 |
 |
 |
 |
 |
 |
 |
