| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4688 | NGC3389 | 162.1166316 | 12.5330873 | 5.7672 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4688 | NGC3389 | 162.1166316 | 12.5330873 | 5.7672 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3389 | REX | 1.00 | 13.881 | 0.00 | 0.000 | 173.016 | 105.41 | 0.564 | 121.475 | 150.507 | 191.773 | 36.011 | 35.323 | 35.508 |

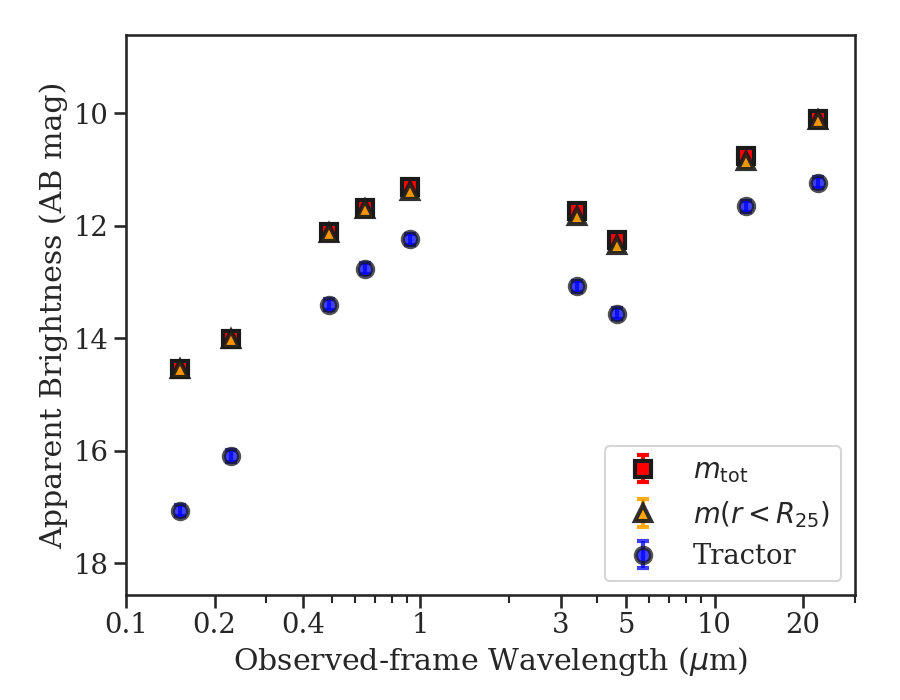

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3389 | 17.062 | 16.091 | 13.403 | 12.760 | 12.240 | 13.077 | 13.560 | 11.654 | 11.233 | 14.538 | 14.011 | 12.115 | 11.681 | 11.317 | 11.740 | 12.259 | 10.755 | 10.108 |
 |
 |
 |
 |
 |
 |
