| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 3077 | NGC3418 | 162.8498327 | 28.1119877 | 2.5724 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 3077 | NGC3418 | 162.8498327 | 28.1119877 | 2.5724 |

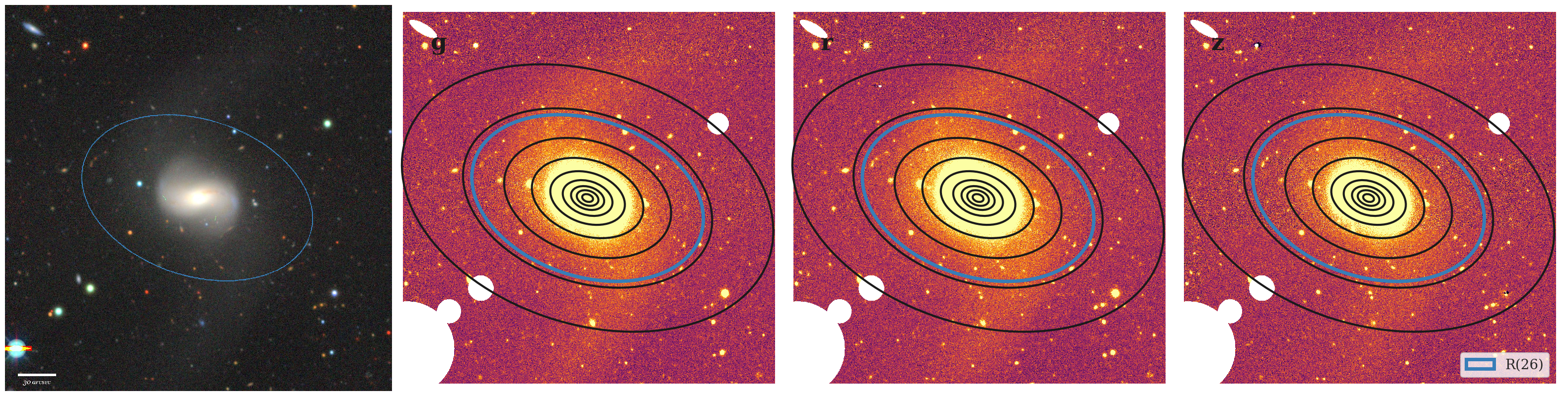

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3418 | SER | 3.45 | 26.385 | 90.53 | 0.414 | 58.553 | 71.64 | 0.341 | 45.563 | 65.044 | 95.197 | 37.590 | 36.742 | 52.126 |

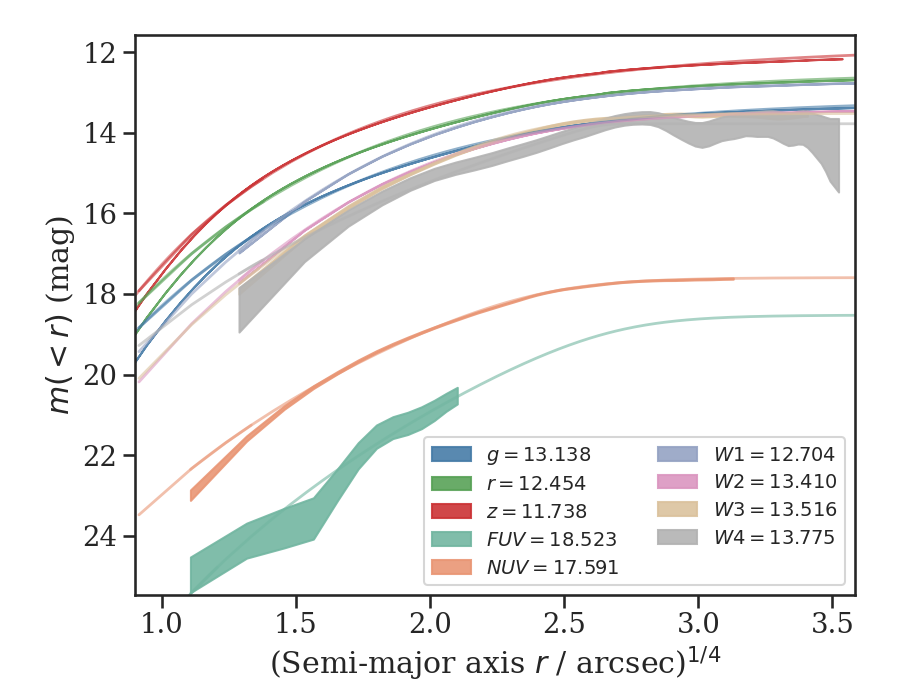

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3418 | >22.241 | 18.062 | 13.246 | 12.537 | 11.981 | 12.599 | 13.173 | 12.796 | 12.680 | 18.523 | 17.591 | 13.138 | 12.454 | 11.738 | 12.704 | 13.410 | 13.516 | 13.775 |
 |
 |
 |
 |
 |
 |
