| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 438 | NGC3471_GROUP | 164.8046983 | 61.5359850 | 7.0425 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 438 | NGC3471 | 164.7876153 | 61.5306799 | 2.9382 |
| 437 | PGC033071 | 164.8554823 | 61.5517560 | 0.9883 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3471 | SER | 1.55 | 19.344 | 17.37 | 0.405 | 66.439 | 12.99 | 0.395 | 61.286 | 74.708 | 88.275 | 22.285 | 21.984 | 19.264 |
| PGC033071 | REX | 1.00 | 4.678 | 0.00 | 0.000 | 29.046 | 102.88 | 0.717 | 23.173 | 30.074 | 39.999 | 8.571 | 8.785 | 8.540 |

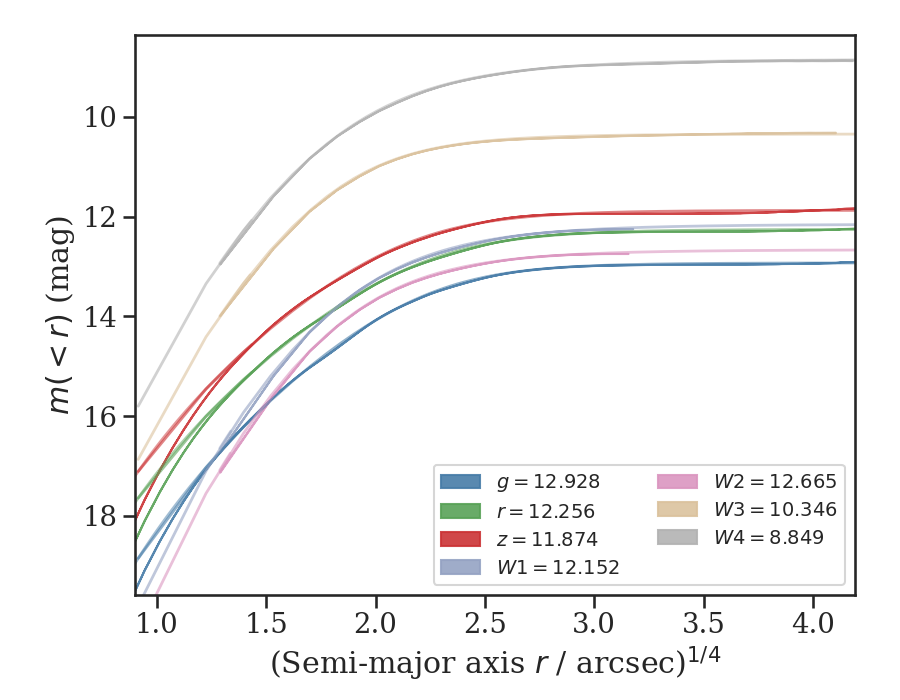

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

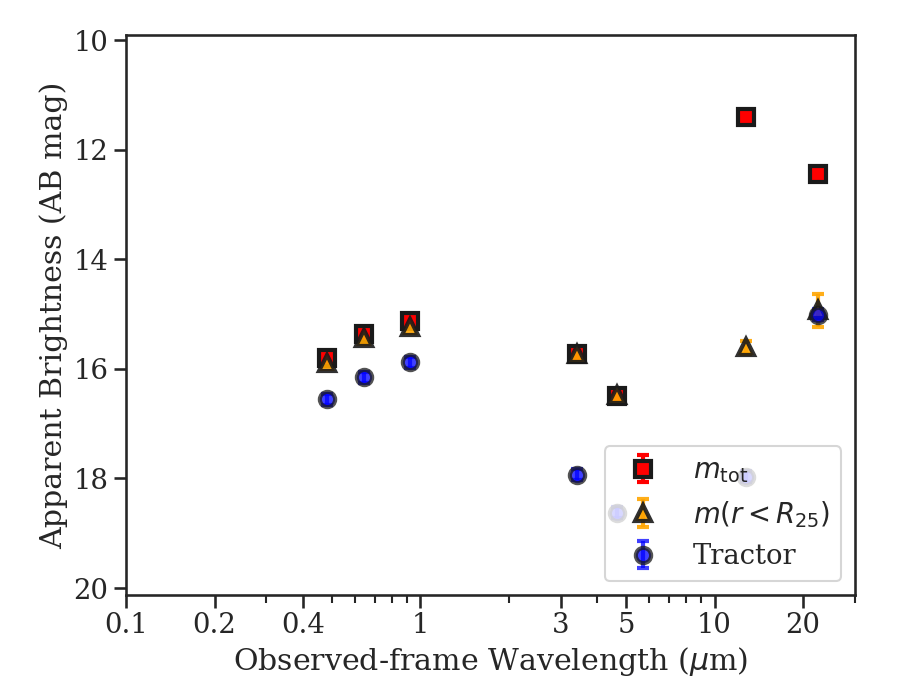

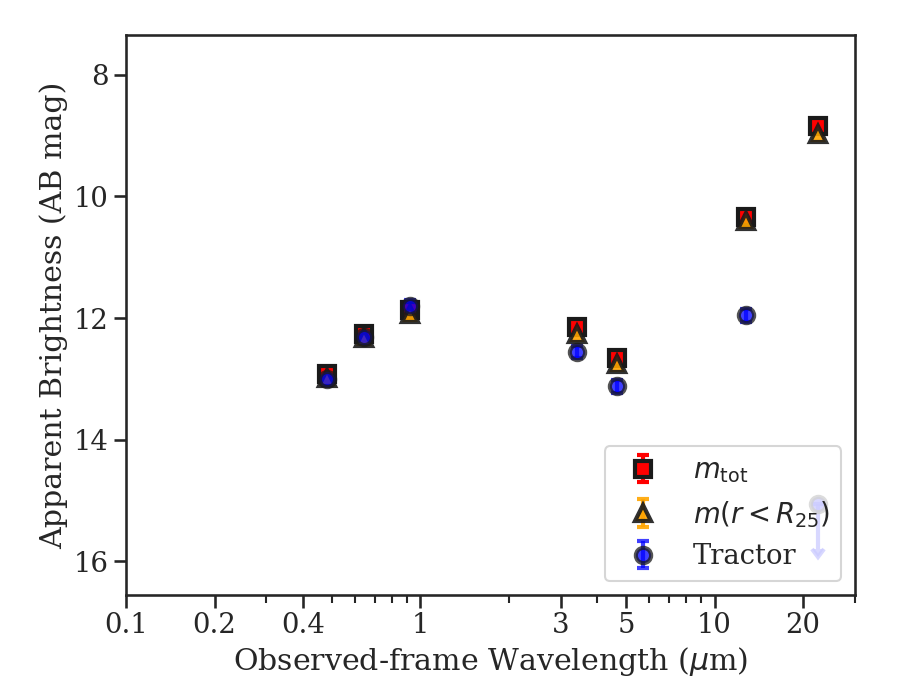

| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3471 | ... | ... | 13.007 | 12.304 | 11.806 | 12.557 | 13.125 | 11.958 | >15.052 | ... | ... | 12.928 | 12.256 | 11.874 | 12.152 | 12.665 | 10.346 | 8.849 |
| PGC033071 | ... | ... | 16.550 | 16.148 | 15.882 | 17.935 | 18.627 | 17.964 | 15.008 | ... | ... | 15.805 | 15.359 | 15.124 | 15.719 | 16.488 | 11.404 | 12.442 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
