| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5240 | NGC3705 | 172.5310531 | 9.2770814 | 6.3266 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5240 | NGC3705 | 172.5310531 | 9.2770814 | 6.3266 |

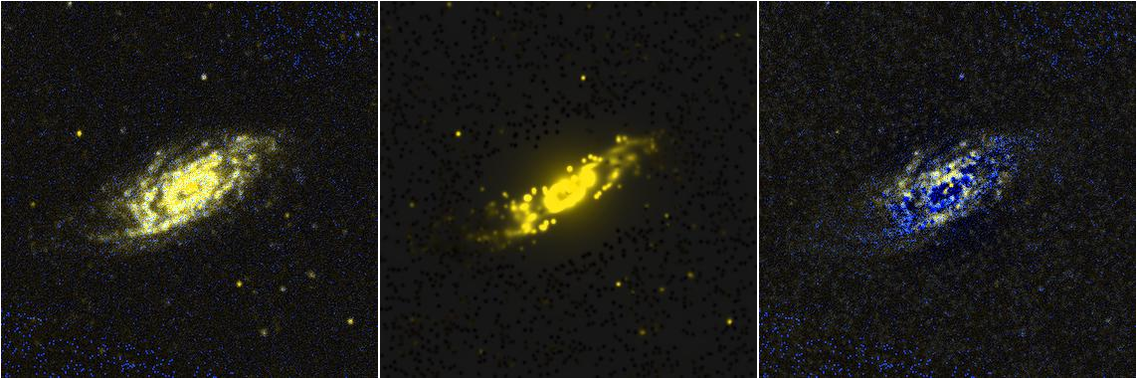

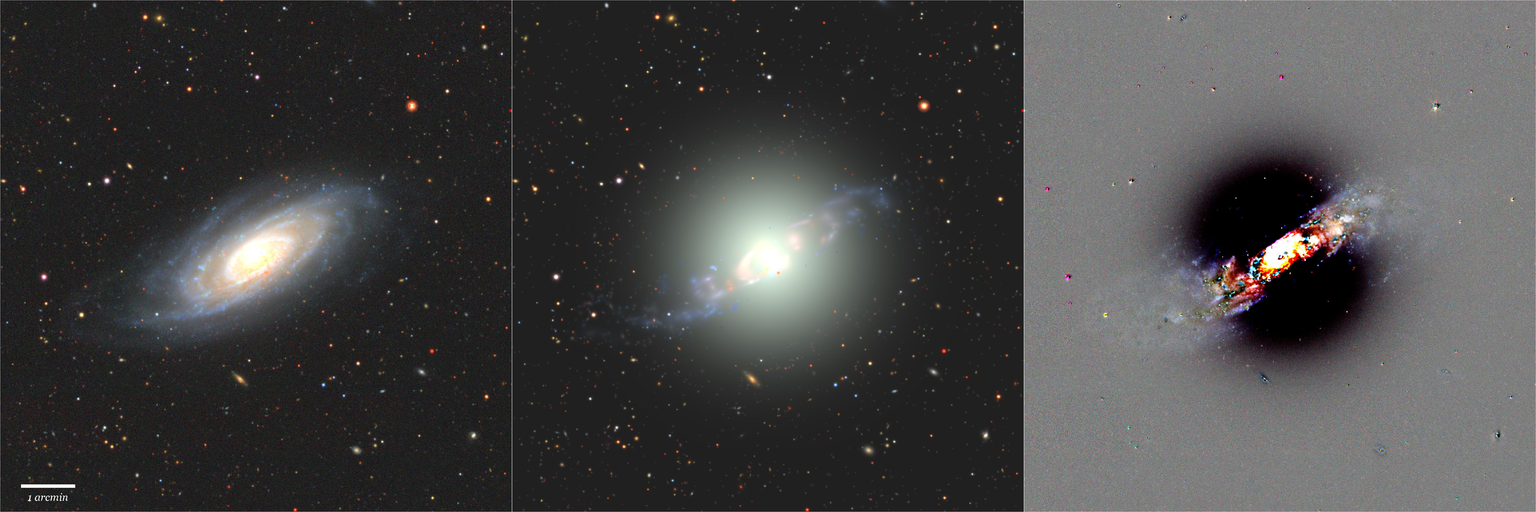

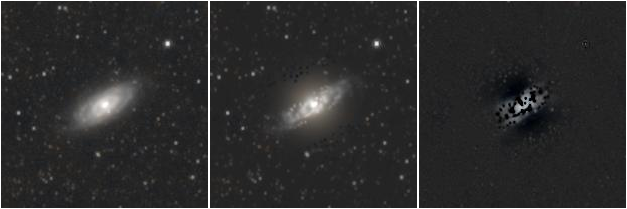

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

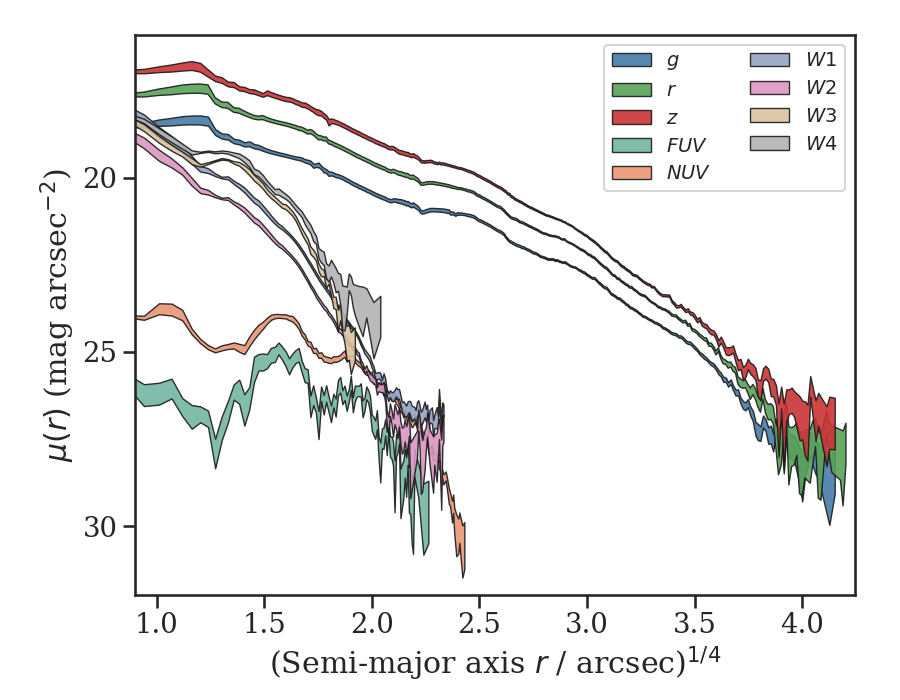

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3705 | REX | 1.00 | 50.241 | 0.00 | 0.000 | 156.311 | 119.84 | 0.576 | 134.328 | 167.102 | 197.591 | 50.421 | 45.623 | 40.855 |

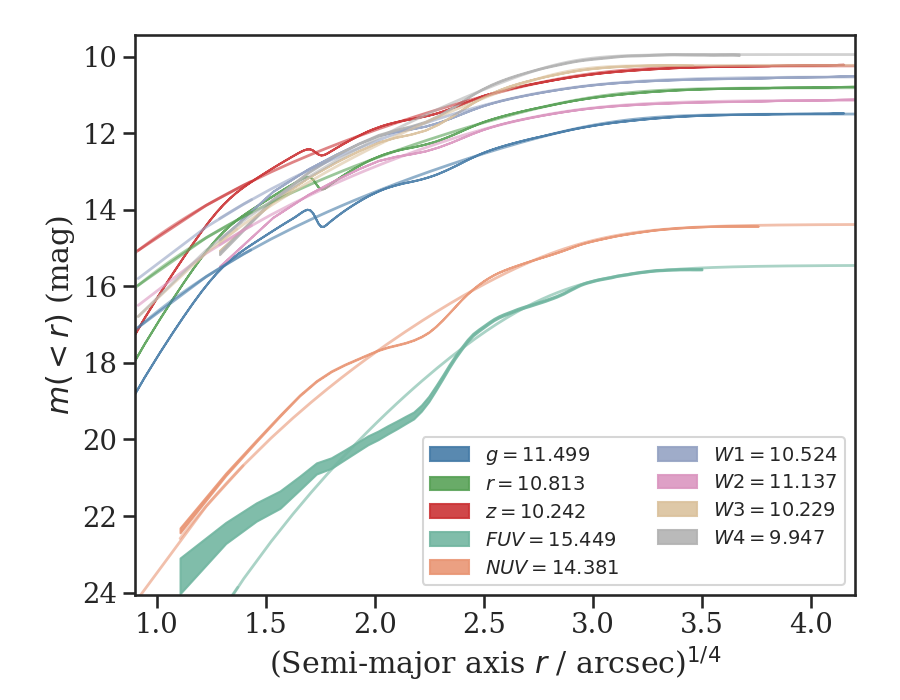

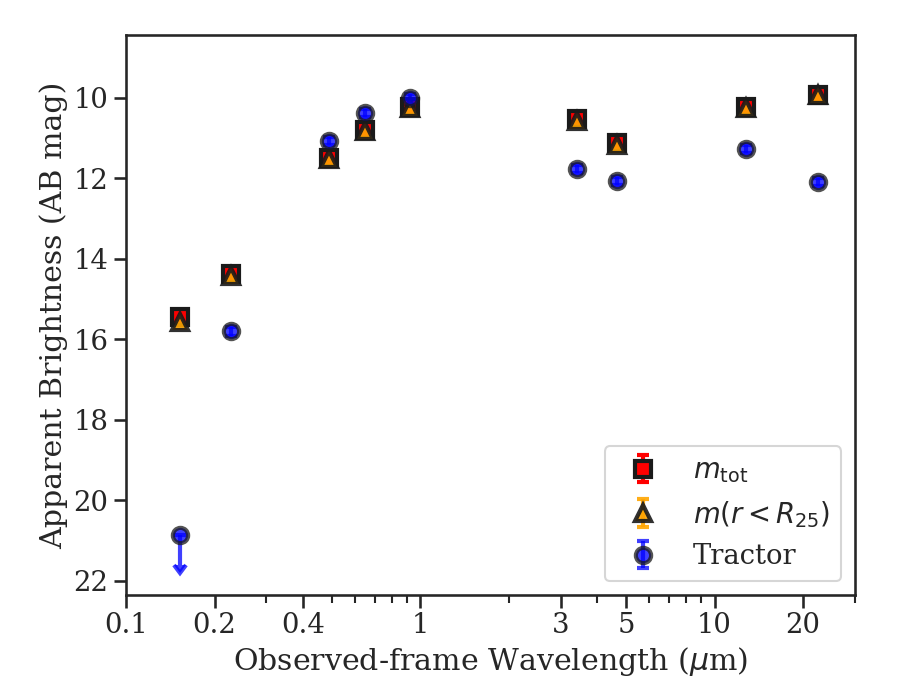

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3705 | >20.856 | 15.811 | 11.074 | 10.373 | 10.003 | 11.782 | 12.071 | 11.273 | 12.100 | 15.449 | 14.381 | 11.499 | 10.813 | 10.242 | 10.524 | 11.137 | 10.229 | 9.947 |
 |
 |
 |
 |
 |
 |
