| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5250 | UGC06717 | 176.1904856 | 9.2128194 | 1.3587 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5250 | UGC06717 | 176.1904856 | 9.2128194 | 1.3587 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC06717 | SER | 1.77 | 50.517 | 121.07 | 0.589 | 32.441 | 80.73 | 0.222 | 21.421 | 39.260 | 53.638 | 393.657 | 415.930 | 500.495 |

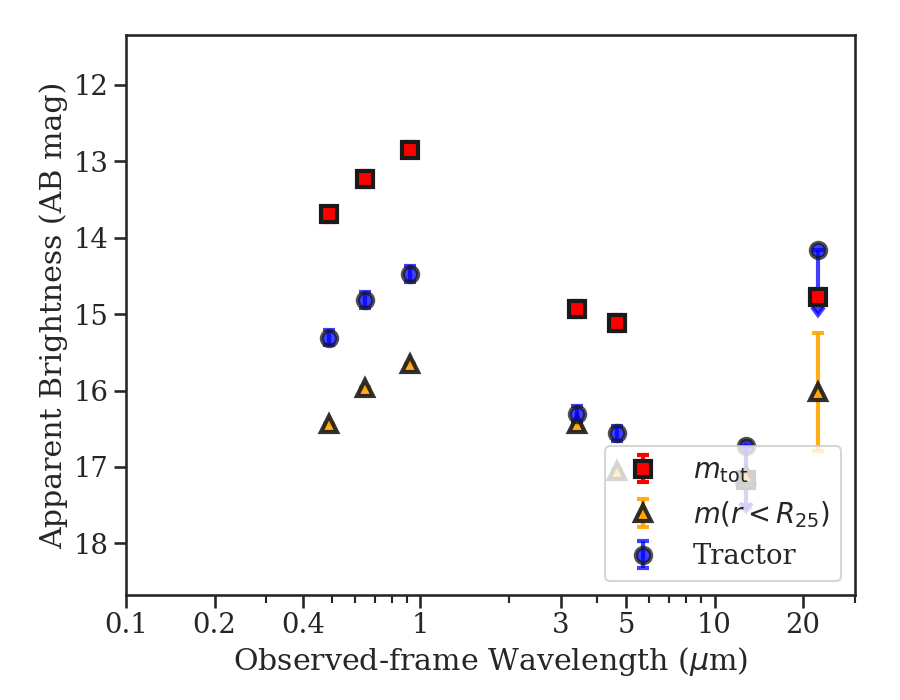

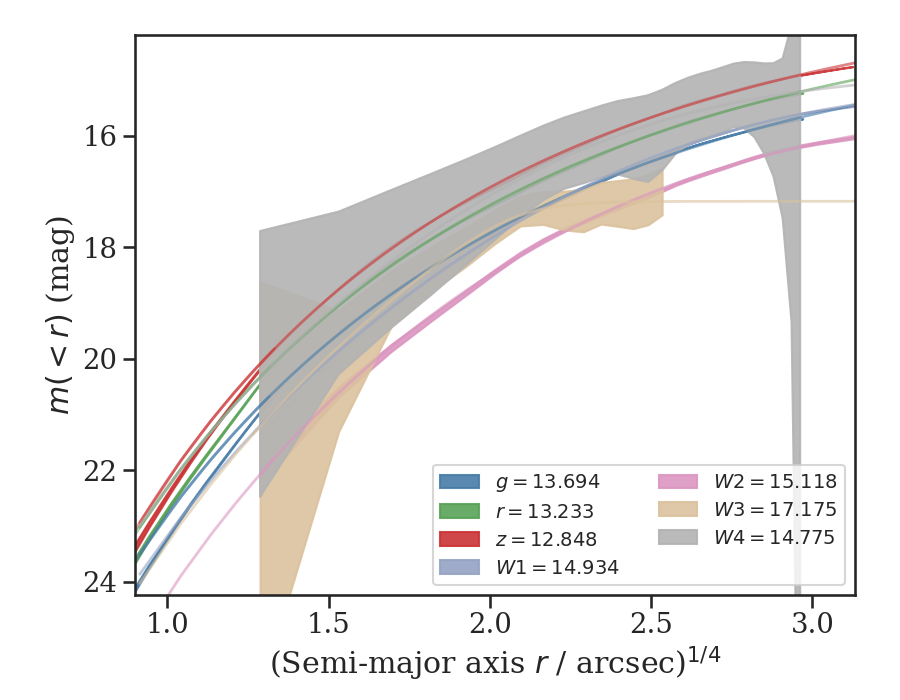

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC06717 | ... | ... | 15.310 | 14.815 | 14.474 | 16.302 | 16.559 | >16.720 | >14.154 | ... | ... | 13.694 | 13.233 | 12.848 | 14.934 | 15.118 | 17.175 | 14.775 |
 |
 |
 |
 |
 |
 |
