| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 1848 | NGC4117_GROUP | 181.9485122 | 43.1229196 | 7.8754 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 1848 | NGC4117 | 181.9421533 | 43.1263533 | 3.5913 |
| 1850 | NGC4118 | 181.9698766 | 43.1114145 | 1.0710 |

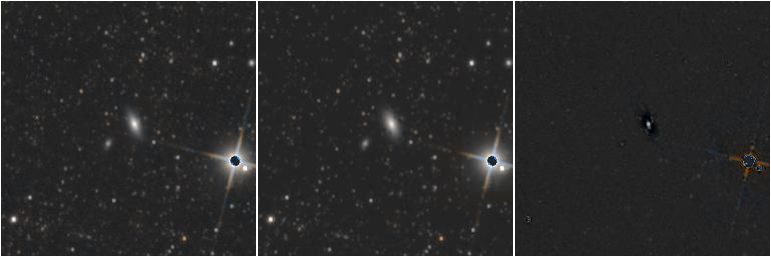

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC4117 | SER | 2.19 | 13.956 | 21.54 | 0.557 | 80.962 | 32.54 | 0.588 | 66.198 | 93.597 | 130.507 | 17.057 | 15.211 | 10.747 |
| NGC4118 | SER | 1.29 | 7.615 | 147.19 | 0.420 | 33.669 | 152.37 | 0.428 | 20.130 | 27.968 | 39.283 | 13.710 | 16.003 | 8.802 |
| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC4117 | 21.433 | 18.030 | 13.481 | 12.655 | 12.114 | 12.605 | 13.158 | 12.895 | 11.741 | 16.943 | 16.198 | 13.210 | 12.457 | 12.141 | 11.987 | 12.697 | 10.405 | 11.527 |
| NGC4118 | 20.195 | 18.288 | 15.595 | 15.097 | 14.886 | 15.419 | 15.944 | 14.611 | 13.811 | 18.658 | 17.886 | 15.245 | 14.641 | 14.870 | 11.255 | 11.803 | 10.549 | 10.694 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
