| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2113 | NGC4145 | 182.5073317 | 39.8831888 | 8.3806 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2113 | NGC4145 | 182.5073317 | 39.8831888 | 8.3806 |

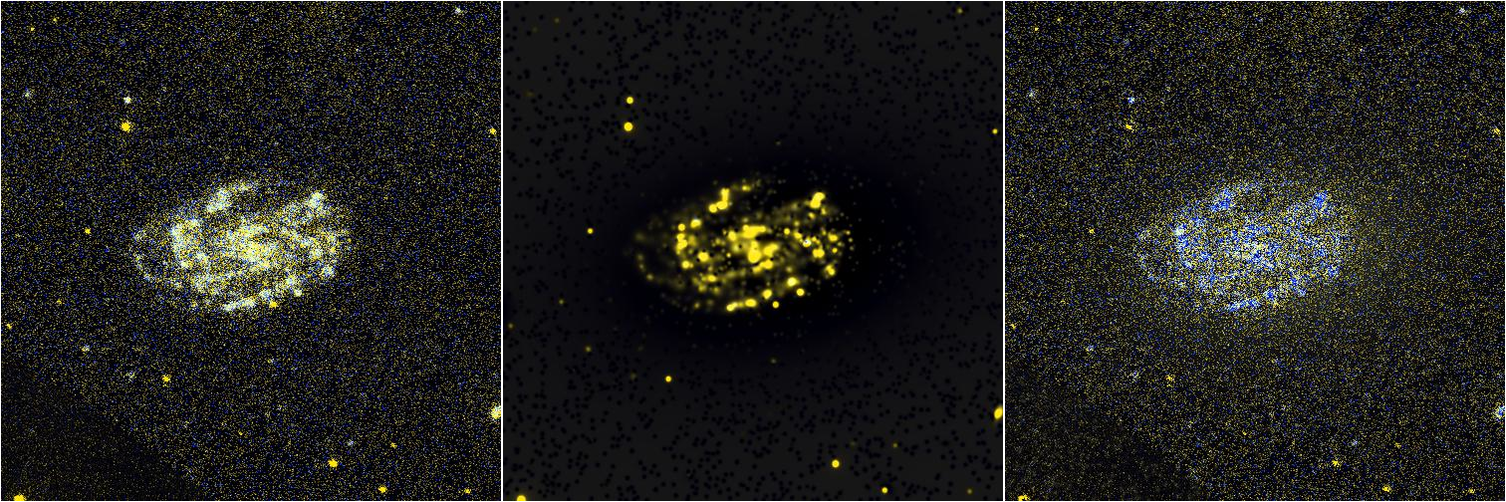

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC4145 | EXP | 1.00 | 215.195 | 100.15 | 0.413 | 251.418 | 99.33 | 0.378 | 173.610 | 231.048 | 291.044 | 215.261 | 224.656 | 53.956 |

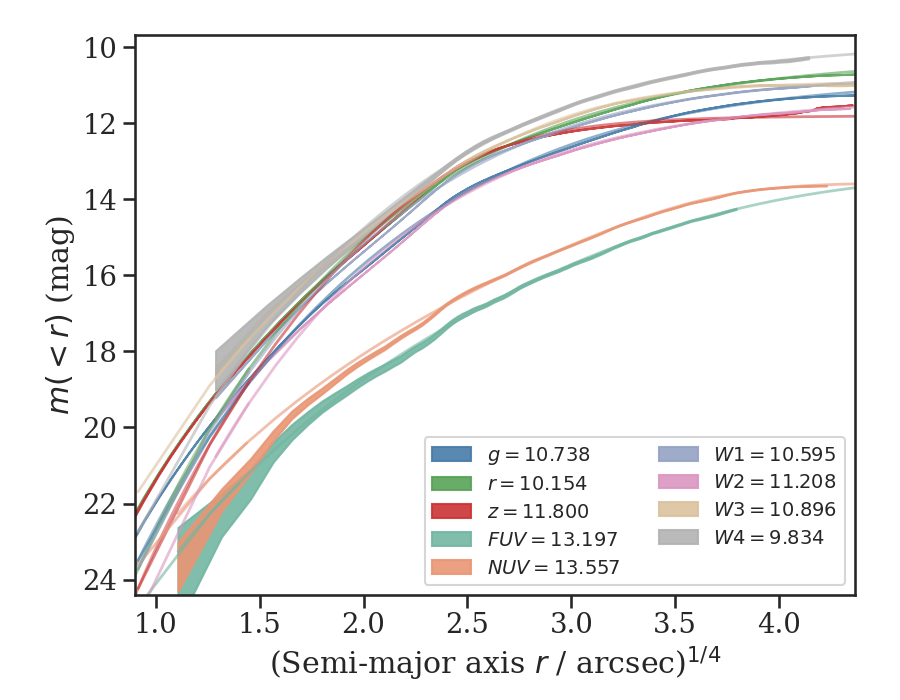

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC4145 | >19.331 | >19.115 | 11.405 | 10.816 | 11.307 | 12.406 | 13.392 | >15.436 | >12.937 | 13.197 | 13.557 | 10.738 | 10.154 | 11.800 | 10.595 | 11.208 | 10.896 | 9.834 |
 |
 |
 |
 |
 |
 |
