| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5503 | NGC4224_GROUP | 184.1352896 | 7.4658420 | 8.6746 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5503 | NGC4224 | 184.1409325 | 7.4619256 | 7.4763 |
| 5501 | EVCC0248 | 184.1035995 | 7.4878001 | 1.3333 |

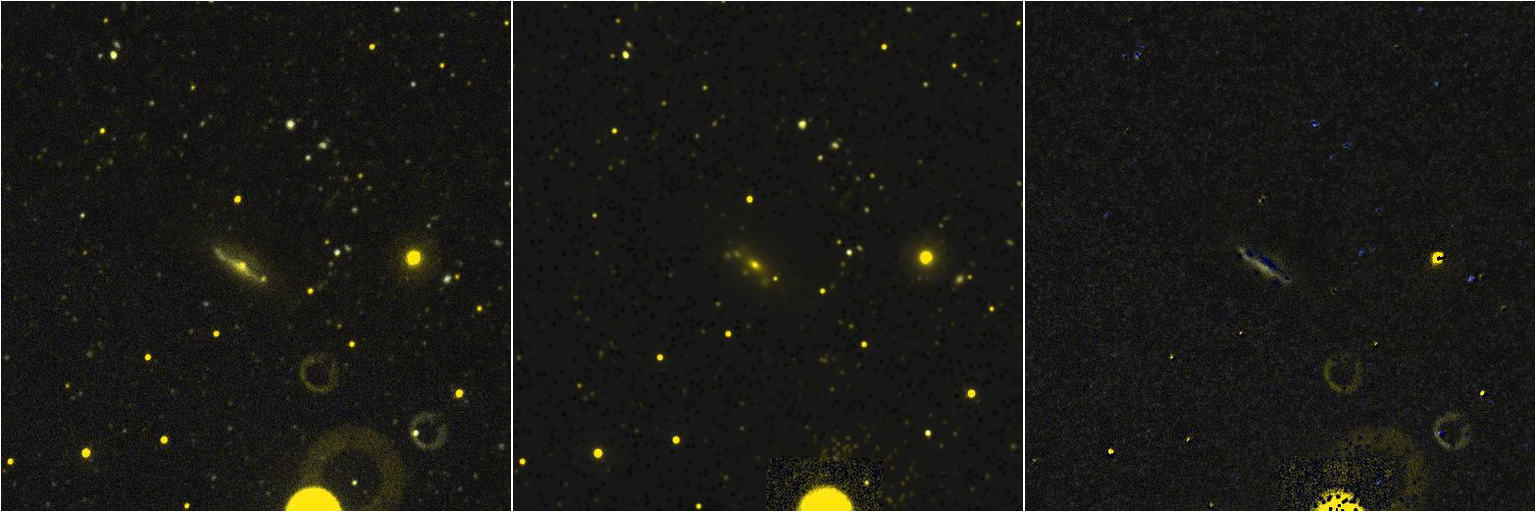

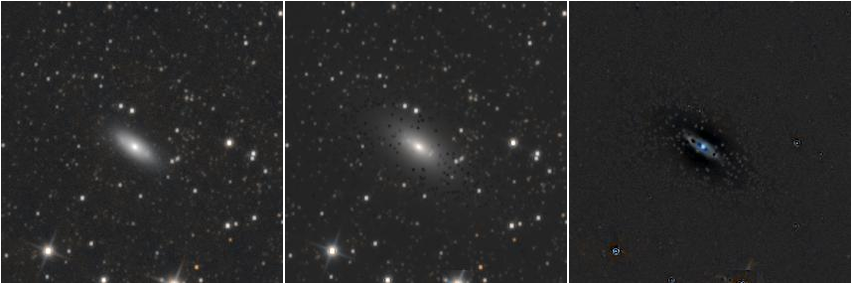

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC4224 | SER | 4.23 | 53.149 | 54.70 | 0.494 | 121.105 | 54.49 | 0.586 | 150.326 | 206.559 | 273.394 | 33.842 | 32.014 | 30.226 |
| EVCC0248 | EXP | 1.00 | 4.594 | 2.62 | 0.330 | 10.303 | 0.68 | 0.301 | 6.419 | 9.334 | 13.592 | 134.327 | 127.830 | 491.539 |

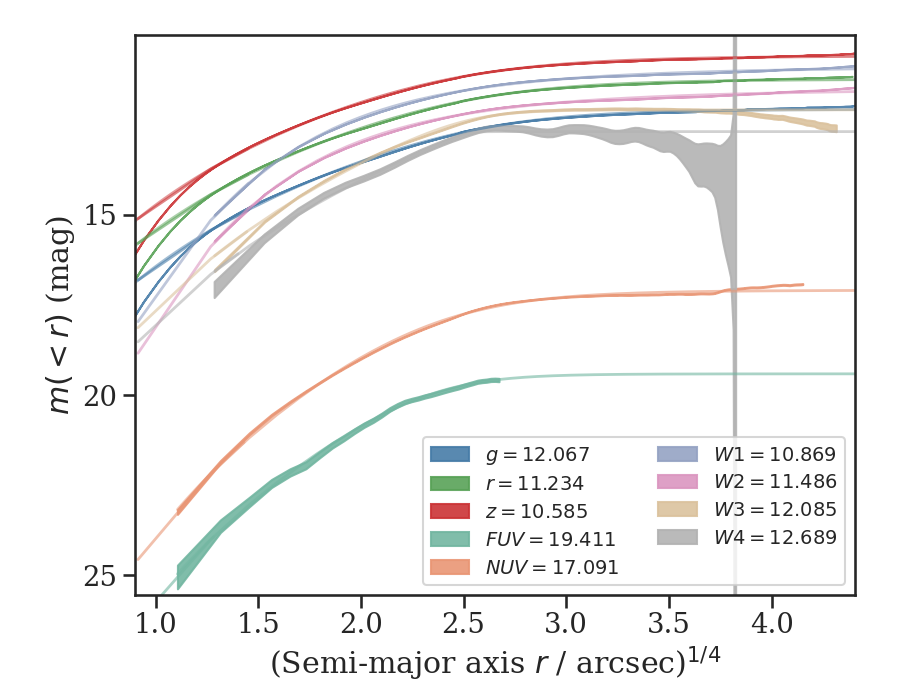

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC4224 | >22.865 | 17.484 | 12.008 | 11.090 | 10.376 | 10.853 | 11.376 | 11.545 | 11.703 | 19.411 | 17.091 | 12.067 | 11.234 | 10.585 | 10.869 | 11.486 | 12.085 | 12.689 |
| EVCC0248 | >25.010 | 22.575 | 18.256 | 17.619 | 17.245 | 18.197 | 18.853 | >18.302 | >15.373 | ... | 21.657 | 16.652 | 16.051 | 15.095 | 13.172 | 13.639 | 14.640 | ... |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
