| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4678 | IC3363_GROUP | 186.7521543 | 12.5731642 | 6.0508 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4678 | IC3363 | 186.7628567 | 12.5607365 | 2.0513 |
| 4669 | KHL2017_UCD23 | 186.7356720 | 12.5922830 | 1.3333 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| IC3363 | SER | 1.40 | 23.366 | 124.43 | 0.556 | 47.840 | 131.49 | 0.455 | 30.764 | 48.156 | 69.024 | 25.968 | 26.268 | 28.072 |
| KHL2017_UCD23 | DEV | 4.00 | 0.397 | 174.79 | 0.113 | 3.862 | 139.13 | 0.039 | 2.129 | 2.765 | 4.463 | 60.362 | 70.531 | 1505.555 |

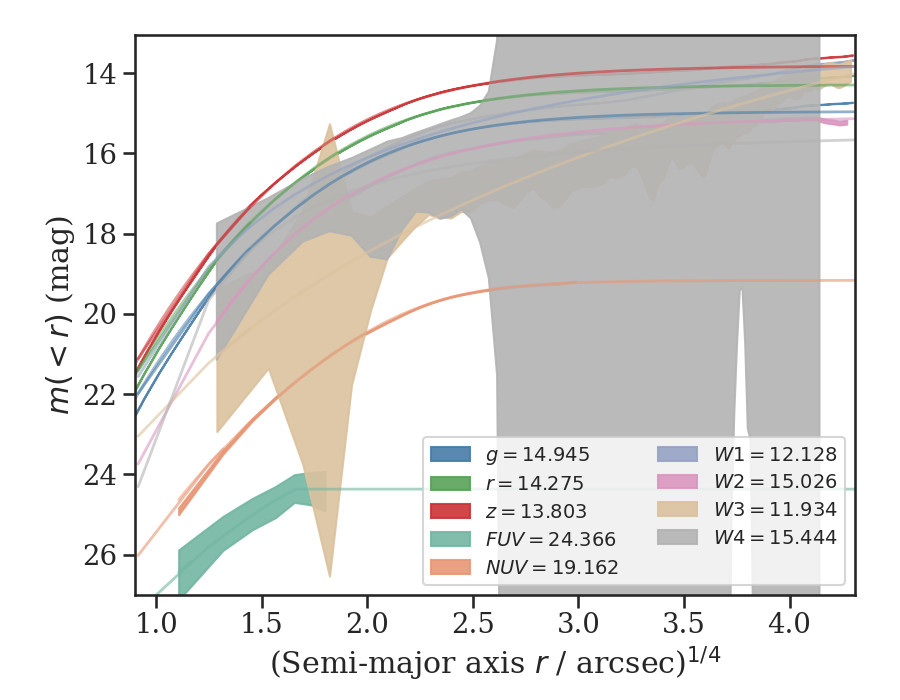

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| IC3363 | >23.938 | 19.355 | 15.098 | 14.444 | 14.029 | 14.837 | 15.536 | 18.176 | 15.651 | 24.366 | 19.162 | 14.945 | 14.275 | 13.803 | 12.128 | 15.026 | 11.934 | 15.444 |
| KHL2017_UCD23 | >25.873 | >26.461 | 19.685 | 19.046 | 18.632 | 19.581 | 20.527 | 18.231 | 16.678 | ... | 26.174 | 18.842 | 18.119 | 16.605 | 17.491 | 19.704 | 17.120 | ... |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
