| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4116 | PGC040547_GROUP | 186.4009840 | 15.8388119 | 5.8944 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4118 | IC3313 | 186.4017989 | 15.8298259 | 2.3905 |
| 4116 | PGC040547 | 186.4001574 | 15.8477221 | 2.4105 |

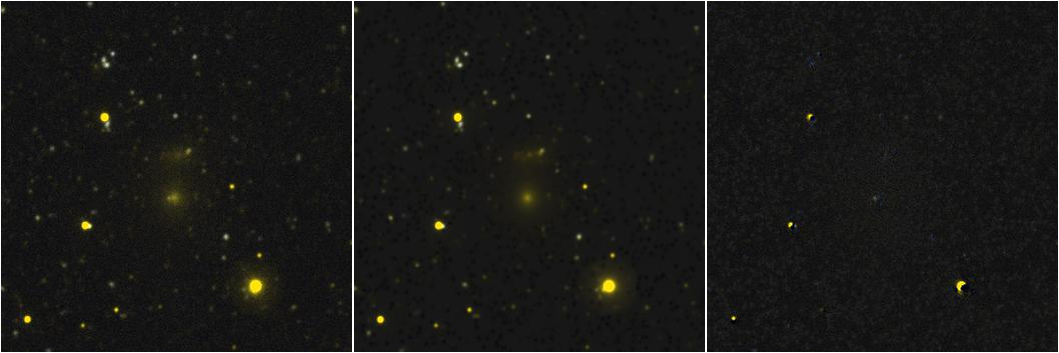

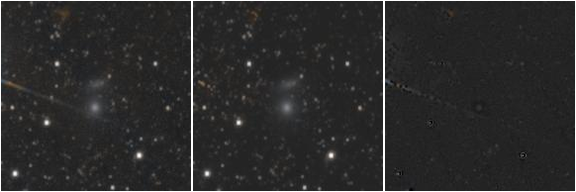

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| IC3313 | SER | 1.85 | 23.999 | 3.81 | 0.114 | 71.716 | 179.17 | 0.137 | 38.289 | 65.776 | 106.990 | 181.748 | 202.914 | 353.863 |
| PGC040547 | SER | 1.13 | 27.966 | 109.53 | 0.465 | 72.314 | 106.13 | 0.460 | 37.945 | 70.129 | 110.422 | 56.311 | 55.349 | 56.105 |

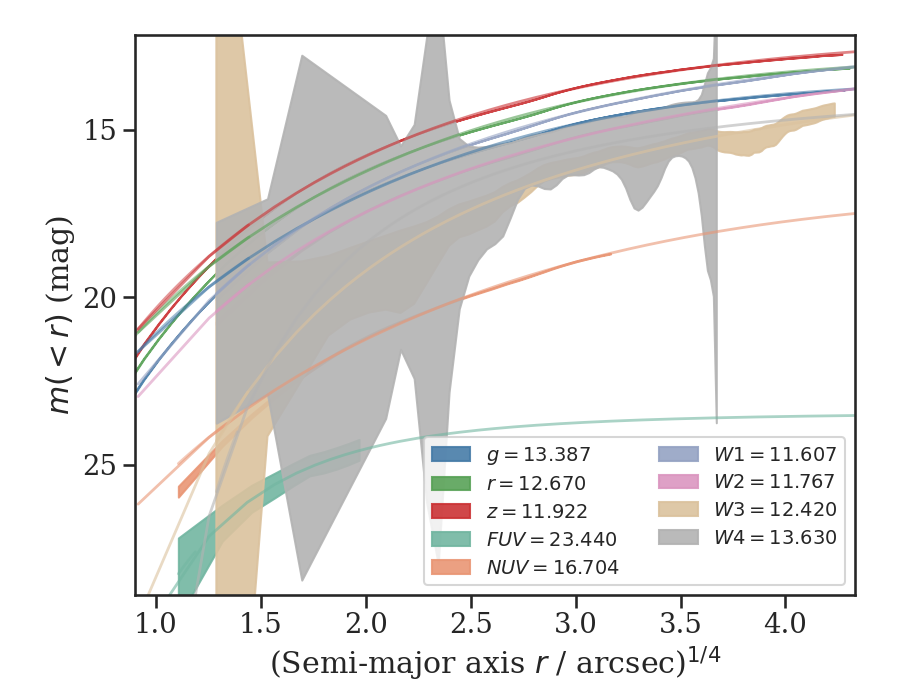

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| IC3313 | >23.983 | 18.438 | 14.244 | 13.603 | 13.158 | 13.842 | 14.536 | 15.905 | 15.125 | 23.440 | 16.704 | 13.387 | 12.670 | 11.922 | 11.607 | 11.767 | 12.420 | 13.630 |
| PGC040547 | >24.033 | 19.693 | 15.282 | 14.633 | 14.232 | 14.932 | 15.613 | 15.929 | 12.285 | ... | 18.223 | 14.393 | 13.755 | 13.327 | 11.245 | 11.599 | 11.801 | 15.691 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
