| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2009 | NGC4618 | 190.3858790 | 41.1507521 | 5.7466 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2009 | NGC4618 | 190.3858790 | 41.1507521 | 5.7466 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC4618 | SER | 1.28 | 46.403 | 53.34 | 0.705 | 172.398 | 54.25 | 0.303 | 132.834 | 159.038 | 186.549 | 193.247 | 182.867 | 54.994 |

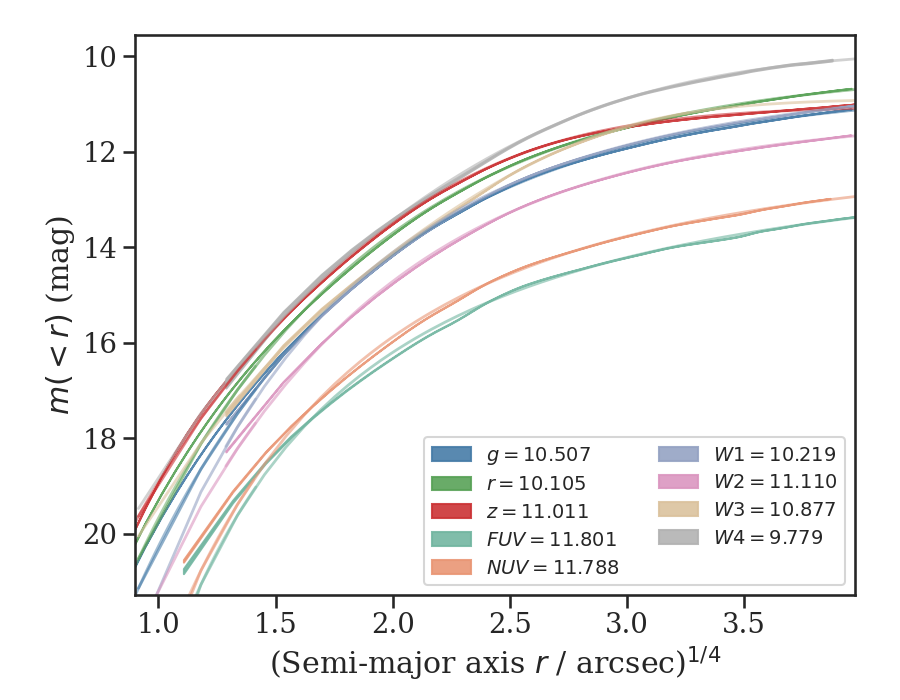

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC4618 | 16.123 | 14.903 | 12.186 | 11.697 | 11.513 | 12.272 | 12.823 | 11.922 | 11.620 | 11.801 | 11.788 | 10.507 | 10.105 | 11.011 | 10.219 | 11.110 | 10.877 | 9.779 |
 |
 |
 |
 |
 |
 |
