| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5978 | NGC4688 | 191.9439800 | 4.3358550 | 3.5126 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5978 | NGC4688 | 191.9439800 | 4.3358550 | 3.5126 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC4688 | SER | 2.04 | 47.394 | 37.74 | 0.550 | 74.736 | 125.08 | 0.246 | 71.076 | 104.811 | 132.129 | 80.065 | 82.114 | 89.950 |

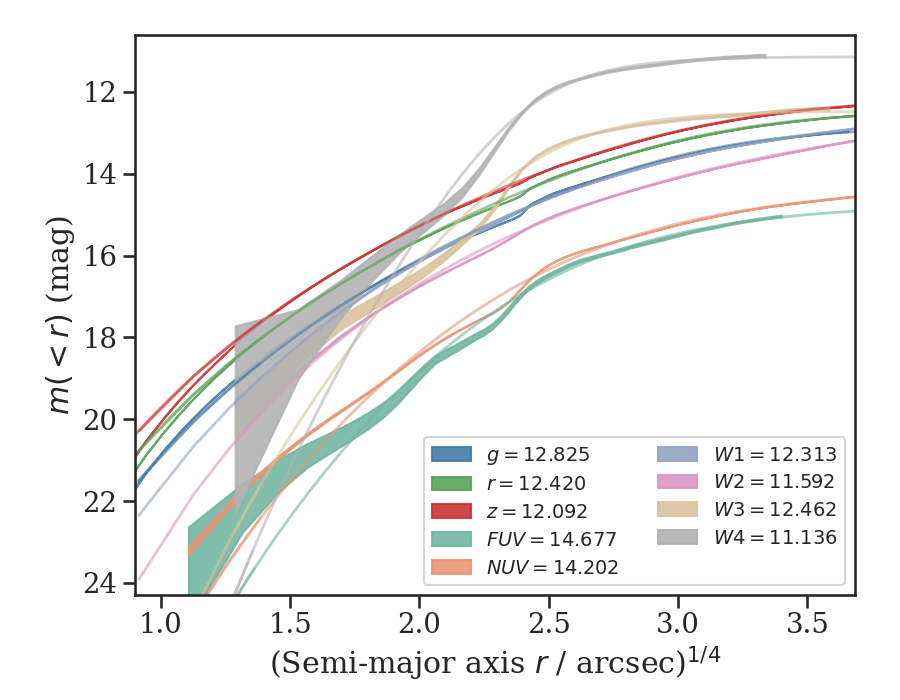

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC4688 | >20.958 | 16.769 | 13.665 | 13.162 | 12.827 | 13.508 | 13.995 | 12.967 | 12.122 | 14.677 | 14.202 | 12.825 | 12.420 | 12.092 | 12.313 | 11.592 | 12.462 | 11.136 |
 |
 |
 |
 |
 |
 |
