| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 3253 | NGC4747 | 192.9398007 | 25.7749310 | 5.4405 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 3253 | NGC4747 | 192.9398007 | 25.7749310 | 5.4405 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC4747 | SER | 1.97 | 43.257 | 25.56 | 0.559 | 163.215 | 29.99 | 0.638 | 126.867 | 171.932 | 223.043 | 57.162 | 59.261 | 61.974 |

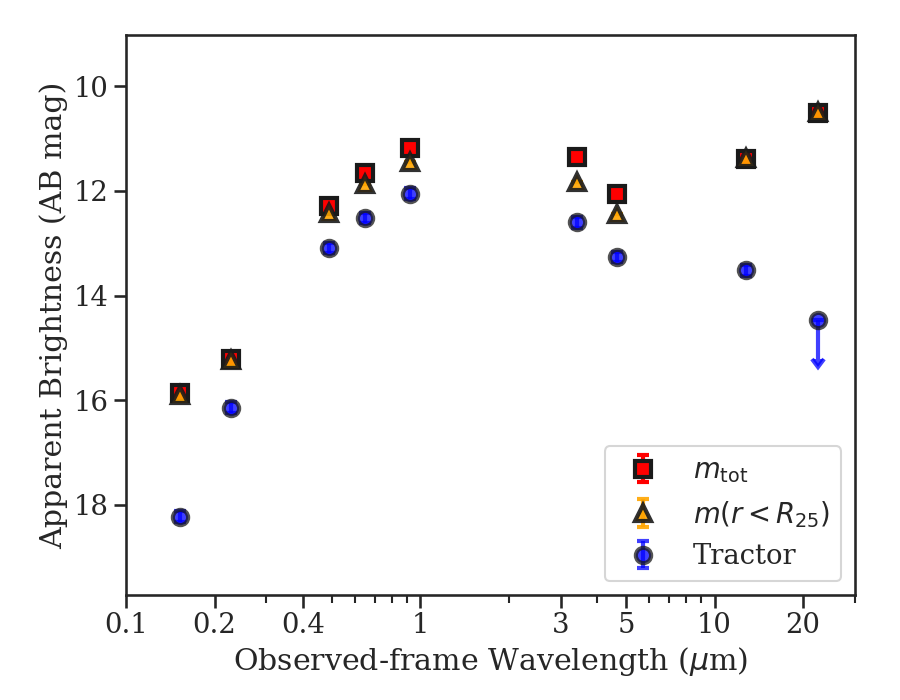

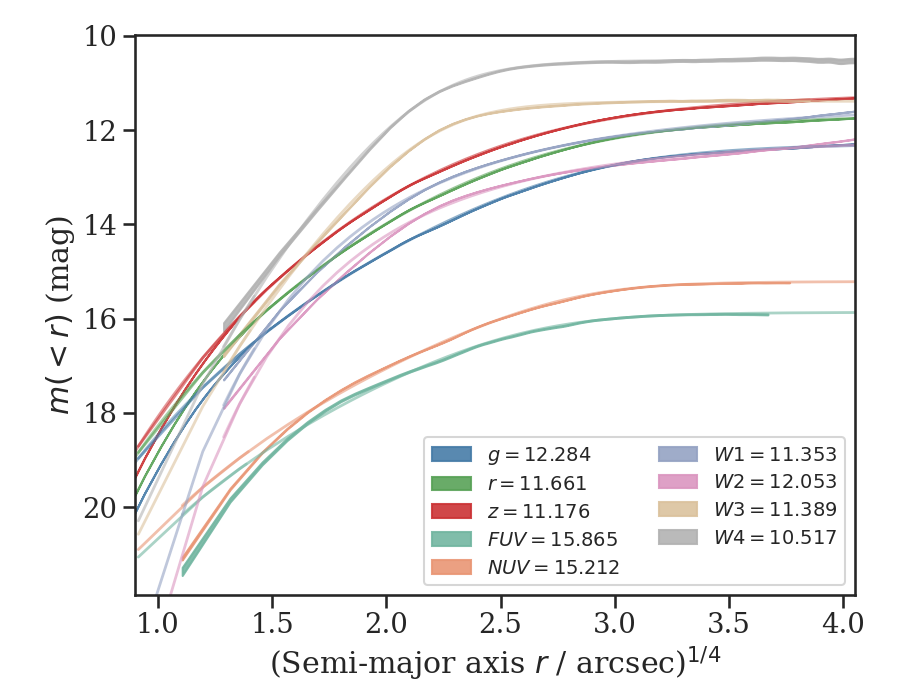

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC4747 | 18.228 | 16.144 | 13.091 | 12.521 | 12.050 | 12.600 | 13.268 | 13.520 | >14.464 | 15.865 | 15.212 | 12.284 | 11.661 | 11.176 | 11.353 | 12.053 | 11.389 | 10.517 |
 |
 |
 |
 |
 |
 |
