| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 3210 | UGC08030 | 193.6217641 | 26.3040957 | 2.0882 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 3210 | UGC08030 | 193.6217641 | 26.3040957 | 2.0882 |

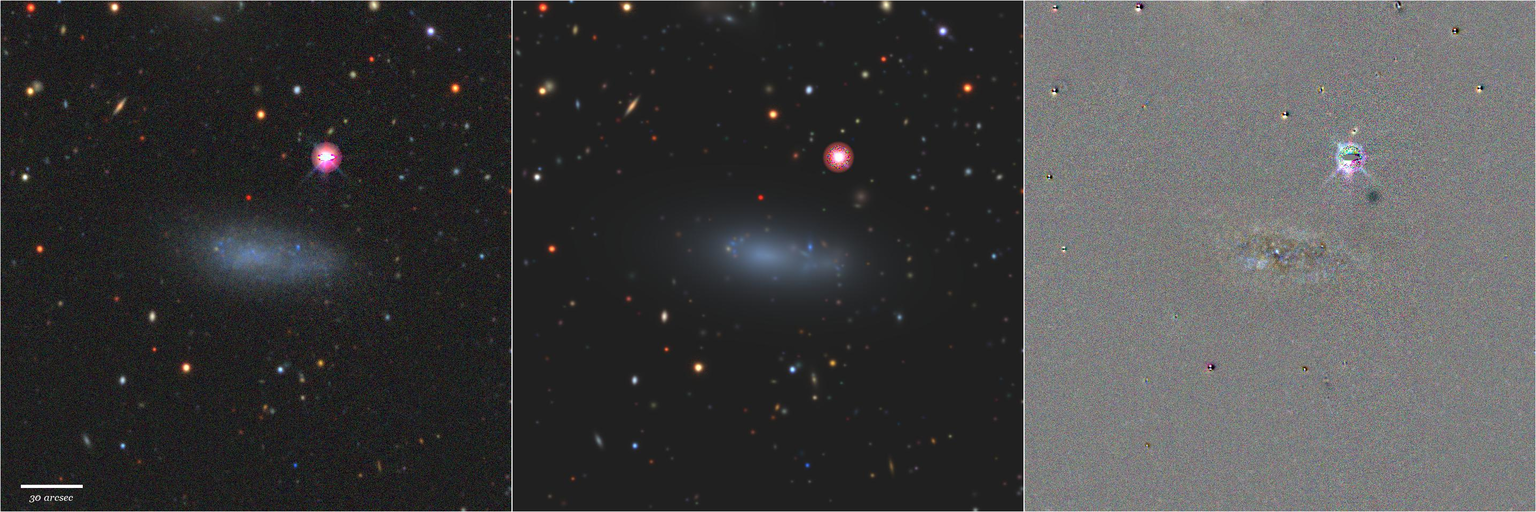

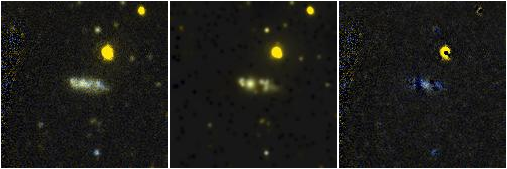

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC08030 | SER | 1.09 | 28.083 | 82.75 | 0.549 | 62.645 | 82.58 | 0.559 | 20.036 | 42.482 | 70.174 | 23.787 | 25.005 | 26.610 |
| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC08030 | >22.672 | >22.881 | 15.847 | 15.454 | 15.195 | 16.492 | 16.944 | >17.392 | >14.760 | 18.678 | 17.966 | 15.644 | 15.189 | 14.854 | 14.942 | 16.118 | ... | ... |
 |
 |
 |
 |
 |
 |
