| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2329 | NGC5005 | 197.7351153 | 37.0587963 | 9.9001 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2329 | NGC5005 | 197.7351153 | 37.0587963 | 9.9001 |

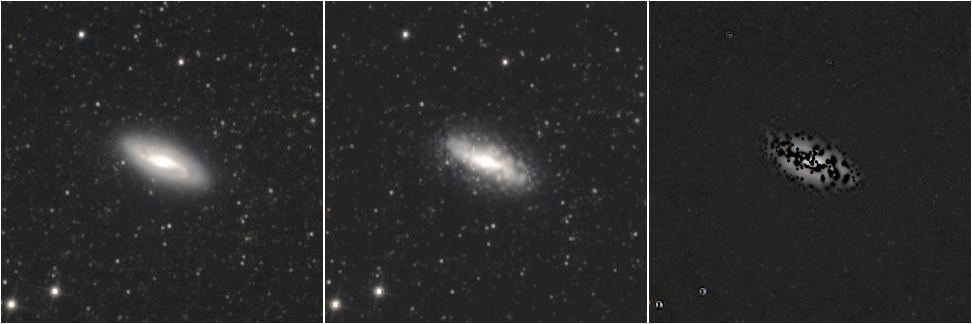

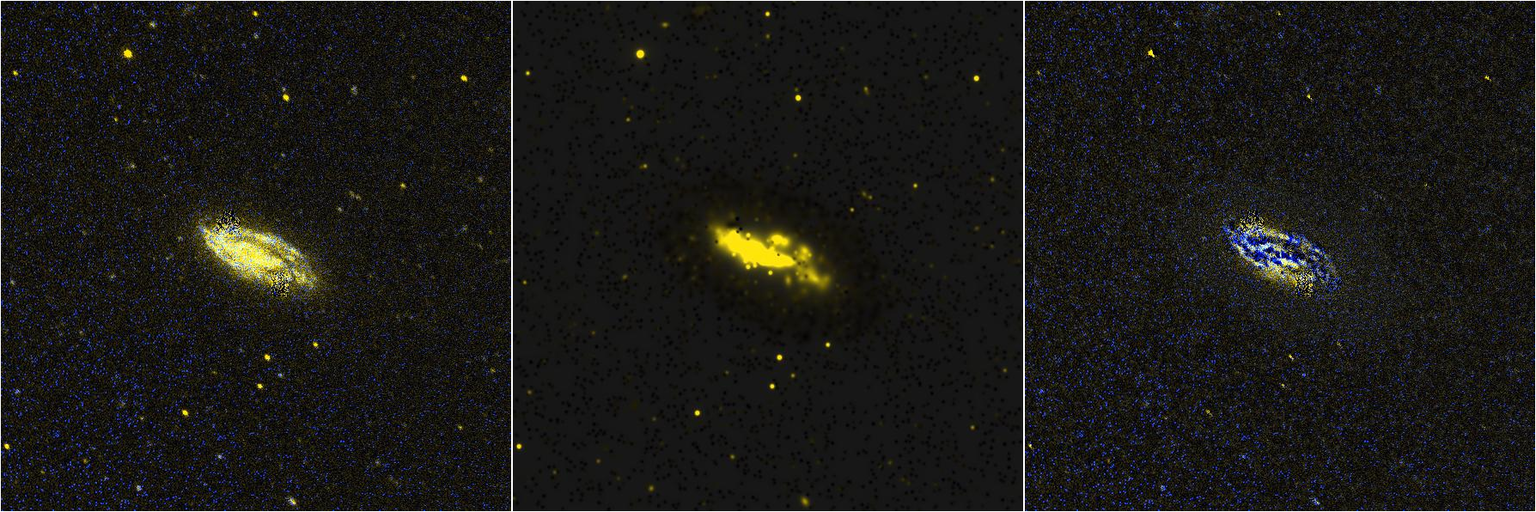

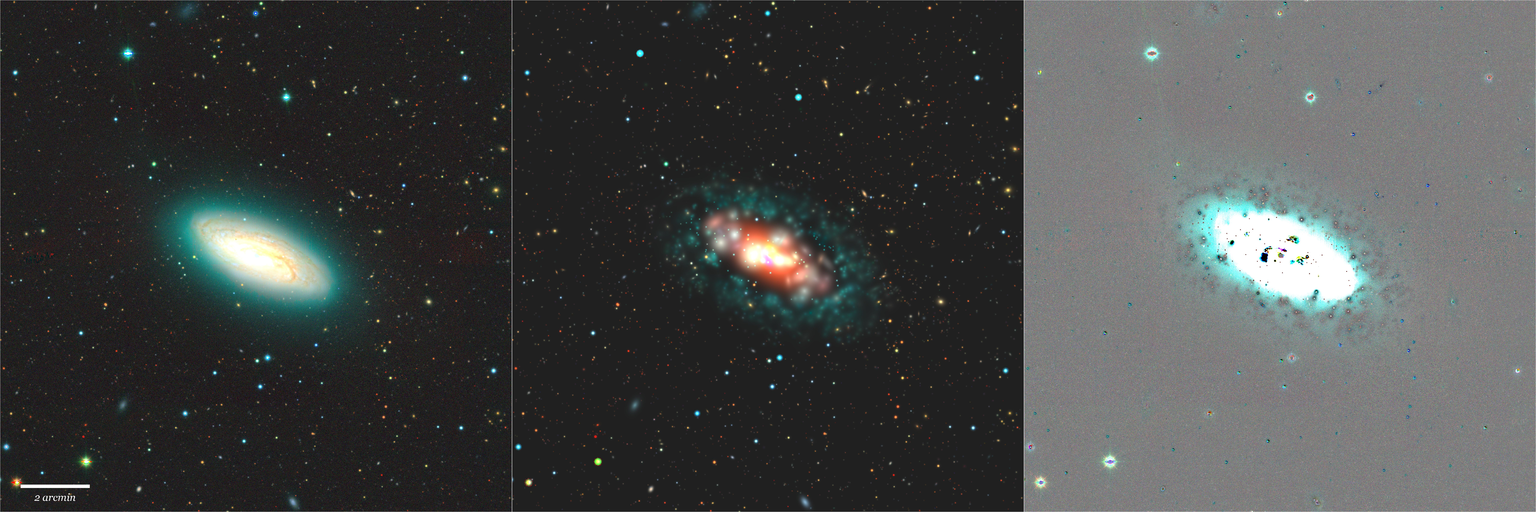

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5005 | EXP | 1.00 | 7.351 | 34.34 | 0.408 | 297.003 | 66.16 | 0.545 | 215.455 | 261.435 | 314.213 | ... | ... | ... |

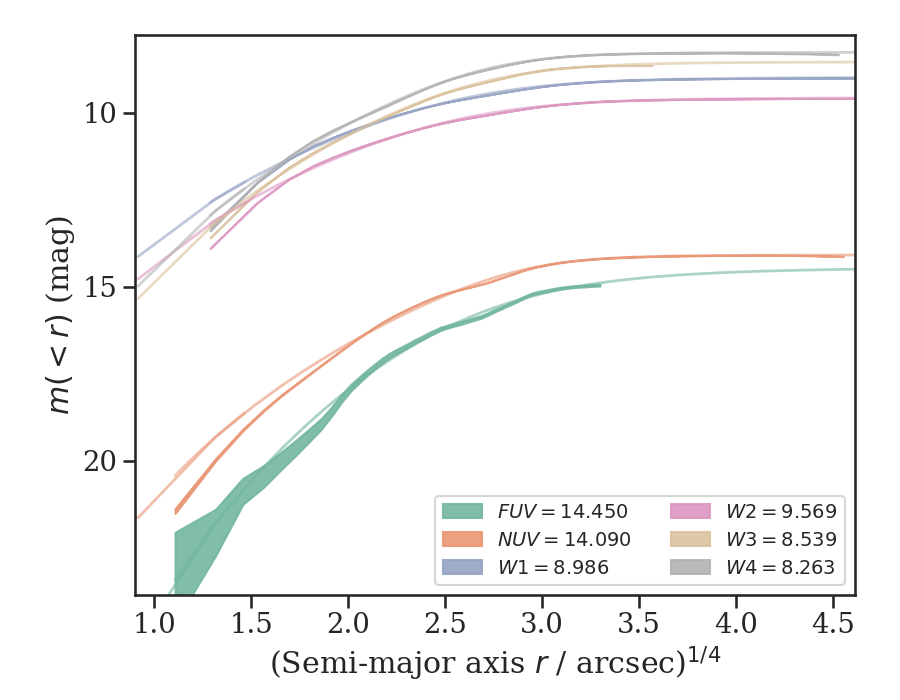

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5005 | 22.590 | 17.454 | 12.985 | ... | ... | >19.836 | >19.646 | >18.448 | 11.548 | 14.450 | 14.090 | ... | ... | ... | 8.986 | 9.569 | 8.539 | 8.263 |
 |
 |
 |
 |
 |
 |
