| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 1783 | NGC5023 | 198.0492538 | 44.0381458 | 7.7788 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 1783 | NGC5023 | 198.0492538 | 44.0381458 | 7.7788 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5023 | DEV | 4.00 | 56.550 | 65.53 | 0.609 | 233.363 | 75.18 | 0.142 | 50.101 | 65.232 | 88.341 | 5597.184 | 6434.642 | 7452.507 |

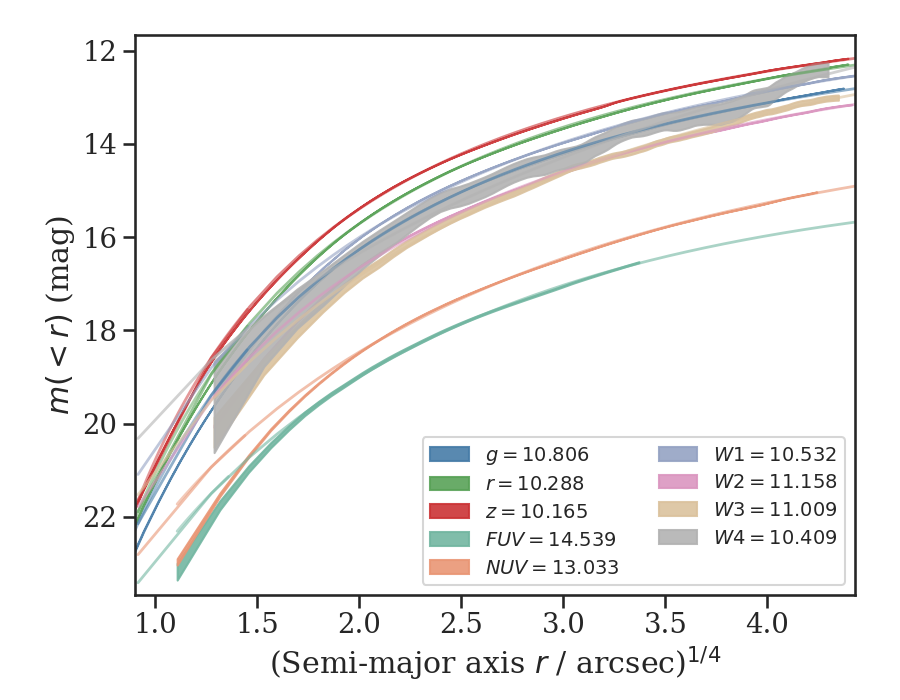

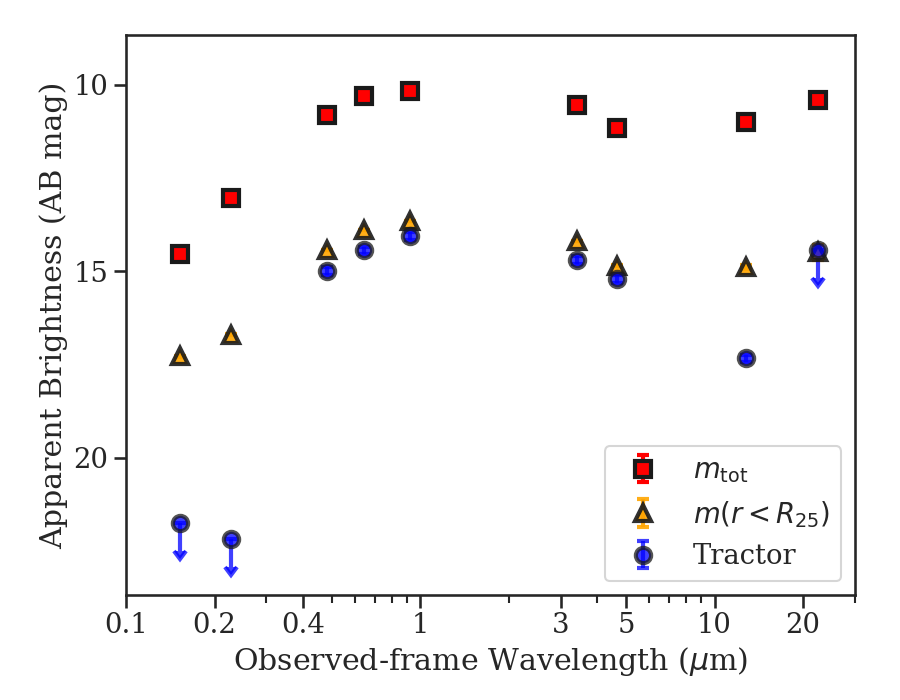

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5023 | >21.753 | >22.188 | 14.996 | 14.441 | 14.056 | 14.705 | 15.217 | 17.337 | >14.432 | 14.539 | 13.033 | 10.806 | 10.288 | 10.165 | 10.532 | 11.158 | 11.009 | 10.409 |
 |
 |
 |
 |
 |
 |
