| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 1550 | NGC5194_GROUP | 202.4788115 | 47.2193742 | 16.5178 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 1546 | NGC5195 | 202.4971380 | 47.2666288 | 6.8693 |
| 1550 | NGC5194 | 202.4694978 | 47.1953759 | 13.5270 |

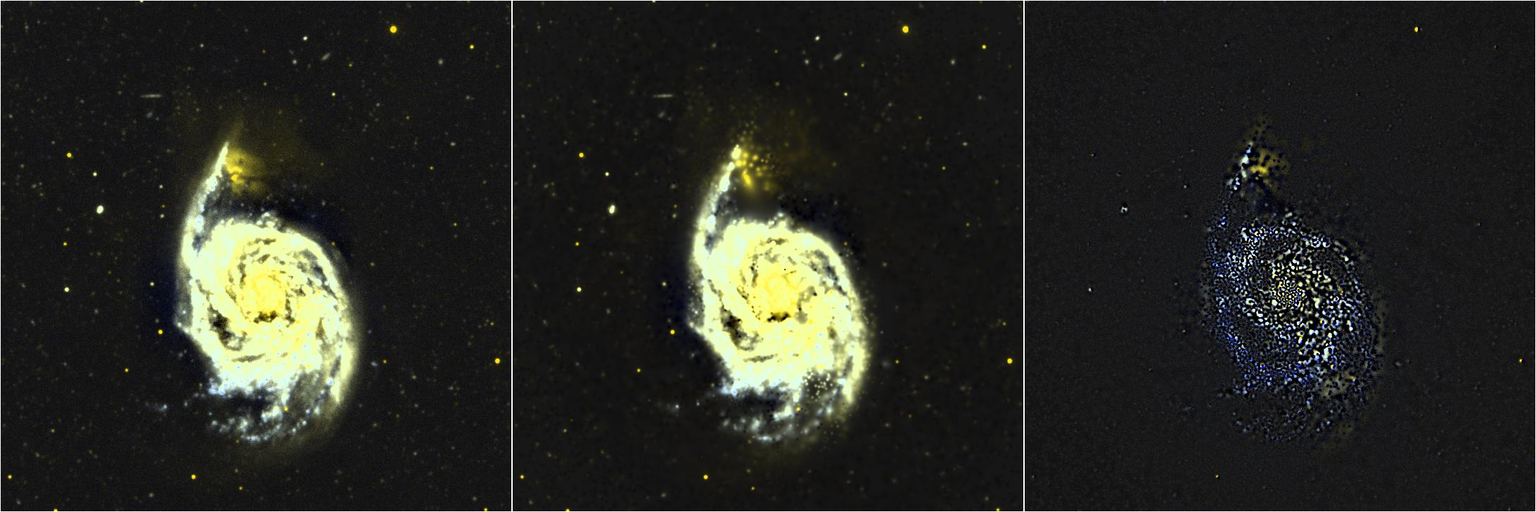

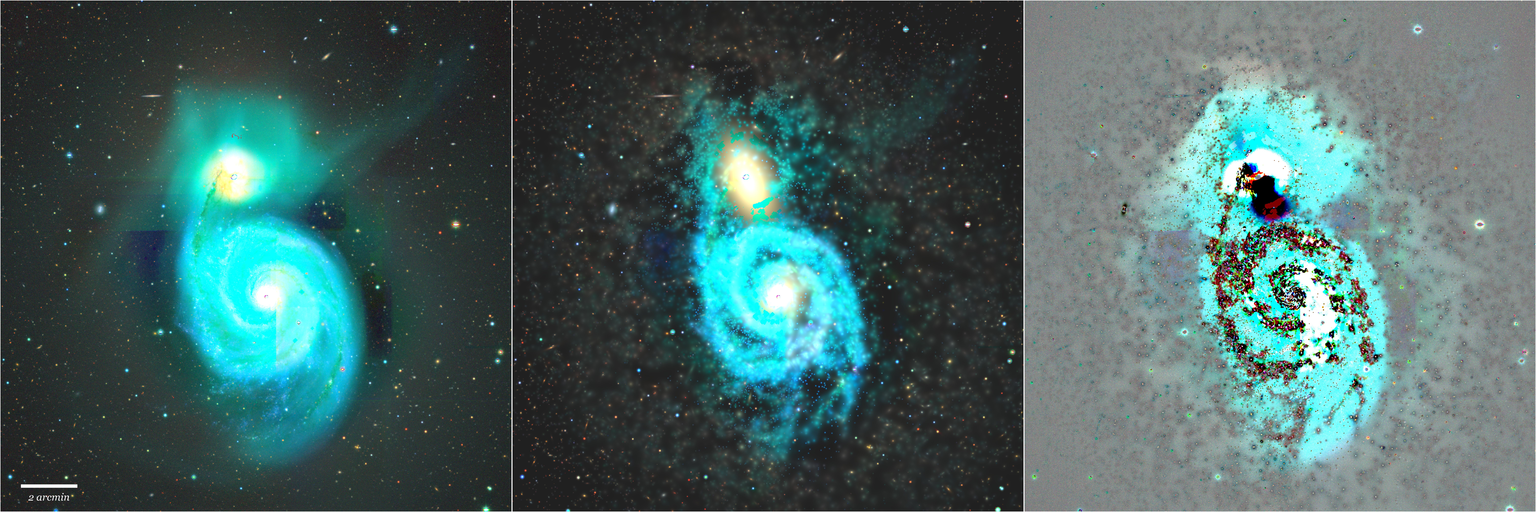

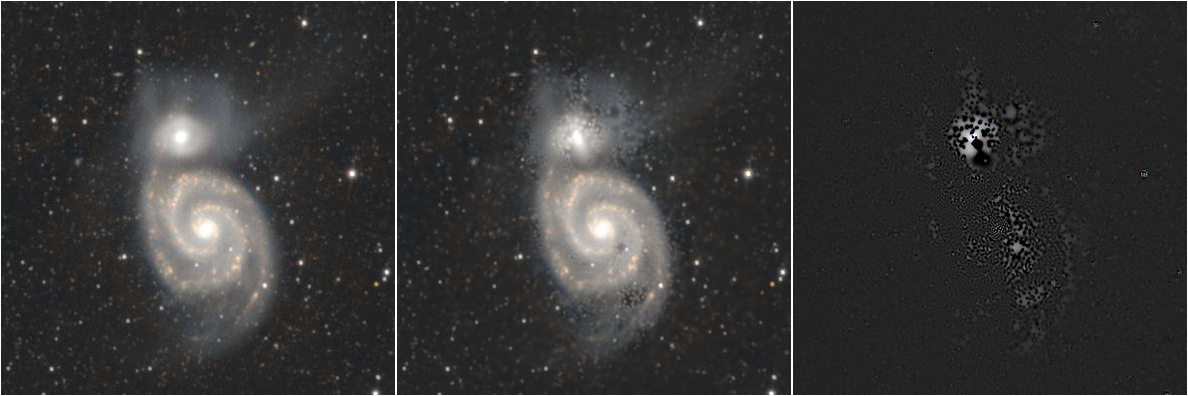

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5195 | SER | 1.53 | 33.649 | 23.09 | 0.468 | 206.078 | 8.74 | 0.253 | 323.756 | 0.000 | 0.000 | ... | ... | 76.901 |
| NGC5194 | SER | 1.47 | 20.211 | 136.83 | 0.169 | 405.811 | 28.39 | 0.139 | 372.642 | 512.799 | 0.000 | ... | ... | ... |

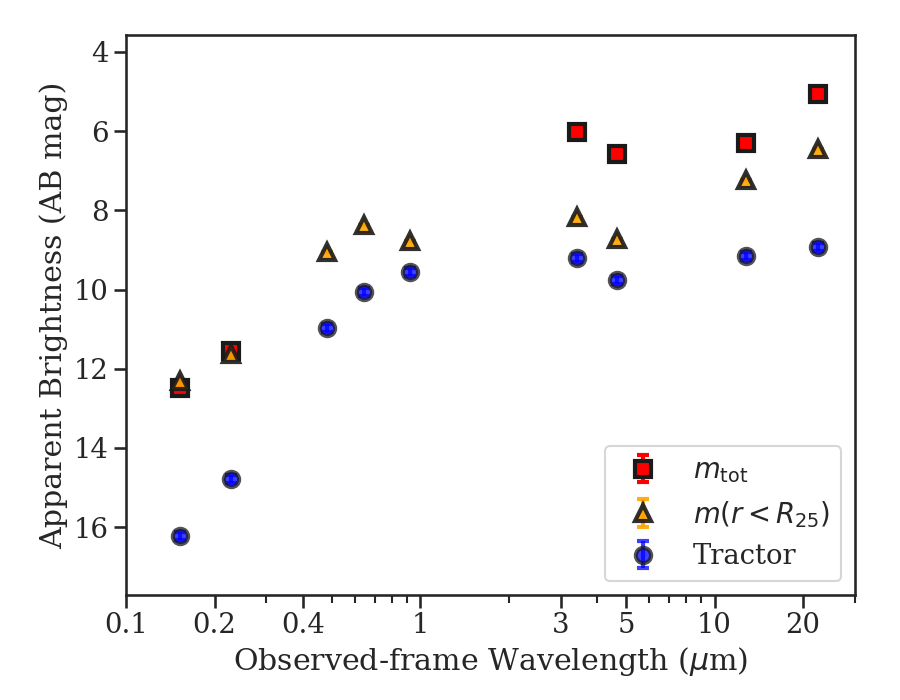

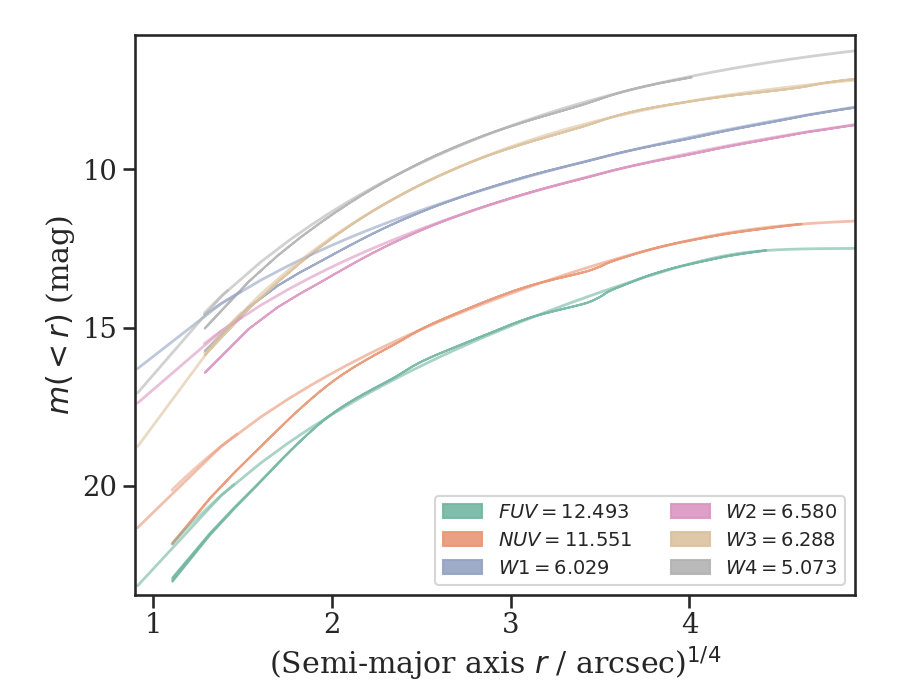

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5195 | 19.249 | 16.992 | 10.557 | 9.578 | 9.024 | 10.120 | 10.710 | 10.761 | >14.713 | 12.116 | 11.831 | ... | ... | 9.089 | 6.458 | 7.284 | 7.652 | 6.031 |
| NGC5194 | 16.212 | 14.787 | 10.982 | 10.071 | 9.553 | 9.199 | 9.770 | 9.154 | 8.937 | 12.493 | 11.551 | ... | ... | ... | 6.029 | 6.580 | 6.288 | 5.073 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
