UGC08614

RA Slice 204

Home
Next (UGC07567)
Previous (PGC042768)

Group Properties

ID (Primary)	Group Name	Group RA	Group Dec	Group Diameter (arcmin)	Viewer
5483	UGC08614	204.3588345	7.6455674	3.4277	Link

Group Members

ID	Galaxy	RA	Dec	D(25) (arcmin)
5483	UGC08614	204.3588345	7.6455674	3.4277

Image Mosaics

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).

Missing file UGC08614-custom-montage-grz.png

Missing file UGC08614-custom-montage-FUVNUV.png

Missing file UGC08614-custom-montage-W1W2.png

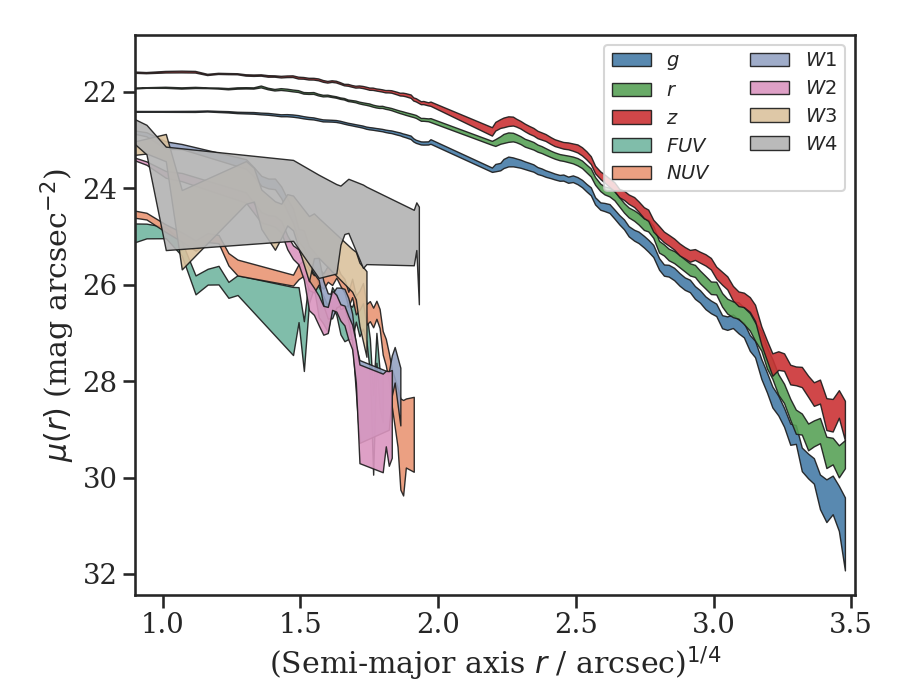

Elliptical Isophote Analysis

Geometry

	Tractor					Ellipse Moments			Surface Brightness Threshold Radii (arcsec)			Half-light Radii (arcsec)
Galaxy	Type	n	r(50) (arcsec)	PA (deg)	e	Size (arcsec)	PA (deg)	e	R(24)	R(25)	R(26)	g(50)	r(50)	z(50)
UGC08614	EXP	1.00	33.221	60.23	0.546	102.830	0.00	0.000	44.295	60.567	78.427	1930.967	3455.015	3305.748

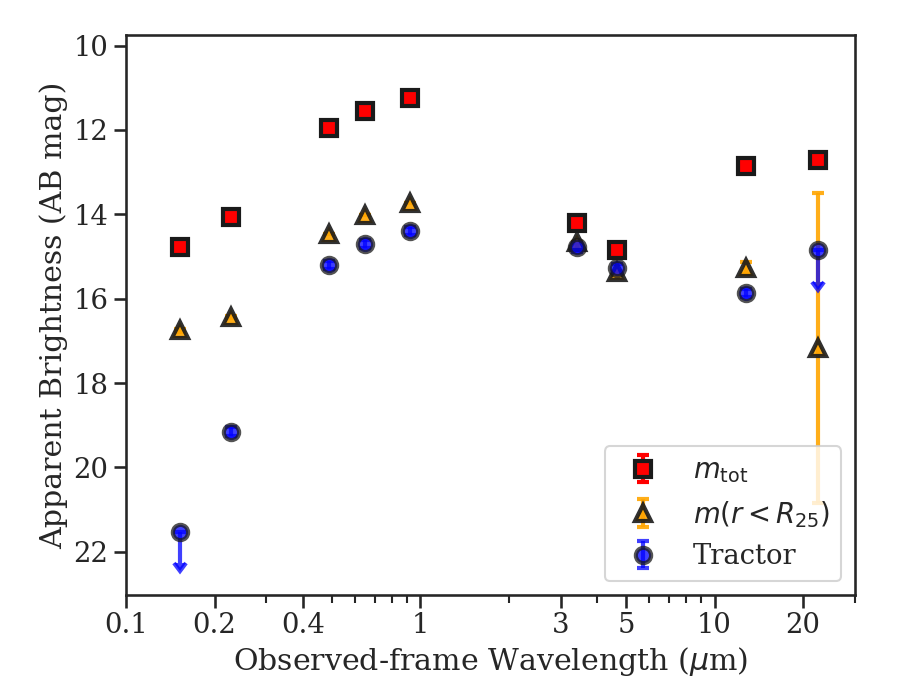

Photometry

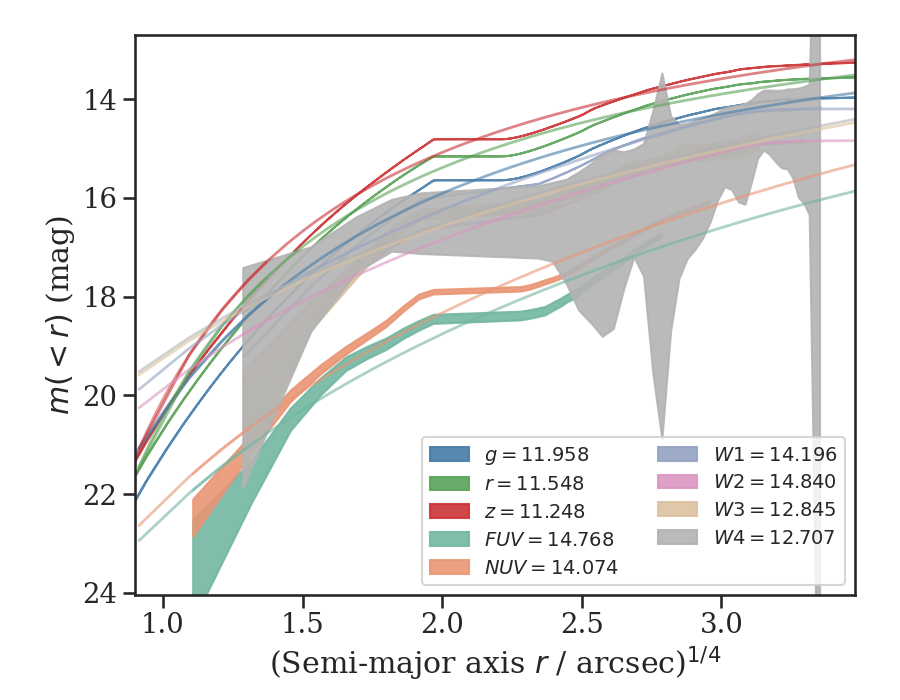

	Tractor									Curve of Growth
Galaxy	FUV	NUV	g	r	z	W1	W2	W3	W4	FUV	NUV	g	r	z	W1	W2	W3	W4
UGC08614	>21.527	19.154	15.204	14.701	14.392	14.785	15.283	15.862	>14.844	14.768	14.074	11.958	11.548	11.248	14.196	14.840	12.845	12.707

UGC08614

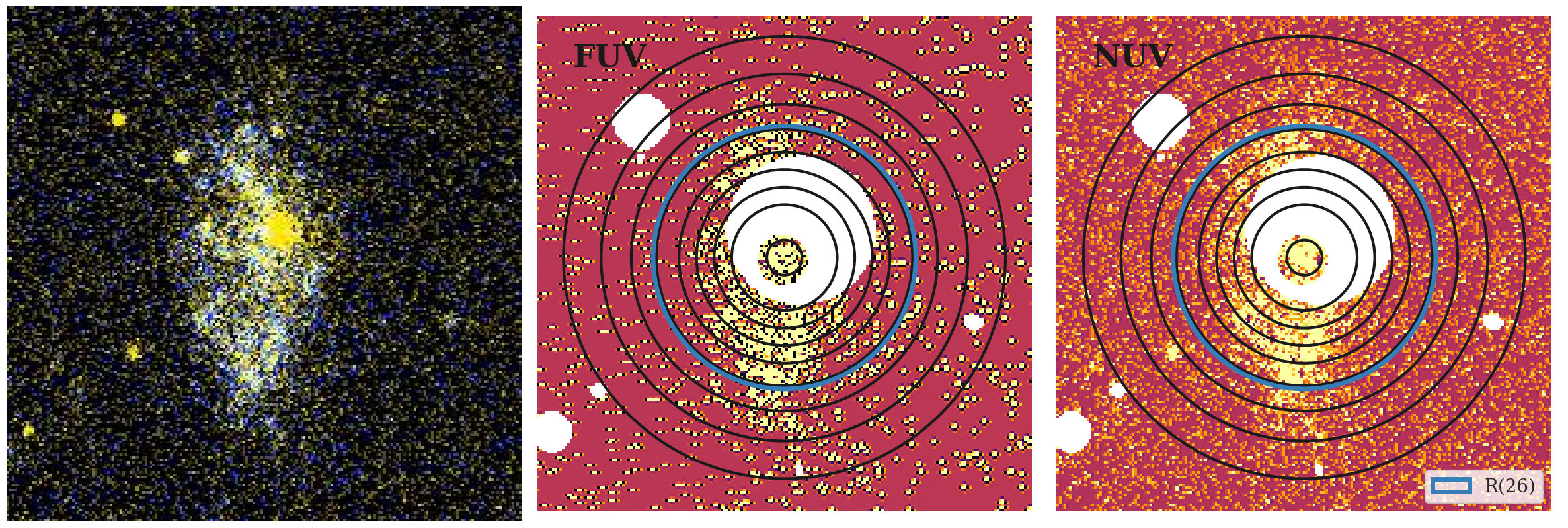

Missing file thumb-UGC08614-custom-ellipse-5483-multiband-FUVNUV.png

Missing file thumb-UGC08614-custom-ellipse-5483-multiband.png

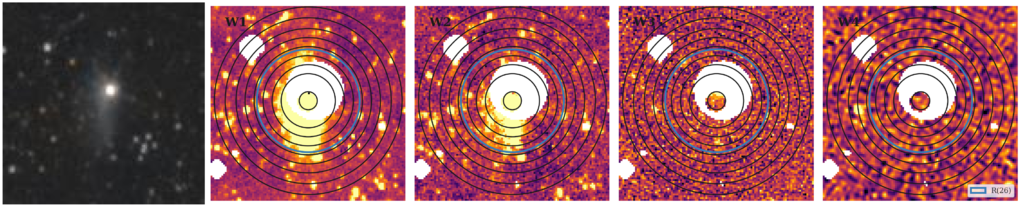

Missing file thumb-UGC08614-custom-ellipse-5483-multiband-W1W2.png
