UGC08647

RA Slice 204

Home
Next (VFID2814)
Previous (PGC036653)

Group Properties

ID (Primary)	Group Name	Group RA	Group Dec	Group Diameter (arcmin)	Viewer
2813	UGC08647	204.9502826	31.2913900	1.8800	Link

Group Members

ID	Galaxy	RA	Dec	D(25) (arcmin)
2813	UGC08647	204.9502826	31.2913900	1.8800

Image Mosaics

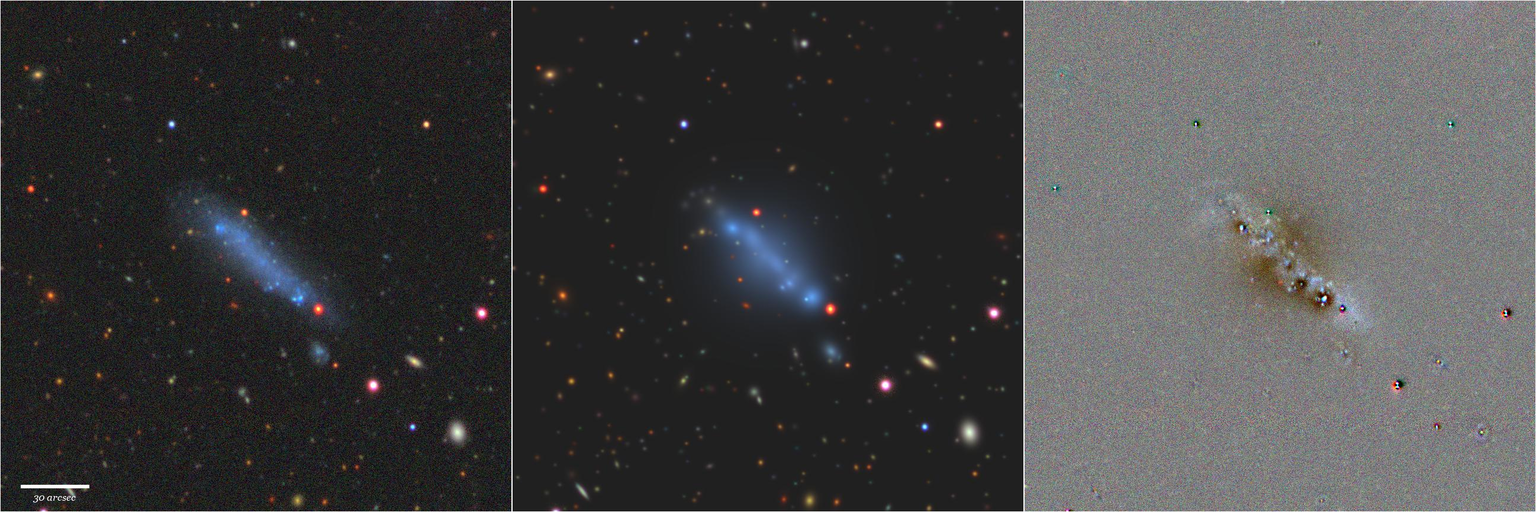

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).

Missing file UGC08647-custom-montage-grz.png

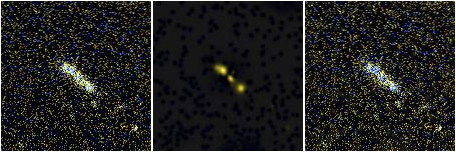

Missing file UGC08647-custom-montage-FUVNUV.png

Missing file UGC08647-custom-montage-W1W2.png

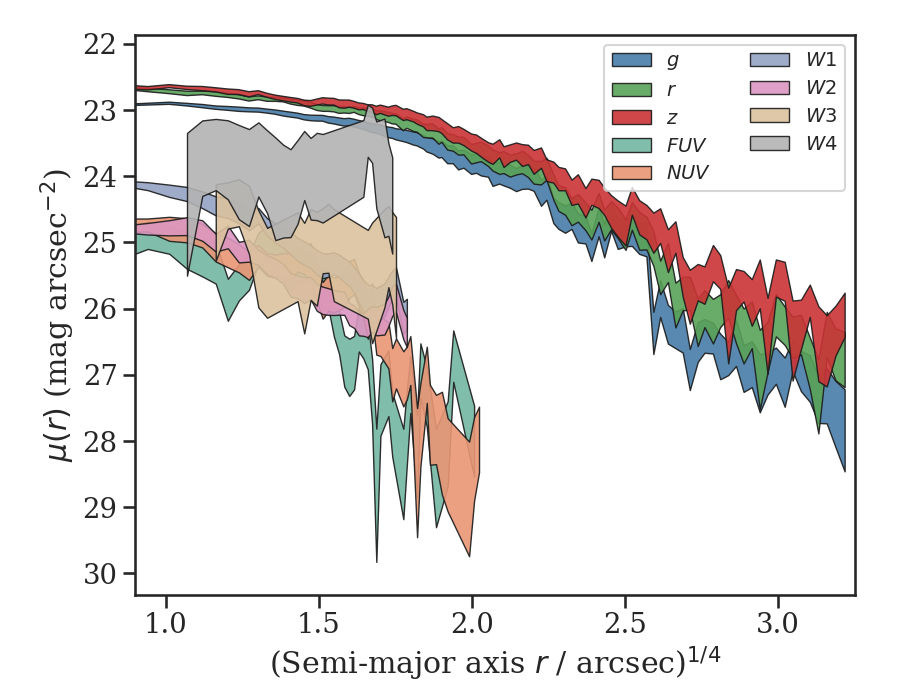

Elliptical Isophote Analysis

Geometry

	Tractor					Ellipse Moments			Surface Brightness Threshold Radii (arcsec)			Half-light Radii (arcsec)
Galaxy	Type	n	r(50) (arcsec)	PA (deg)	e	Size (arcsec)	PA (deg)	e	R(24)	R(25)	R(26)	g(50)	r(50)	z(50)
UGC08647	REX	1.00	14.950	0.00	0.000	56.399	48.33	0.727	21.709	39.776	66.068	19.349	21.440	27.824

Photometry

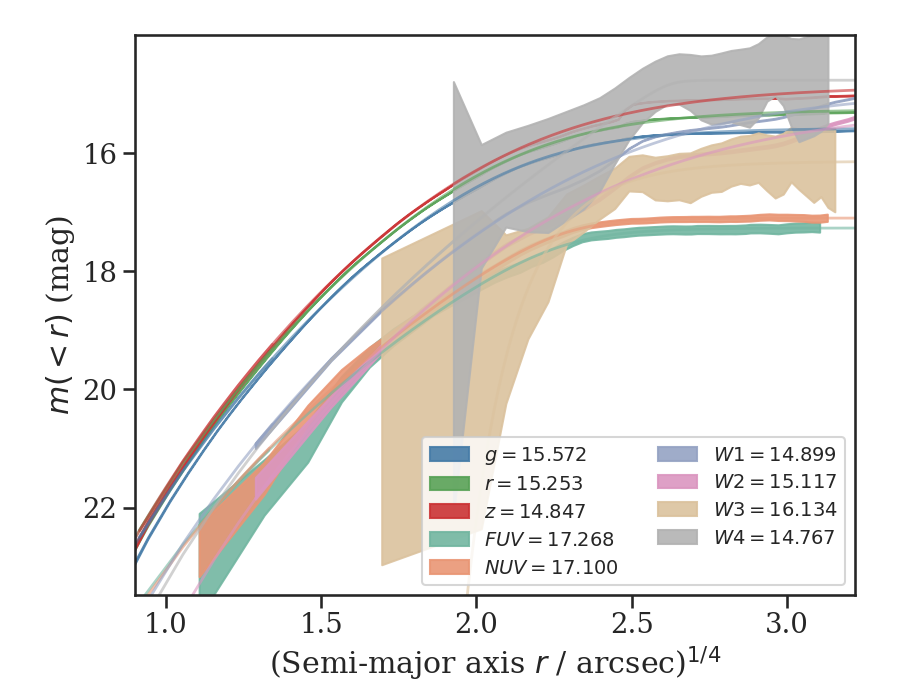

	Tractor									Curve of Growth
Galaxy	FUV	NUV	g	r	z	W1	W2	W3	W4	FUV	NUV	g	r	z	W1	W2	W3	W4
UGC08647	>21.885	>21.435	16.136	15.961	15.889	16.793	16.897	>17.681	>15.014	17.268	17.100	15.572	15.253	14.847	14.899	15.117	16.134	14.767

UGC08647

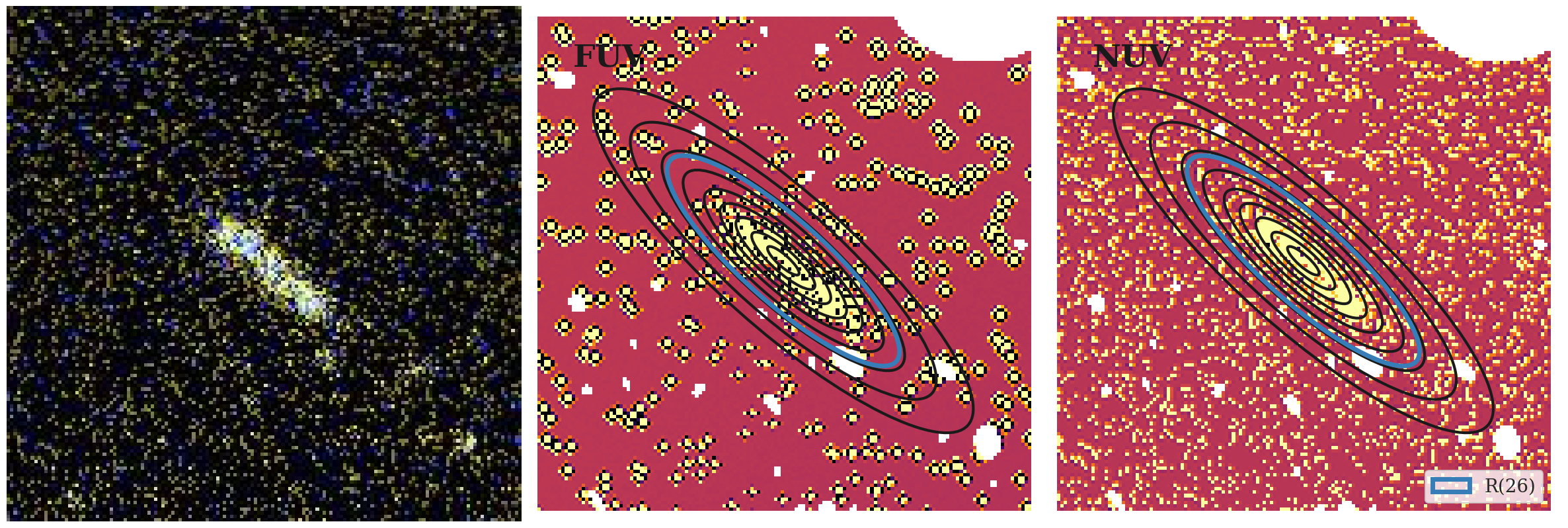

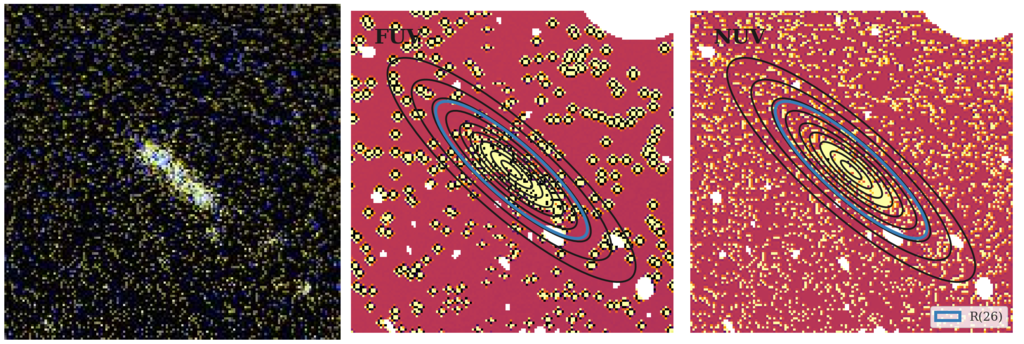

Missing file thumb-UGC08647-custom-ellipse-2813-multiband-FUVNUV.png

Missing file thumb-UGC08647-custom-ellipse-2813-multiband.png

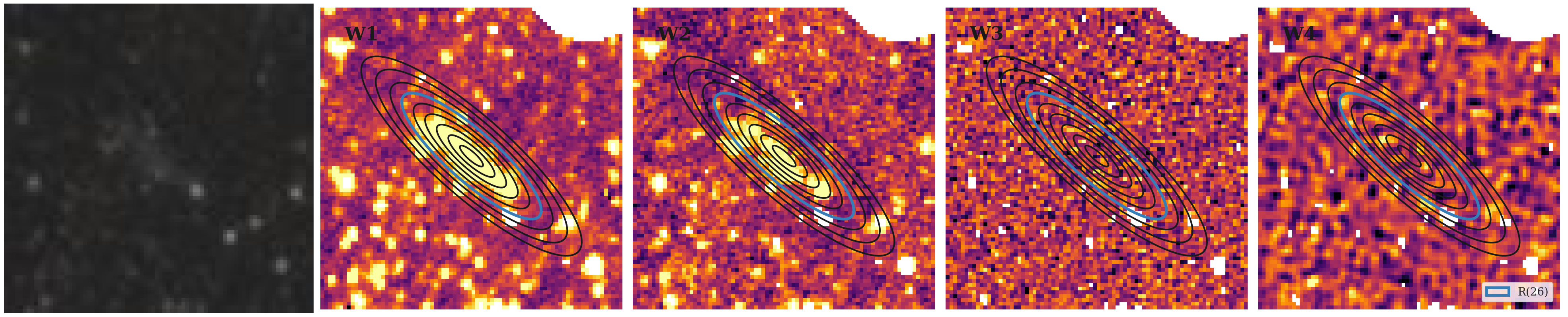

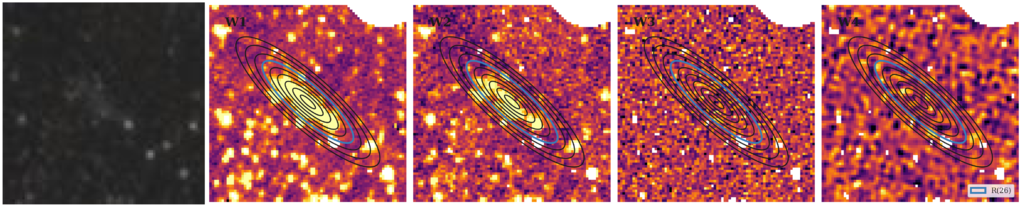

Missing file thumb-UGC08647-custom-ellipse-2813-multiband-W1W2.png
