| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 479 | UGC08684 | 205.5664208 | 60.7764565 | 4.2215 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 479 | UGC08684 | 205.5664208 | 60.7764565 | 4.2215 |

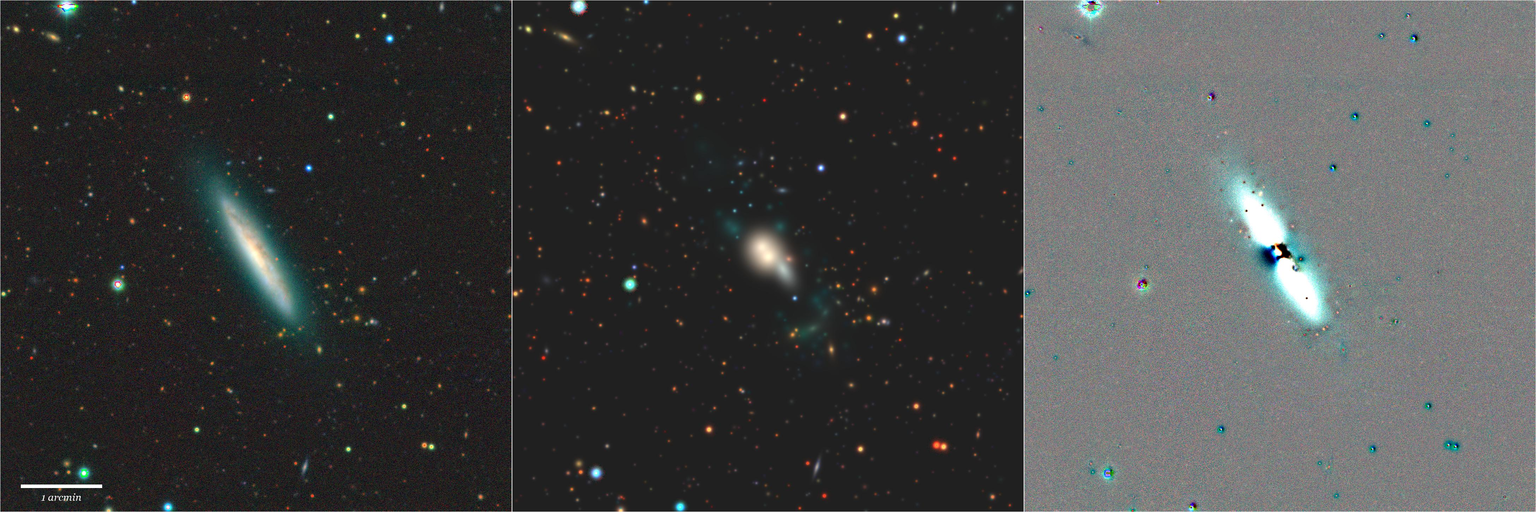

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC08684 | REX | 1.00 | 5.571 | 0.00 | 0.000 | 91.952 | 31.34 | 0.757 | 61.642 | 99.878 | 162.306 | 24.480 | 24.133 | 18.141 |

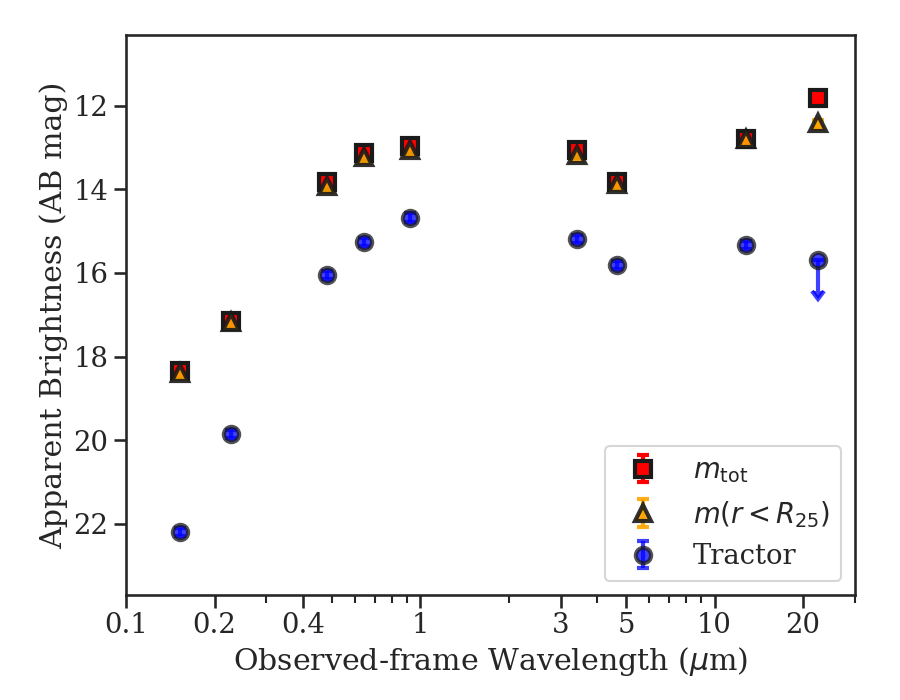

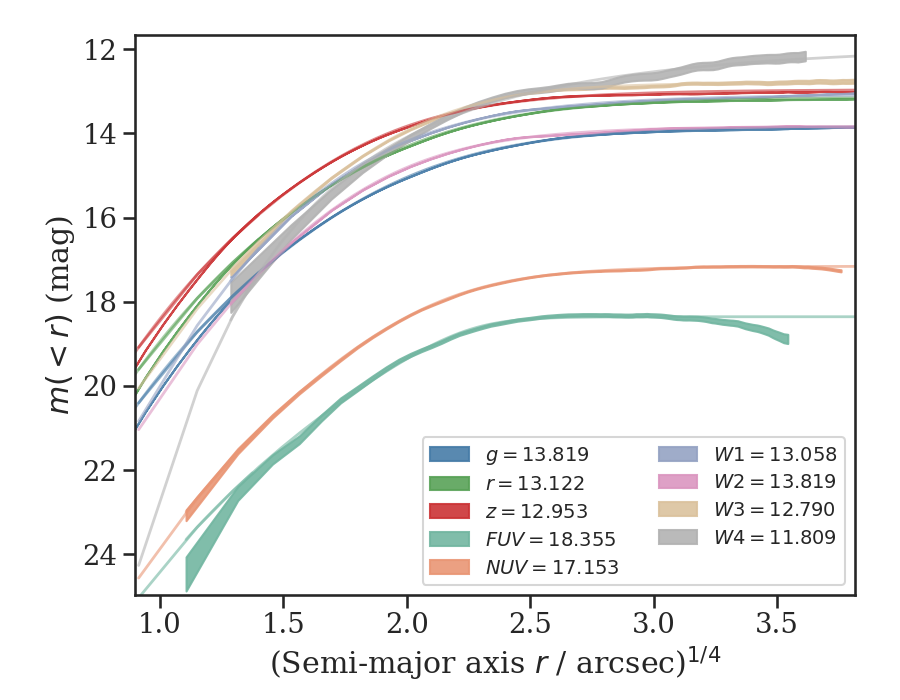

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC08684 | 22.200 | 19.851 | 16.047 | 15.265 | 14.677 | 15.186 | 15.806 | 15.334 | >15.688 | 18.355 | 17.153 | 13.819 | 13.122 | 12.953 | 13.058 | 13.819 | 12.790 | 11.809 |
 |
 |
 |
 |
 |
 |
