| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2101 | NGC5313 | 207.4346689 | 39.9849311 | 3.4624 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2101 | NGC5313 | 207.4346689 | 39.9849311 | 3.4624 |

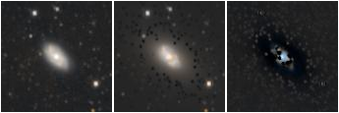

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

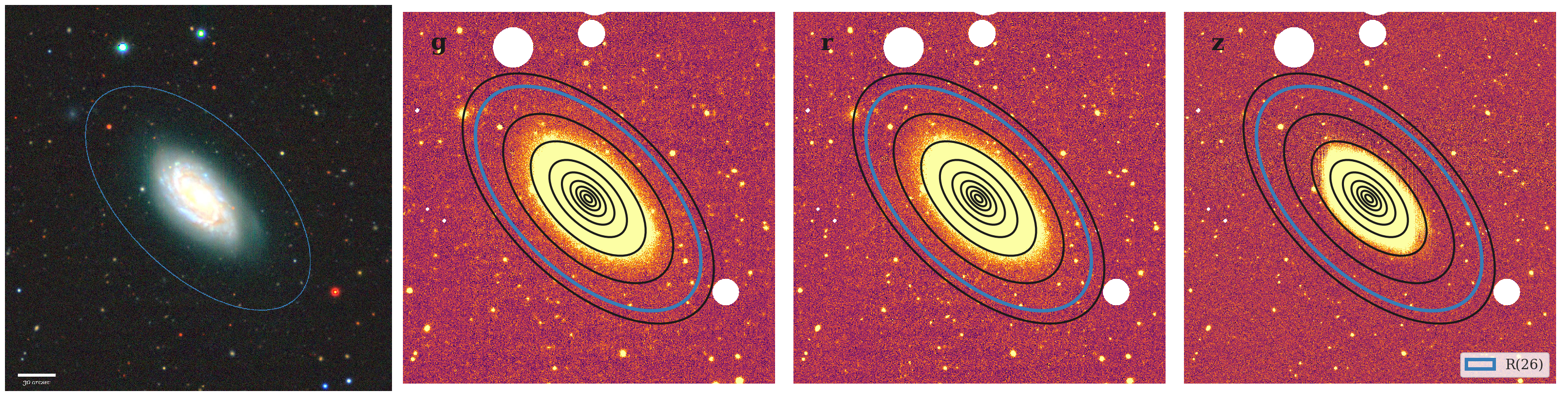

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5313 | SER | 4.18 | 45.709 | 52.13 | 0.442 | 72.358 | 45.18 | 0.471 | 78.688 | 94.730 | 113.547 | 24.441 | 22.707 | 21.575 |

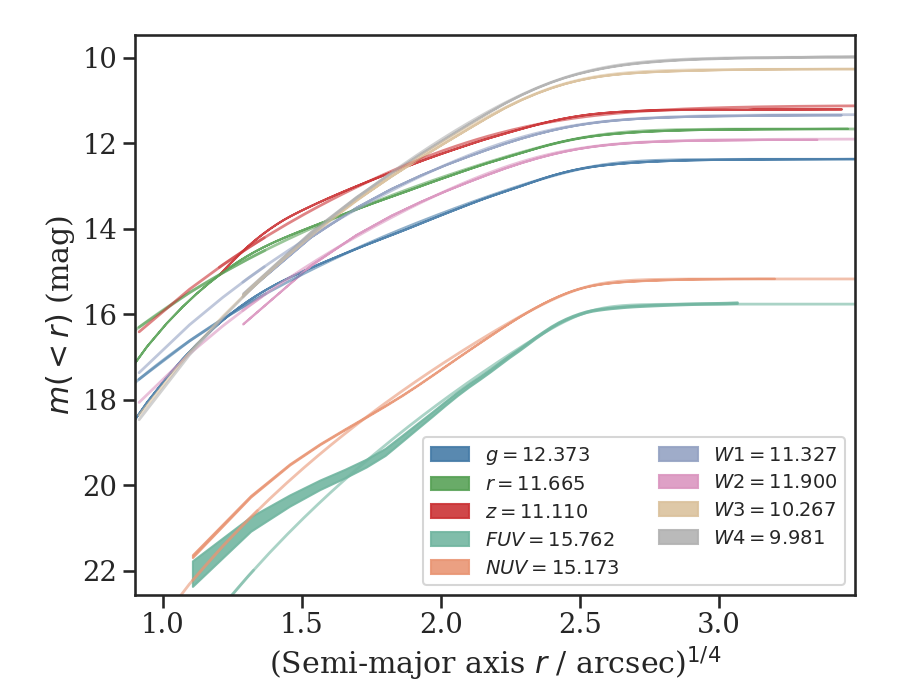

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5313 | >21.265 | >21.865 | 12.291 | 11.485 | 10.864 | 11.724 | 11.919 | 10.497 | 10.454 | 15.762 | 15.173 | 12.373 | 11.665 | 11.110 | 11.327 | 11.900 | 10.267 | 9.981 |
 |
 |
 |
 |
 |
 |
