| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2260 | NGC5403_GROUP | 209.9682976 | 38.1871039 | 13.8923 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2260 | NGC5403 | 209.9613921 | 38.1822347 | 6.5086 |
| 2259 | PGC049824 | 209.9877900 | 38.2008368 | 2.3084 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5403 | REX | 1.00 | 7.793 | 0.00 | 0.000 | 195.259 | 141.20 | 0.652 | 106.895 | 159.940 | 229.482 | 41.196 | 37.989 | 22.220 |
| PGC049824 | REX | 1.00 | 3.062 | 0.00 | 0.000 | 69.251 | 48.04 | 0.514 | 31.640 | 54.658 | 104.151 | 26.158 | 29.769 | 7.923 |

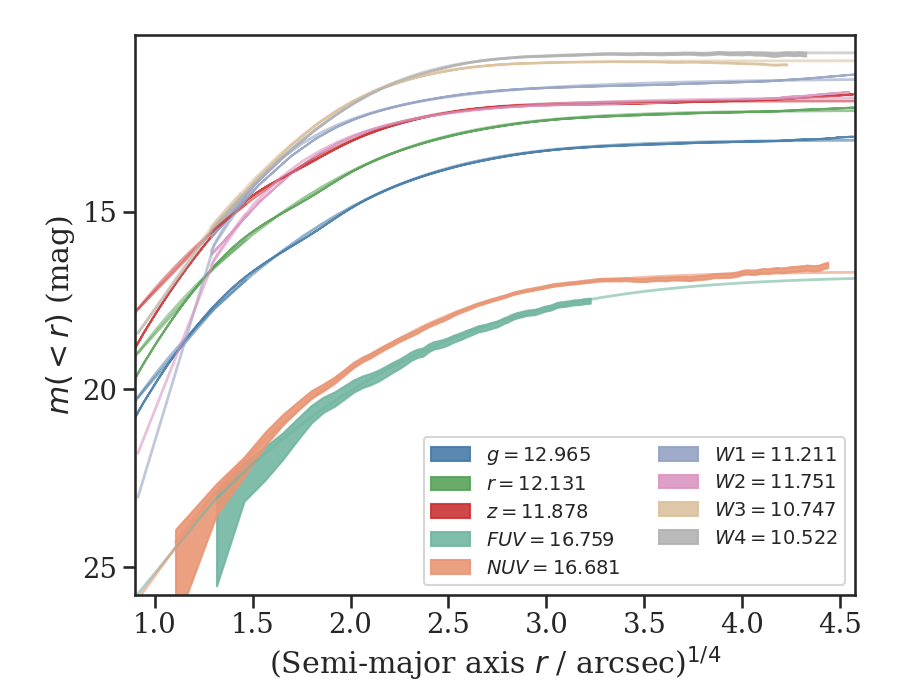

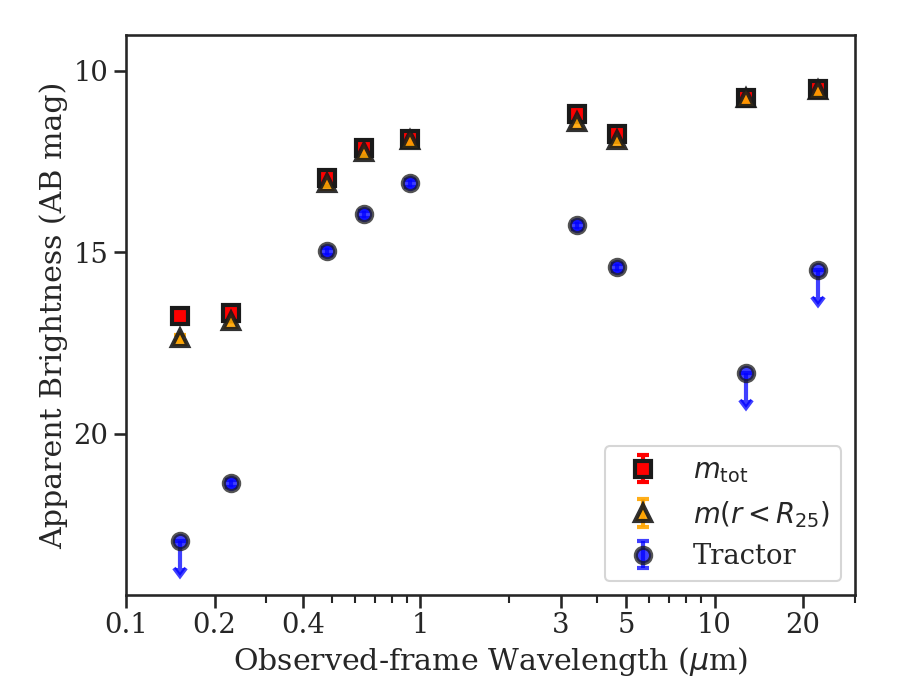

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5403 | >22.940 | 21.364 | 14.975 | 13.957 | 13.105 | 14.265 | 15.419 | >18.315 | >15.484 | 16.759 | 16.681 | 12.965 | 12.131 | 11.878 | 11.211 | 11.751 | 10.747 | 10.522 |
| PGC049824 | >22.492 | >21.832 | 15.667 | 15.021 | 14.801 | 15.894 | 16.573 | 16.274 | >15.750 | ... | ... | 13.982 | 13.300 | 13.726 | 10.747 | 11.415 | 14.094 | 13.097 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
