| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2370 | NGC5544_GROUP | 214.2648705 | 36.5730236 | 4.1693 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2370 | NGC5544 | 214.2604960 | 36.5715852 | 1.8569 |
| 2369 | NGC5545 | 214.2715509 | 36.5752202 | 1.2159 |

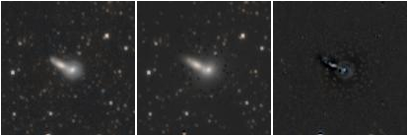

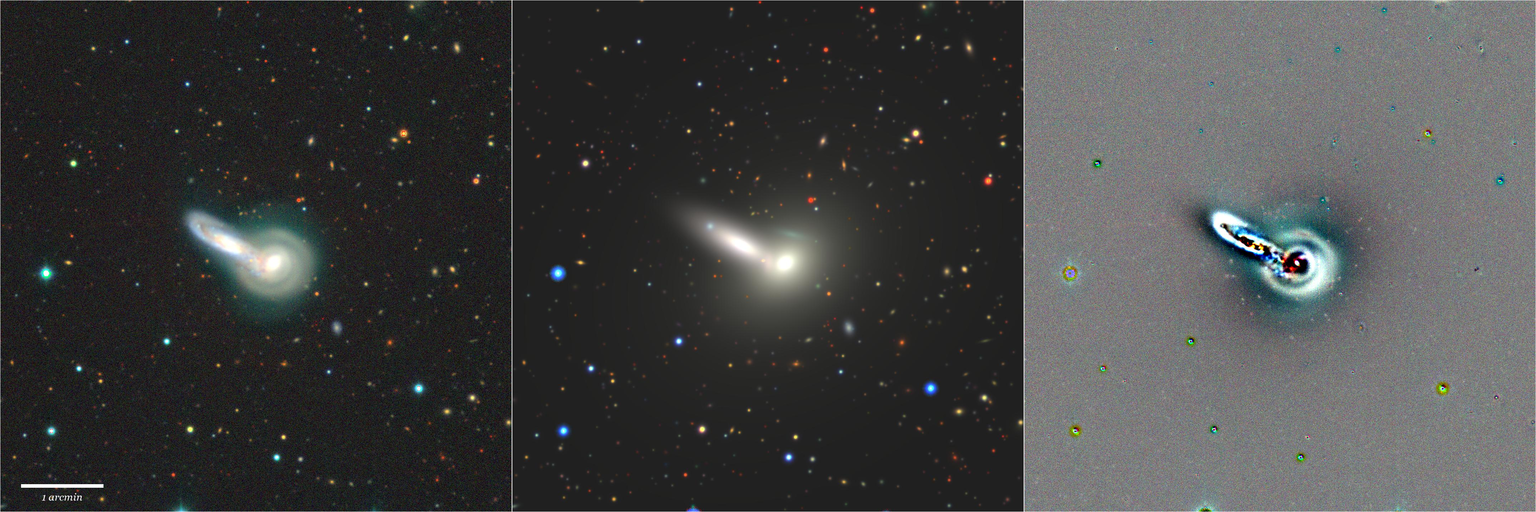

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5544 | SER | 4.87 | 27.246 | 125.92 | 0.227 | 55.707 | 131.69 | 0.262 | 39.562 | 49.804 | 64.101 | 12871.912 | 13632.461 | 19437.998 |
| NGC5545 | SER | 1.40 | 15.796 | 61.43 | 0.670 | 36.478 | 61.14 | 0.681 | 89.635 | 97.413 | 112.593 | 16.262 | 16.602 | 19.314 |

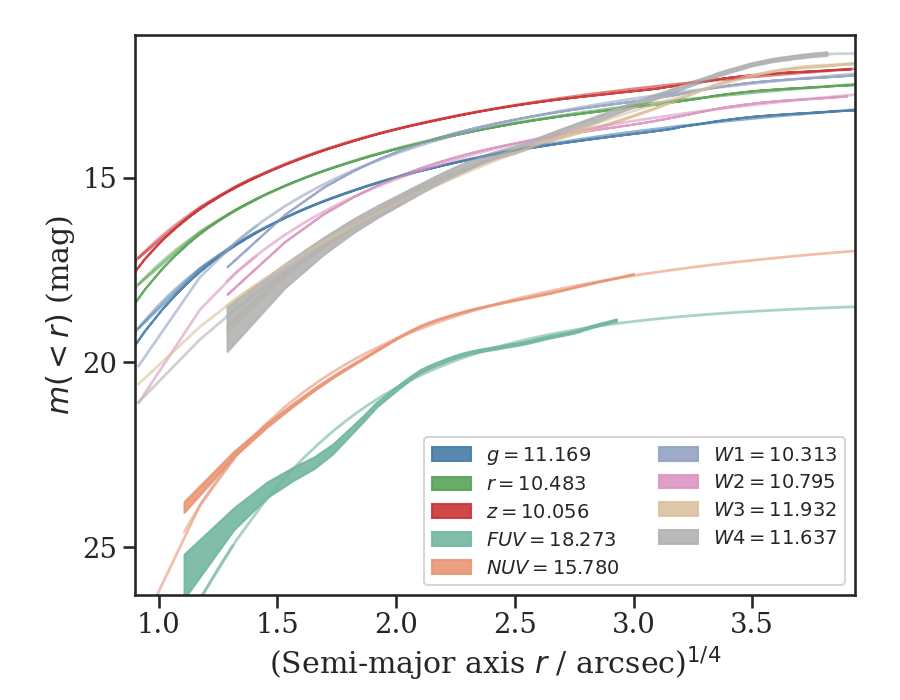

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5544 | >23.157 | >22.739 | 13.519 | 12.775 | 12.305 | 12.737 | 13.310 | 14.969 | >15.040 | 18.273 | 15.780 | 11.169 | 10.483 | 10.056 | 10.313 | 10.795 | 11.932 | 11.637 |
| NGC5545 | 18.327 | 16.794 | 14.167 | 13.516 | 12.991 | 13.178 | 13.646 | 11.736 | 11.295 | 17.641 | 16.725 | 13.761 | 13.087 | 12.471 | 12.842 | 13.415 | 12.202 | 12.067 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
