| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5060 | NGC5666 | 218.2883482 | 10.5108258 | 1.4446 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5060 | NGC5666 | 218.2883482 | 10.5108258 | 1.4446 |

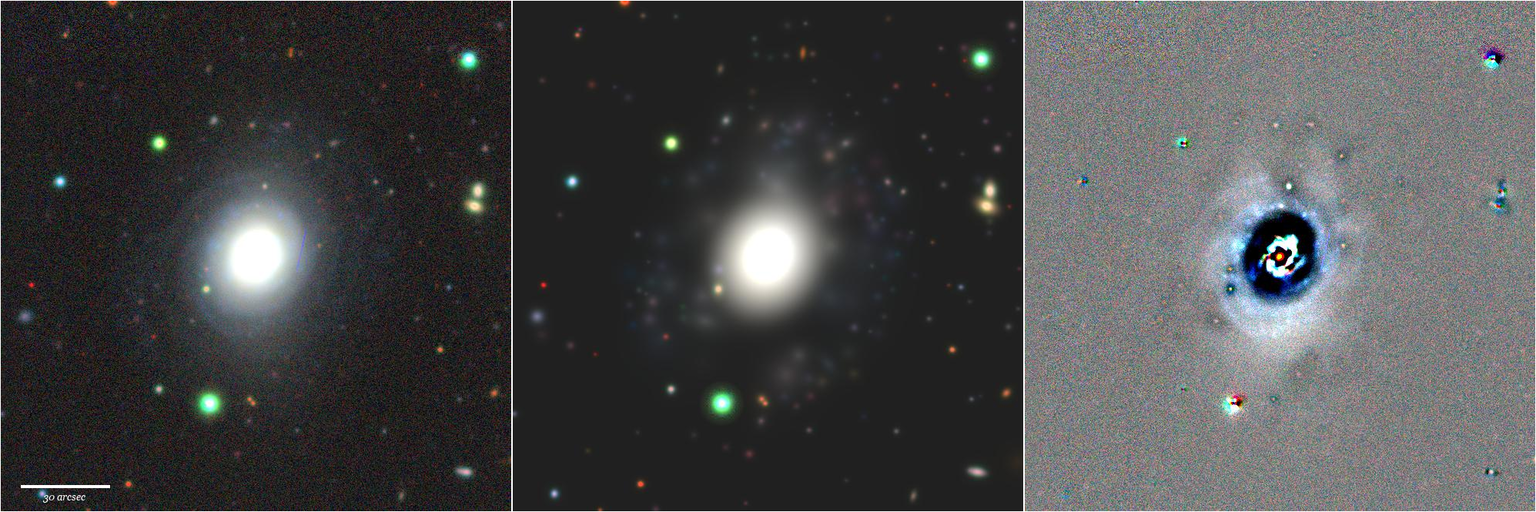

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5666 | SER | 1.06 | 6.433 | 153.51 | 0.153 | 36.201 | 161.83 | 0.192 | 28.599 | 38.400 | 50.086 | 20.847 | 20.814 | 20.621 |

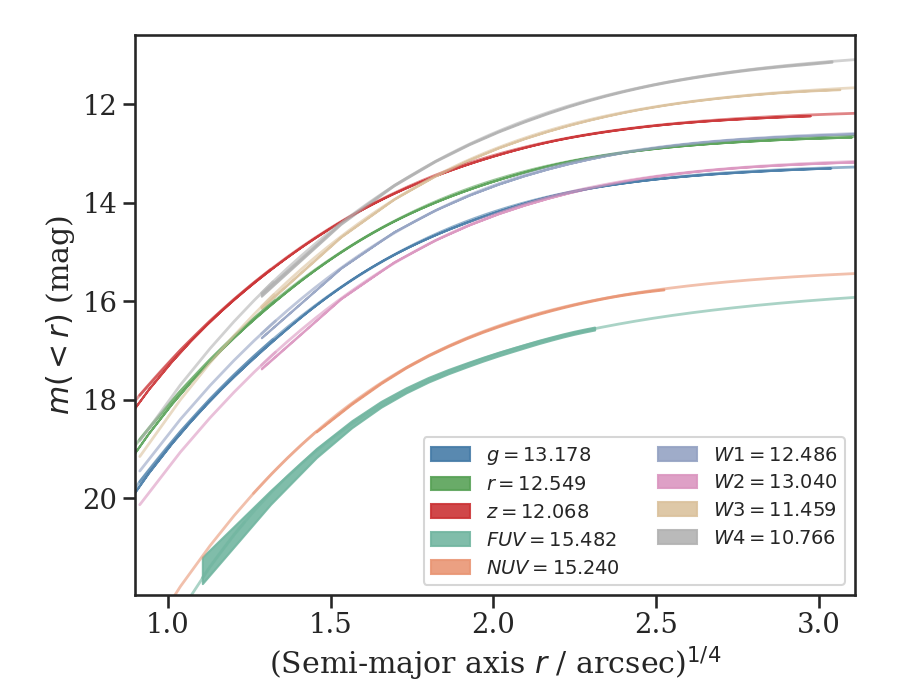

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5666 | >21.371 | 16.976 | 13.403 | 12.739 | 12.238 | 12.922 | 13.515 | 12.016 | >15.548 | 15.482 | 15.240 | 13.178 | 12.549 | 12.068 | 12.486 | 13.040 | 11.459 | 10.766 |
 |
 |
 |
 |
 |
 |
