| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 46 | NGC6654A_GROUP | 279.8291688 | 73.5869243 | 10.6175 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 46 | NGC6654A | 279.8535753 | 73.5799827 | 4.7216 |
| 44 | UGC11331 | 279.7475553 | 73.6101368 | 1.4120 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

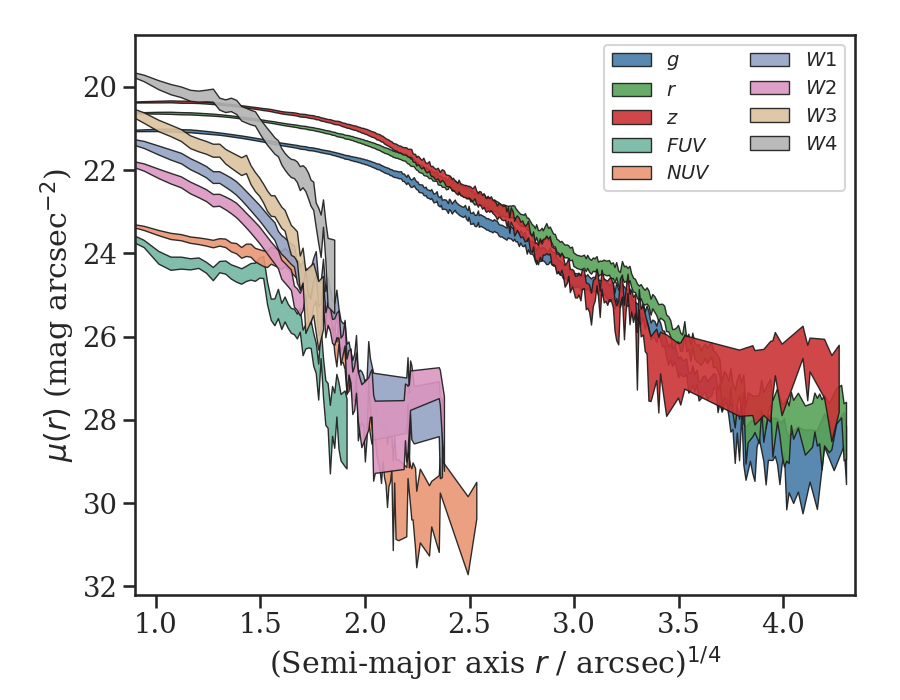

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC6654A | REX | 1.00 | 17.587 | 0.00 | 0.000 | 141.647 | 63.08 | 0.673 | 81.991 | 118.167 | 154.676 | 28.557 | 29.369 | 23.570 |
| UGC11331 | REX | 1.00 | 12.058 | 0.00 | 0.000 | 47.148 | 42.96 | 0.235 | 28.777 | 39.566 | 47.253 | 52.187 | 53.813 | 64.449 |

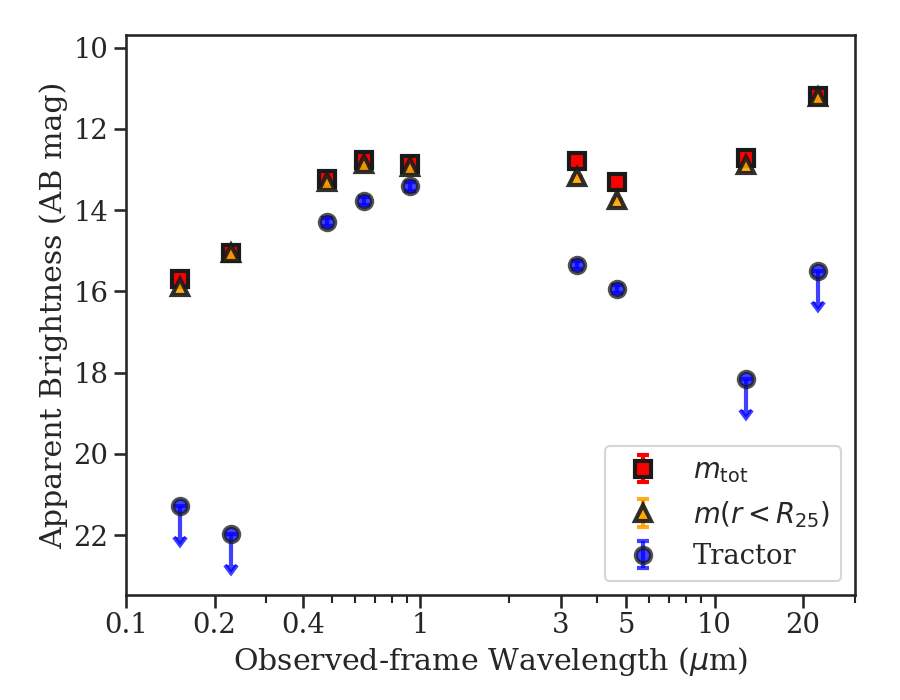

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC6654A | >21.290 | >21.976 | 14.287 | 13.769 | 13.418 | 15.345 | 15.951 | >18.168 | >15.507 | 15.699 | 15.067 | 13.238 | 12.768 | 12.855 | 12.803 | 13.319 | 12.716 | 11.189 |
| UGC11331 | >22.005 | 18.895 | 16.868 | 16.318 | 16.248 | 16.661 | 19.201 | >18.481 | 13.245 | 17.186 | 15.393 | 14.813 | 14.291 | 14.605 | 14.731 | 15.554 | 16.038 | 15.452 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
