| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 1159 | UGC03690 | 107.2778986 | 53.4459058 | 1.2981 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 1159 | UGC03690 | 107.2778986 | 53.4459058 | 1.2981 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC03690 | REX | 1.00 | 33.708 | 0.00 | 0.000 | 38.943 | 27.24 | 0.175 | 19.605 | 31.179 | 40.005 | 20.794 | 21.406 | 13.777 |

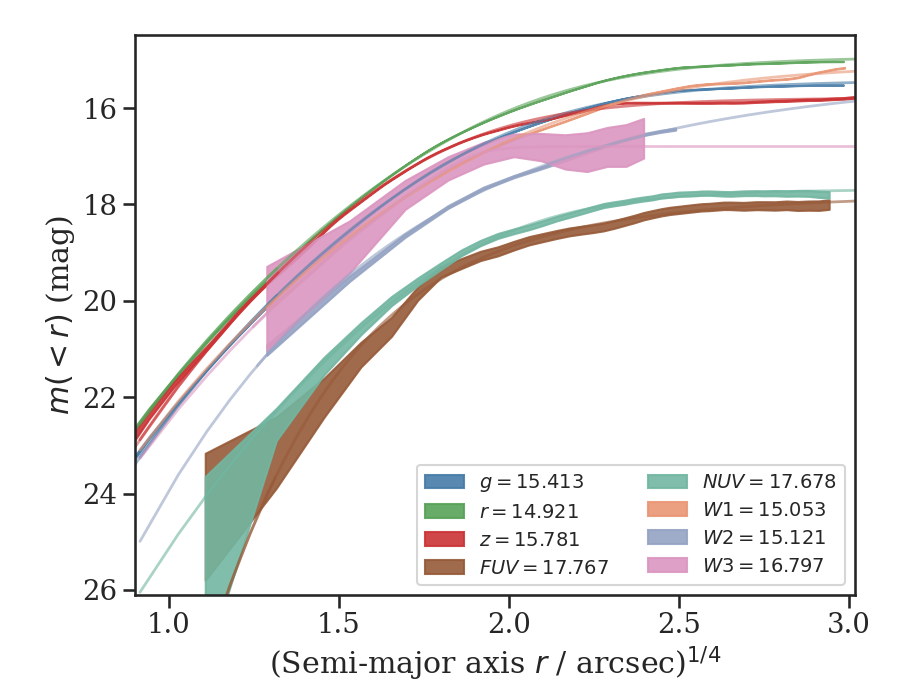

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC03690 | >21.078 | >20.956 | 17.137 | 16.573 | 16.777 | >20.868 | >20.121 | >16.769 | 12.381 | 17.767 | 17.678 | 15.413 | 14.921 | 15.781 | 15.053 | 15.121 | 16.797 | ... |
 |
 |
 |
 |
 |
 |
