ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
---|---|---|---|---|---|
905 | UGC03765_GROUP | 109.0197058 | 56.8195995 | 4.4486 | Link |
ID | Galaxy | RA | Dec | D(25) (arcmin) |
---|---|---|---|---|
905 | UGC03765 | 109.0082779 | 56.8179025 | 1.8355 |
903 | PGC020543 | 109.0433619 | 56.8231150 | 0.8870 |

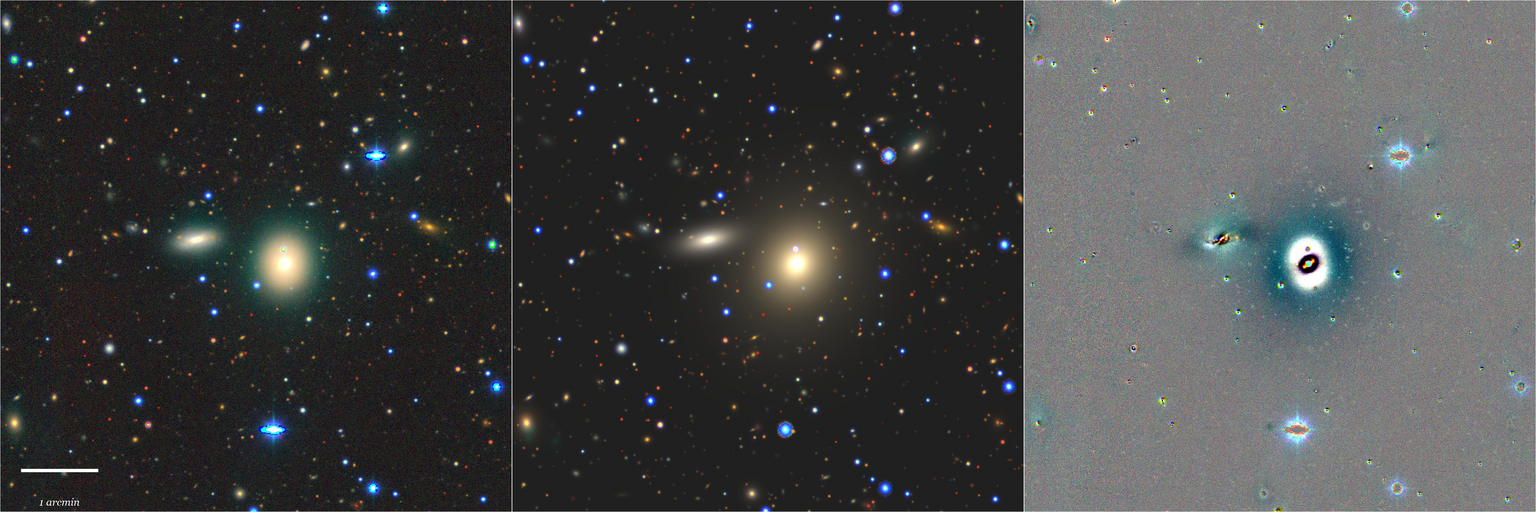

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
UGC03765 | SER | 5.15 | 14.162 | 147.71 | 0.116 | 48.117 | 153.71 | 0.171 | 33.668 | 44.916 | 63.677 | 19.342 | 10.843 | 10.903 |
PGC020543 | SER | 1.76 | 9.393 | 101.53 | 0.568 | 27.352 | 98.68 | 0.449 | 24.718 | 34.962 | 46.970 | 10.381 | 10.236 | 7.701 |
Tractor | Curve of Growth | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
UGC03765 | >22.643 | >22.142 | 13.701 | 12.746 | 12.126 | 12.385 | 12.942 | 13.650 | 14.362 | 18.267 | 15.627 | 13.391 | 12.601 | 12.185 | 12.007 | 12.557 | 10.278 | 9.510 |
PGC020543 | >22.563 | 20.663 | 15.537 | 14.779 | 14.234 | 14.614 | 15.169 | 14.027 | 13.590 | 19.992 | 18.969 | 15.341 | 14.568 | 14.260 | 13.770 | 13.678 | 11.371 | 10.429 |
