| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 528 | NGC2654 | 132.2996138 | 60.2210666 | 5.9696 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 528 | NGC2654 | 132.2996138 | 60.2210666 | 5.9696 |

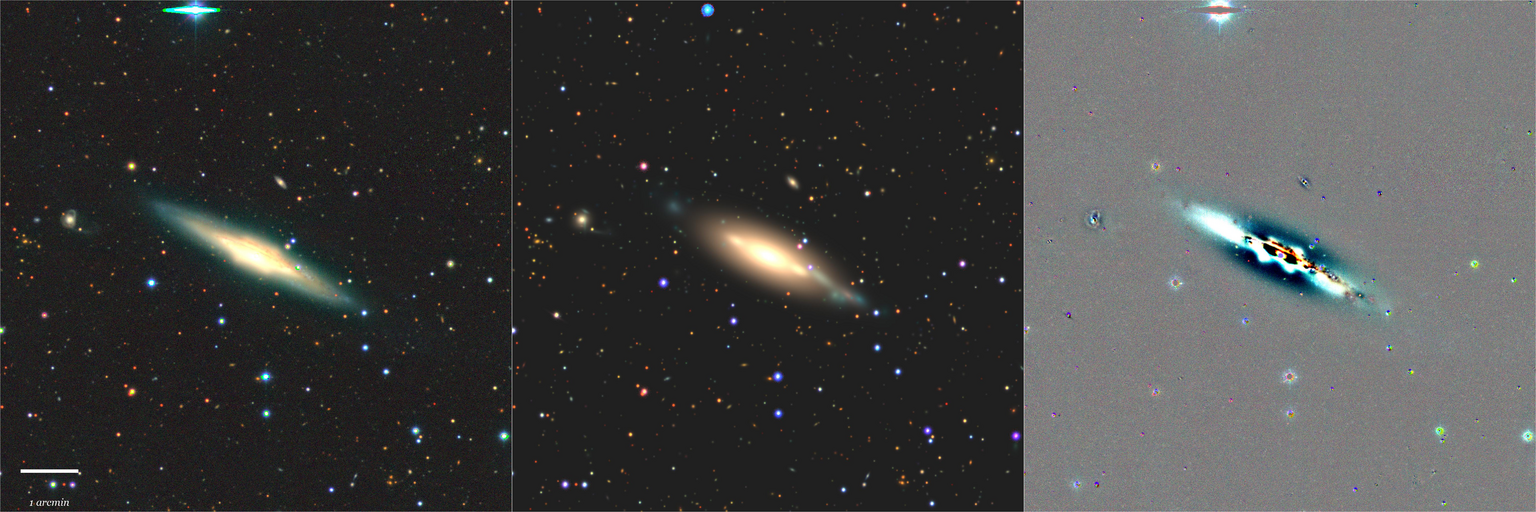

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC2654 | SER | 1.76 | 19.946 | 65.14 | 0.620 | 136.949 | 63.84 | 0.792 | 117.286 | 160.547 | 220.405 | 34.979 | 34.208 | 29.195 |

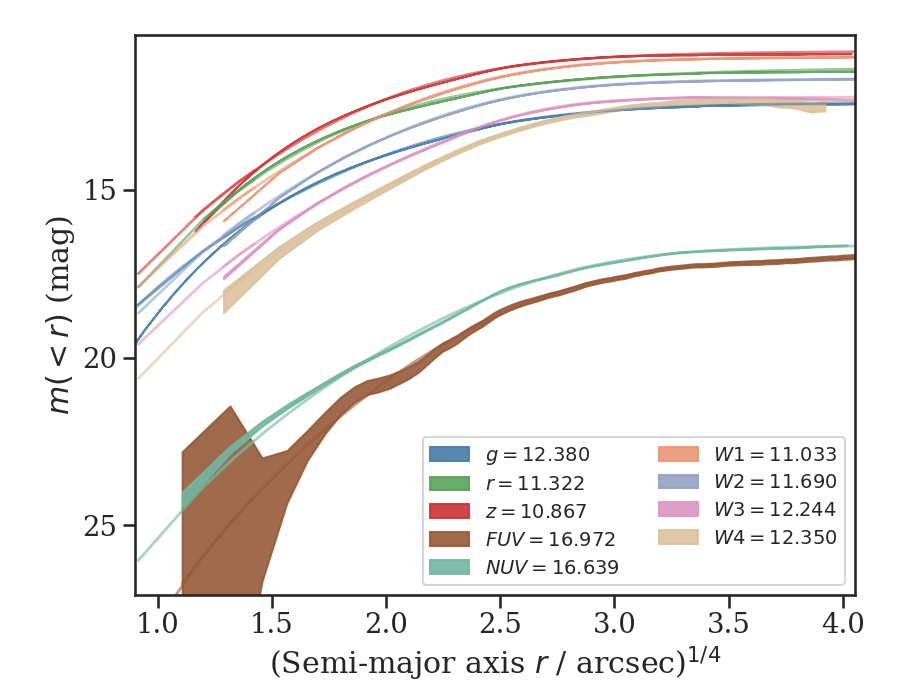

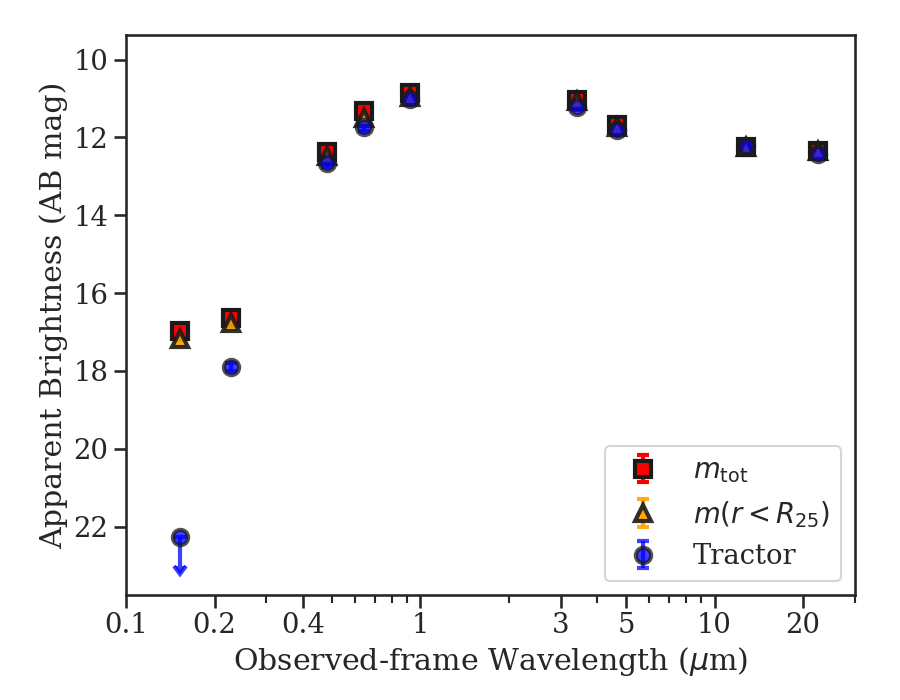

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC2654 | >22.260 | 17.905 | 12.659 | 11.737 | 11.007 | 11.205 | 11.800 | 12.209 | 12.435 | 16.972 | 16.639 | 12.380 | 11.322 | 10.867 | 11.033 | 11.690 | 12.244 | 12.350 |
 |
 |
 |
 |
 |
 |
