| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 554 | UGC04808 | 137.5610055 | 59.9541875 | 1.5823 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 554 | UGC04808 | 137.5610055 | 59.9541875 | 1.5823 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC04808 | SER | 0.98 | 17.791 | 164.28 | 0.485 | 43.943 | 168.30 | 0.509 | 32.426 | 43.225 | 53.698 | 19.131 | 19.443 | 14.440 |

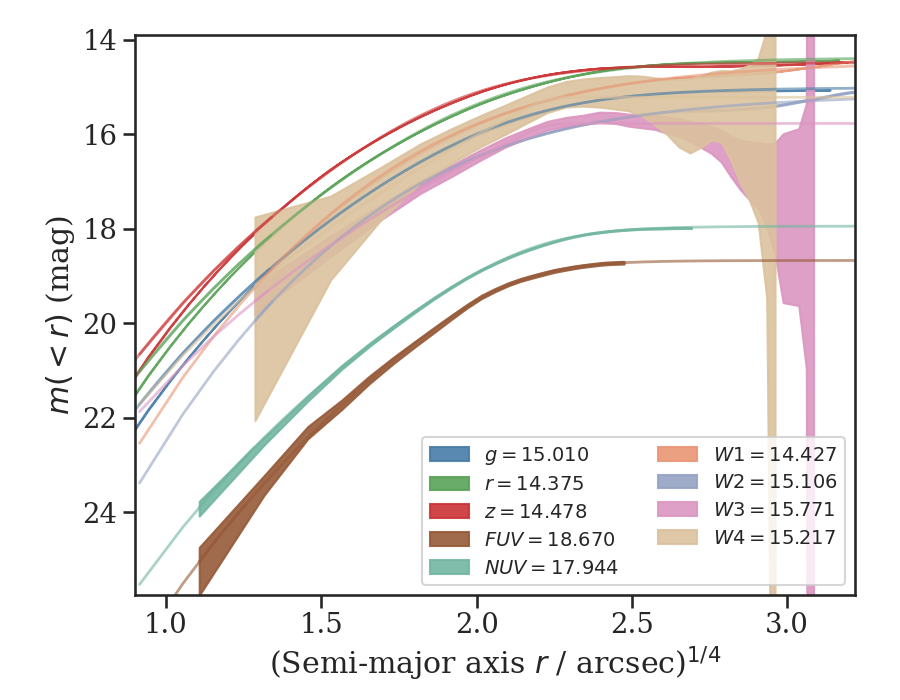

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC04808 | 19.836 | 18.218 | 15.083 | 14.469 | 14.273 | 14.755 | 15.415 | 15.192 | 15.855 | 18.670 | 17.944 | 15.010 | 14.375 | 14.478 | 14.427 | 15.106 | 15.771 | 15.217 |
 |
 |
 |
 |
 |
 |
