| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 3213 | NGC2824 | 139.7593010 | 26.2699802 | 1.3640 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 3213 | NGC2824 | 139.7593010 | 26.2699802 | 1.3640 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC2824 | SER | 4.33 | 6.844 | 160.82 | 0.235 | 15.002 | 160.67 | 0.231 | 25.452 | 37.742 | 50.401 | 4.358 | 4.479 | 4.435 |

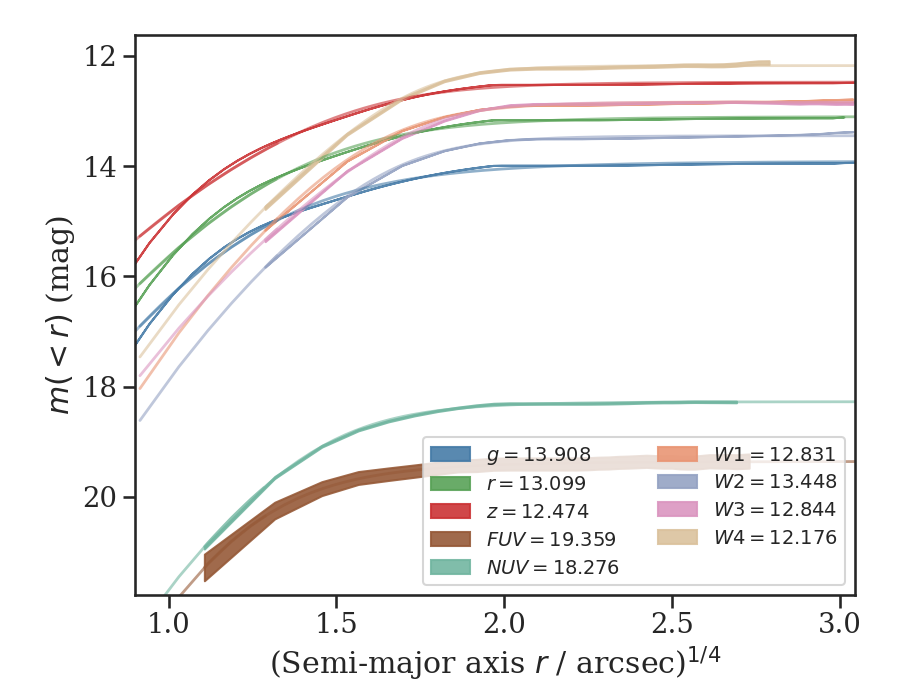

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC2824 | >22.491 | 18.863 | 13.713 | 12.880 | 12.241 | 12.525 | 13.087 | 12.117 | 10.938 | 19.359 | 18.276 | 13.908 | 13.099 | 12.474 | 12.831 | 13.448 | 12.844 | 12.176 |
 |
 |
 |
 |
 |
 |
