| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4987 | UGC05017 | 141.3534914 | 11.0736781 | 2.0378 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4987 | UGC05017 | 141.3534914 | 11.0736781 | 2.0378 |

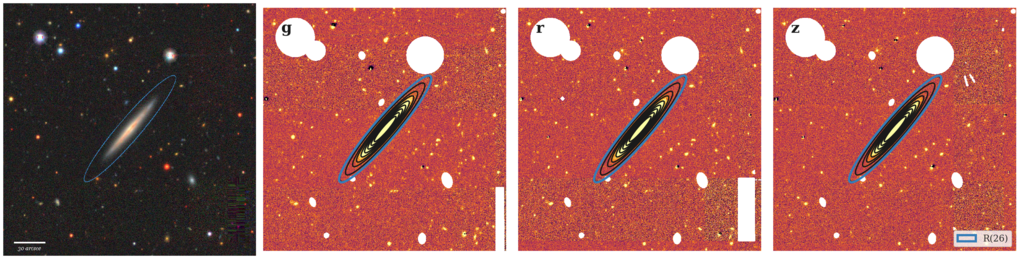

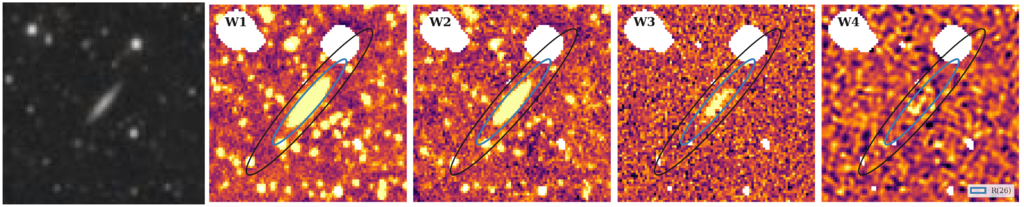

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC05017 | SER | 1.05 | 17.710 | 139.54 | 0.840 | 39.786 | 139.40 | 0.836 | 35.448 | 48.416 | 67.490 | 19.302 | 18.150 | 16.716 |

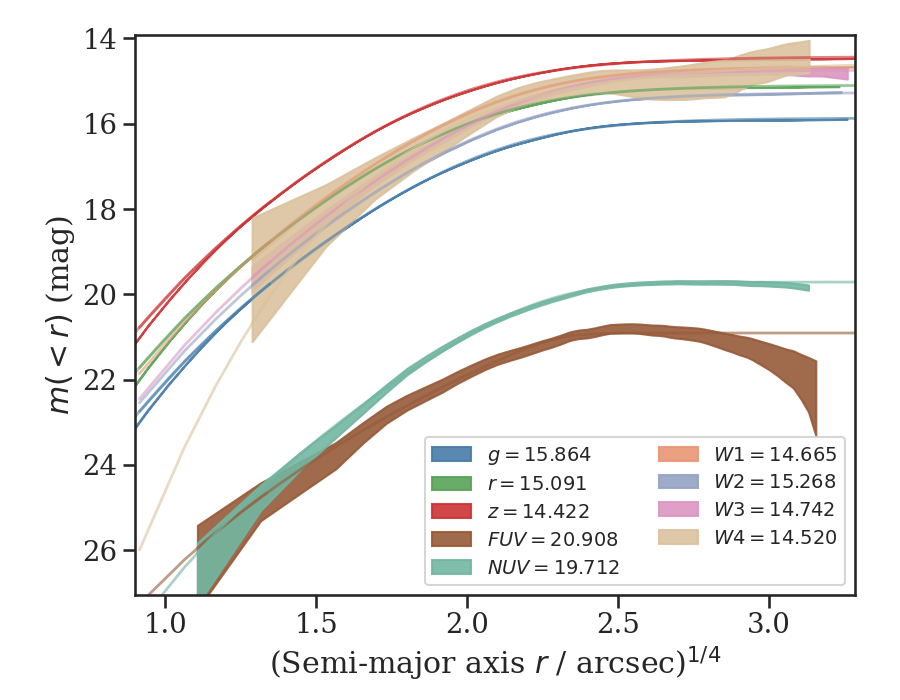

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC05017 | 23.594 | 20.210 | 15.995 | 15.154 | 14.379 | 14.523 | 15.032 | 14.161 | 13.568 | 20.908 | 19.712 | 15.864 | 15.091 | 14.422 | 14.665 | 15.268 | 14.742 | 14.520 |
 |
 |
 |
 |
 |
 |
