| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4600 | NGC3020 | 147.5277705 | 12.8136043 | 4.7008 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4600 | NGC3020 | 147.5277705 | 12.8136043 | 4.7008 |

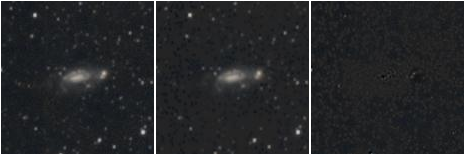

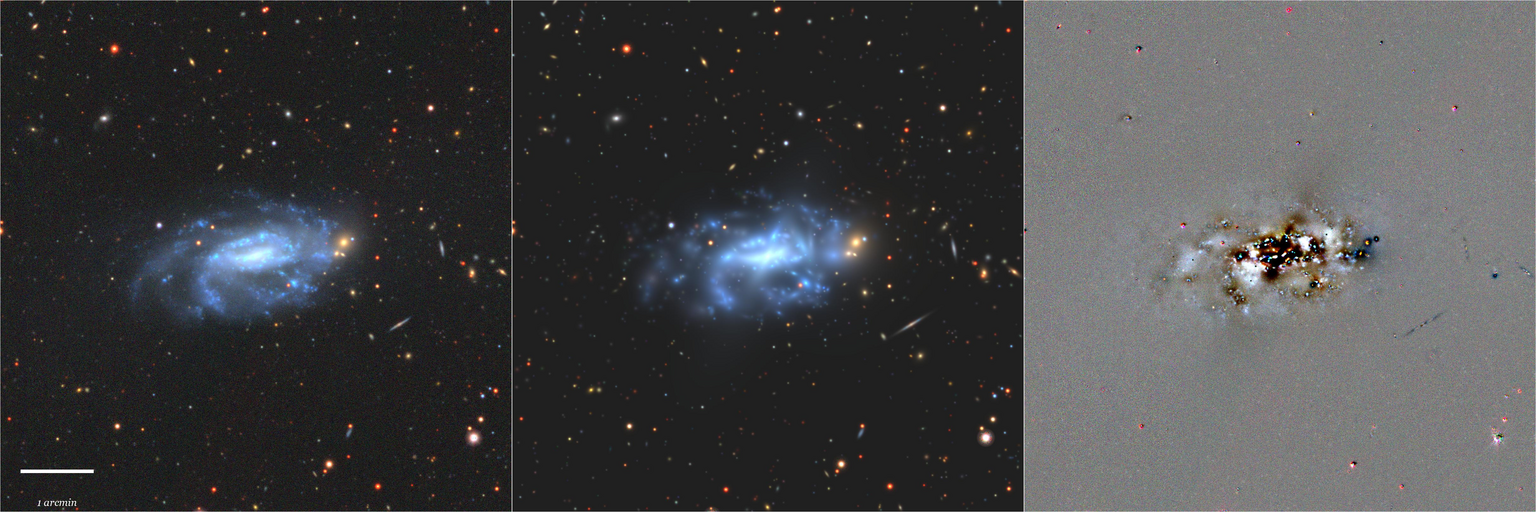

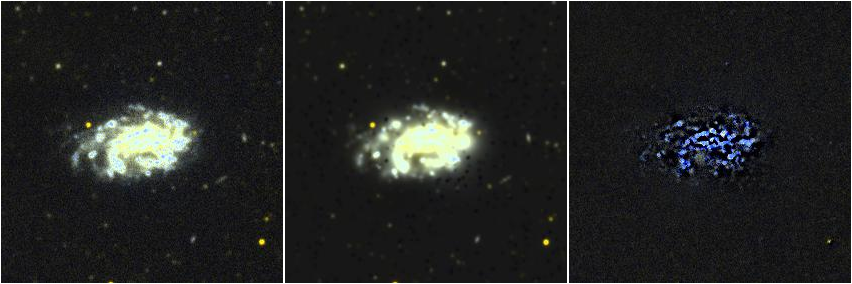

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

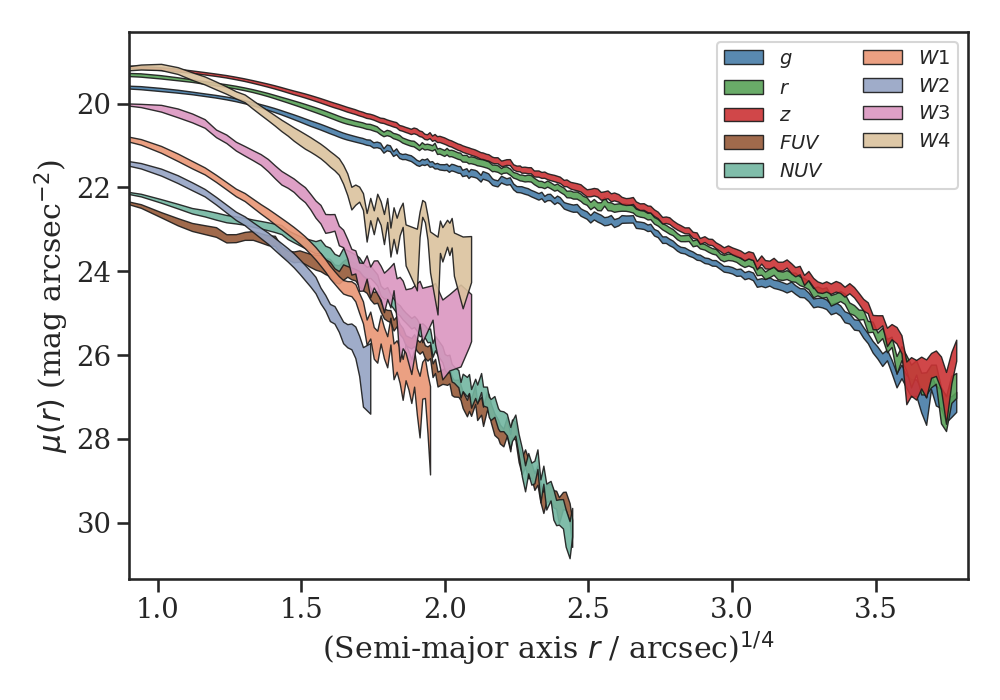

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3020 | SER | 3.20 | 21.756 | 151.90 | 0.667 | 141.025 | 101.24 | 0.615 | 94.765 | 134.494 | 166.572 | 58.674 | 70.899 | 113.160 |

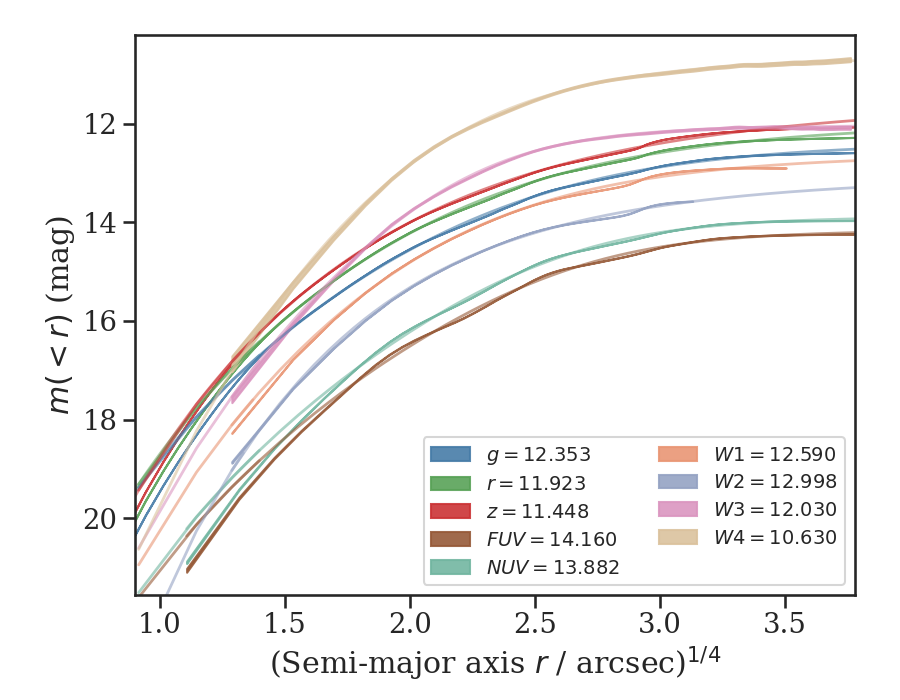

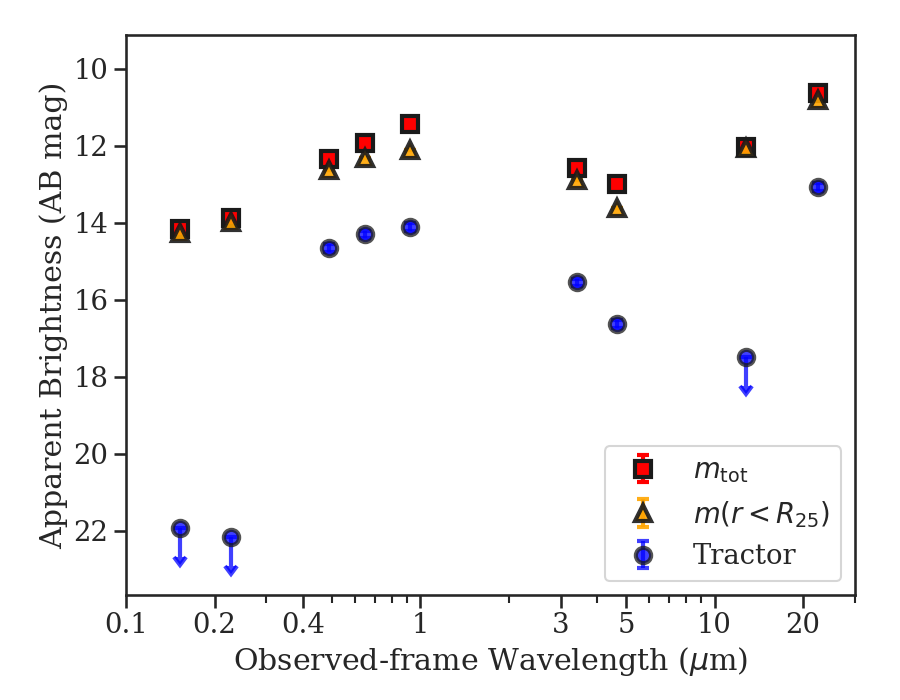

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3020 | >21.935 | >22.163 | 14.664 | 14.305 | 14.110 | 15.549 | 16.621 | >17.489 | 13.073 | 14.160 | 13.882 | 12.353 | 11.923 | 11.448 | 12.590 | 12.998 | 12.030 | 10.630 |
 |
 |
 |
 |
 |
 |
